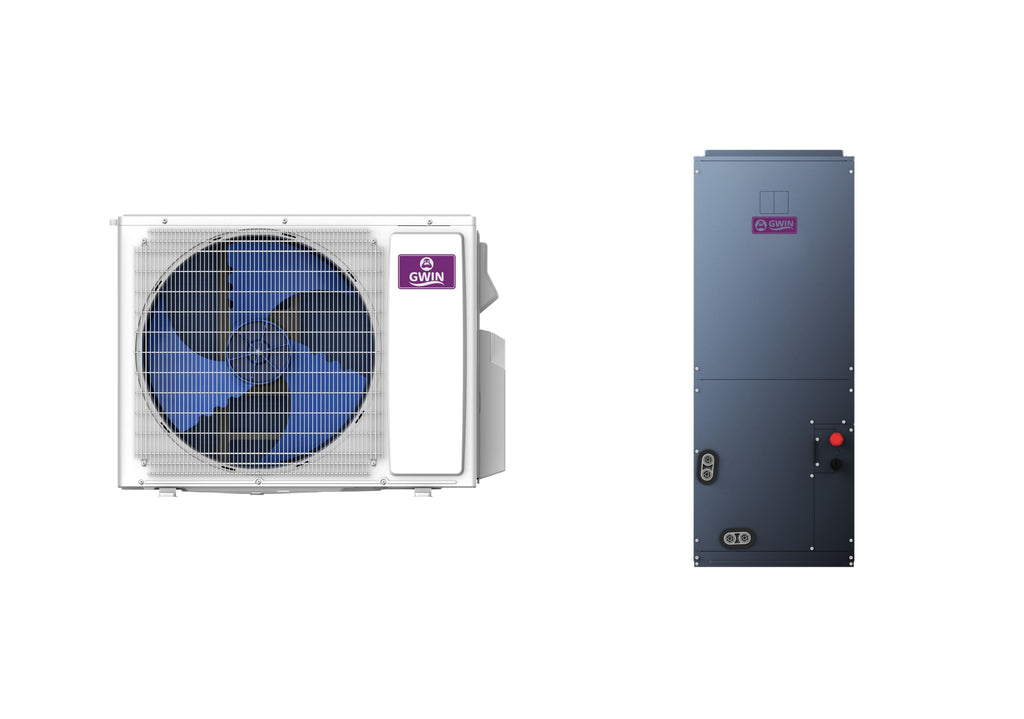

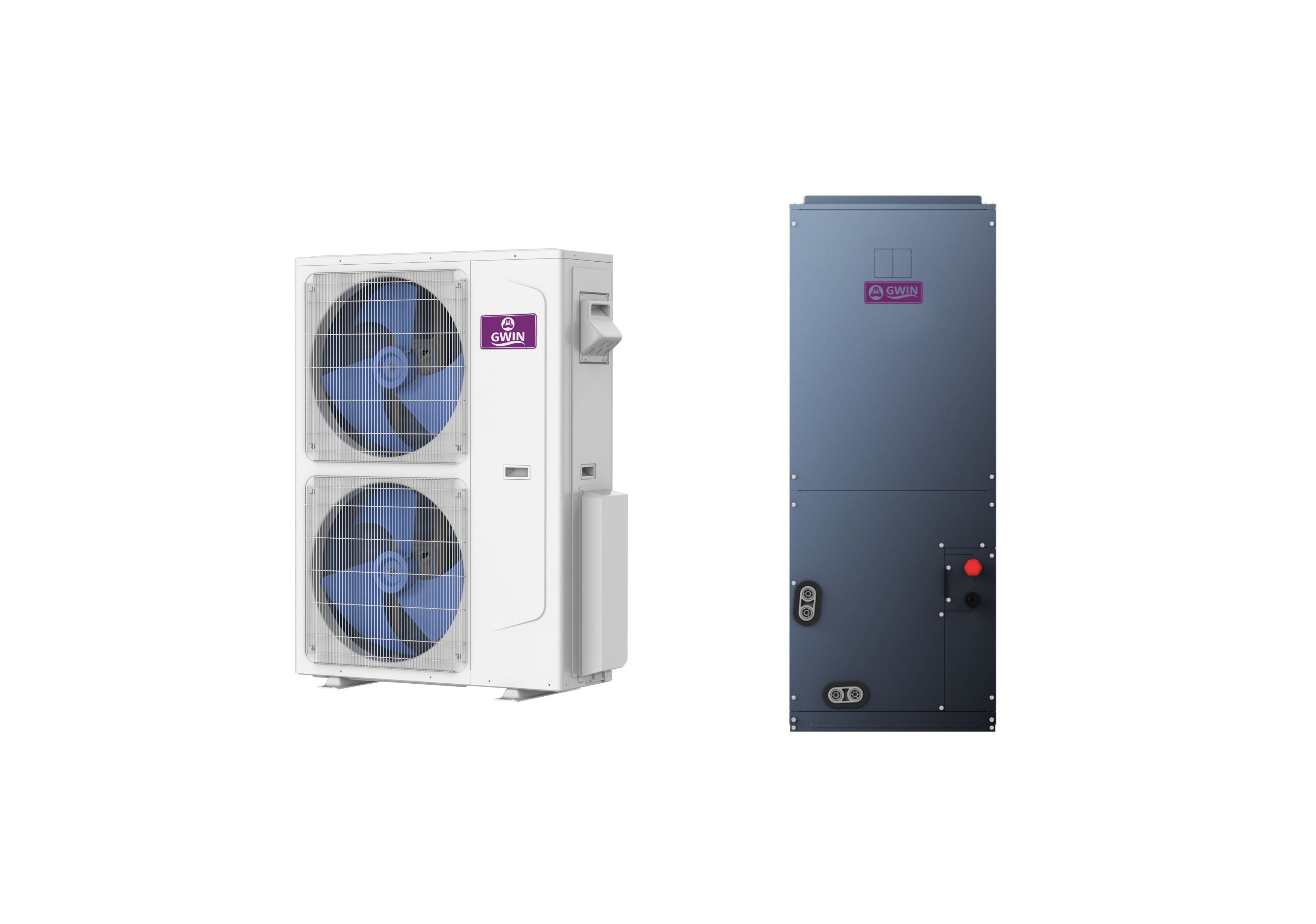

The GWIN Ducted Complete System delivers powerful, high-efficiency comfort with the flexibility of a central ducted layout. Designed for both residential and light commercial applications, this system provides 18,000 to 60,000 BTU capacities, ensuring reliable comfort across spaces of any size.

With SEER2 ratings up to 19.2 and HSPF2 up to 10, GWIN ducted systems combine efficiency with performance, even in extreme temperatures. Featuring R32 refrigerant, inverter compressor technology, and dual communication options, these systems are engineered for energy savings, reliability, and adaptability. Available nationwide from Freedom HVAC Supply.

Key Features

• Capacity Options: 18k, 24k, 30k, 36k, 48k, 60k BTU

• High Efficiency: SEER2 up to 19.2, HSPF2 up to 10, COP up to 3.6

• All-Climate Performance: Heating capacity maintained down to -22°F, cooling up to 125°F

• R32 Refrigerant: Environmentally forward and efficient charge design

• Wide Voltage Range (170–253V): Built-in surge and fluctuation protection

• Flexible Installation: Vertical, horizontal, or inverted mounting options

• Long Piping Design: Up to 164 ft with max elevation of 98 ft for layout flexibility

• Dual Communication: Compatible with both 24V and 485 controls for easy integration

• ESP Capability: Up to 1.0 in. W.C. for versatile ductwork design

• Auto Restart & PCB Cooling: System safeguards for reliability and long life

Applications

• Whole-home central ducted HVAC solutions

• Light commercial buildings, offices, and retail spaces

• Large homes or multi-story residences requiring high static pressure systems
