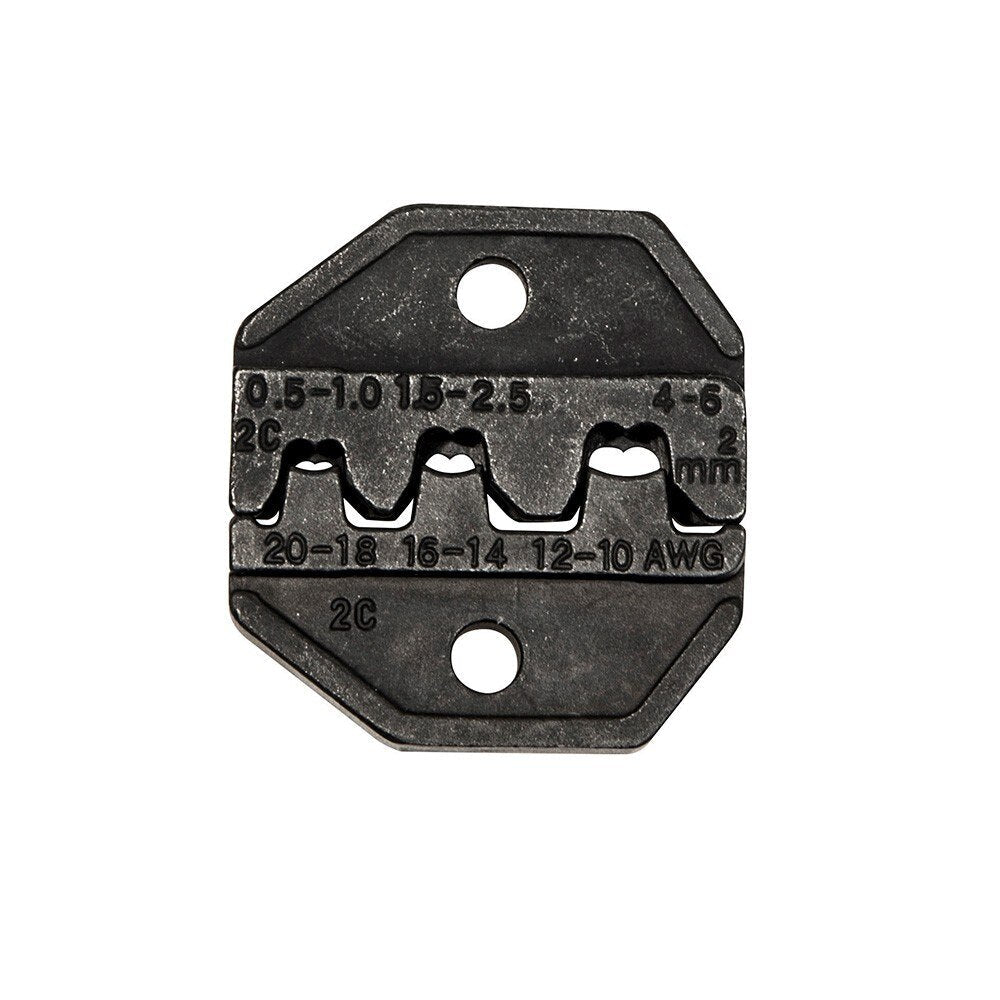

Klein Tools VDV205-036 Crimper Die, Non-Ins, Open Barrel, AWG 10-20
$17.99$27.26
147964
Parcel Delivery (UPS/FedEx)
This product weighs 0.1 lbs and will ship by parcel carrier (UPS or FedEx).
Klein Tools VDV205-036 Description
Klein Tools' VDV205-036 crimper die set is for use with Klein's VDV200-010 insulated terminals (sold separately). Made from induction hardened high-carbon steel for durability and long life. Designed to be easy to change from one to the next.
Klein Tools VDV205-036 Includes
- (1) Crimping Die
Klein Tools VDV205-036 Features
- Precise nest dimensions ensure accurate crimper terminations that meet or exceed common standards
- Die Set only
- Weight: 1.6 ounces
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Additional, optional die sets include: VDV212-034 (CATV F-Connector RG59/6); VDV205-035 (Insulated Terminal AWG10-22); VDV211-037 (RG6/58/59/62)
Klein Tools VDV205-036 Specifications
| Die Set | Non-Insulated Terminal or Open Barrel Terminal, AWG 10-20 |
| Nest Dimension | AWG 20-18/16, 14/12-10 DIN 0.5-1.5-2.5 4 - 6 mm |
| Weight | 2.2 oz (64 g) |
