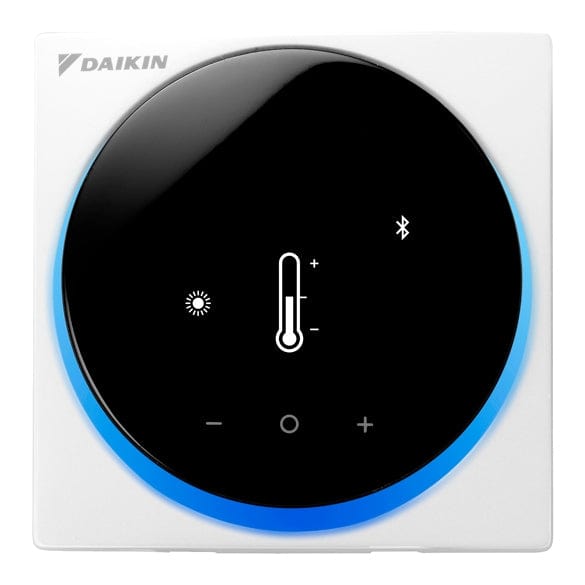

BRC1H71W Madoka Wired Controller (P1P2)

FEATURES:

Compact and stylish design

• Configurable LED light ring (Dimmable/Off) and LCD brightness
• Simple and Intuitive touch buttons and a physical On/Off button
• Selective Display Mode: Text display, Icon display, Scale (Text) display, and Scale (Icon) display
• Display of Temperature and Setpoint in 1°F / °C increments
• Customizable display to show selected information only

Connectivity

• Up to 16 indoor units can be controlled together within one remote controller group
• Within one remote controller group, up to 2 Madoka Remote Controllers can be used, one as a main and one as sub

Leveled user authority

• 3 levels at the controller user, administrator/owner, and installer
• Configurable passwords to access administrator/owner and installer menu in the controller
• 2 levels at the App: administrator/owner and installer

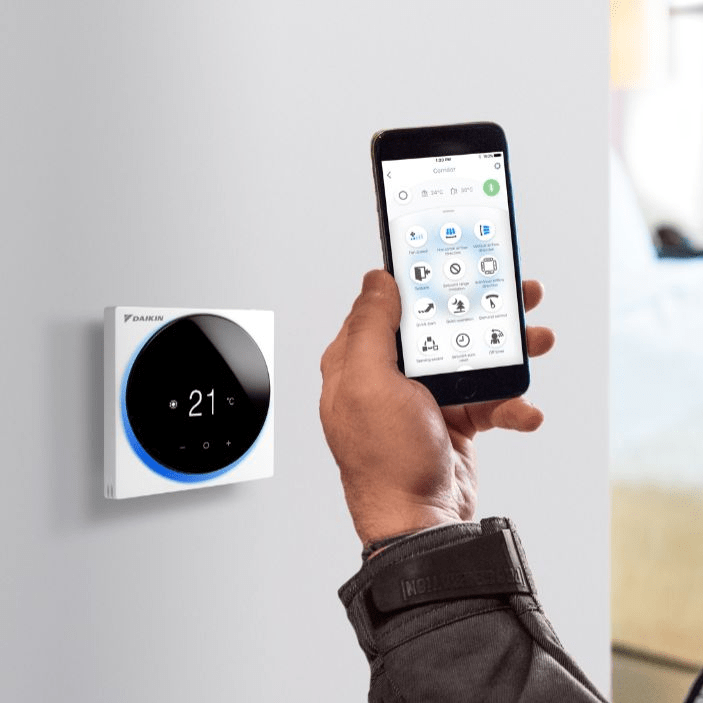

Bluetooth quick configuration app available for both Administrator and Installer

• Can manually set multiple settings at the same time
• Can create and save pre-configuration files

Advanced indoor unit control:

• Temperature sensor built-in with configurable offset
• Dual setpoints (independent cooling and heating setpoints) with configurable minimum setpoint differential or Single Setpoint (occupied period)
• Setpoint range limit for cooling and heating modes
• Independent cooling and heating setback setpoints (unoccupied period)
• Auto changeover control with configurable primary and secondary changeover dead bands and guard timer
• Airflow — Individual air flow direction, dual airflow and auto draft prevention (prevents air blowing directly on occupants).
• Automatic Setback by occupancy sensor*
• Automatic Off by occupancy sensor`
• Configuration for Self-cleaning filter panel"
• Real-time monitoring of system malfunctions with immediate display of unit in error and error code
• Remote controller function prohibition: mode (or prohibit specific modes), fan speed, setpoint •

Advanced features

• Supported language: English, Spanish or French
• Automatic adjustment for Daylight Savings Time (DST)
• 48-hour clock/calendar battery backup

Maunting

• Can mount to a drywall or an electrical component box
• Mounting plates and screws are included
