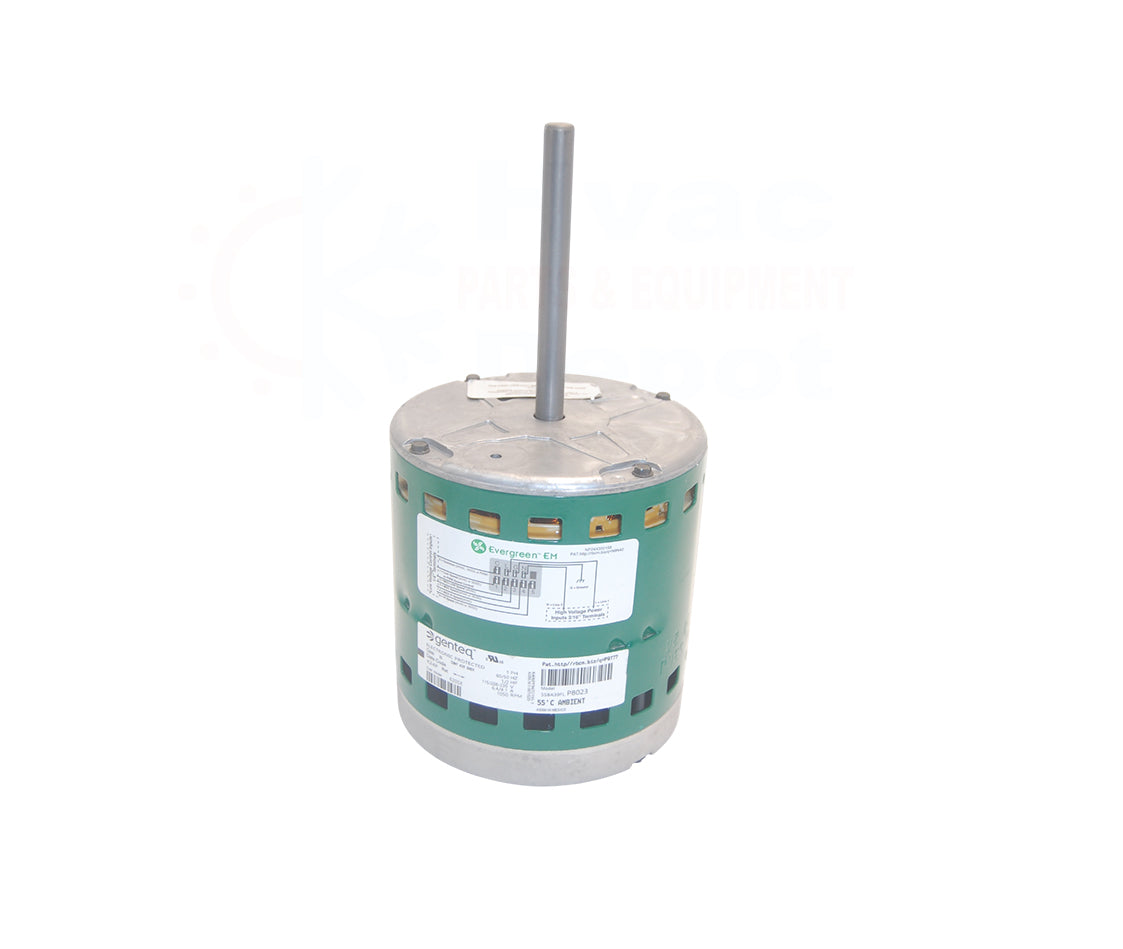

Genteq 6205X Evergreen EM 1/2 HP ECM Motor | X13 Direct Replacement | 115/208-230V

The Genteq 6205X is the ultimate "drop-in" solution for failed X13® constant torque motors, acting as the intelligent command center for your furnace or air handler's airflow. As a dual-voltage, high-efficiency ECM replacement, the 6205X is engineered to restore factory-spec performance to residential and light commercial systems. This motor serves as the "system stabilizer," utilizing rotation sensing technology to automatically determine the correct direction (CW or CCW) upon startup. Designed to replace the aging or failed "FM19" modules, the 6205X eliminates the need for complex OEM programming while providing the same exact 5-speed tap inputs and 16-pin communication logic as the original factory motor.

Key Features

• Plug-and-Play OEM Fit: Specifically engineered to replace part number 6205X, utilizing the exact same wiring harness and 5-speed tap configuration as your original X13 motor.
• Auto-Rotation Sensing: Features advanced internal logic that automatically sets the airflow direction, fixing common "wrong rotation" installation errors without manual jumpers.
• Constant Torque Technology: Maintains consistent CFM even as static pressure changes, ensuring your evaporator coil doesn't freeze and your heat exchanger doesn't overheat.
• Dual-Voltage Versatility: Supports both 115V and 208-230V applications, making it the most versatile 1/2 HP truck-stock motor for universal servicing.
• Enhanced Surge Protection: Built with integrated 4kV surge protection and electronic overload monitoring to prevent the common module burnouts found in older 5SME39 series motors.

Product Details

• Brand: Genteq (Evergreen EM)
• Manufacturer: Regal Rexnord
• Part Number: 6205X
• UPC: 694045233261
• SKU: GEN-6205X-EM
• Weight: 12.8 lbs
• Horsepower: 1/2 HP
• Voltage: 115/208-230 VAC (Dual Voltage)
• Amperage: 6.4A (115V) / 4.1A (230V)
• Speeds: 5 Discrete Speeds (PWM Compatible)
• RPM: 1075-1200 RPM
• Frame: 48 (5.6-inch diameter)
• Shaft: 1/2" Diameter x 4-15/16" Length (with Flat)
• Bearings: Permanently Lubricated Ball Bearings

🛠️ HVAC Depot Pro Tip

Take a Picture First: Before pulling the 5-speed tap wires from your old X13 module, photograph the color-coded sequence. The Genteq 6205X uses the same terminal layout, but ensuring your "High" and "Low" speed taps are returned to the correct 1-5 terminals is critical for proper dehumidification and heating rise. Installation Note: Ensure your belly-band mount is tightened specifically on the motor shell and not over the cooling vents or the electronic control module to prevent vibration-induced "module chatter."

Cross-Reference

• Superseded/Legacy:

  6105E, 6205E, 6205, X13, FM19

• Genteq 5SME39 Series:

  5SME39HXL015A, 5SME39HXL025A, 5SME39HXL053A, 5SME39HXL184, 5SME39HXL213, 5SME39HXL3016, 5SME39DXL161

• Carrier/ICP Equivalents:

  HD42AR226, HD42AQ234, HK42ER210, HK42ER211, HD44AE156

• Trane/American Standard:

  X70370580020, MOT12293, MOT12294, MOT12295, MOT17042

• Rheem/Ruud:

  51-101879-01
• Goodman/Amana: D672366G29, D672366G30, D672366G31

Model Compatibility

• Carrier/Bryant/Payne

  (Suffixes: HD42, HK42, HD44, 1173782, 1173783, 1173784)

• Goodman/Amana/Janitrol

  (Suffixes: G30, G31, D672366)

• Trane/American Standard

  (Suffixes: MOT12293, MOT12294, MOT17018, MOT17042)

• Lennox/Armstrong/Ducane

  (Suffixes: 5SME39, 6205X)

• Nordyne/Nortek

  (Suffixes: 6205E, 6205X)

• York/Luxaire/Coleman

  (Suffixes: 5SME39HXL)
