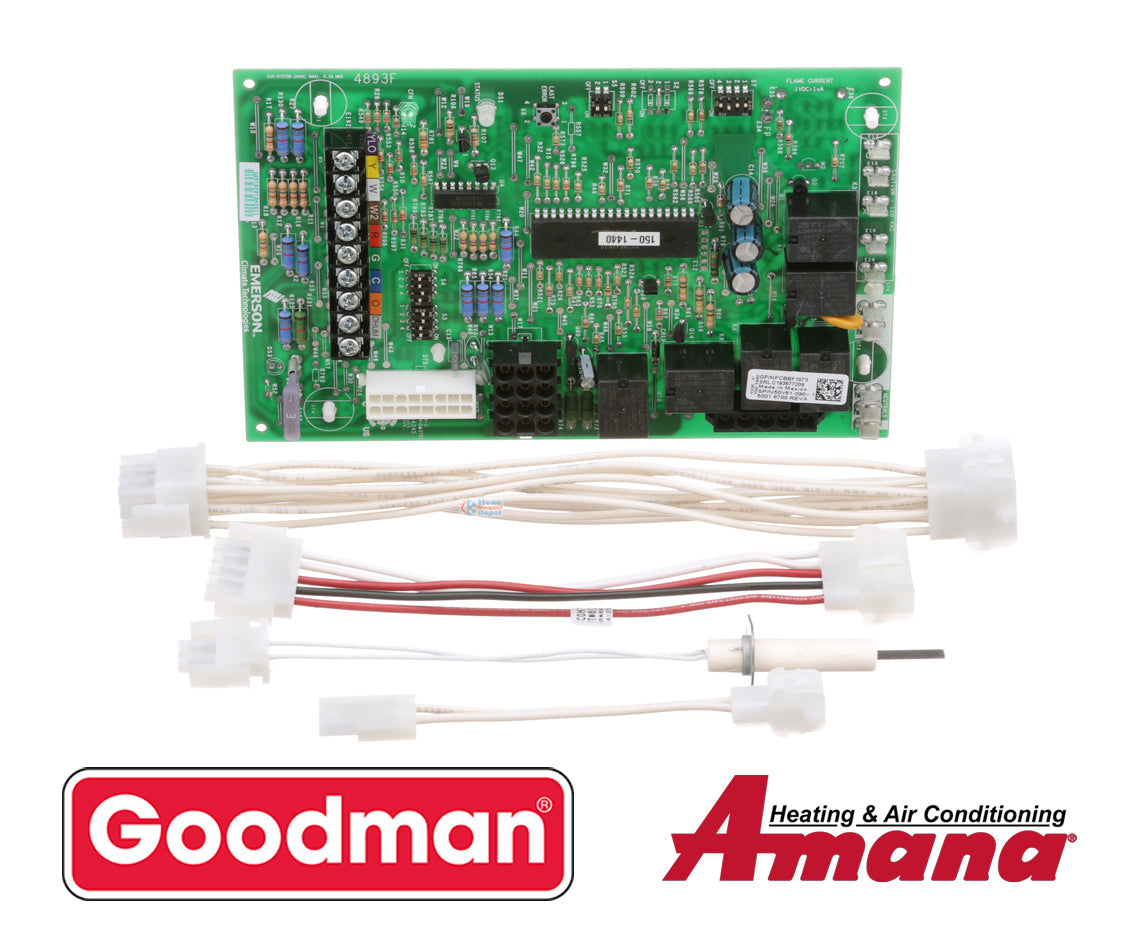

Goodman Amana Janitrol PCBBF124S Furnace Control Board | 120V Integrated Ignition PCB

The PCBBF124S is a high-performance OEM Integrated Furnace Control (IFC) board that serves as the sophisticated "brain" for Goodman, Amana, and Janitrol heating systems. This 120V ignition control manages the critical timing and safety protocols of your furnace, regulating the inducer motor, gas valve, hot surface igniter, and blower cycles in a precise sequence. Specifically engineered for the GMS8, GDS8, and GHS8 series, this factory-authorized Service Pack ensures your furnace operates at peak efficiency while maintaining strict safety standards. By choosing a genuine Goodman board, you maintain the internal logic required for consistent flame sensing and limit-switch monitoring, protecting your home from potential combustion hazards.

Key Features

• Exact OEM Service Pack Fit: Designed as the direct factory replacement for part number PCBBF124S, ensuring 100% terminal-to-terminal compatibility with your existing 120V wiring harness.
• Optimized Ignition Logic: Features upgraded internal relays designed to fix specific "clicking" or "sticking" issues that cause intermittent ignition failure or blower motor startup delays.
• Safety Monitoring Suite: Provides continuous oversight of the flame sensor and high-limit circuit, immediately shutting down gas flow if unsafe operating conditions or flame rollouts are detected.
• Integrated Diagnostics: Equipped with an onboard LED indicator that flashes specific fault codes, simplifying troubleshooting for pressure switch open, ignition lockout, or reversed polarity.
• OEM Fit & Function: Engineered specifically for Goodman's cabinet architecture, ensuring all mounting holes and wire terminals align perfectly for a secure, professional installation.

Product Details

• Brand: Goodman / Amana / Janitrol
• Manufacturer: Goodman Manufacturing
• Part Number: PCBBF124S
• Weight: 1.10 lbs
• Voltage: 120V (Line) / 24V (Control)
• Ignition Type: HSI (Hot Surface Ignition) Support
• Blower Support: Multi-Speed PSC Motors
• Fuse Protection: Integrated 5-Amp Automotive Style Fuse

🛠️ HVAC Depot Pro Tip

Before removing any wires from your old control board, take a high-resolution picture of the existing connections. Pay close attention to the individual thermostat terminals (R, W, Y, G, C) and the neutral bank. When installing the new PCBBF124S, ensure the furnace power is disconnected at the breaker to avoid blowing the onboard fuse. After installation, verify the LED "heartbeat" on the board; a steady green or amber light typically indicates normal operation, while a specific flash count will point you toward any remaining sensor or pressure switch issues.

Cross-Reference

This control board is a direct replacement or equivalent for the following legacy and technical part numbers:

• Superseded Part: PCBBF124
• Legacy Numbers: 0130F00005, 0130F00005S, PCBBF101, PCBBF101S
• Drawing Numbers: 50T35-743, 50T35-843
• White-Rodgers/Emerson Equivalents: 50T35-730

Model Compatibility

This board is verified for use in the following Goodman and Amana furnace families:

Goodman GMS8 / GDS8 / GHS8 Series

• GMS8 (Suffixes: 0403AN, 0603AN, 0804BN, 1005CN, 1205DN)
• GDS8 (Suffixes: 0403AN, 0603AN, 0804BN, 1005CN)
• GHS8 (Suffixes: 0403AN, 0603AN, 0804BN)

Amana AMS8 / ADS8 Series

• AMS8 (Suffixes: 0403AN, 0603AN, 0804BN, 1005CN)
• ADS8 (Suffixes: 0403AN, 0604BN, 0805CN)
