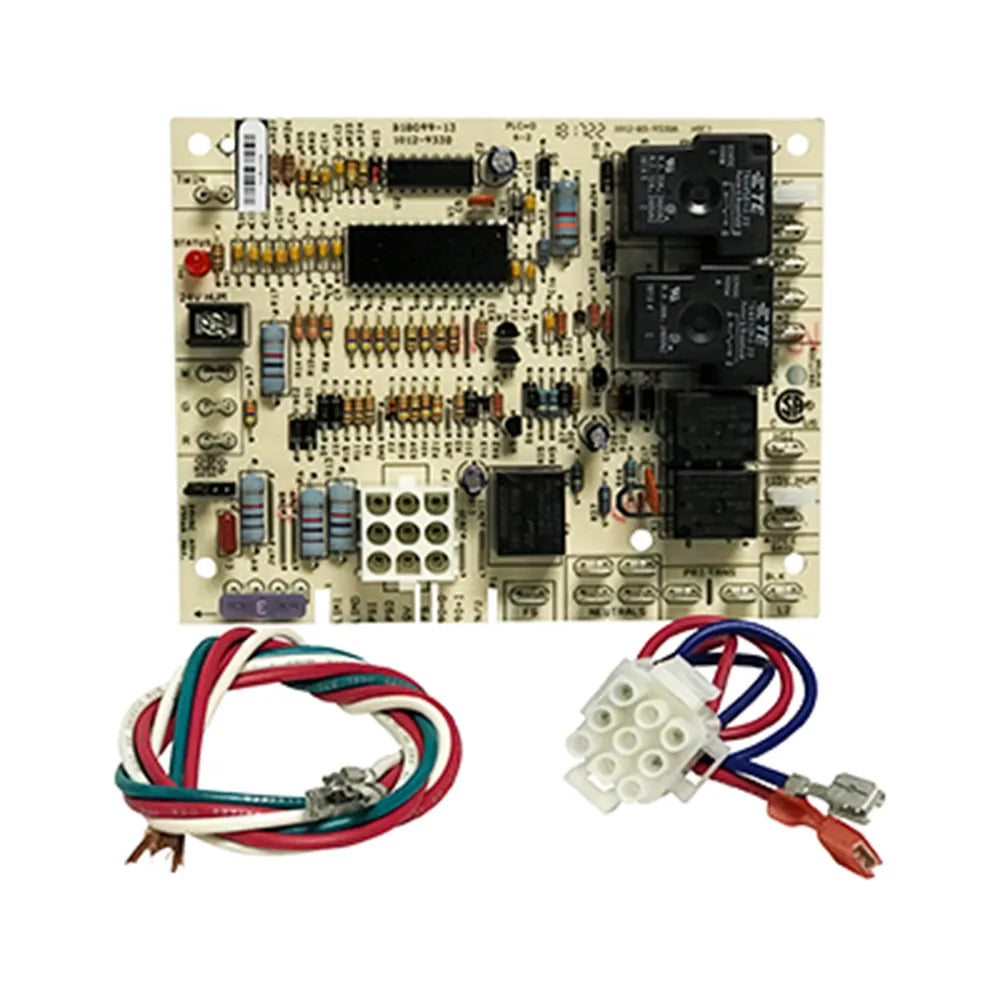

Goodman PCBDM133S Integrated Furnace Control Board – Genuine OEM 30V 6.4" Wide Logic Board

The Goodman PCBDM133S Integrated Control Board is the sophisticated "brain" of your gas furnace, responsible for orchestrating every stage of the heating and cooling cycle. This 30V-rated circuit board governs the critical timing of the inducer motor, the ignition sequence, and the blower motor speeds. Specifically engineered for Goodman, Amana, and Janitrol furnace series, the PCBDM133S utilizes microprocessor logic to monitor safety limit switches and flame sensors in real-time. By providing constant diagnostic oversight, it prevents hazardous operation and ensures your furnace series maintains factory-specified efficiency and comfort levels.

Key Features and Function:

• Precision System Management: Controls the staggered startup of the combustion blower and the circulating fan to maximize heat exchanger life and home comfort.
• Genuine OEM Reliability/Fitment: This factory-authorized board is a direct-fit electronic replacement, ensuring all wiring harness multi-pin connectors align perfectly without modifications.
• Advanced Safety Monitoring: Continuously scans the flame sensor and high-limit circuits; if a fault is detected, the board triggers an instant safety shutdown.
• Onboard Diagnostic LED: Features a high-visibility status light that flashes specific codes to identify pressure switch failures, ignition lockouts, or limit trips for rapid troubleshooting.

Product Details and Key Specifications:

• Part Number: PCBDM133S (Replaces PCBDM133, 0130F00006)
• Manufacturer: Goodman / Amana (Genuine OEM)
• Part Type: Integrated Furnace Control Board (IFC)
• Voltage: 30 VAC Max (24V Nominal Control)
• Width: 6.4 inches
• Phase / Hertz: Single-phase (1PH) / 60 Hz
• Blower Settings: Adjustable Heat/Cool Fan Delay Off Timings
• Shipping Weight: 1.2 lbs

🛠️ HVAC Depot Pro Tip: "Take a Picture First"

Before removing a single wire from your old control board, use your phone to take a high-resolution photo of the terminal layout. The PCBDM133S manages multiple voltages (120V for motors and 24V for the thermostat); swapping a "Line" wire with a "Low Voltage" wire will instantly destroy the board and potentially the furnace transformer. During your Diagnostic Check, ensure the furnace is properly grounded; if the board cannot "see" a ground path, it will fail to sense the flame and cause the system to shut down 2-5 seconds after ignition.

Cross-Reference & Compatibility:

The PCBDM133S is a direct OEM replacement for the following part numbers:

• OEM Numbers: PCBDM133, 0130F00006, 0130F00006S
• White-Rodgers: 50A65-120, 50A65-288, 50A65-289
• Honeywell: S9200U1000 (Universal replacement path)
• Legacy Numbers: B1809926, B1809921

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

• Goodman GMS8 Series: GMS80403AN, GMS80603AN, GMS80804BN, GMS81005CN
• Goodman GDS8 Series: GDS80403AX, GDS80603AX, GDS80804BX, GDS81005CX
• Goodman GMH95 Series: GMH950453BX, GMH950703BX, GMH950904CX
• Amana AMES8 Series: AMES80403AN, AMES80603AN, AMES80804BN
• Janitrol Units: Fits various legacy 80% and 90% AFUE Janitrol furnace cabinets.
• GMC Units: Compatible with several legacy gas-heating configurations requiring integrated control.
