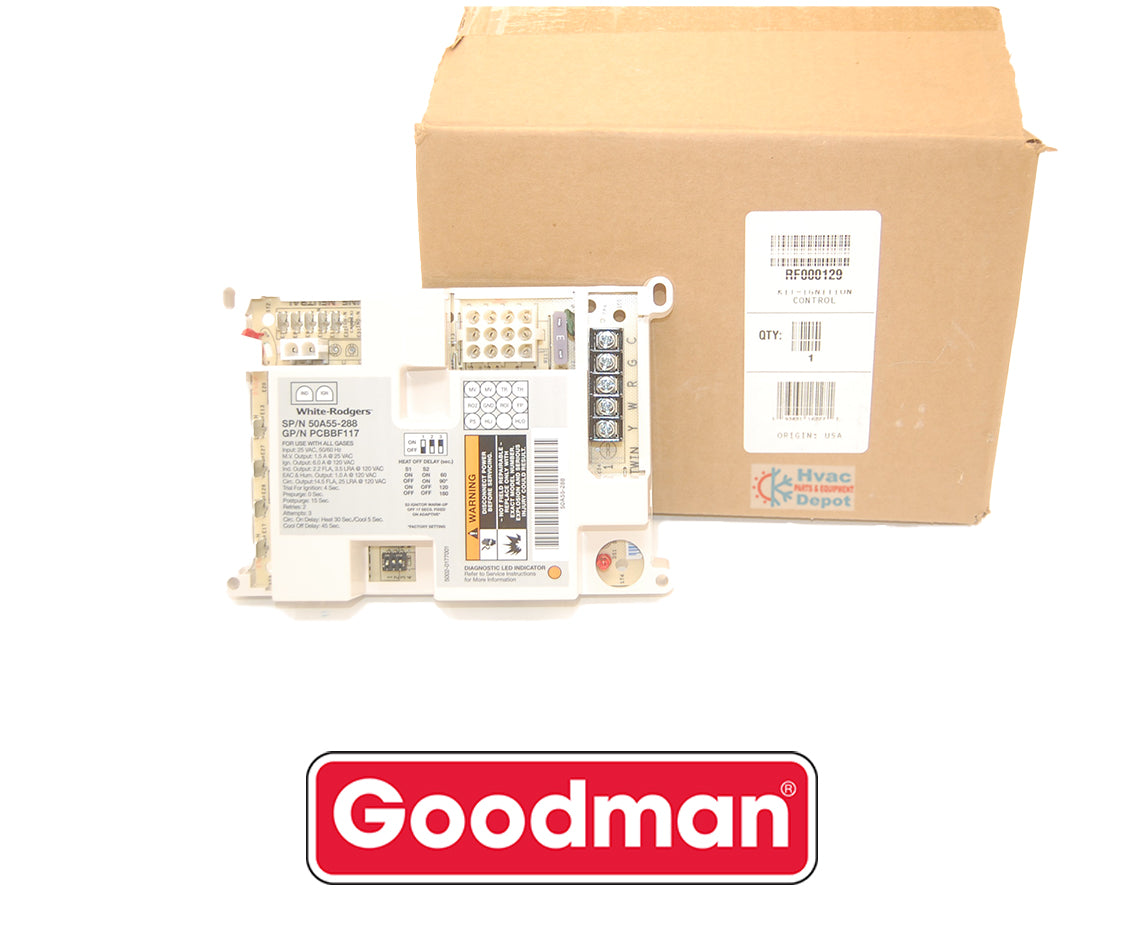

Goodman RF000129 Ignition Control Kit – Genuine OEM 24V Electronic Ignition Module

The Goodman RF000129 Ignition Control Kit is the high-intelligence "brain" responsible for managing the startup and safety monitoring of your gas furnace or package heating unit. This 24V electronic control governs the critical timing of the inducer motor, the energizing of the igniter, and the opening of the gas valve. Specifically engineered for Goodman, Amana, and Janitrol furnace series, this kit features integrated microprocessor logic to monitor the flame sensor throughout the heating cycle. By ensuring that gas is only released when a viable ignition source is present, it acts as the primary safety gatekeeper, preventing hazardous gas buildup and ensuring your system operates at peak factory-rated reliability.

Key Features and Function:

• Precision Combustion Management: Controls the trial-for-ignition timing and blower delays to ensure a smooth, staggered startup that protects the heat exchanger.
• Genuine OEM Reliability/Fitment: This factory-authorized kit is a "drop-in" electronic replacement, ensuring all wiring harness connections and mounting footprints align perfectly with the original cabinet.
• Advanced Safety Monitoring: Continuously checks for flame rectification and high-limit trips; if a safety fault occurs, the board instantly shuts down the gas valve and provides diagnostic codes.
• Heavy-Duty Electrical Build: Designed with high-dielectric components to resist the thermal stress and electrical noise common in 24V residential and light commercial HVAC environments.

Product Details and Key Specifications:

• Part Number: RF000129 (Replaces 0130F00005, 0130F00005S)
• Manufacturer: Goodman / Amana (Genuine OEM)
• Part Type: Electronic Ignition Control Board
• Voltage: 24 VAC
• Amperage: 1.0 Amp (Inducer/Gas Valve Load)
• Width: 6.4 inches
• Phase / Hertz: Single-phase (1PH) / 60 Hz
• Trial for Ignition: 4 to 7 Seconds (Nominal)
• Shipping Weight: 1.1 lbs

🛠️ HVAC Depot Pro Tip: The "Grounding" Check

When installing the RF000129 Ignition Kit, ensure the mounting screws are tight and the furnace cabinet is properly grounded. Electronic ignition boards rely on a "Flame Rectification" signal that travels through the burner flame back to the chassis ground; a weak ground will cause the board to drop the flame signal, leading to a "Short Cycling" error where the furnace shuts down 2–5 seconds after lighting. During your Diagnostic Check, always watch the onboard LED for flash codes before removing the old board to confirm the failure is not an external limit switch or pressure switch.

Cross-Reference & Compatibility:

The RF000129 is a direct OEM replacement for the following part numbers:

• OEM Numbers: 0130F00005, 0130F00005S, PCBBF112S, PCBBF110S
• White-Rodgers: 50A55-743, 50A55-289
• Honeywell: S9200U1000 (Universal equivalent)
• Legacy Numbers: B1809926, B1809926S

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

• Goodman GMS Series: GMS80403AN, GMS80603AN, GMS80804BN, GMS81005CN
• Goodman GDS Series: GDS80403AX, GDS80603AX, GDS80804BX, GDS81005CX
• Goodman GMH Series: GMH950453BX, GMH950703BX, GMH950904CX
• Amana AMES Series: AMES80403AN, AMES80603AN, AMES80804BN
• Package Units: GPG, GPH, APG, APH series gas-electric units requiring 24V ignition control.
