GWIN 2 Ton - 24,000 BTU - 19 SEER2 Inverter Ducted Complete HVAC System

Deliver year-round comfort and energy-efficient performance with the GWIN 2 Ton (24,000 BTU) Inverter Ducted HVAC System. Built to handle extreme temperatures, this ducted system features advanced inverter technology, flexible installation, and high SEER2 ratings to maximize performance and savings.

Key Comfort & Performance Features

• High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
• Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
• Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
• Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
• Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
• Dual Communication: Compatible with 24V and 485 control systems for easy integration.
• Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
• ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

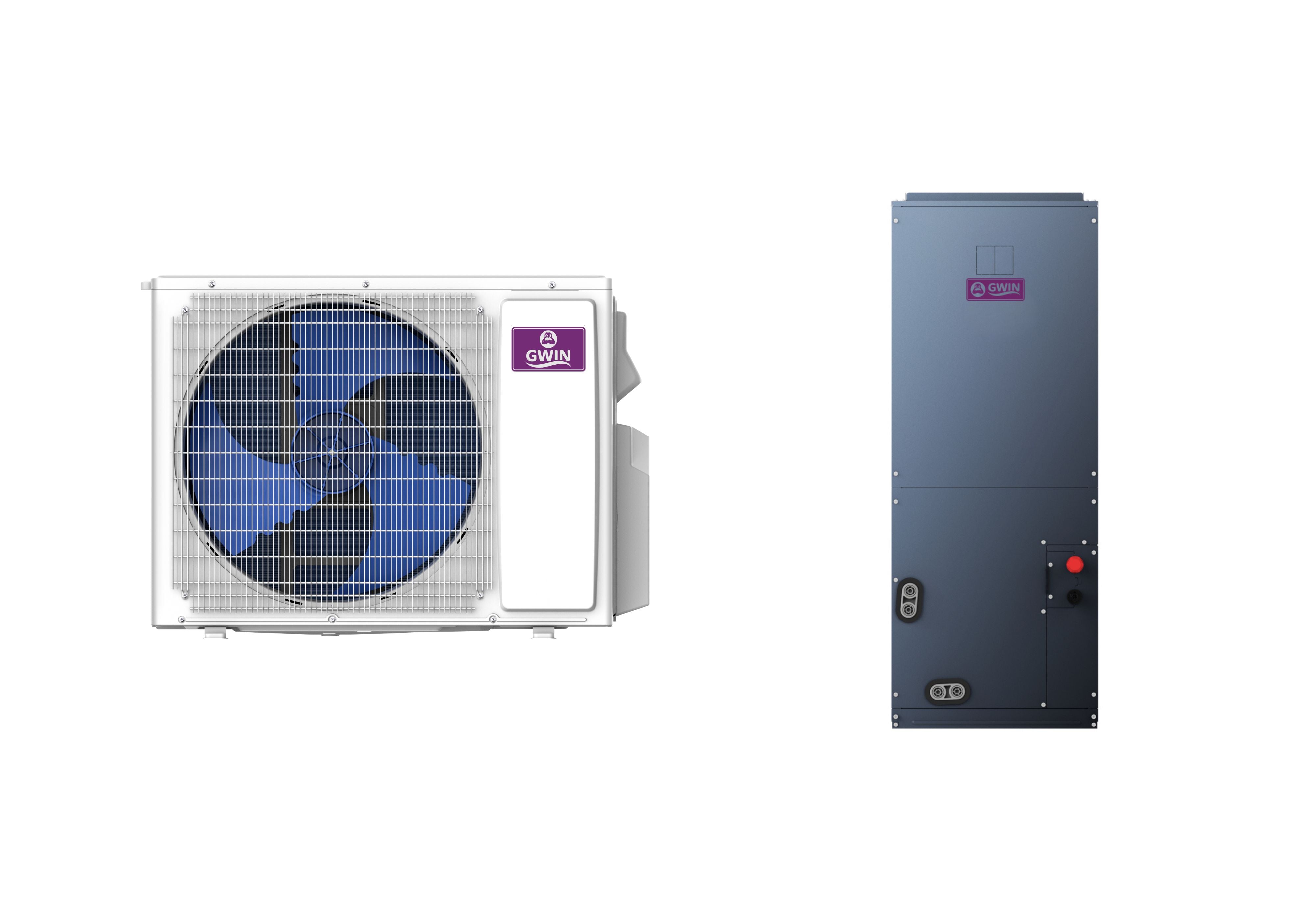

Complete System Includes

• Indoor Air Handler: Model GAHU24HPV1BI
• Outdoor Condenser: Model GAHU24HPV1BO
• AHRI Certified #: 216032393

Air Handler Specifications

• Cooling Capacity: 24,000 BTU (Range: 7,000–26,000 BTU)
• Heating Capacity: 26,000 BTU at 47°F (Range: 5,000–30,000 BTU)
• Power Supply: 208/230V, 60Hz, Single Phase
• SEER2: 19.00 | EER2: 11.00 | HSPF2 (Region IV): 9.50
• Indoor Airflow (CFM): 800 / 680 / 560
• Noise Level (dB): 49 / 47 / 45
• ESP Range: 0–1.0 in.w.g (Rated at 0.5)
• Operating Temperature: 61°F–90°F (16°C–32°C)
• Dimensions (W x D x H): 17.5" x 21" x 51.56"
• Line Set: Liquid 3/8" | Gas 5/8"
• Max Piping: 164 ft Length | 98 ft Height

Condenser Specifications

• Cooling Temp Range: 5°F ~ 125°F (-15°C ~ 52°C)
• Heating Temp Range: -22°F ~ 75°F (-30°C ~ 24°C)
• Air Flow Volume: 2,471 CFM
• Noise Level: 57 dB(A)
• Power Supply: 208/230V, 60Hz, Single Phase
• Max Power Consumption: 3,900W | Max Current: 20A
• MCA / Max Fuse: 21A / 30A
• Recommended Breaker: 25A
• Dimensions (W x D x H): 41.19" x 17.94" x 31.81"
• Refrigerant Charge: 81.13 oz
• Line Set: Liquid 3/8" | Gas 5/8"
• Max Piping: 164 ft Length | 98 ft Height

Why Choose the GWIN 2 Ton Inverter Ducted System?

• Ideal for residential or commercial properties requiring efficient ducted installations.
• Advanced inverter technology lowers energy costs and improves indoor comfort.
• Supports installation in varying layouts and conditions, thanks to flexible mounting and piping ranges.
• Quiet operation with minimal indoor and outdoor noise.
• Tested and certified to meet AHRI 210/240 standards.

Notes: Specifications and data are based on laboratory testing and may vary with installation conditions. © 2025 GWIN LLC (USA) Inc.
