GWIN 5 Ton – 60,000 BTU – 16.5 SEER2 Inverter Ducted Complete HVAC System

Achieve powerful, whole-home comfort with the GWIN 5 Ton (60,000 BTU) Inverter Ducted HVAC System. Built for large residential and light commercial spaces, this complete system delivers 16.5 SEER2 efficiency, reliable performance in extreme temperatures, and flexible installation options to simplify new installs and retrofits.

Key Comfort & Performance Features

• High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
• Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
• Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
• Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
• Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
• Dual Communication: Compatible with 24V and 485 control systems for easy integration.
• Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
• ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

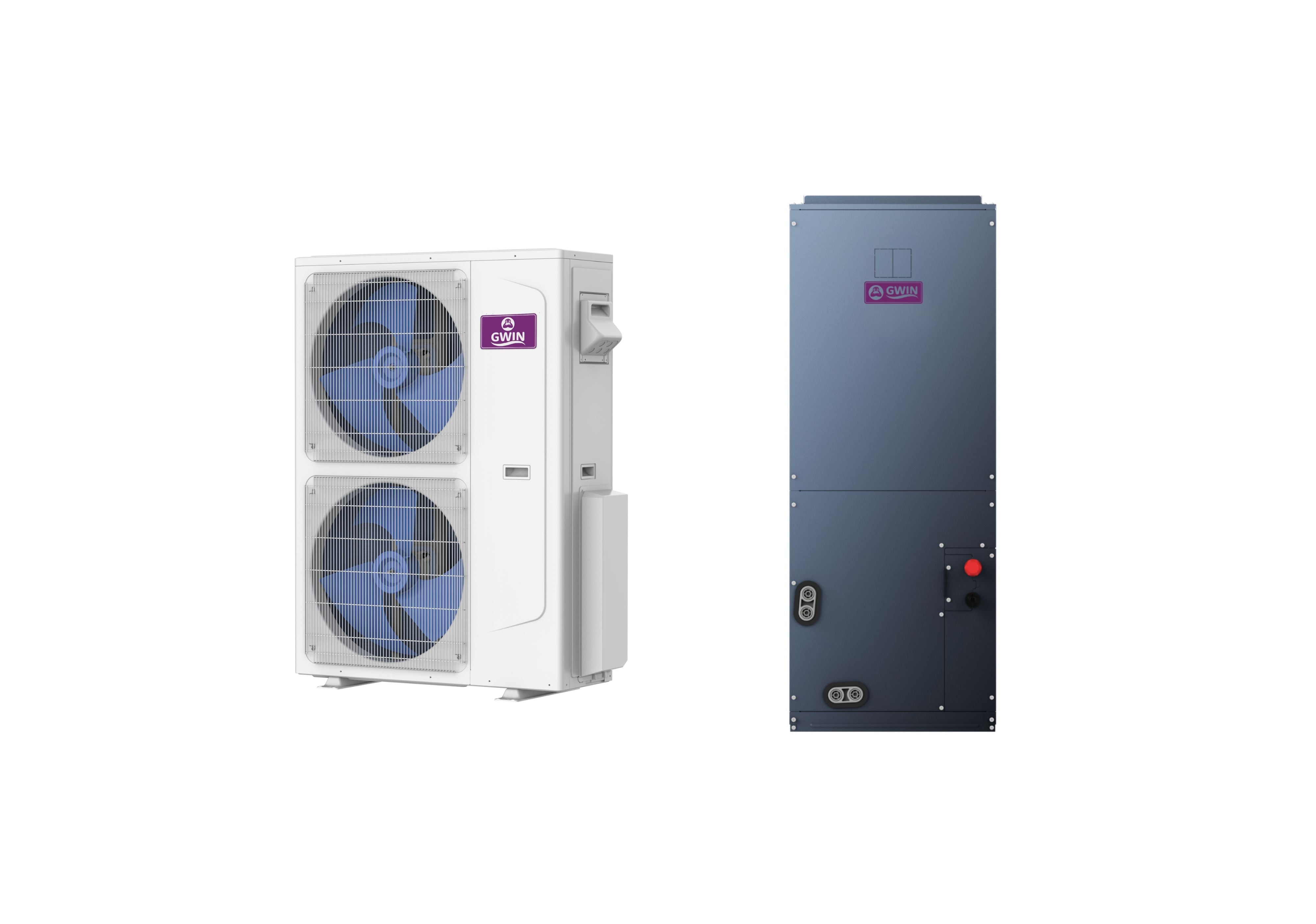

Complete System Includes

• Indoor Air Handler: Model GAHU60HPV1BI
• Outdoor Condenser: Model GAHU60HPV1BO
• AHRI Certified System Number: 216032397

Indoor Air Handler Specifications (GAHU60HPV1BI)

• Cooling Capacity (Rated): 55,000 BTU (Range: 9,500–57,000 BTU)
• Heating Capacity @ 47°F (Rated): 55,000 BTU (Range: 9,000–58,000 BTU)
• Power Input (Rated): Cooling 5,789 W; Heating @ 47°F 4,885 W
• Power Supply: 208/230V, 60Hz, 1-Phase
• Rated Current: Cooling 25.69 A; Heating 21.67 A
• MCA / Max Fuse (Indoor): 8.5 A / 15 A
• Efficiency: SEER2 16.50 | EER2 9.50 | HSPF2 (Region IV) 9.50 | COP 3.30
• Airflow (CFM): 1800 / 1490 / 1180 (Hi/Mi/Lo)
• Sound Pressure (dB[A]): 54 / 52 / 50 (Hi/Mi/Lo)
• External Static Pressure: 0–1.0 in. w.g (Rated 0.5)
• Dimensions (W × D × H): 24.5" × 21" × 59.44" (Net)
• Packaging (W × D × H): 27.94" × 27.94" × 59.44"
• Weight (Net/Gross): 154.3 / 177.5 lbs
• Line Set Sizes: Liquid 3/8" | Gas 3/4"
• Max Line Length / Lift: 164 ft / 98 ft
• Indoor Operating Temp: 61–90°F (16–32°C)
• Wiring: Power (Indoor) AWG 18 | Signal AWG 22

Outdoor Condenser Specifications (GAHU60HPV1BO)

• Power Supply: 208/230V, 60Hz, 1-Phase
• Max Input / Max Current: 7,000 W / 32 A
• MCA / Max Fuse (Outdoor): 36 A / 50 A
• Recommended Breaker: 45 A
• Air Flow Volume: 4,000 CFM
• Sound Pressure: 60 dB(A)
• Dimensions (W × D × H): 39.81" × 15.75" × 51.94" (Net)
• Packaging (W × D × H): 42.5" × 16.94" × 56.69"
• Weight (Net/Gross): 209.38 / 229.3 lbs
• Refrigerant Charge: 144.62 oz
• Line Set Sizes: Liquid 3/8" | Gas 3/4"
• Max Line Length / Lift: 164 ft / 98 ft
• Ambient Operating Range – Cooling: 5–125°F (-15–52°C)
• Ambient Operating Range – Heating: -22–75°F (-30–24°C)
• Wiring: Power (Outdoor) AWG 8 | Signal AWG 22

Why Choose the GWIN 5 Ton Inverter Ducted System?

• Inverter-driven efficiency helps reduce energy costs while maintaining even temperatures.
• Extended line length and strong ESP capability support complex duct designs and long runs.
• Engineered for reliable operation across wide outdoor temperature ranges.
• Integrates with common 24V thermostats and 485 control platforms.
• AHRI-certified performance under system number 216032397.

Notes: Specifications and data are based on laboratory testing and may vary with installation conditions. © 2025 GWIN LLC (USA) Inc.
