MRCOOL® EZPRO® 18k BTU DIY Mini-Split Heat Pump System – 5th Generation (R-454B)

EZPRO-18-HP-23016-O

LTL Delivery

This product weighs 65.7 lbs and will ship via an LTL freight carrier. A liftgate option will be added at no extra charge for your convenience.

MRCOOL® EZPRO® 18k BTU DIY Mini-Split Heat Pump System – 5th Generation (R-454B)

The Easiest Mini-Split You’ll Ever Install — Now with Eco-Friendly R-454B Refrigerant

Upgrade your comfort and efficiency with the latest MRCOOL® EZPRO® 18,000 BTU DIY Mini-Split Heat Pump, now featuring next-generation R-454B refrigerant for enhanced performance and environmental responsibility. This 5th Generation EZPRO model is one of the most advanced and user-friendly ductless mini-split systems on the market, combining ultra-efficient inverter technology, whisper-quiet operation, and smart home integration—all with a hassle-free DIY installation process.

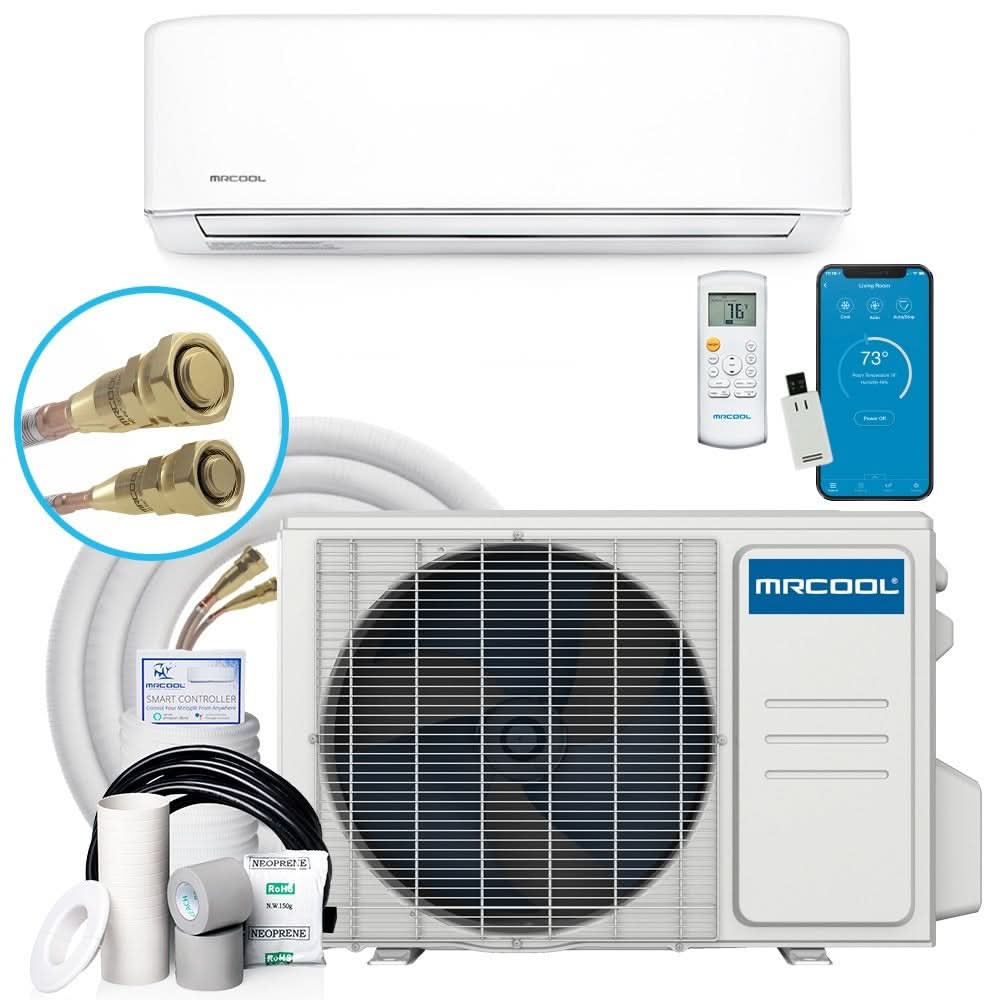

Designed specifically for homeowners, landlords, and small business owners, the EZPRO system comes with a 16-foot pre-charged line set, Fast Connection® fittings, and no need for vacuum pumps or HVAC licenses. This means most users can install the system themselves in just a few hours—saving hundreds on labor costs while enjoying professional-grade results.

The system delivers powerful, year-round climate control for spaces up to 750 square feet, making it ideal for master bedrooms, finished basements, garages, workshops, home offices, and detached buildings. With reliable performance down to 5°F outdoor temperature, you can count on dependable heating even in colder regions.

As a factory-authorized MRCOOL retailer, MRCOOL DIY Direct proudly delivers genuine, warrantied equipment, expert customer support, and fast nationwide shipping from the most trusted name in DIY HVAC.

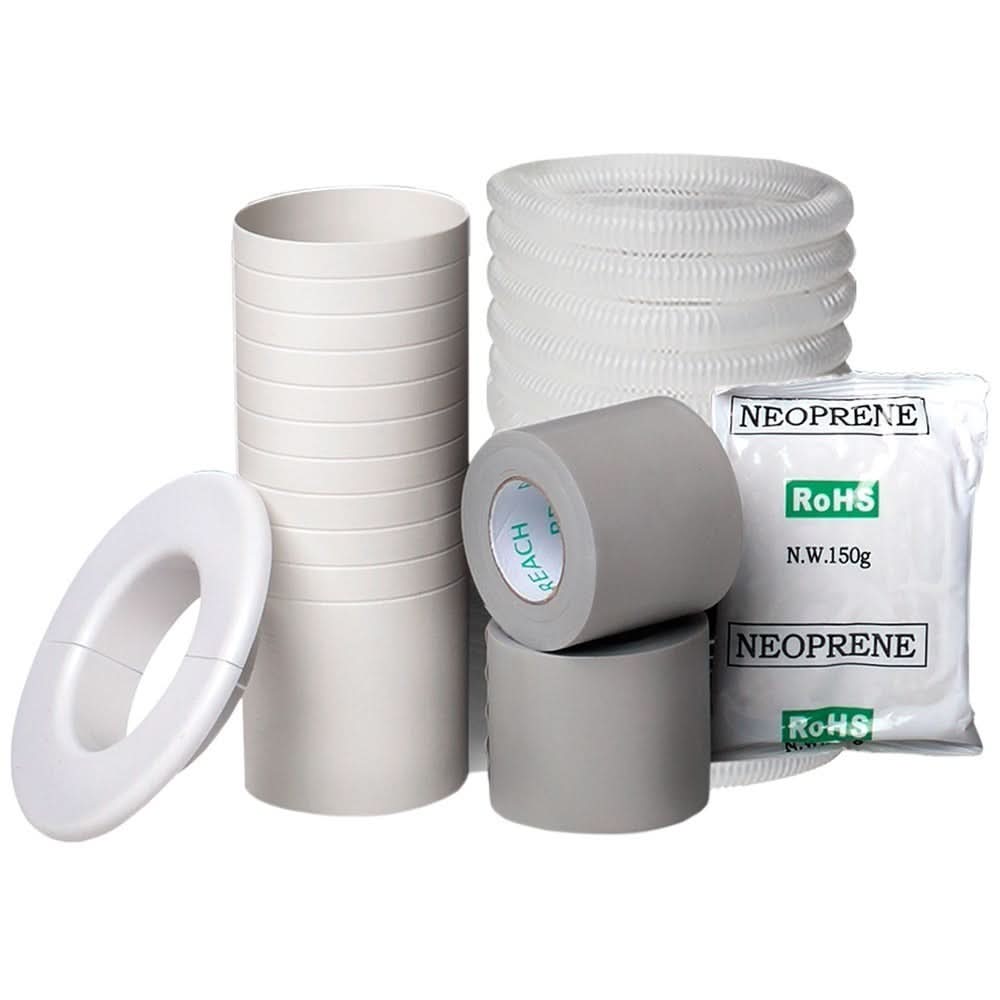

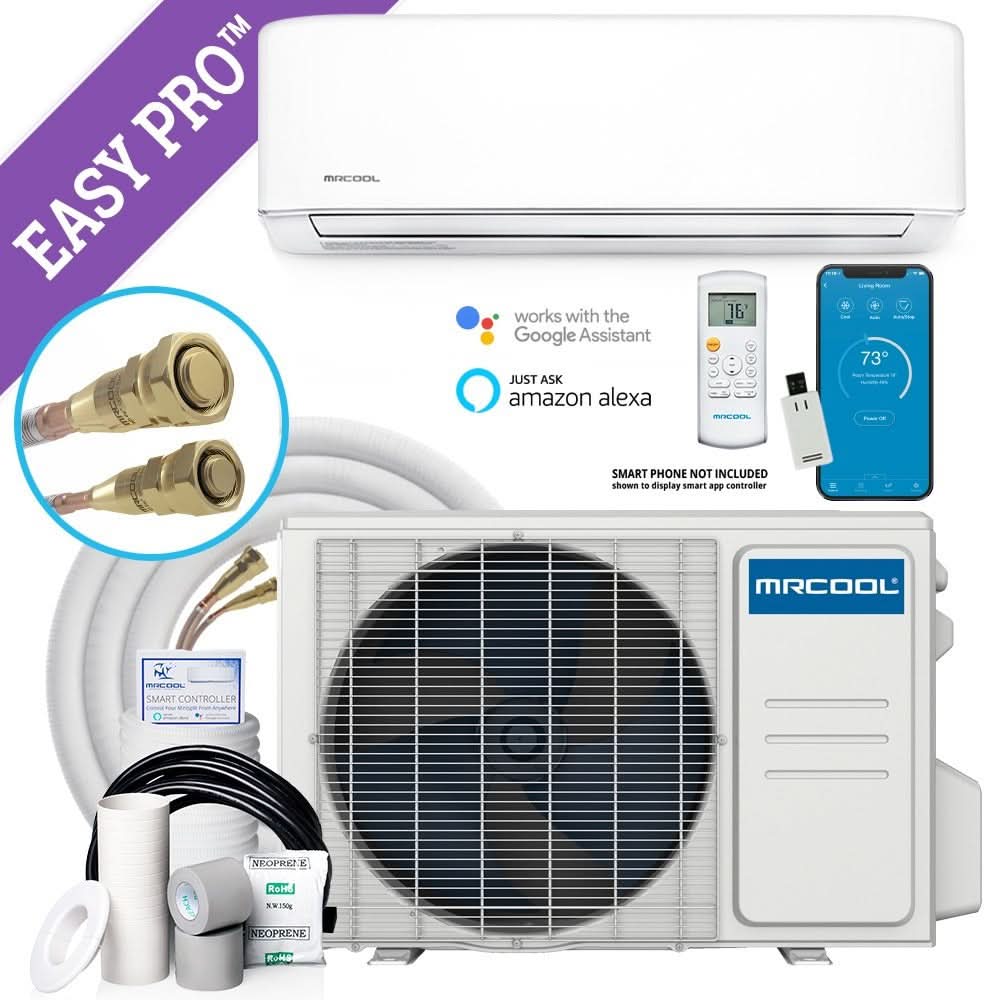

📦 What’s Included:


Get unmatched performance, unbeatable support, and true peace of mind from MRCOOL DIY DirectAmerica’s most trusted independent MRCOOL dealer. Fast shipping, factory-backed warranty, and expert customer service included.

Specifications & Dimensions



System Specifications

Feature Detail
Feature Detail
Feature Detail
Model Number EZPRO-18-HP-23016-O
System Type Single-Zone DIY Mini-Split
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Refrigerant R-454B (Eco-Friendly)
Compressor Type DC Inverter
SEER2 Rating Up to 18.5
HSPF2 Rating Up to 8.7
Voltage / Frequency 230V / 60Hz
Max Amperage 18.7 A
Coverage Area Up to 750 sq. ft.
Operating Temp (Heat) Down to 5°F

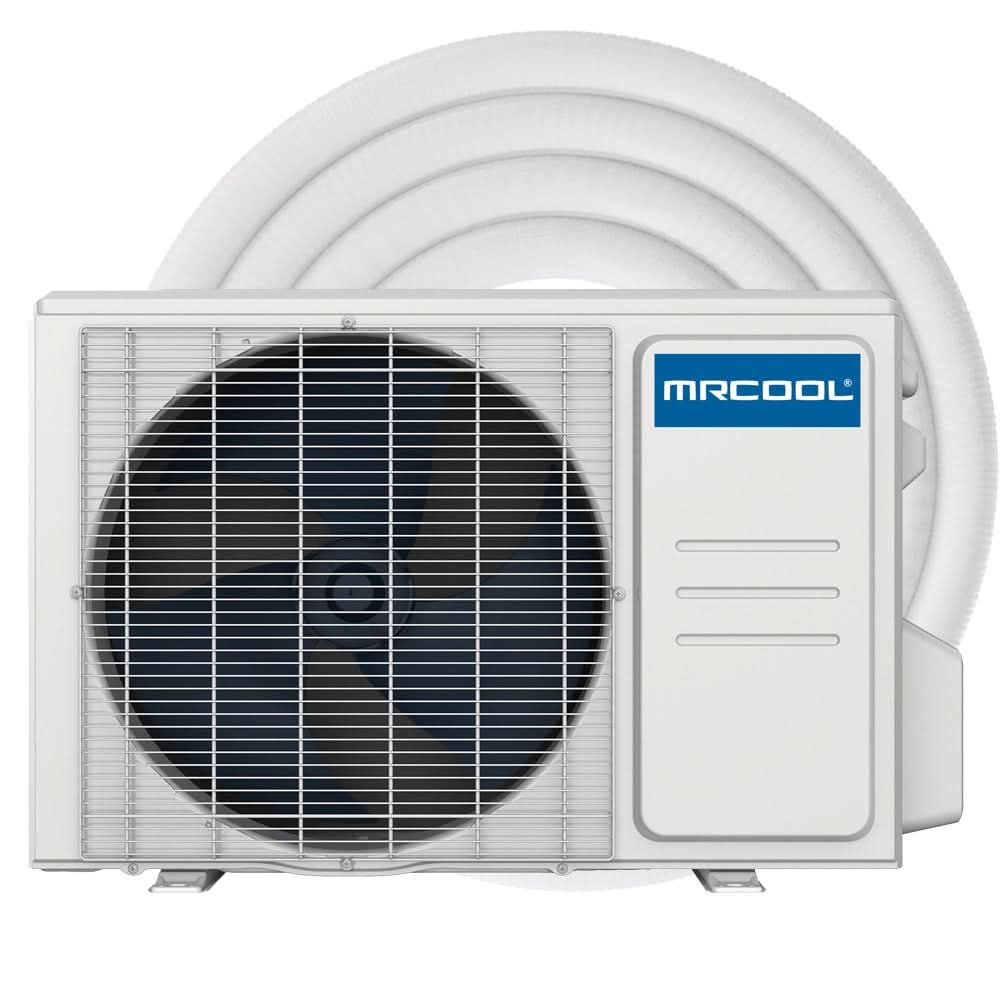

Line Set Included 16 ft. Pre-Charged (R-454B)
Installation Type DIY – Fast Connection®
WiFi & Smart Controls Yes – App + Alexa + Google
Indoor Noise Level 39.5 dB(A) Low / 48 dB(A) High
Outdoor Noise Level 58 dB(A)
Certifications AHRI Certified, ETL Listed
Warranty 1-Year Compressor / 2-Year Parts
Ideal Applications Bedrooms, Garages, Studios, Offices




📏 Dimensions

Component Width Height Depth Component Weight

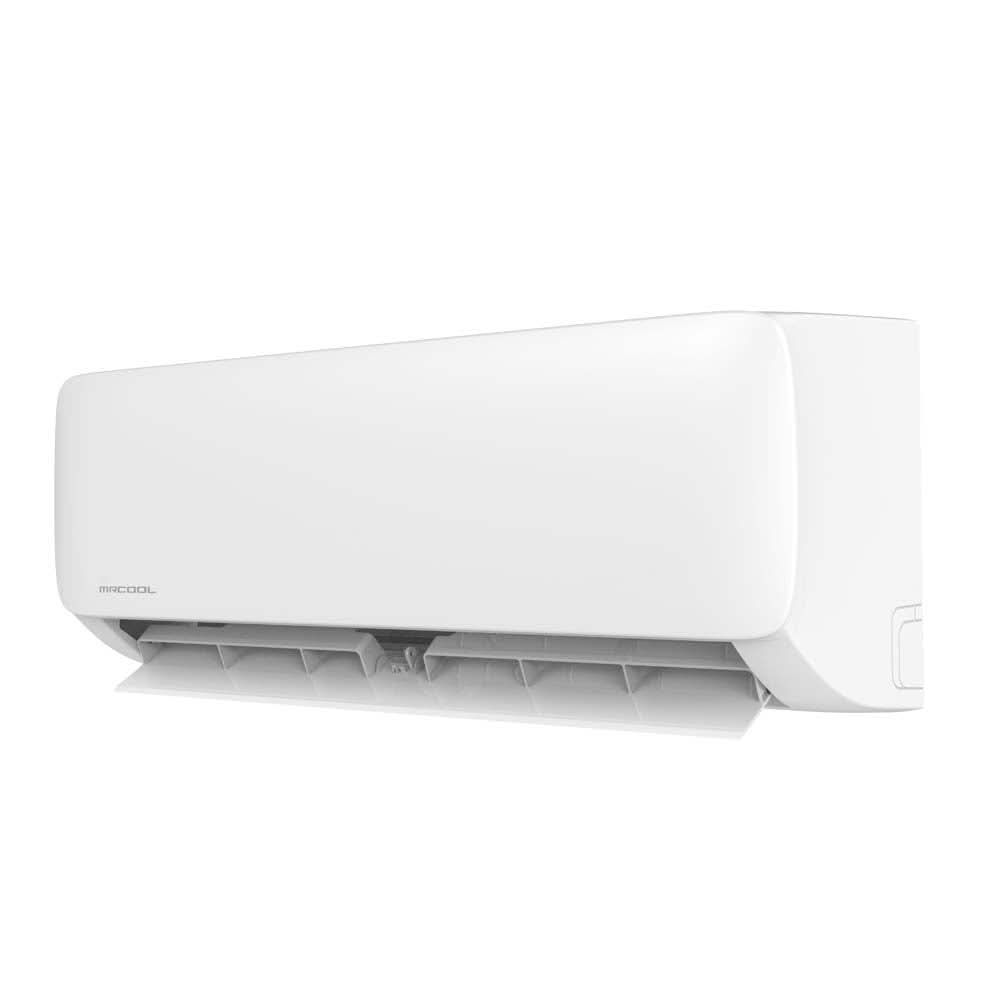

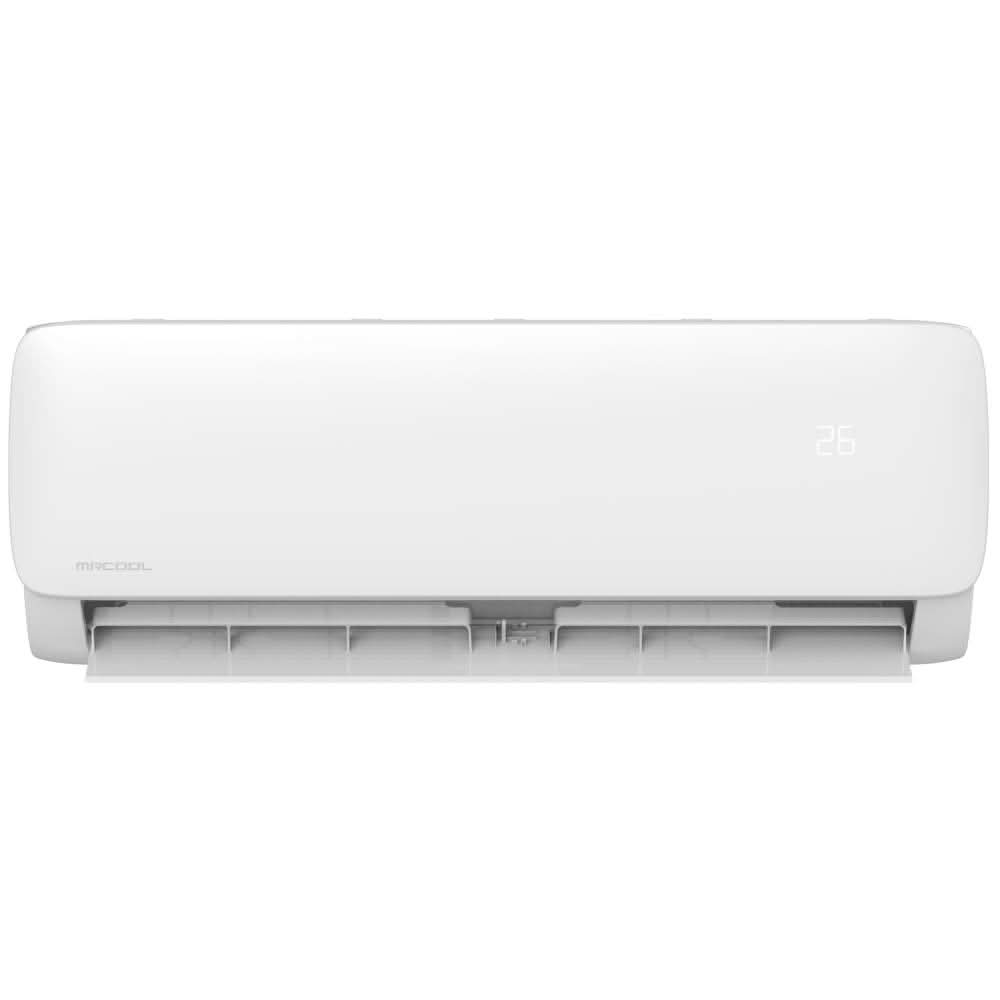

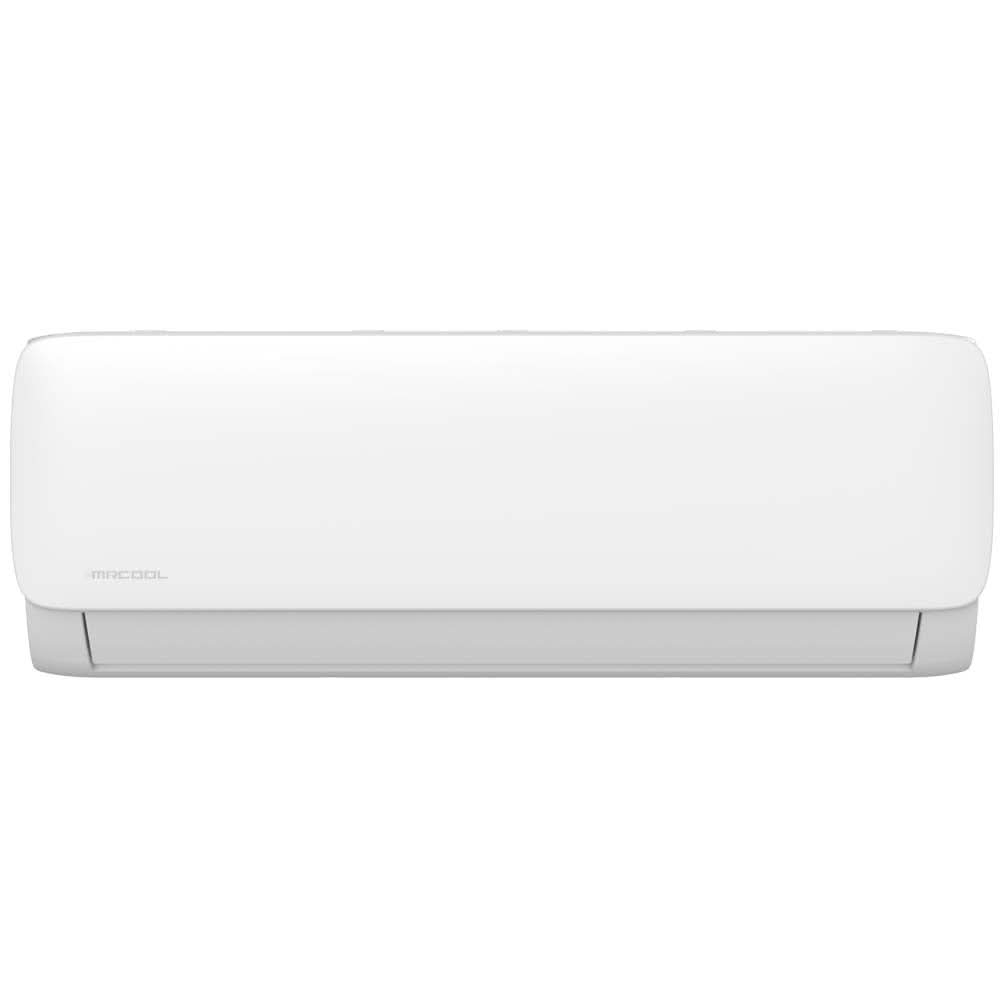

Indoor Air Handler 38.98 in 12.40 in 8.46 in Indoor Air Handler 24.25 lbs

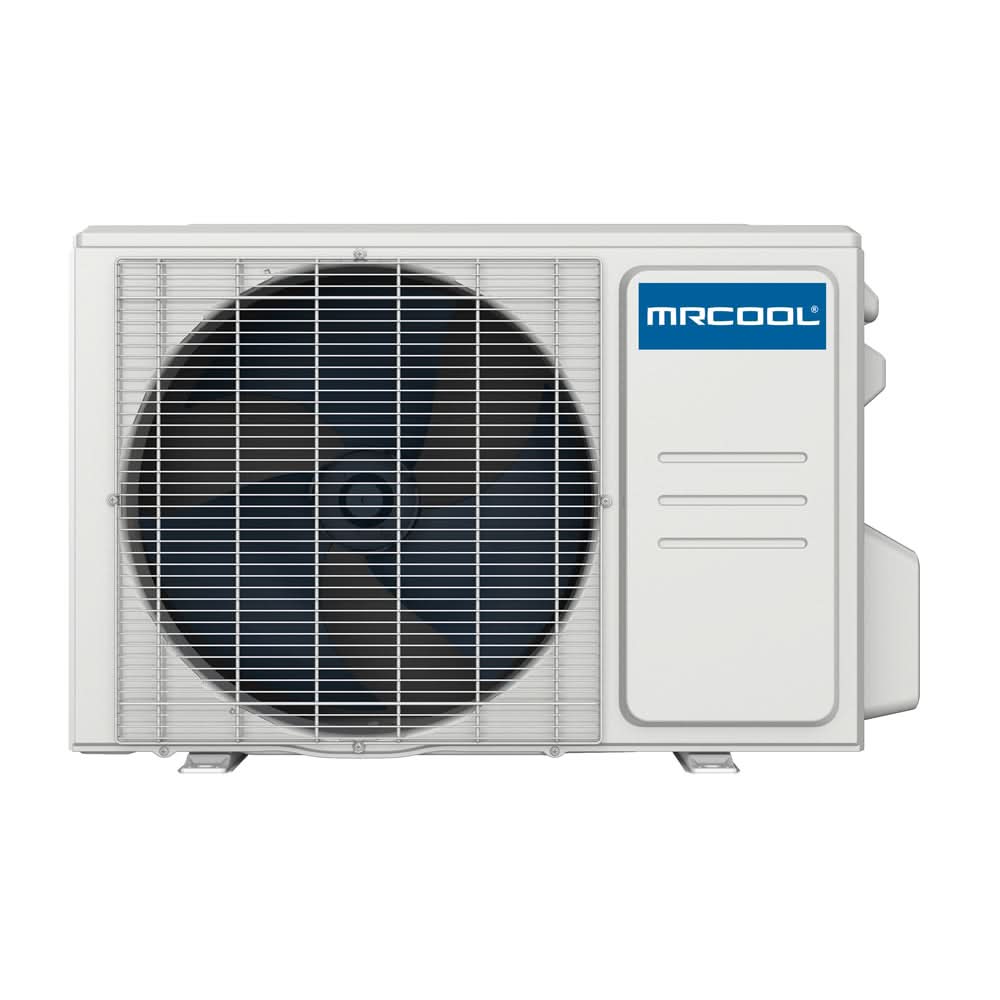

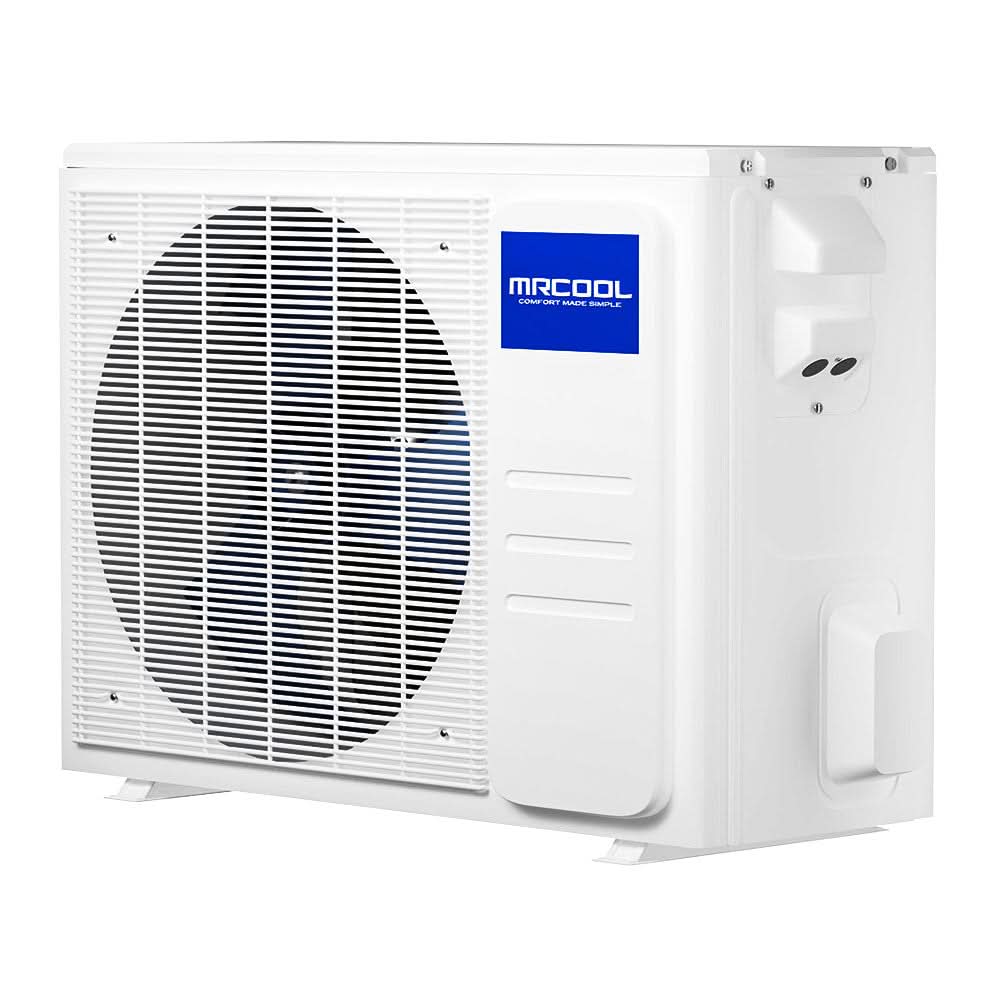

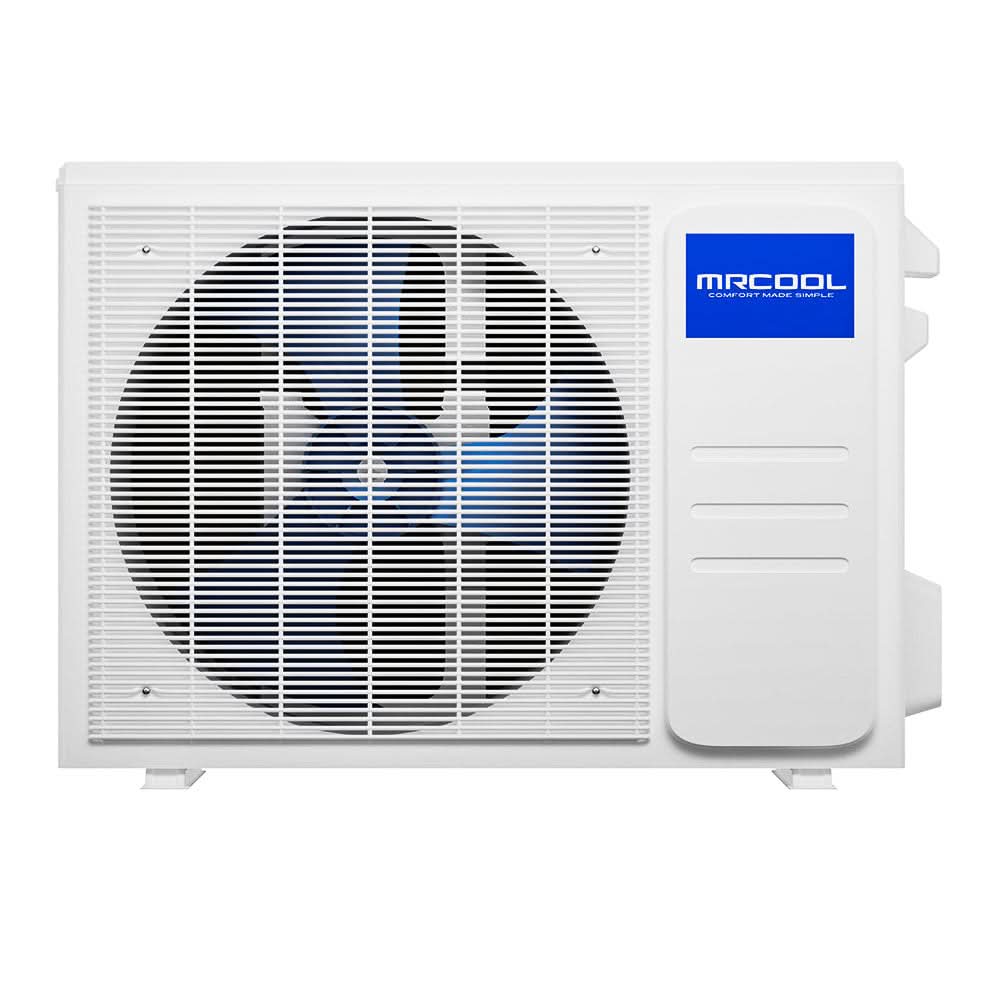

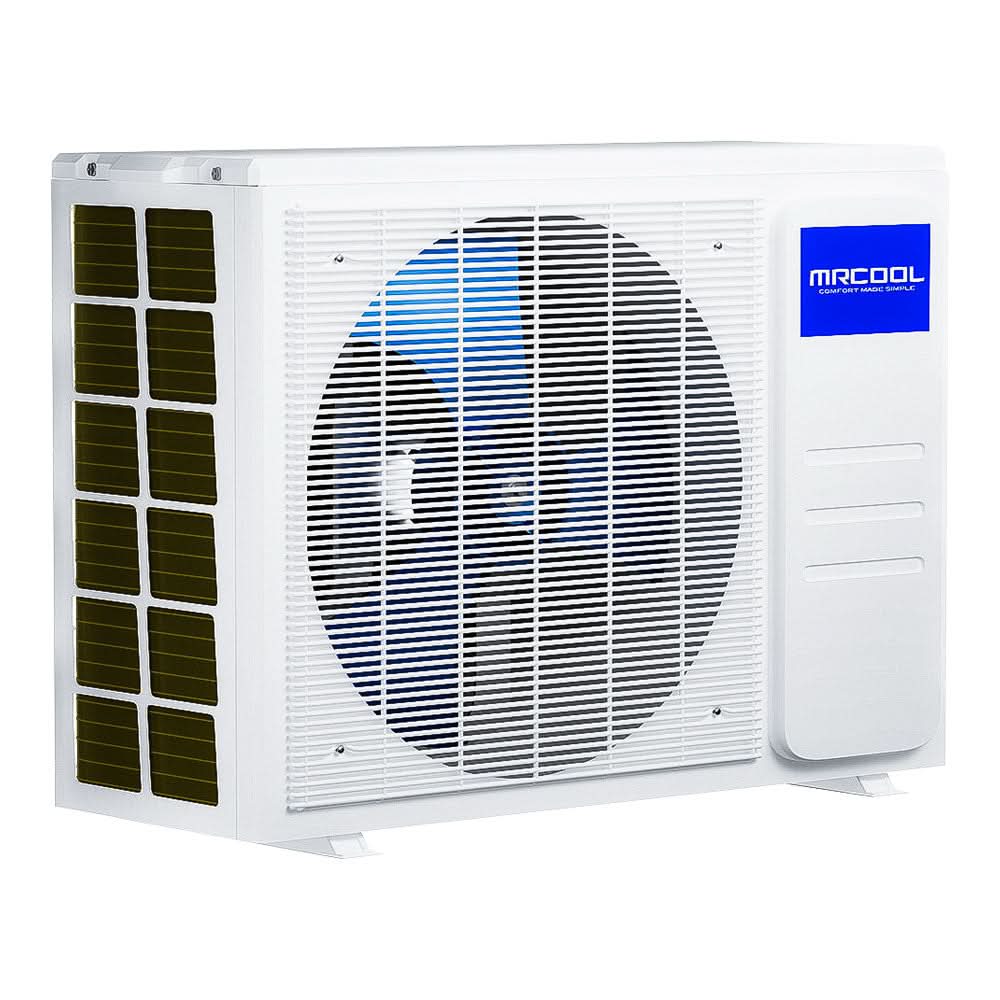

Outdoor Condenser 31.10 in 21.85 in 13.11 in Outdoor Condenser 86.43 lbs
