MRCOOL Advantage 5th Gen 36,000 BTU 18 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 230V
Regular Price
$2,563.00
Press & drag to view

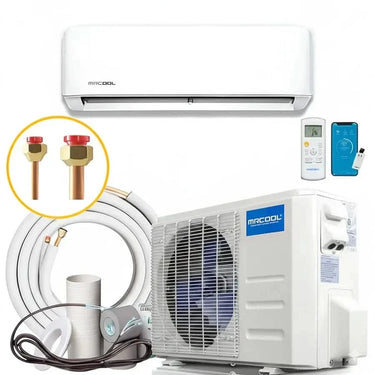

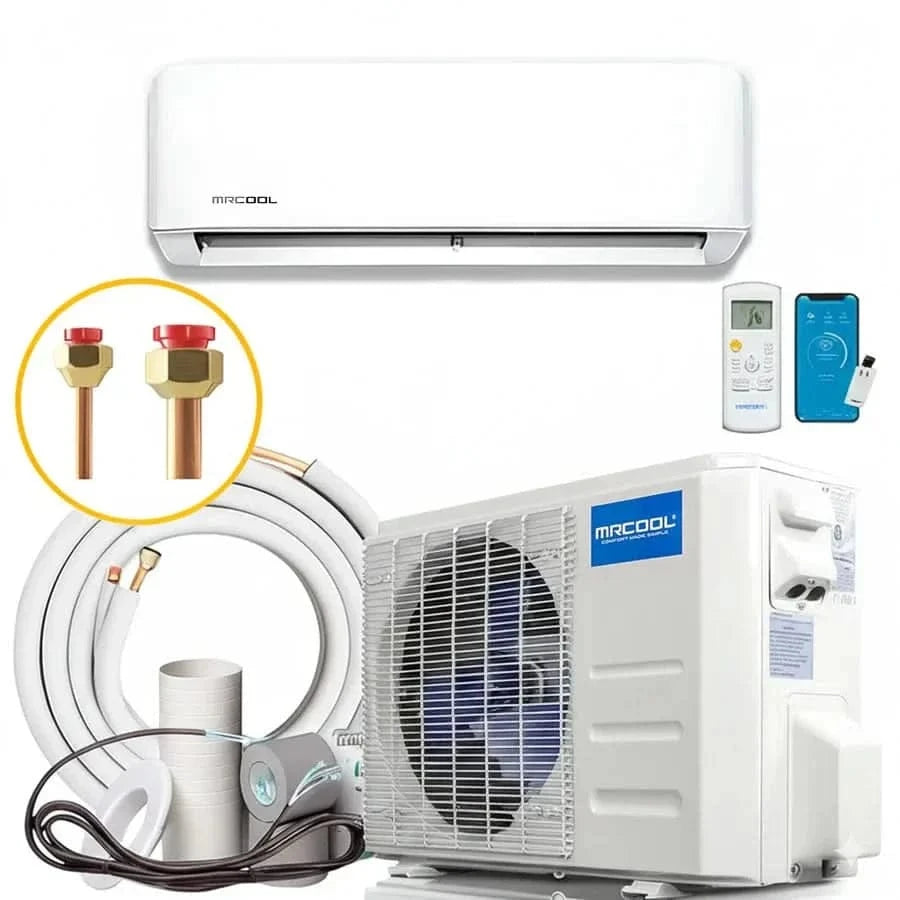

MRCOOL 5th Gen Advantage 36,000 BTU 230V Ductless Mini Split Heat Pump – R-454B
The MRCOOL 5th Generation Advantage 36K Ductless Mini Split Heat Pump (230V) delivers powerful, energy-efficient comfort for larger residential or commercial spaces up to 1,550 sq ft. With the new R-454B refrigerant, this system offers enhanced energy efficiency, reduced greenhouse gas emissions, and a significantly lower Global Warming Potential (GWP).
This 36,000 BTU ductless mini split is an excellent solution for open-concept living areas, garages, large bonus rooms, or small commercial offices. The sleek air handler ensures quiet performance, while built-in Wi-Fi gives you complete control via the SmartHVAC app—from anywhere.
Although this unit is not DIY, installation by an HVAC professional is typically faster and less expensive than traditional ducted systems due to its ductless design.
🔧 Key Features:
-
36,000 BTU Heating & Cooling – Ideal for up to 1,550 sq ft
-
230V Power Supply – High-capacity performance
-
R-454B Refrigerant – Eco-friendly, energy-efficient cooling and heating
-
Built-In Wi-Fi – Smart remote access and scheduling via app
-
Quiet Operation – Powerful performance with minimal noise
-
Great Value – Professional-grade system at an affordable price
🛡 Warranty Coverage:
-
2-Year Parts Warranty
-
1-Year Compressor Warranty
-
1-Year Remote Control Warranty
-
Limited Lifetime Warranty available through MRCOOL® Care Program registration
⚠️ Important: This unit is not DIY and must be installed by a licensed HVAC professional to qualify for full warranty coverage and ensure optimal performance.
Looking for a DIY install option instead?
✅ Explore the MRCOOL 5th Gen DIY Mini Split Series – No HVAC License Required

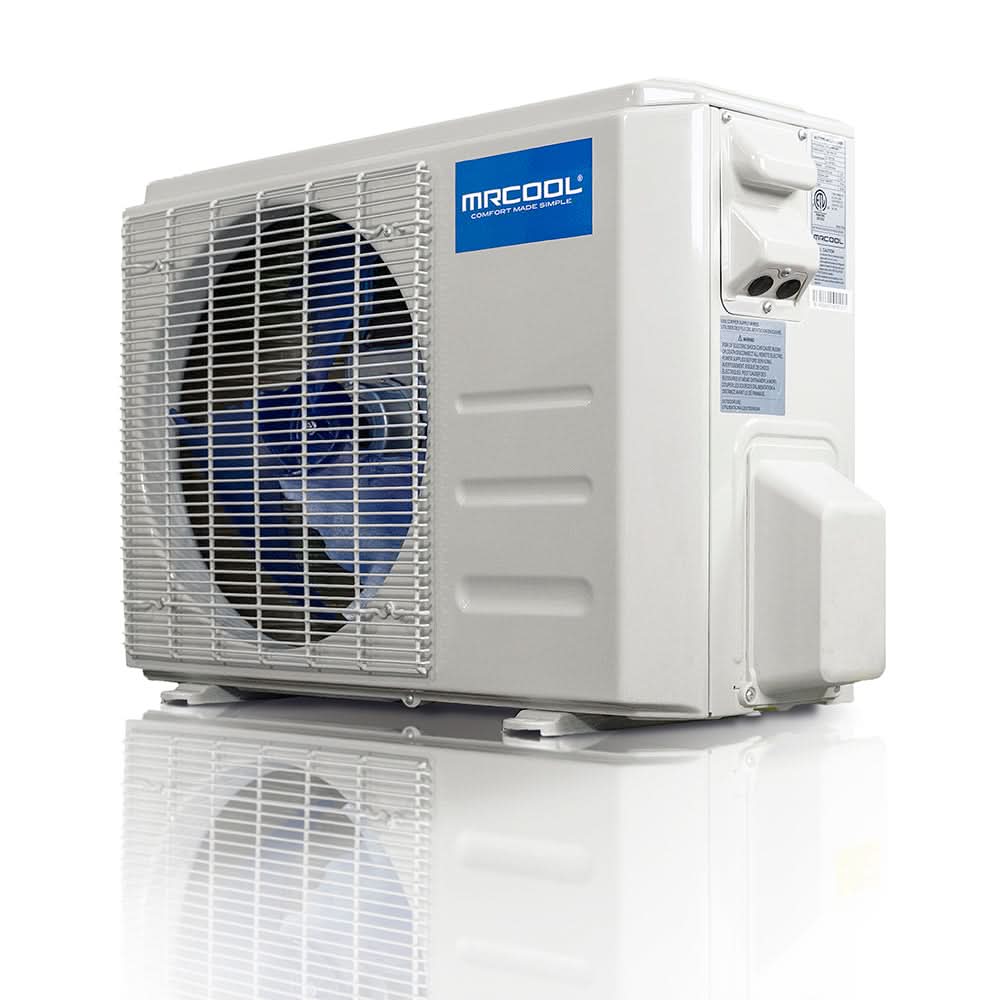

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-36-HP-C-230D-O |
| GTIN | 840255586863 |
| UPC | 840255586863 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | Advantage 5th Gen 36k BTU 230V Condenser |
| SEER2 | 18 |
| EER2 | 9 |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.8 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) | 36000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 35 |
| MIN CIRCUIT AMPACITY (A) | 33 |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 112.88 |
| DECIBEL RATING (DBA) | 60.5 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 213.2 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| COMPRESSOR MOTOR TYPE | ROTARY |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 150.35 |
| GROSS DEPTH (IN) | 19.68 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 160.27 |

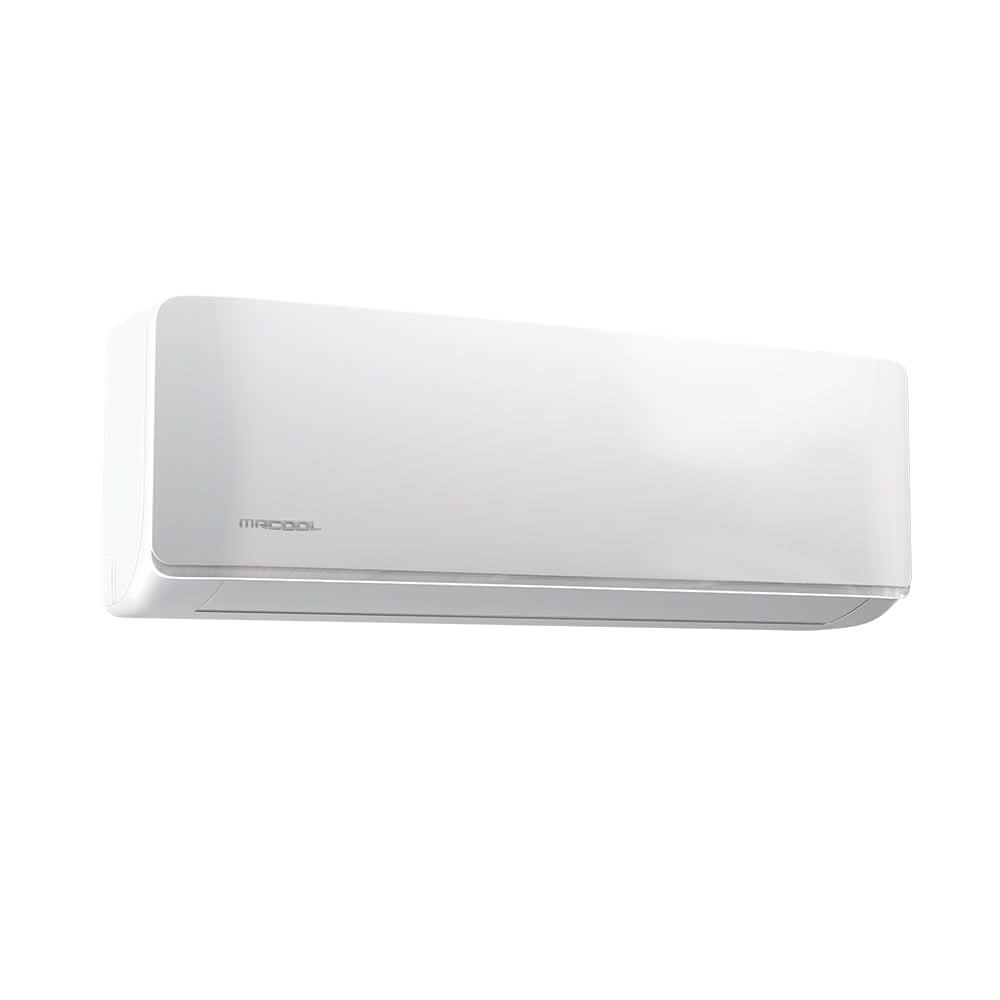

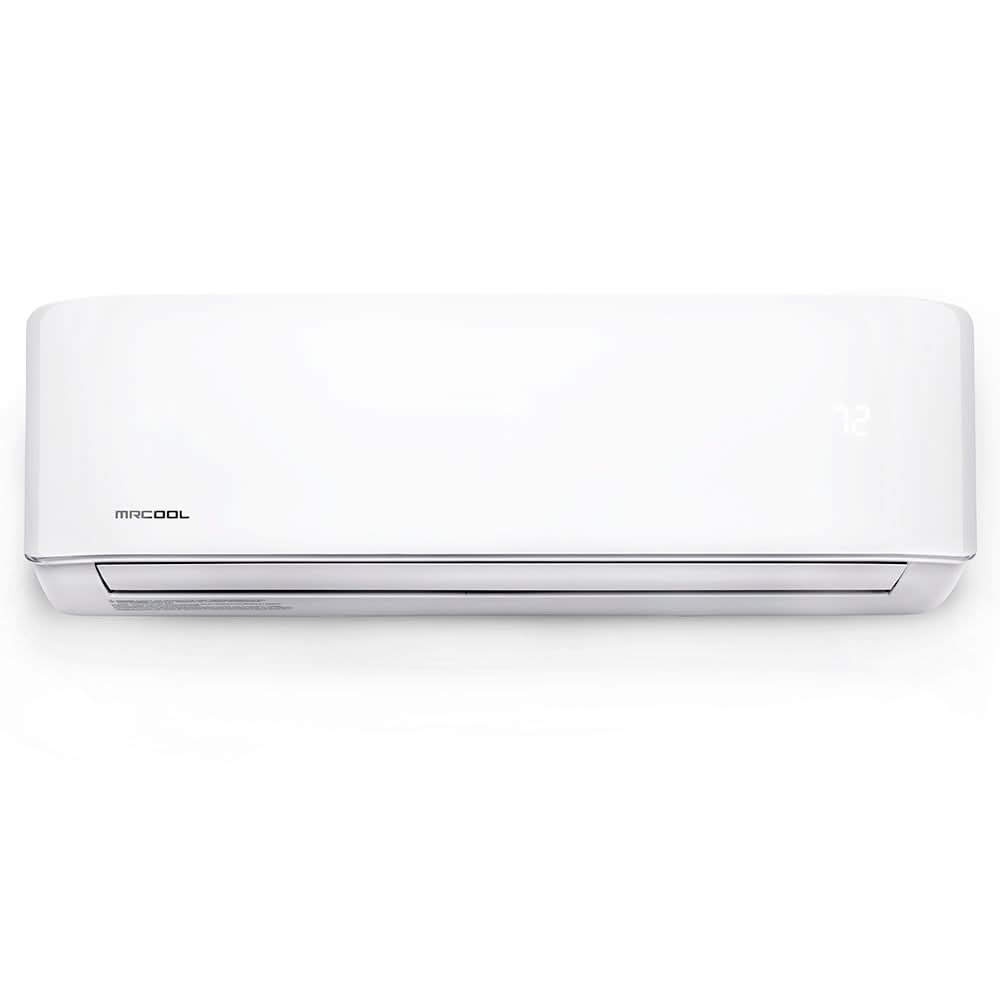

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-36-HP-WMAH-230D-O |
| GTIN | 840255586931 |
| UPC | 840255586931 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | Advantage 5th Gen 36k BTU 230V Air Handler |
| CFM | 882.9 / 732.8 / 518.0 / 400.2 / / |
| TONNAGE | 3 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| DECIBEL RATING (DBA) | 44.5 |
| DECIBEL RATING LOW (DBA) | 28 |
| DECIBEL RATING HIGH (DBA) | 56.5 |
| NUMBER OF SPEEDS | 5 |
| MAX LINESET LENGTH (FT) | 213.2 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| FILTER TYPE | Reusable |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.1 |
| NET HEIGHT (IN) | 14.25 |
| NET WIDTH (IN) | 49.57 |
| NET WEIGHT (LBS) | 40.34 |
| GROSS DEPTH (IN) | 17.72 |
| GROSS HEIGHT (IN) | 15.16 |
| GROSS WIDTH (IN) | 52.76 |
| GROSS WEIGHT (LBS) | 54.01 |
