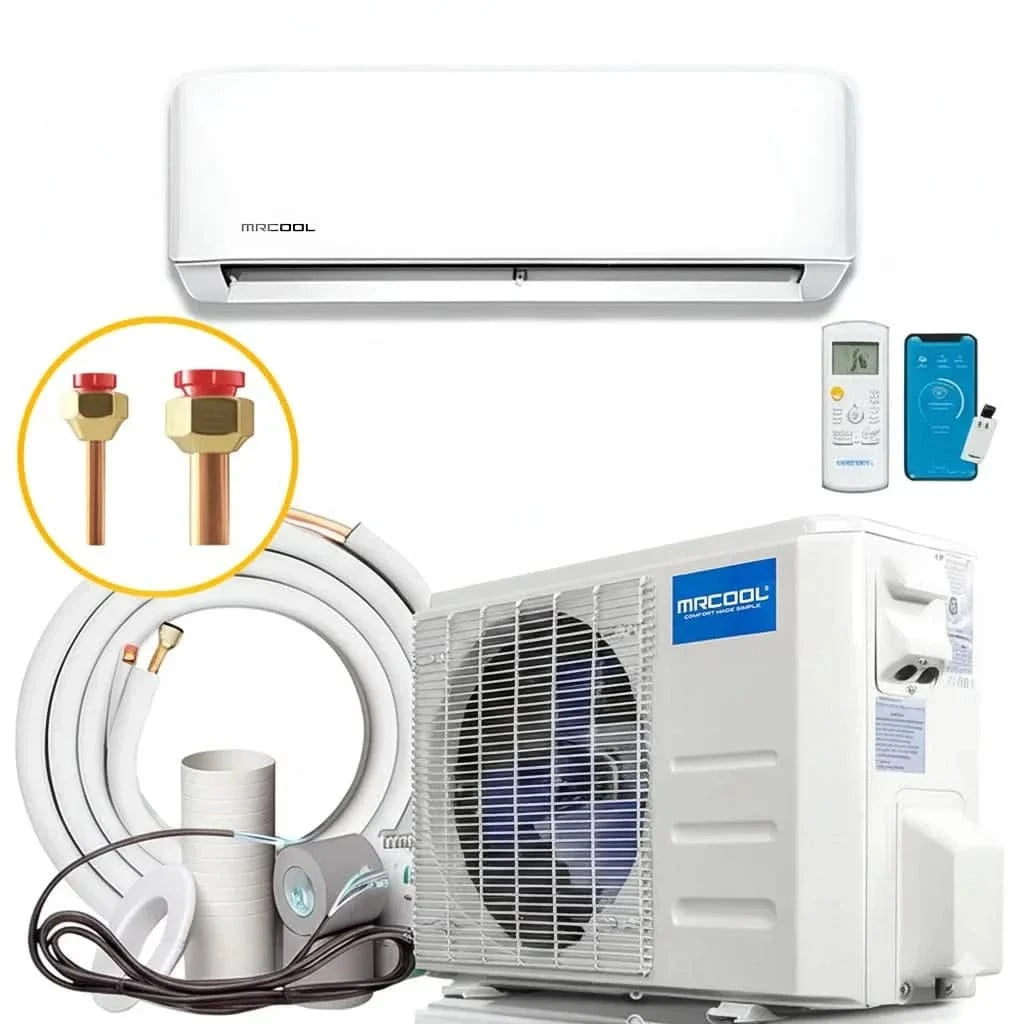

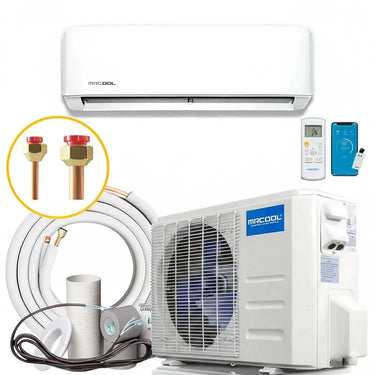

MRCOOL Advantage 5th Gen 9,000 BTU 21.2 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 230V
Regular Price
$889.00
Press & drag to view
MRCOOL 5th Gen Advantage 9,000 BTU 230V Ductless Mini Split Heat Pump – R-454B Refrigerant
Experience efficient, quiet comfort with the MRCOOL 5th Generation Advantage 9K Ductless Mini Split Heat Pump, now available in 230V. This 9,000 BTU system features the next-generation R-454B refrigerant, offering improved energy efficiency and a lower Global Warming Potential (GWP), making it a smart and eco-conscious choice for modern homes.
Perfect for bedrooms, home offices, or small living spaces, the Advantage Series delivers reliable heating and cooling without the need for ductwork. Its compact, stylish air handler blends seamlessly into any environment while operating at whisper-quiet levels.
🔧 Key Features:
-
9,000 BTU Capacity – Ideal for spaces up to 400 sq ft
-
230V Power Supply – Efficient and powerful performance
-
Eco-Friendly R-454B Refrigerant – Low GWP, high efficiency
-
Built-In Wi-Fi – Control from anywhere via smartphone
-
Quiet Operation – Minimal indoor noise
-
Great Value – Affordable comfort without compromise
📱 Smart Control from Anywhere
Control your system remotely using the SmartHVAC app—adjust settings, schedule temperature changes, and enable energy-saving features like Sleep Mode with ease.
🛡 MRCOOL Warranty Coverage:
-
2-Year Parts Warranty
-
1-Year Compressor Warranty
-
1-Year Remote Control Warranty
-
Limited Lifetime Warranty available through the MRCOOL® Care Program
⚠️ Important: This unit is not a DIY system and must be installed by a licensed HVAC professional to qualify for warranty coverage and proper performance.
Looking for a DIY-friendly system instead?
✅ Check out the MRCOOL 5th Gen 9K DIY Mini Split System

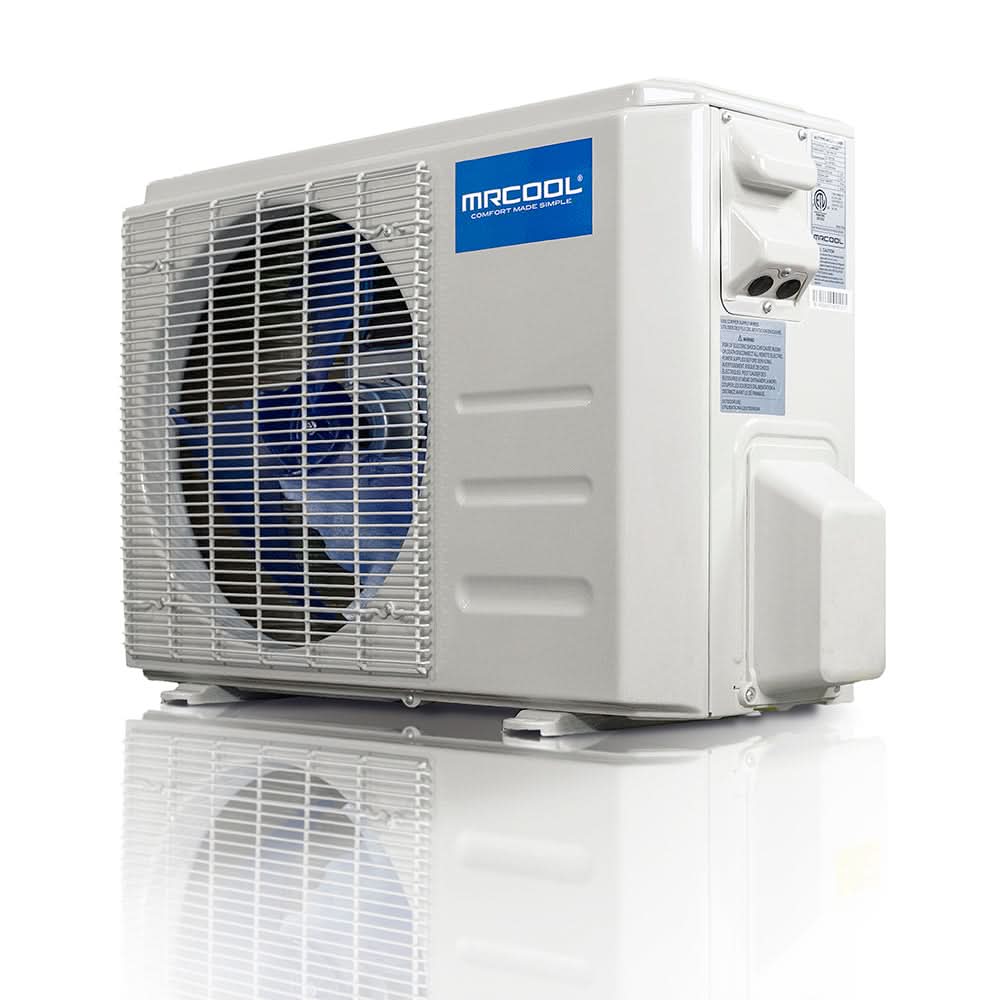

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-09-HP-C-230D-O |
| GTIN | 840255586825 |
| UPC | 840255586825 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | Advantage 5th Gen 9k BTU 230V Condenser |
| SEER2 | 21.2 |
| EER2 | 12.6 |
| HSPF2-4 | 9.1 |
| HSPF2-5 | 7 |
| TONNAGE | 0.75 |
| COOLING CAPACITY (BTU) | 9000 |
| HEATING CAPACITY (BTU) | 10000 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 12 |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 21.52 |
| DECIBEL RATING (DBA) | 53.5 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | ROTARY |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.93 |
| NET HEIGHT (IN) | 21.85 |
| NET WIDTH (IN) | 30.12 |
| NET WEIGHT (LBS) | 54.23 |
| GROSS DEPTH (IN) | 13.27 |
| GROSS HEIGHT (IN) | 24.02 |
| GROSS WIDTH (IN) | 34.92 |
| GROSS WEIGHT (LBS) | 59.74 |

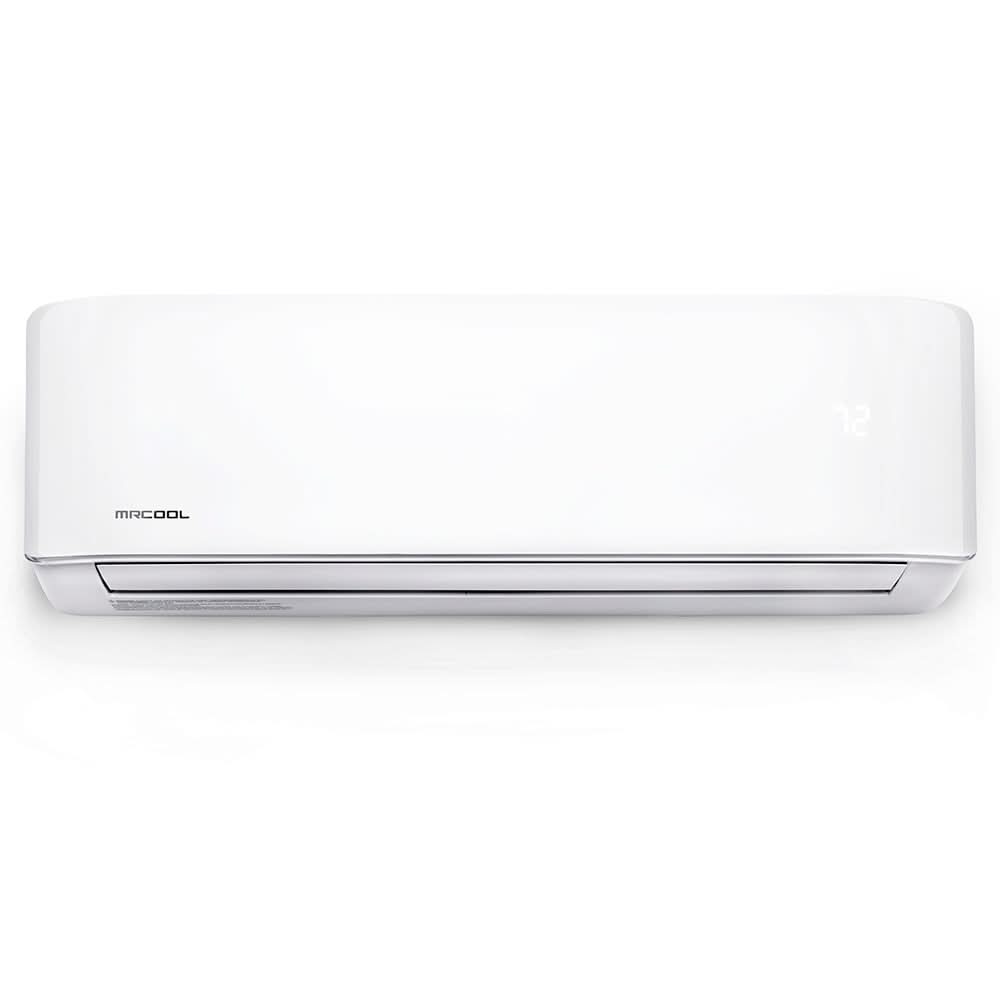

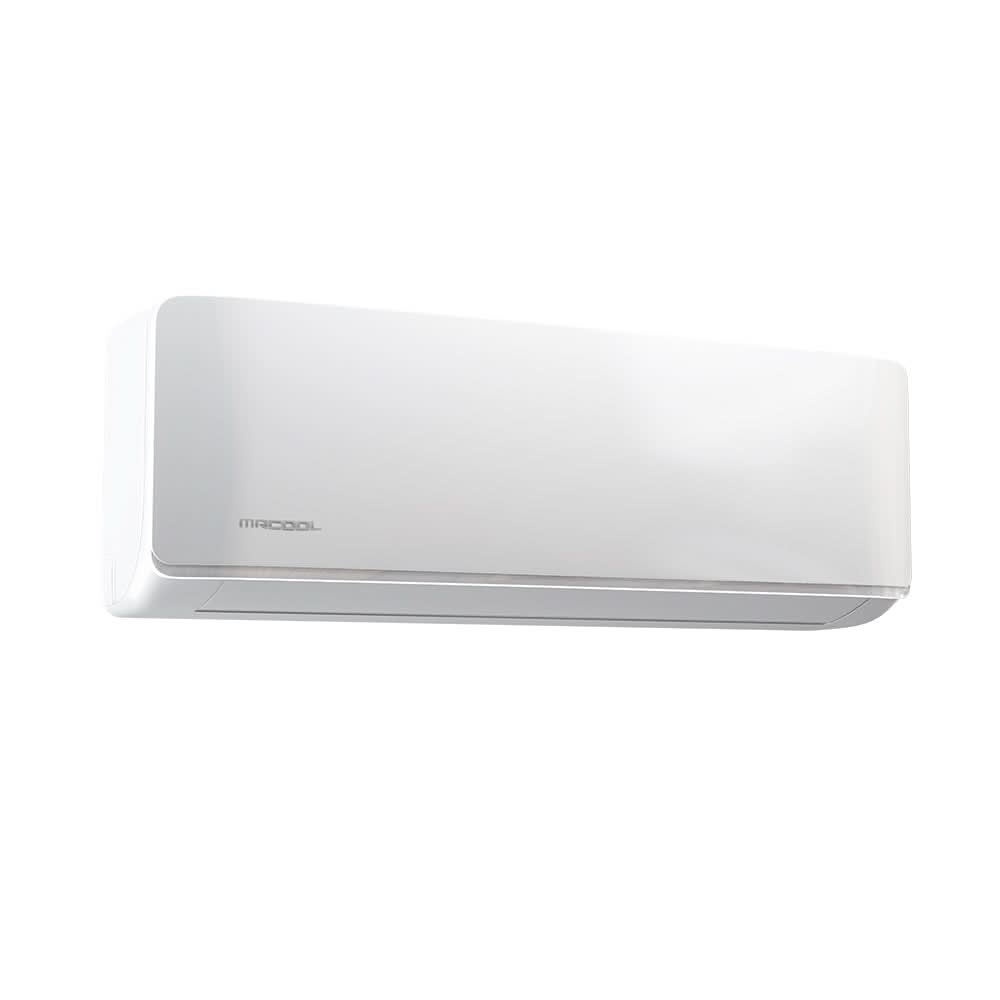

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-09-HP-WMAH-230D-O |
| GTIN | 840255586894 |
| UPC | 840255586894 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | Advantage 5th Gen 9k BTU 230V Air Handler |
| CFM | 312.0 / 264.9 / 194.2 / 153.0 / 105.9 |
| TONNAGE | 0.75 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| DECIBEL RATING (DBA) | 31.5 |
| DECIBEL RATING LOW (DBA) | 18.5 |
| DECIBEL RATING HIGH (DBA) | 40.5 |
| NUMBER OF SPEEDS | 5 |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| FILTER TYPE | Reusable |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.36 |
| NET HEIGHT (IN) | 11.42 |
| NET WIDTH (IN) | 28.43 |
| NET WEIGHT (LBS) | 16.98 |
| GROSS DEPTH (IN) | 10.63 |
| GROSS HEIGHT (IN) | 14.76 |
| GROSS WIDTH (IN) | 31.1 |
| GROSS WEIGHT (LBS) | 22.27 |
