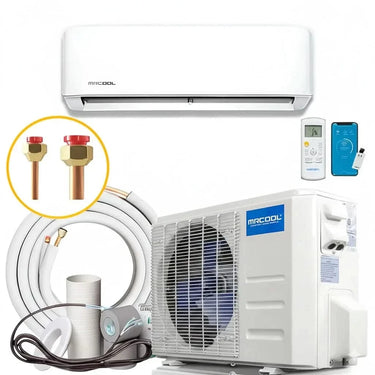

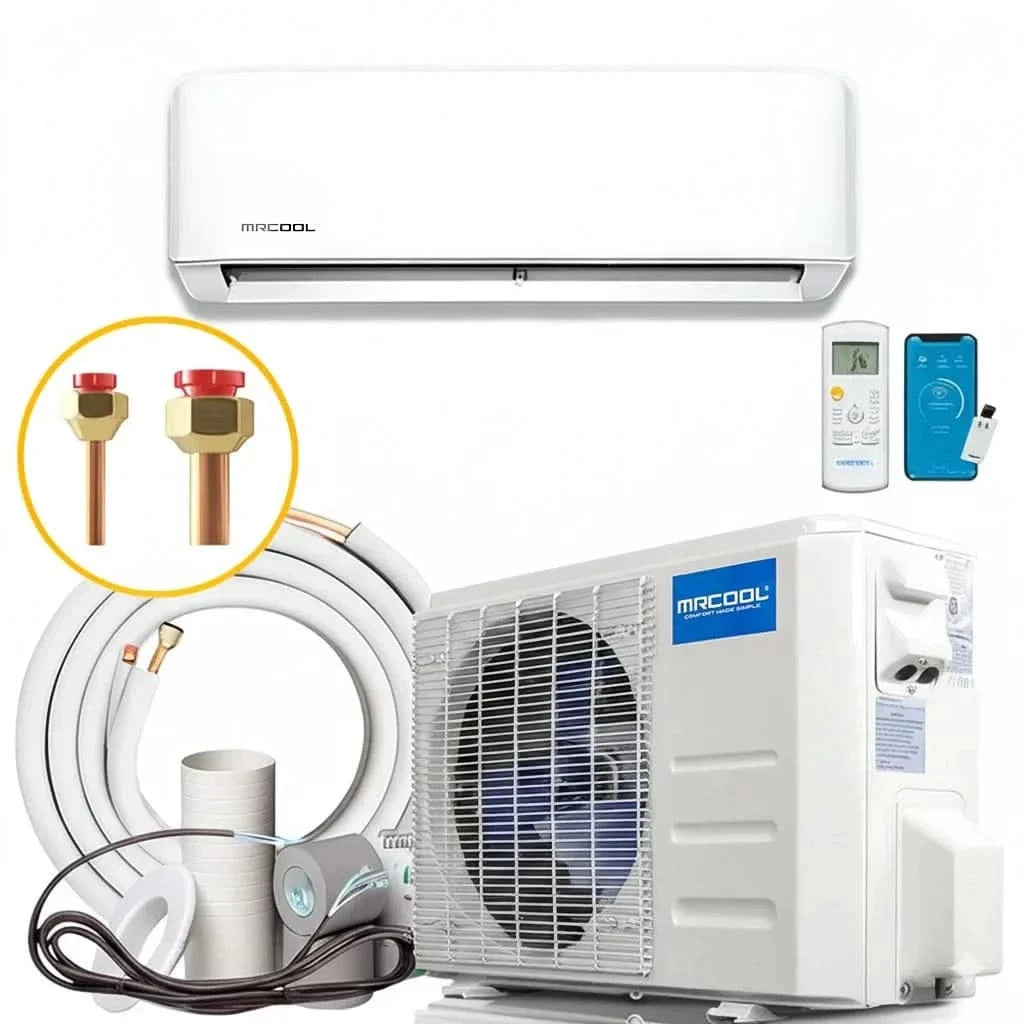

MRCOOL Advantage 5th Gen 9,000 BTU 21.5 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 115V
Regular Price
$933.00
Press & drag to view
MRCOOL 5th Gen Advantage 9,000 BTU 115V Ductless Mini Split Heat Pump – R-454B Refrigerant
Upgrade your comfort with the MRCOOL 5th Generation Advantage 9K Ductless Mini Split Heat Pump. This high-efficiency 9,000 BTU system runs on 115V power and features the new, eco-friendly R-454B refrigerant, which offers enhanced energy efficiency, lower greenhouse gas emissions, and a significantly reduced Global Warming Potential (GWP) compared to older refrigerants.
Perfect for bedrooms, offices, small living areas, or add-on spaces, this unit provides quiet, reliable heating and cooling—without the need for ductwork. The slim indoor air handler is sleek, space-saving, and designed for year-round comfort.
🔧 Key Features:
-
9,000 BTU Capacity – Ideal for rooms up to 400 sq ft
-
115V Power Supply – Great for homes with standard outlets
-
R-454B Refrigerant – Environmentally friendly and energy efficient
-
Built-in Wi-Fi – Control from anywhere using the SmartHVAC app
-
Quiet Operation – Enjoy comfort without the noise
-
Affordable Performance – A great solution for budget-conscious homeowners
📱 Smart Comfort Control
With Wi-Fi remote access, you can easily adjust your home's temperature from your smartphone or tablet. Schedule temperature changes, use sleep mode, and optimize energy savings from anywhere.
🛡 MRCOOL Warranty Coverage:
-
2-Year Parts Warranty
-
1-Year Compressor Warranty
-
1-Year Remote Control Warranty
-
Limited Lifetime Coverage available with MRCOOL® Care Program enrollment
⚠️ Note: The Advantage Series is not DIY-installable. It must be installed by a licensed HVAC professional to ensure proper operation and warranty coverage.
Looking for a DIY installation option instead?
✅ Check out the MRCOOL 5th Gen 9K DIY Mini Split System

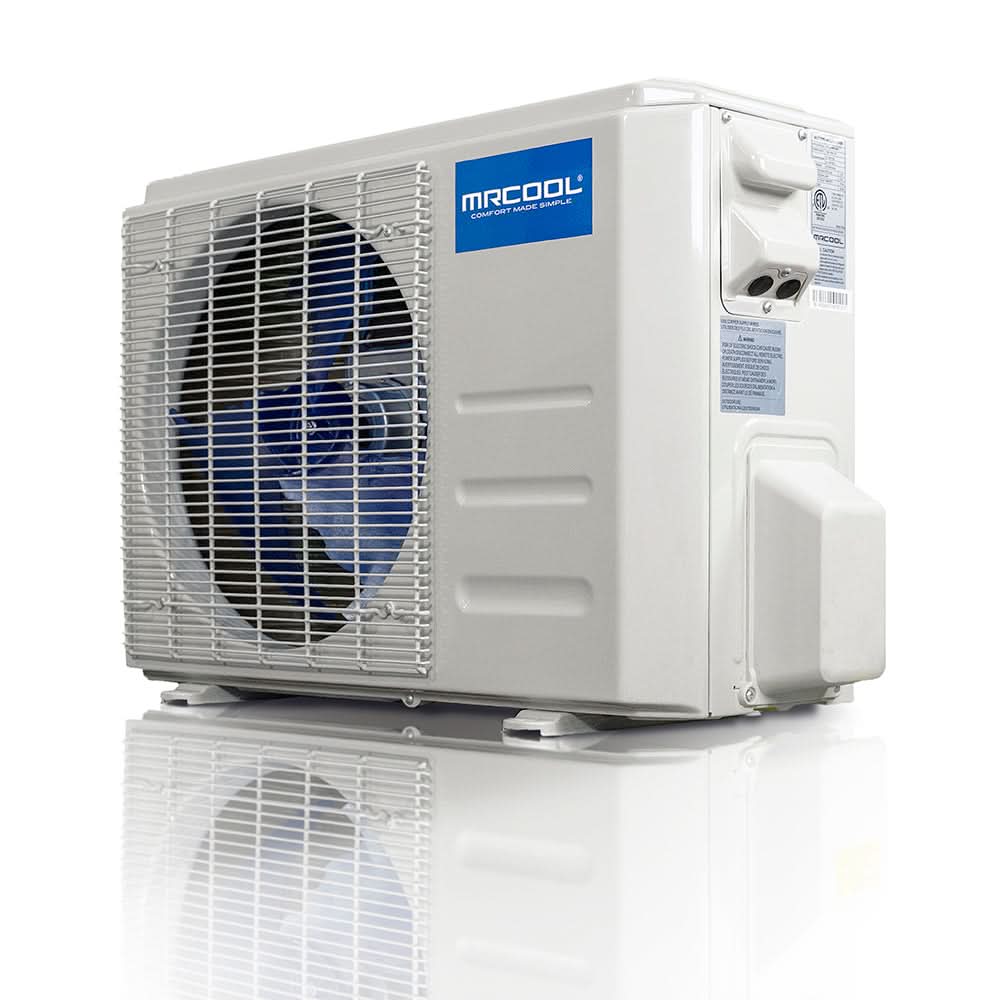

Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-09-HP-C-115D-O |
| GTIN | 840255586801 |
| UPC | 840255586801 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | Advantage 5th Gen 9k BTU 115V Condenser |
| SEER2 | 21.5 |
| EER2 | 12.5 |
| HSPF2-4 | 9 |
| HSPF2-5 | 7 |
| TONNAGE | 0.75 |
| COOLING CAPACITY (BTU) | 9000 |
| HEATING CAPACITY (BTU) | 10000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 18 |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 21.52 |
| DECIBEL RATING (DBA) | 52.5 |
| INVERTER | DC |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | ROTARY |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.93 |
| NET HEIGHT (IN) | 21.85 |
| NET WIDTH (IN) | 30.12 |
| NET WEIGHT (LBS) | 56.66 |
| GROSS DEPTH (IN) | 13.27 |
| GROSS HEIGHT (IN) | 24.02 |
| GROSS WIDTH (IN) | 34.92 |
| GROSS WEIGHT (LBS) | 62.17 |

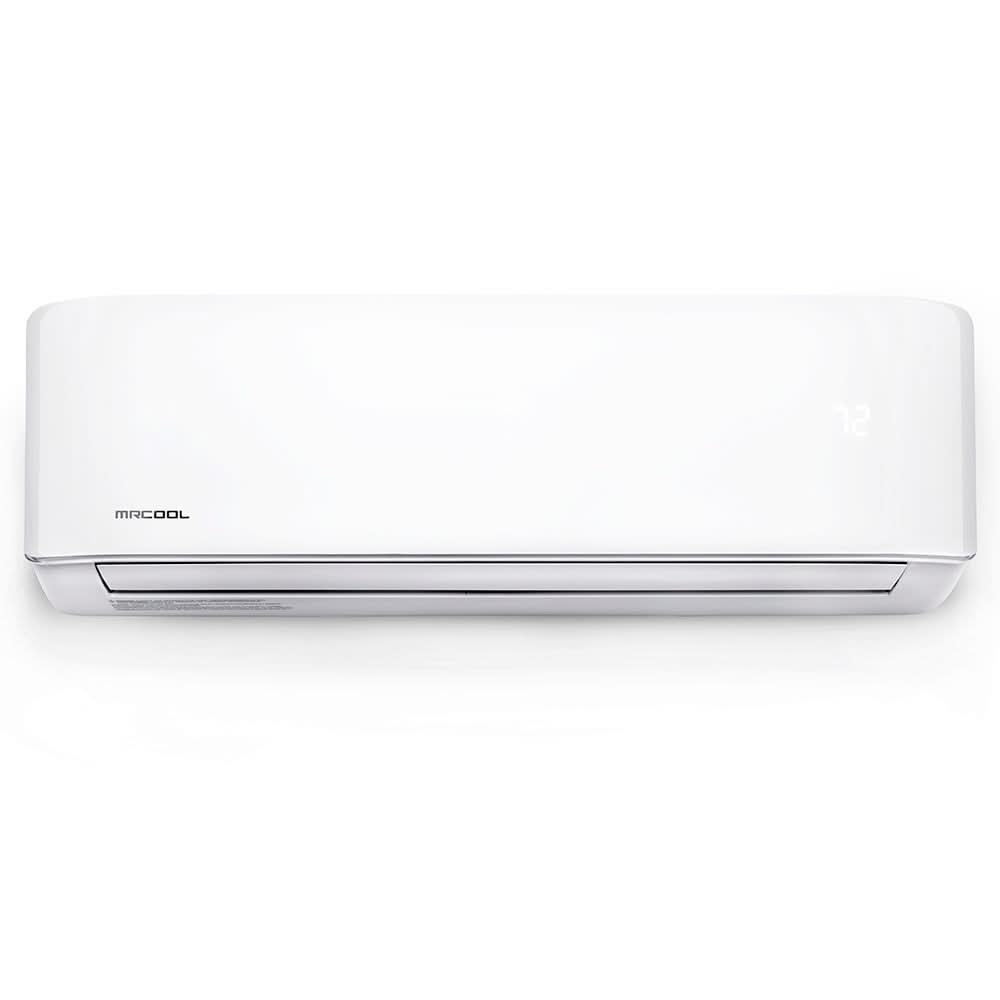

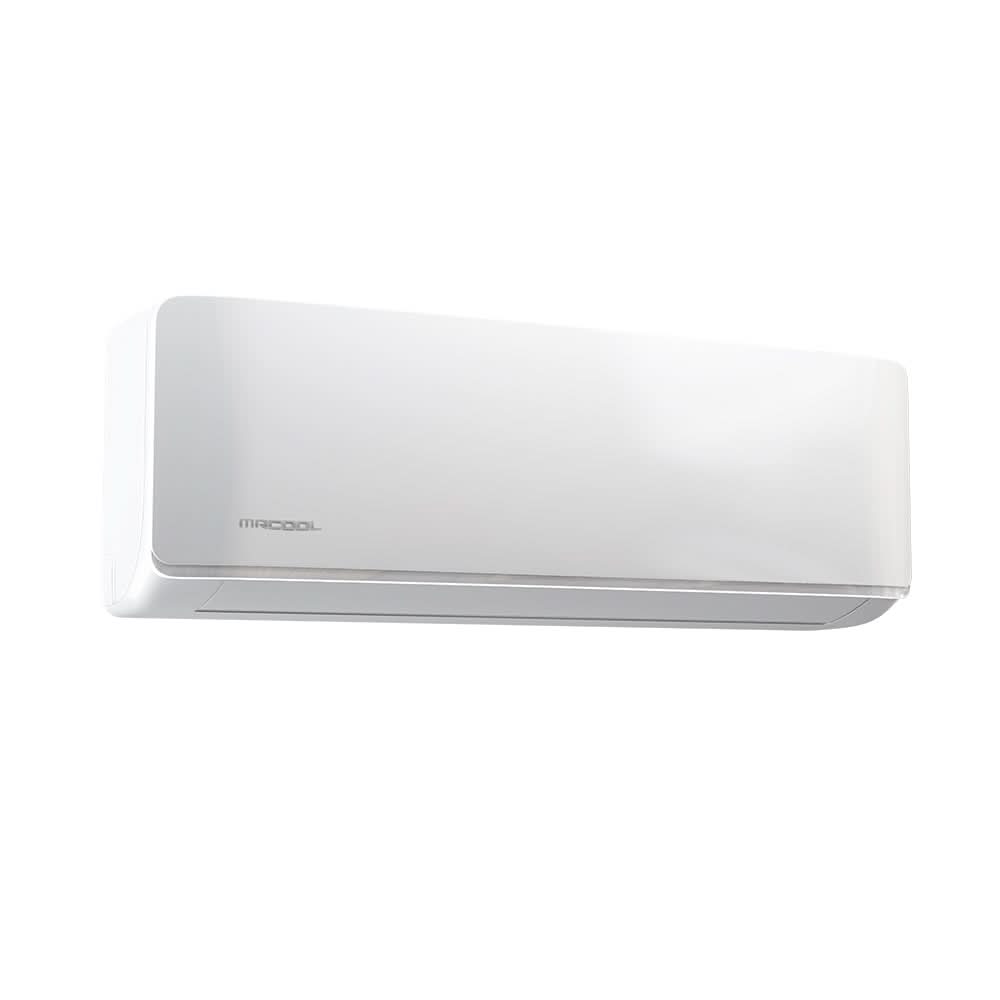

Air Handler Specifications:
| BRAND NAME | MRCOOL |
| SERIES | Advantage 5th gen |
| MODEL | A-09-HP-WMAH-115D-O |
| GTIN | 840255586870 |
| UPC | 840255586870 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | Advantage 5th Gen 9k BTU 115V Air Handler |
| CFM | 282.5 / 235.4 / 206.0 / 164.8 / 117.7 |
| TONNAGE | 0.75 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| DECIBEL RATING (DBA) | 33.5 |
| DECIBEL RATING LOW (DBA) | 18 |
| DECIBEL RATING HIGH (DBA) | 43 |
| NUMBER OF SPEEDS | 5 |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| FILTER TYPE | Reusable |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.36 |
| NET HEIGHT (IN) | 11.42 |
| NET WIDTH (IN) | 28.43 |
| NET WEIGHT (LBS) | 17.42 |
| GROSS DEPTH (IN) | 10.63 |
| GROSS HEIGHT (IN) | 14.76 |
| GROSS WIDTH (IN) | 31.1 |
| GROSS WEIGHT (LBS) | 22.93 |
