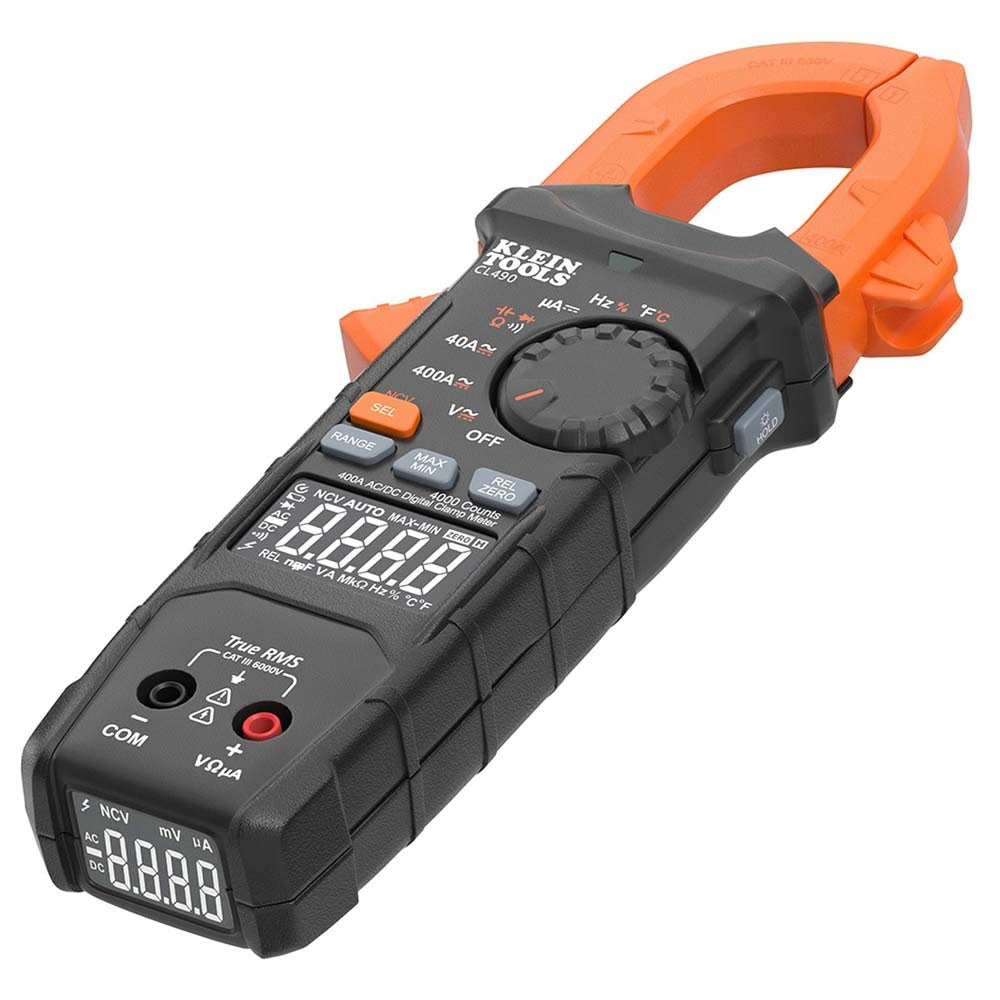

Klein CL490 400A AC/DC Dual-Display Auto-Ranging Digital Clamp Meter
$105.00$119.99
807488
Parcel Delivery (UPS/FedEx)
This product weighs 0.0 lbs and will ship by parcel carrier (UPS or FedEx).
Klein CL490 Description

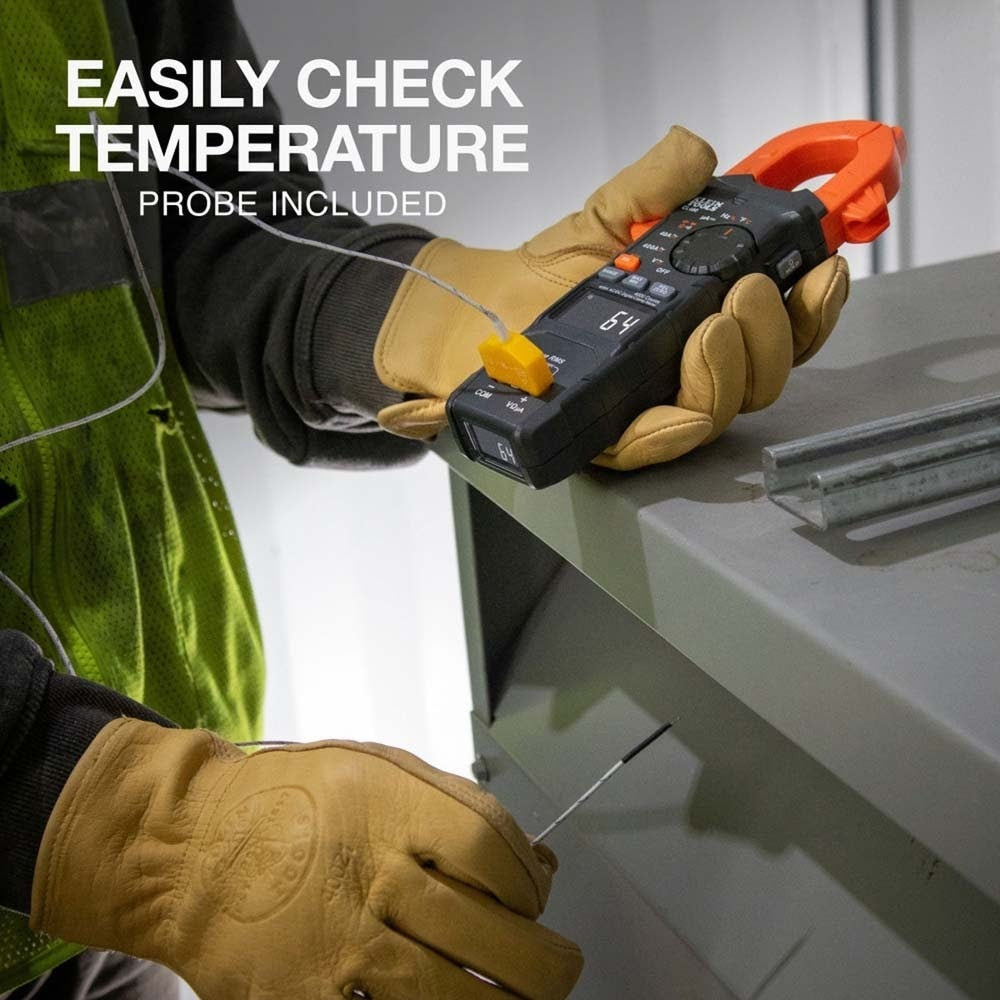

Klein Tools CL490 Dual Display Clamp Meter delivers accurate measurements with secondary display for easier readability in tight spaces. From AC/DC current, voltage, resistance, continuity, frequency,and capacitance, all with True RMS precision. It features diode testing and temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The backlit, hi-viz display and lighted dial ensure visibility in any lighting.

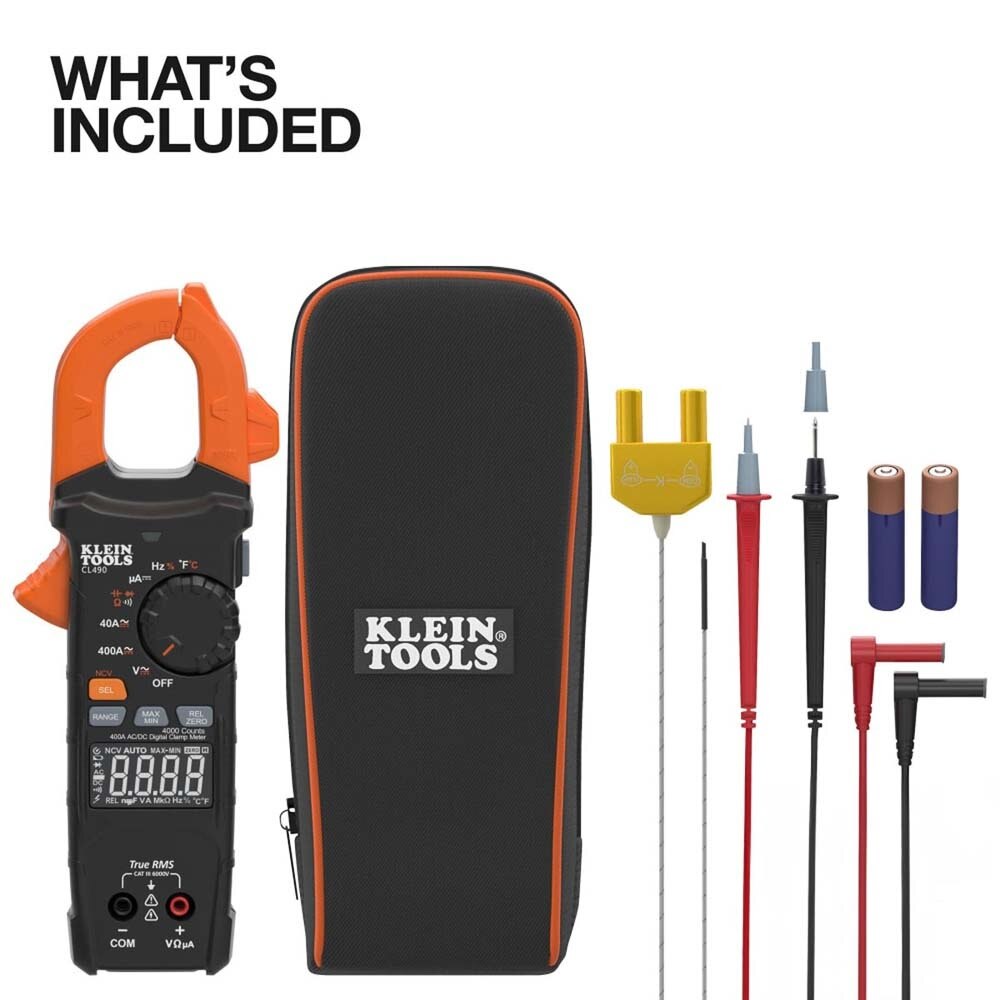

Klein CL490 Includes
- (1) Clamp Meter
- (1) Carrying Case
- (1) Instructions
- (1) Test Leads
- (1) Thermocouple
- (2) AA Batteries
Klein CL490 Features

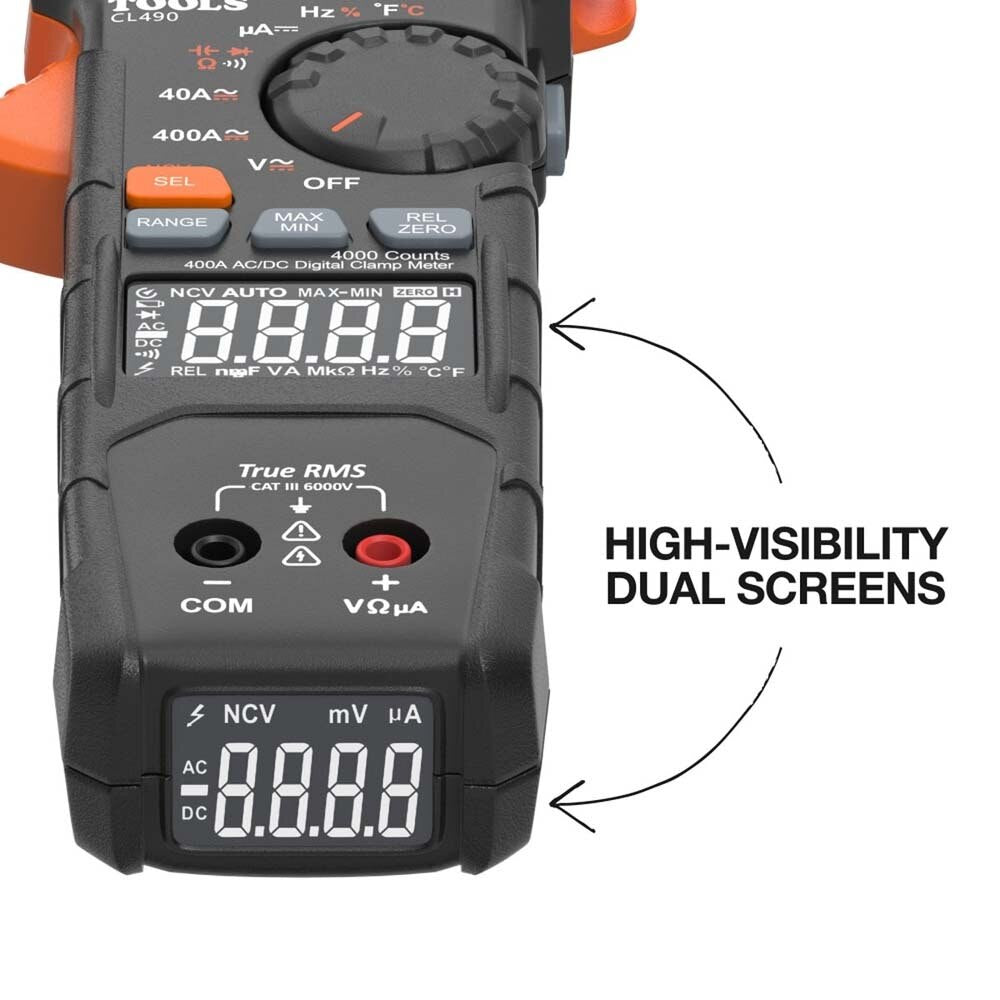

- Dual Display digital clamp meter allows users to see readings in tight space areas
- AC/DC clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC current and NCVT via clamp; AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads; temperature via thermocouple

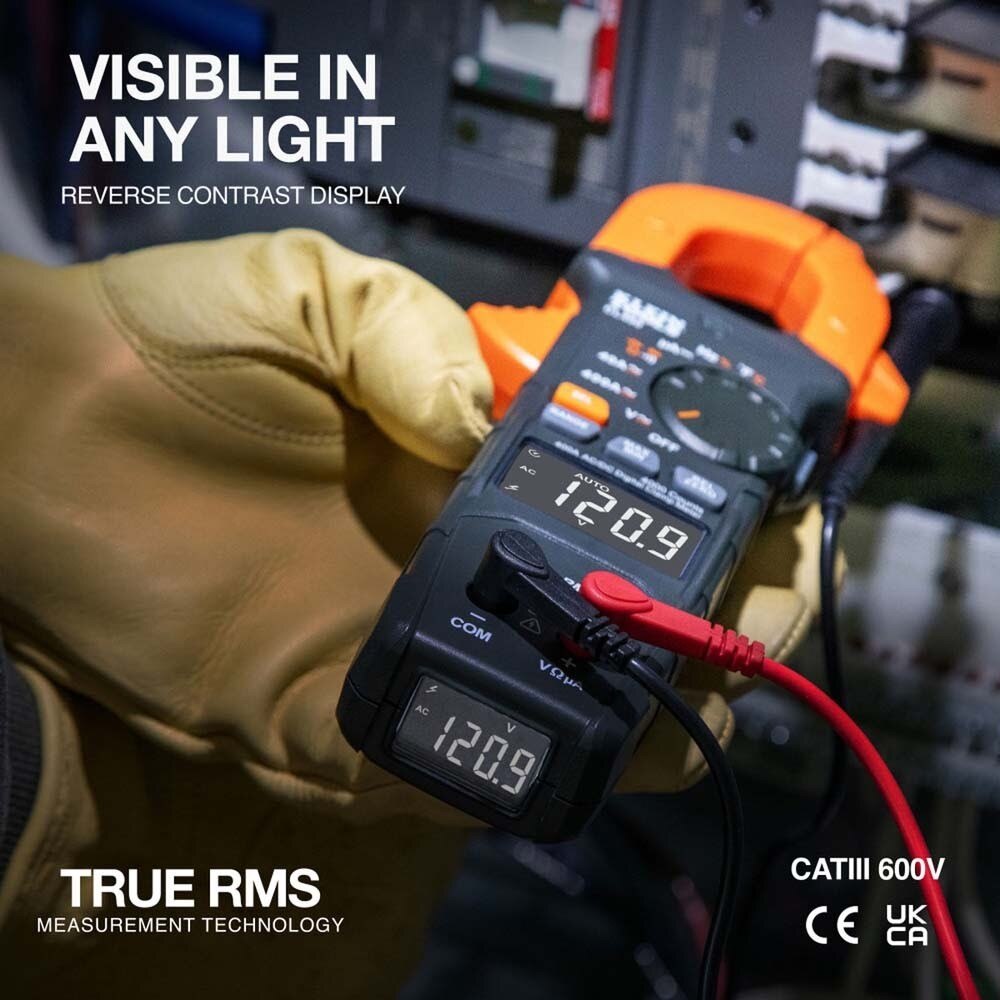

- Backlit reverse-contrast LCDs for clear data and best viewability in all environments
- Withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 2 x AA batteries
- Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb

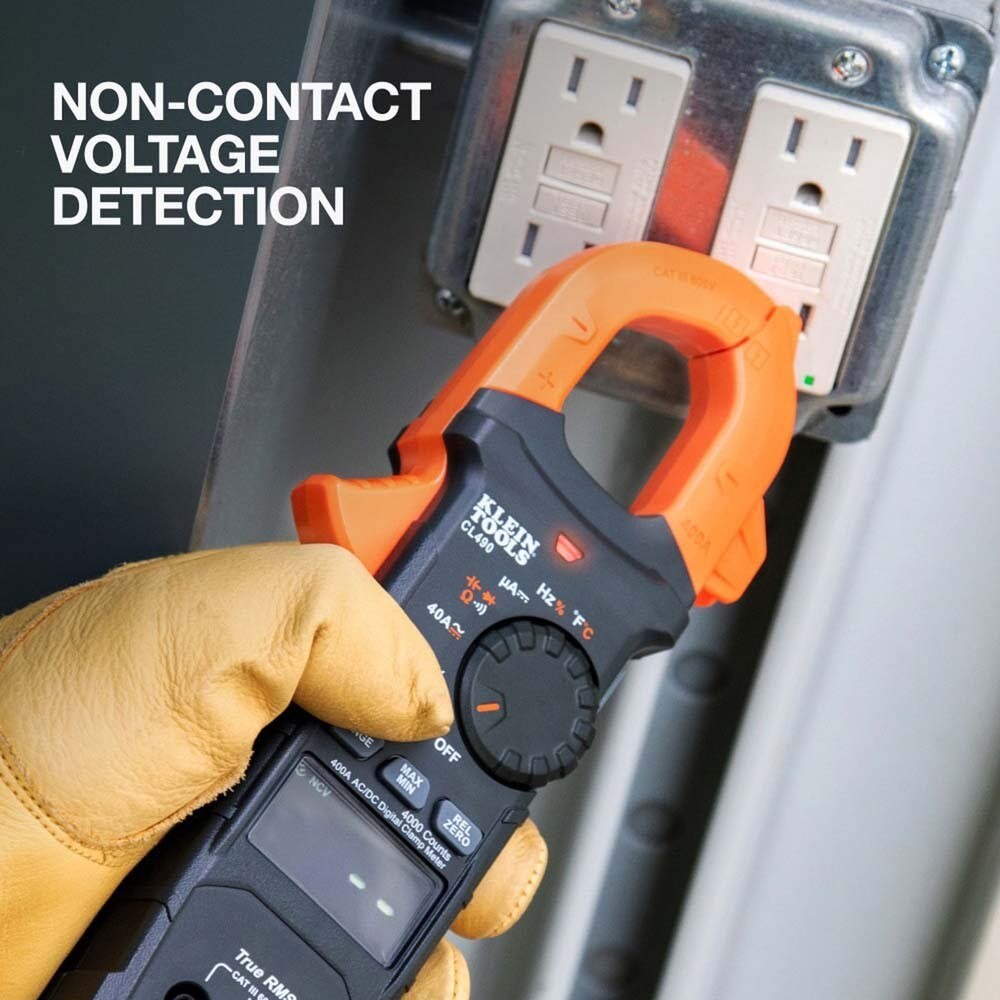

- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Klein CL490 Specifications
| Type: | Dual Screen AC/DC Current TRMS Clamp |
| Application: | Measures AC/DC Current and NCVT via the Clamp and AC/DC voltage, DC Microamp Current, Resistance, Continuity, Frequency, Duty-Cycle, Capacitance and Tests Diodes via the Test Leads, and Temperature with Thermocouple |
| Special Features: | Bottom Display; Automatically Ranging; TRMS Measurement; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT |
| Material: | ABS/Electronics |
| Batteries: | 2 x AA |
| Battery Life: | |
| Auto-Power Off: | Yes, Unless Disabled on Startup |
| Jaw Size: | 1.6" (4.1 cm) |
| Drop Protection: | 6.6' (2 m) |
| Display: | 4000 Count Backlit, Hi-Viz |
| Display Size: | Main Display: 1.54" x 0.86" (3.9 cm x 2.2 cm) Secondary: 1.04" x 0.72" (2.6 cm x 1.8 cm) |
| Functions: | TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature |
| Auto Ranging: | Yes |
| TRMS: | Yes |
| Voltage: | 600V AC/DC |
| Frequency: | 10Hz - 60kHz |
| Current: | 400A AC/DC |
| Capacitance: | 4000?F |
