MRCOOL - DIY 5th Gen Easy Pro - 2 Ton / 24,000 BTU Ductless Mini Split Air Conditioner & Heat Pump - 18.9 SEER2 - R454B - 230V
Regular Price
$2,149.00
Press & drag to view
The MRCOOL EasyPro 5th Generation 24,000 BTU 230V Ductless Mini Split Heat Pump Complete System is designed to efficiently heat and cool spaces up to 1,050 square feet. This DIY-friendly system includes a 16-foot pre-charged Fast Connection® line set, eliminating the need for professional installation. With an impressive 18.9 SEER2 rating and 8.7 HSPF2-4 rating, it offers energy-efficient performance year-round.

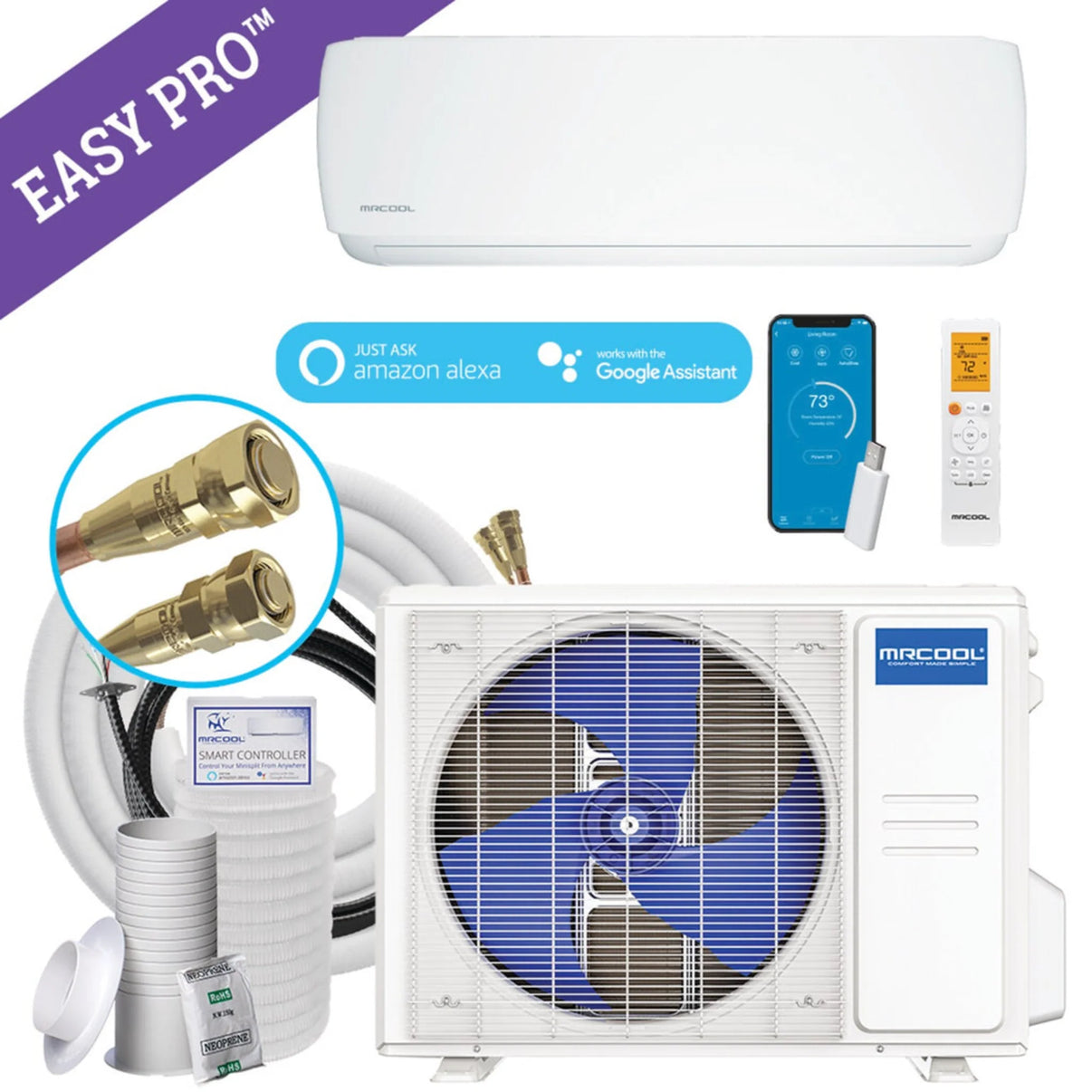

What's Included
- 1 x MRCOOL DIY 24K Easy Pro 5th Gen Condenser - EZPRO-24-HP-C-23016D-O
- 1 x MRCOOL DIY 24K Easy Pro 5th Gen Air Handler - EZPRO-24-HP-WMAH-230D-O
- 1 x 16 ft. 3/8 x 5/8 Line Set - DIY16-3858-O
- 1 x MRCOOL Remote Control - 17317000A63435
Features
- DIY Installation: The 16-foot pre-charged Fast Connection® line set simplifies the installation process, allowing homeowners to set up the system without specialized tools or training.
- Smart Controls: Compatible with the SmartHVAC Controller App, enabling remote operation via smartphone and voice control through Amazon Alexa and Google Assistant.
- Energy Efficiency: Achieves a SEER2 rating of 18.9 and an HSPF2-4 rating of 8.7, providing efficient performance and potential cost savings.
- Quiet Operation: Operates at a low noise level of 61 dB(A), ensuring a peaceful environment.
- Durable Design: Features a Gold Fin® corrosion-resistant condenser, ideal for coastal and high-humidity areas.
- Low Ambient Cooling: Capable of cooling in outdoor temperatures as low as 5°F, making it suitable for server rooms and greenhouses.
- Additional Features: Includes Follow Me® function, Sleep Mode, Auto Mode, Timer Mode, and refrigerant leakage detection for enhanced comfort and safety.
Specifications
Condenser Specifications
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-24-HP-C-23016D-O |
| GTIN | 840255586757 |
| UPC | 840255586757 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SHORT DESCRIPTION | EasyPro 5th Generation 24k BTU 230V Condenser |
| SEER2 | 18.9 |
| EER2 | 9.7 |
| HSPF2-4 | 8.7 |
| HSPF2-5 | 6.9 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 25000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 50.44 |
| DECIBEL RATING HIGH (DBA) | 61 |
| INVERTER | DC |
| MIN AMBIENT COOL (F) | 5 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 16ft |
| MAX LINESET LENGTH (FT) | 164 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 95.9 |
| GROSS DEPTH (IN) | 15.67 |
| GROSS HEIGHT (IN) | 29.13 |
| GROSS WIDTH (IN) | 39.17 |
| GROSS WEIGHT (LBS) | 117.73 |
Air Handler Specifications
| BRAND NAME | MRCOOL |
| SERIES | EasyPro 5th Gen |
| MODEL | EZPRO-24-HP-WMAH-230D-O |
| GTIN | 840255586795 |
| UPC | 840255586795 |
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| SHORT DESCRIPTION | EasyPro 5th Generation 24k BTU 230V Air Handler |
| CFM | 729.9 / 547.4 / 400.2 / 329.6 / / |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) | 24000 |
| HEATING CAPACITY (BTU) | 25000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| MAX COVERAGE AREA | 1050 sqft |
| DECIBEL RATING (DBA) | 40 |
| DECIBEL RATING LOW (DBA) | 21.5 |
| DECIBEL RATING HIGH (DBA) | 51.5 |
| NUMBER OF SPEEDS | 5 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| BLOWER MOTOR SPEEDS | 3 |
| BLOWER MOTOR RPM | 1100/940/780 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | Extended Limited Lifetime* |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 9.21 |
| NET HEIGHT (IN) | 13.27 |
| NET WIDTH (IN) | 42.6 |
| NET WEIGHT (LBS) | 35.49 |
| GROSS DEPTH (IN) | 16.34 |
| GROSS HEIGHT (IN) | 12.4 |
| GROSS WIDTH (IN) | 45.47 |
| GROSS WEIGHT (LBS) | 49.6 |
Owner Manual
