MRCOOL Easy Pro® 5th Gen DIY Mini Split Heat Pump System with Pre-Charged Quick Connect® Line Set | R-454B Refrigerant
Regular Price
$1,487.00
Press & drag to view
MRCOOL Easy Pro® 5th Generation DIY Mini Split Heat Pump Systems
The MRCOOL Easy Pro® 5th Gen DIY Mini Split Heat Pump System delivers reliable year-round heating and cooling with true do-it-yourself installation. Designed for bedrooms, garages, workshops, offices, additions, rental properties, and other spaces where ductwork is impractical, the Easy Pro combines proven MRCOOL technology with simplified installation and strong everyday value.
This updated Easy Pro generation is charged with R-454B refrigerant and includes an 11.5 ft pre-charged Quick Connect® line set. The shorter included line set is ideal for compact installations where the indoor and outdoor units are located close together, while optional line set lengths are available separately for projects that require more distance.
Important Update: Warranty & Included Line Set Length
| Feature | Previous Easy Pro Model | Updated Easy Pro 5th Gen |
|---|---|---|
| Included Line Set | 16 ft pre-charged line set | 11.5 ft pre-charged Quick Connect® line set |
| Refrigerant | R-410A | R-454B |
| Warranty Coverage | 2-year compressor warranty and 1-year parts warranty | 5-year compressor warranty and 3-year parts warranty |
| Extended Line Set Options | Extended line set bundles available | 16', 25', 35', and 50' line sets available as optional purchases |
Please verify your required line set length before ordering. If your installation requires more than the included 11.5 ft line set, choose an optional compatible MRCOOL line set length before installation.
Why Choose the MRCOOL Easy Pro® 5th Gen?
- True DIY Installation: Factory pre-charged Quick Connect® line set eliminates vacuuming and refrigerant charging.
- Included 11.5 ft Line Set: Ideal for compact installations where the indoor and outdoor units are close together.
- Optional Longer Line Sets: Compatible 16', 25', 35', and 50' line sets are available separately.
- R-454B Refrigerant: Modern refrigerant designed for updated efficiency and environmental standards.
- Factory Warranty Coverage: Includes a 5-year compressor warranty and 3-year parts warranty.
- Energy Efficient Inverter Technology: Variable-speed performance helps reduce energy consumption.
- WiFi & Smart Control: Control your system from anywhere using the MRCOOL SmartHVAC® app.
- Quiet Operation: Low indoor sound levels help maintain comfort without excessive noise.
- Heating & Cooling: Provides year-round climate control from a single ductless mini split system.
- Wide Operating Range: Designed to operate in ambient temperatures from -13°F to 122°F.
Available BTU Sizes & Coverage
| Model | Voltage | Cooling Capacity | Heating Capacity | Coverage Area* | SEER2 | HSPF2-4 |
|---|---|---|---|---|---|---|
| 9K Easy Pro | 115V | 9,000 BTU | 10,000 BTU | Up to 400 Sq Ft | 20.2 | 9.2 |
| 12K Easy Pro | 115V | 12,000 BTU | 12,000 BTU | Up to 550 Sq Ft | 19.5 | 9.3 |
| 18K Easy Pro | 208-230V | 17,000 BTU | 18,000 BTU | Up to 800 Sq Ft | 20.0 | 8.5 |
| 24K Easy Pro | 208-230V | 24,000 BTU | 25,000 BTU | Up to 1,050 Sq Ft | 18.9 | 8.7 |
Electrical Requirements
| Model | Power Supply | Outdoor MCA | Outdoor Max Fuse / Breaker | Indoor Max Fuse / Breaker |
|---|---|---|---|---|
| 9K Easy Pro | 115V, 1 Phase, 60Hz | 17.0A | 20A | 15A |
| 12K Easy Pro | 115V, 1 Phase, 60Hz | 19.5A | 20A | 15A |
| 18K Easy Pro | 208-230V, 1 Phase, 60Hz | 15.0A | 20A | 15A |
| 24K Easy Pro | 208-230V, 1 Phase, 60Hz | 19.0A | 20A | 15A |
Line Set Information
| Line Set Detail | Information |
|---|---|
| Included Line Set | 11.5 ft pre-charged Quick Connect® line set |
| Optional Line Set Lengths | 16', 25', 35', and 50' available as optional purchases |
| Installation Benefit | No vacuum pump, manifold gauges, or manual refrigerant charging required for standard DIY connection |
| Important Note | Always confirm the required distance between indoor and outdoor units before installation. |

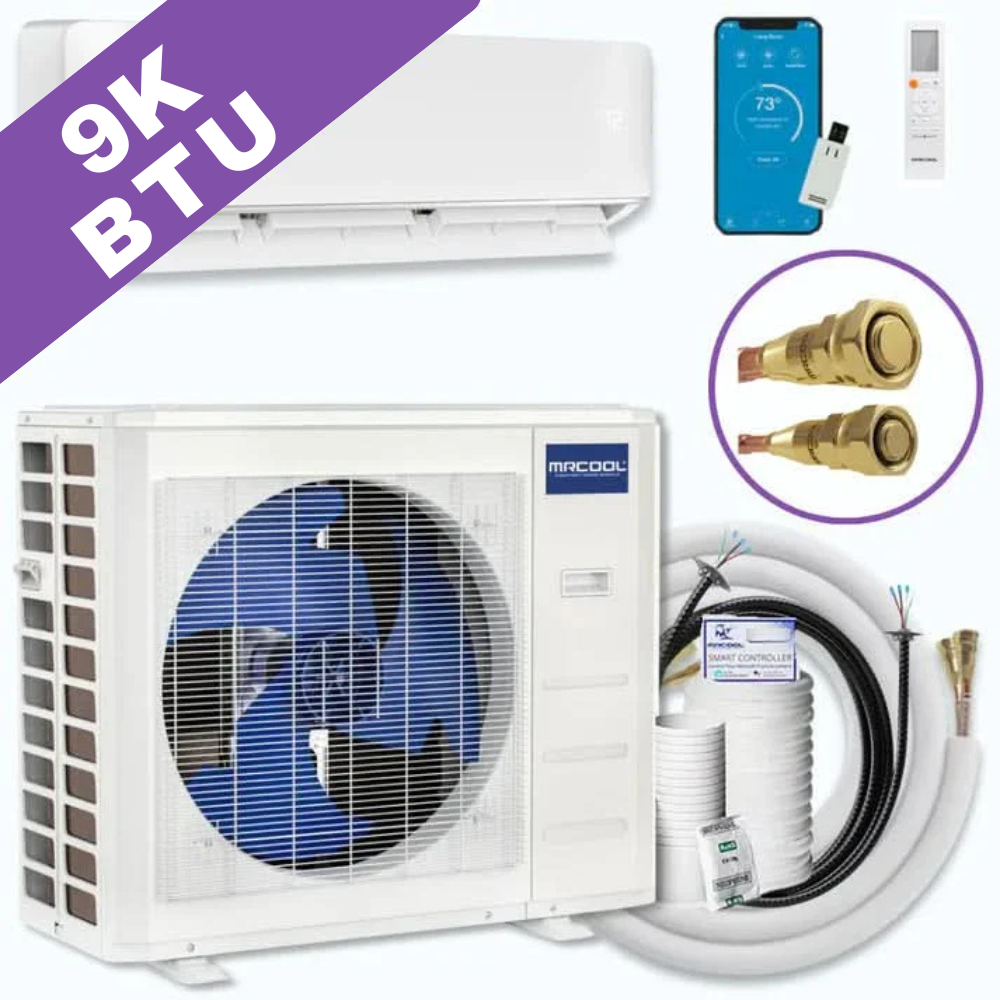

What's Included?
- Wall-mounted indoor air handler
- Outdoor inverter condenser
- 11.5 ft factory pre-charged Quick Connect® line set
- Control wire
- Wireless remote control
- SmartHVAC® WiFi controller
- Installation hardware
- Factory warranty coverage: 5-year compressor and 3-year parts warranty
Smart Comfort Anywhere
Using the MRCOOL SmartHVAC® app, you can adjust temperatures, change operating modes, create schedules, and monitor performance directly from your smartphone. The Easy Pro is also compatible with Amazon Alexa and Google Assistant for convenient voice control.
Perfect For
- Bedrooms
- Home offices
- Garages
- Workshops
- Bonus rooms
- Additions
- Rental properties
- Tiny homes
- Finished basements
Why Buy From MRCOOL DIY Direct?
- Authorized MRCOOL dealer
- Expert DIY mini split support
- Fast nationwide shipping
- Family-owned and first responder founded
- Thousands of successful installations supported
Enjoy professional comfort at a DIY price with the MRCOOL Easy Pro® 5th Generation Mini Split Heat Pump System.
*Coverage estimates are based on ideal installation conditions and may vary based on insulation, ceiling height, climate, windows, sun exposure, and other factors.
