GWIN 2.5 Ton – 30,000 BTU – 18 SEER2 Inverter Ducted Complete HVAC System

Upgrade to whole-home comfort with the GWIN 2.5 Ton (30,000 BTU) Inverter Ducted HVAC System. This complete, AHRI-certified system delivers efficient heating and cooling with 18 SEER2 performance, flexible installation options, and rock-solid reliability in extreme temperatures.

Key Comfort & Performance Features

• High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
• Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
• Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
• Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
• Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
• Dual Communication: Compatible with 24V and 485 control systems for easy integration.
• Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
• ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

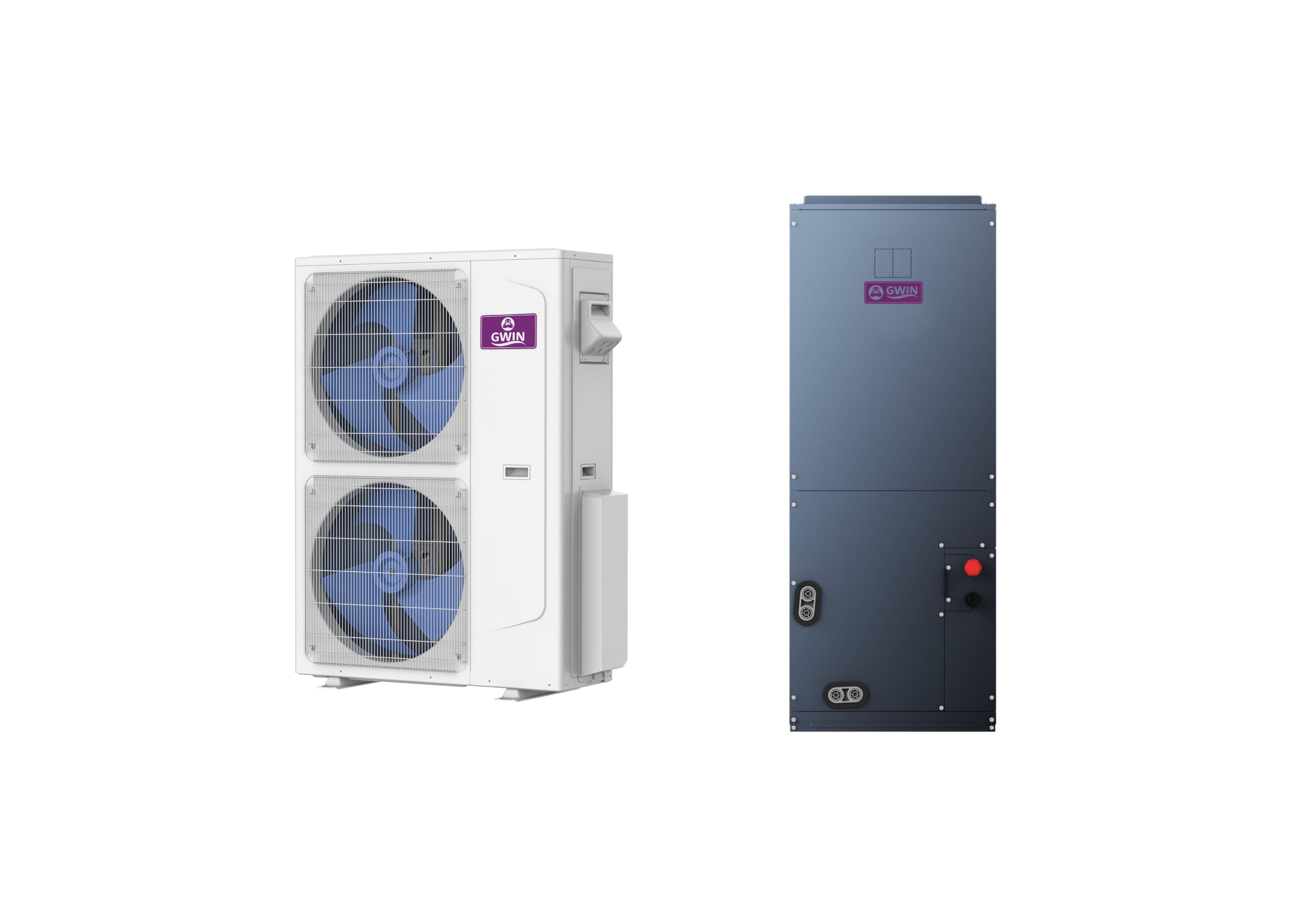

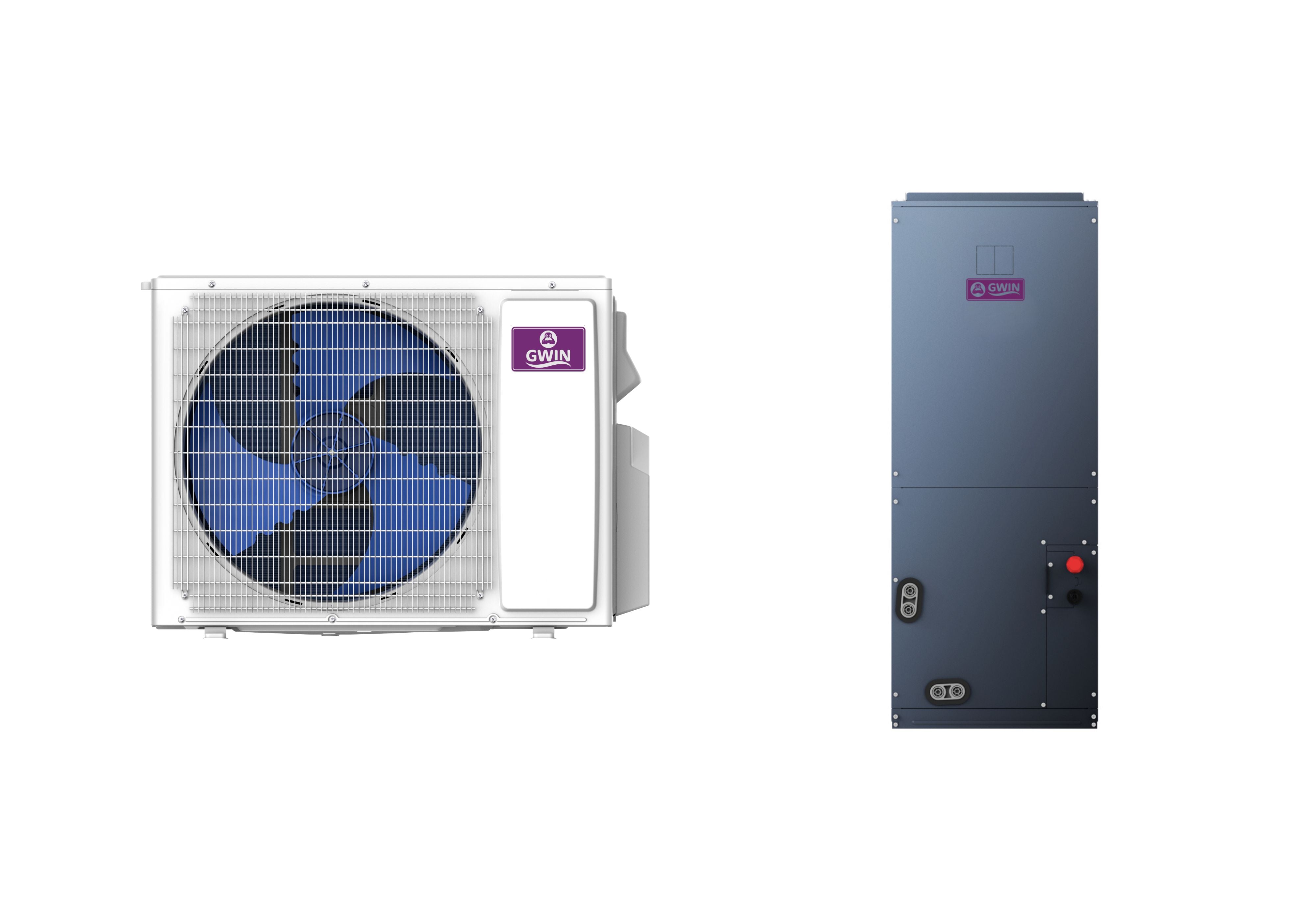

Complete System Includes

• Indoor Air Handler: Model GAHU30HPV1BI
• Outdoor Condenser: Model GAHU30HPV1BO
• AHRI Certified System Number: 216032394

Indoor Air Handler Specifications (GAHU30HPV1BI)

• Cooling Capacity: 30,000 BTU (Range: 8,000–34,000 BTU)
• Heating Capacity @ 47°F: 33,000 BTU (Range: 5,500–36,000 BTU)
• Power Input (Rated): Cooling 2,586 W; Heating @ 47°F 2,931 W
• Power Supply: 208/230V, 60Hz, 1-Phase
• Rated Current: Cooling 11.47 A; Heating 13.00 A
• MCA / Max Fuse (Indoor): 5.7 A / 10 A
• Efficiency: SEER2 18.00 | EER2 11.60 | HSPF2 (Region IV) 9.00 | COP 3.30
• Airflow (CFM): 1000 / 820 / 650 (Hi/Mi/Lo)
• Sound Pressure (dB[A]): 50 / 48 / 46 (Hi/Mi/Lo)
• External Static Pressure: 0–1.0 in. w.g (Rated 0.5)
• Dimensions (W × D × H): 21" × 21" × 55.5" (Net)
• Packaging (W × D × H): 24.63" × 27.75" × 55.5"
• Weight (Net/Gross): 132.9 / 152.1 lbs
• Line Set Sizes: Liquid 3/8" | Gas 5/8"
• Max Line Length / Lift: 164 ft / 98 ft
• Operating Temp (Indoor): 61–90°F (16–32°C)
• Wiring: Power (Indoor) AWG 18 | Signal AWG 22

Outdoor Condenser Specifications (GAHU30HPV1BO)

• Power Supply: 208/230V, 60Hz, 1-Phase
• Max Input / Max Current: 4,700 W / 22 A
• MCA / Max Fuse (Outdoor): 24 A / 35 A
• Recommended Breaker: 30 A
• Air Flow Volume: 4,000 CFM
• Sound Pressure: 58 dB(A)
• Dimensions (W × D × H): 39.81" × 15.75" × 51.94" (Net)
• Packaging (W × D × H): 42.5" × 16.94" × 56.69"
• Weight (Net/Gross): 196.16 / 216.10 lbs
• Refrigerant Charge: 116.40 oz
• Line Set Sizes: Liquid 3/8" | Gas 5/8"
• Max Line Length / Lift: 164 ft / 98 ft
• Ambient Operating Range – Cooling: 5–125°F (-15–52°C)
• Ambient Operating Range – Heating: -22–75°F (-30–24°C)
• Wiring: Power (Outdoor) AWG 12 | Signal AWG 22

Why Choose the GWIN 2.5 Ton Inverter Ducted System?

• Efficient, inverter-driven performance for lower utility costs and stable comfort.
• Generous line length and ESP capability support complex duct designs and retrofits.
• Built to perform across wide temperature ranges for year-round reliability.
• Integrates with common control platforms via 24V or 485 communication.
• AHRI-certified system number 216032394 for verified performance.

Notes: Specifications and data are based on laboratory testing and may vary with installation conditions. © 2025 GWIN LLC (USA) Inc.
