GWIN 2.5 Ton – 30,000 BTU – 18 SEER2 Inverter Ducted Complete HVAC System

Upgrade to whole-home comfort with the GWIN 2.5 Ton (30,000 BTU) Inverter Ducted HVAC System. This complete, AHRI-certified system delivers efficient heating and cooling with 18 SEER2 performance, flexible installation options, and rock-solid reliability in extreme temperatures.

Key Comfort & Performance Features

High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
Dual Communication: Compatible with 24V and 485 control systems for easy integration.
Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

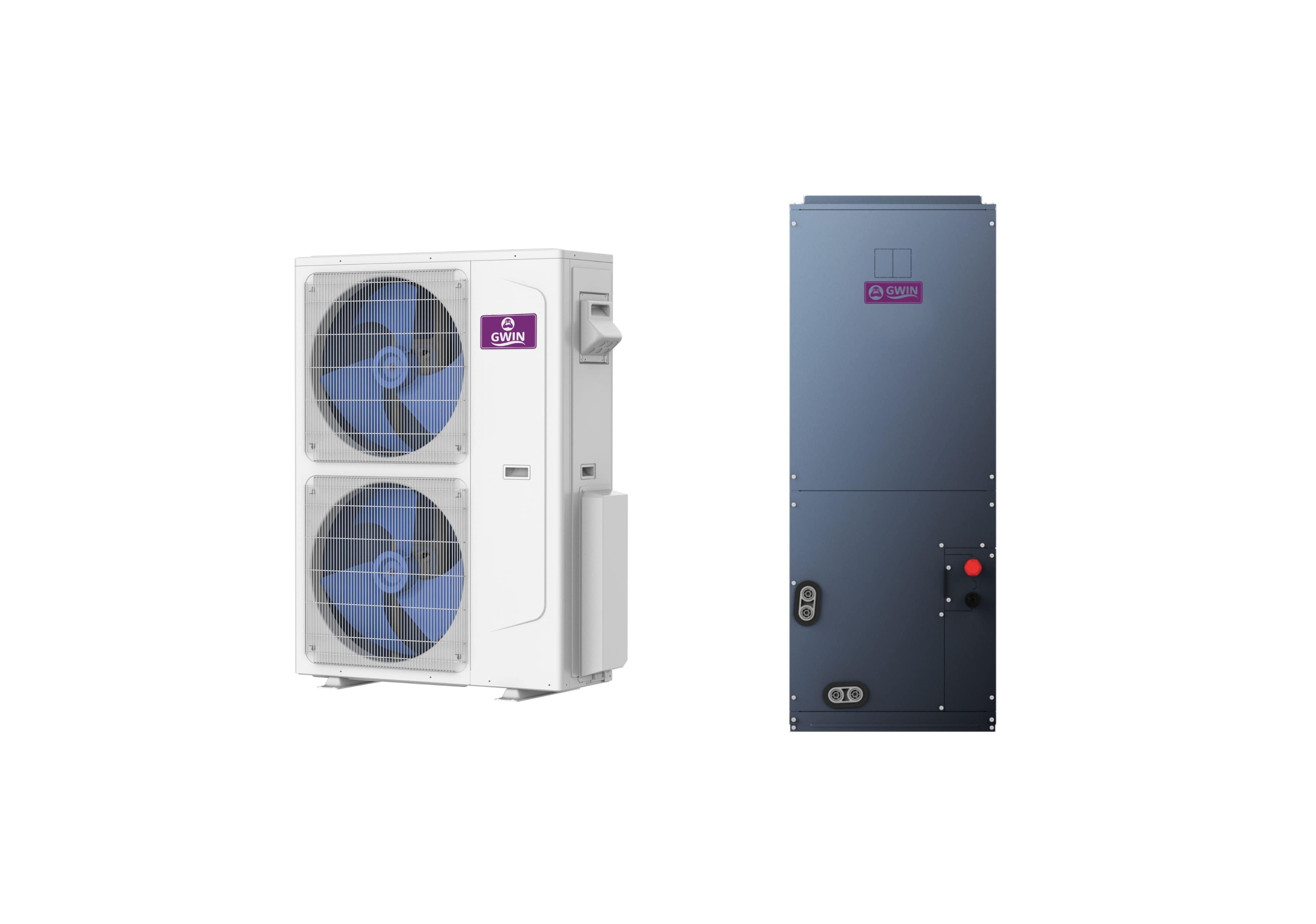

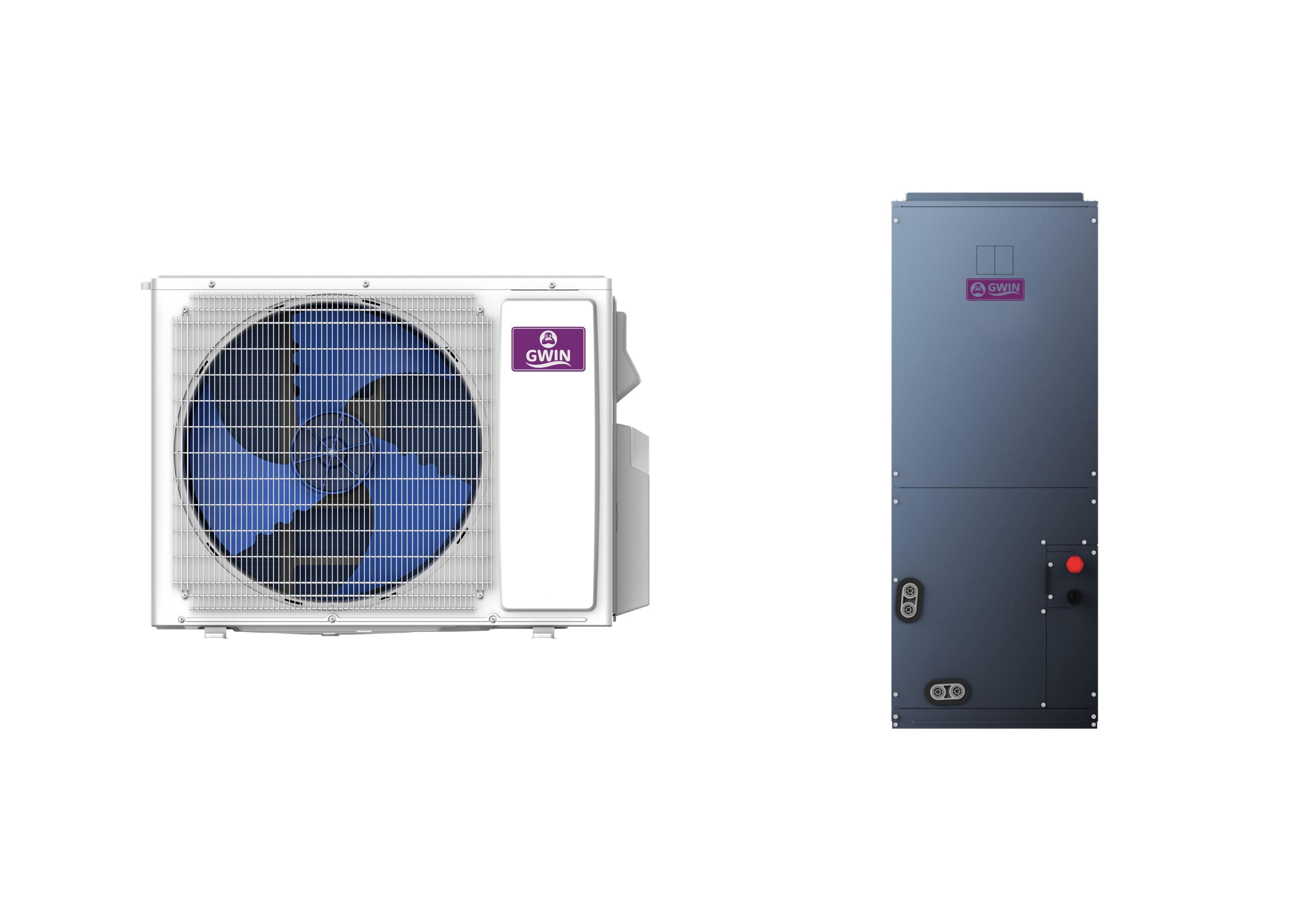

Complete System Includes

Indoor Air Handler: Model GAHU30HPV1BI
Outdoor Condenser: Model GAHU30HPV1BO
AHRI Certified System Number: 216032394

Indoor Air Handler Specifications (GAHU30HPV1BI)

Cooling Capacity: 30,000 BTU (Range: 8,000–34,000 BTU)
Heating Capacity @ 47°F: 33,000 BTU (Range: 5,500–36,000 BTU)
Power Input (Rated): Cooling 2,586 W; Heating @ 47°F 2,931 W
Power Supply: 208/230V, 60Hz, 1-Phase
Rated Current: Cooling 11.47 A; Heating 13.00 A
MCA / Max Fuse (Indoor): 5.7 A / 10 A
Efficiency: SEER2 18.00 | EER2 11.60 | HSPF2 (Region IV) 9.00 | COP 3.30
Airflow (CFM): 1000 / 820 / 650 (Hi/Mi/Lo)
Sound Pressure (dB[A]): 50 / 48 / 46 (Hi/Mi/Lo)
External Static Pressure: 0–1.0 in. w.g (Rated 0.5)
Dimensions (W × D × H): 21" × 21" × 55.5" (Net)
Packaging (W × D × H): 24.63" × 27.75" × 55.5"
Weight (Net/Gross): 132.9 / 152.1 lbs
Line Set Sizes: Liquid 3/8" | Gas 5/8"
Max Line Length / Lift: 164 ft / 98 ft
Operating Temp (Indoor): 61–90°F (16–32°C)
Wiring: Power (Indoor) AWG 18 | Signal AWG 22

Outdoor Condenser Specifications (GAHU30HPV1BO)

Power Supply: 208/230V, 60Hz, 1-Phase
Max Input / Max Current: 4,700 W / 22 A
MCA / Max Fuse (Outdoor): 24 A / 35 A
Recommended Breaker: 30 A
Air Flow Volume: 4,000 CFM
Sound Pressure: 58 dB(A)
Dimensions (W × D × H): 39.81" × 15.75" × 51.94" (Net)
Packaging (W × D × H): 42.5" × 16.94" × 56.69"
Weight (Net/Gross): 196.16 / 216.10 lbs
Refrigerant Charge: 116.40 oz
Line Set Sizes: Liquid 3/8" | Gas 5/8"
Max Line Length / Lift: 164 ft / 98 ft
Ambient Operating Range – Cooling: 5–125°F (-15–52°C)
Ambient Operating Range – Heating: -22–75°F (-30–24°C)
Wiring: Power (Outdoor) AWG 12 | Signal AWG 22

Why Choose the GWIN 2.5 Ton Inverter Ducted System?

Efficient, inverter-driven performance for lower utility costs and stable comfort.
Generous line length and ESP capability support complex duct designs and retrofits.
Built to perform across wide temperature ranges for year-round reliability.
Integrates with common control platforms via 24V or 485 communication.
AHRI-certified system number 216032394 for verified performance.
