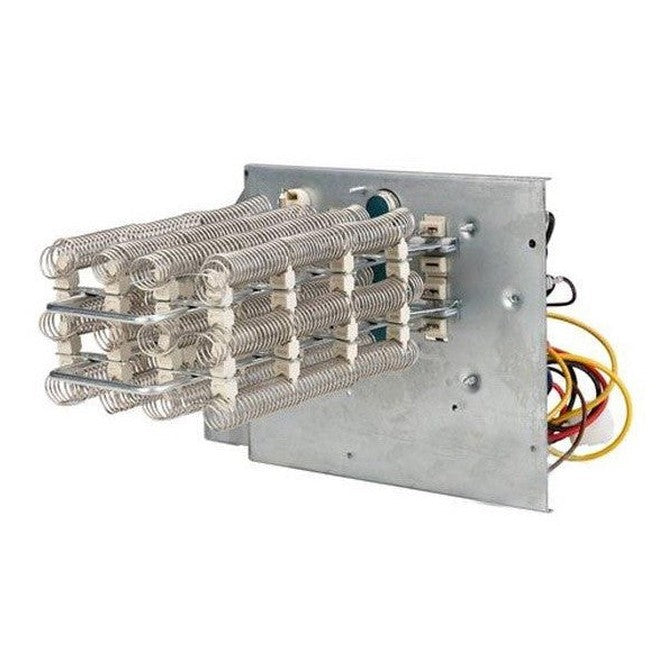

Goodman 15 Kilowatt Electric Heater Coil 51,150 BTU 208-240 Volts 1-Phase
$266.00$0.00
HKTSD15XB
Type: Goodman Parts
Parcel Delivery (UPS/FedEx)
This product weighs 0.0 lbs and will ship by parcel carrier (UPS or FedEx).
Product Details
Goodman 15 Kilowatt Electric Heater Coil 51,150 BTU 208-240 Volts 1-Phase HKTSD15XB
This 240-volt heater coil enhances Goodman air handlers with efficient winter heating capabilities, producing up to 51,150 BTUs of heat. Designed for optimal performance, it is controlled by sequencers to maintain balanced temperatures. The unit is pre-assembled, rigorously tested, and features rust-resistant nickel-chromium heating elements, high-temperature limit controls for safety, and built-in overcurrent protection. Its plug-in wiring harness ensures easy installation into air handlers.
For installation, line voltage connects directly to the heater coil, eliminating the need for a separate circuit for the air handler. Depending on the coil size, one or two circuits may be required, as specified in the product specifications. Individual 220-volt double-pole circuit breakers are necessary at the home's circuit panel for each circuit.
Compatible Goodman Air Handlers:
- ARPT (30,000+ BTU)
- ARUF (30,000+ BTU)
- ASPT (36,000+ BTU)
- ASUF (42,000+ BTU)
- AVPTC (36,000+ BTU)
Specifications
Goodman 15 Kilowatt Electric Heater Coil 51,150 BTU 208-240 Volts 1-Phase HKTSD15XB
| Brand | Goodman | SKU | HKTSD15XB |
| Weight (in lbs) | 9.000000 | Replaces | HKSC15XB |
| Heating BTU | 51,150 | Electric Heat | 15 Kilowatts |
| Electrical | 208 / 230 / 240 Volts / 1 Phase | Phase | Single Phase |
| Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 25 amps | Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 25 amps |
Warranty
Goodman 15 Kilowatt Electric Heater Coil 51,150 BTU 208-240 Volts 1-Phase HKTSD15XB
| Warranty | 10 Years with Online Registration |
