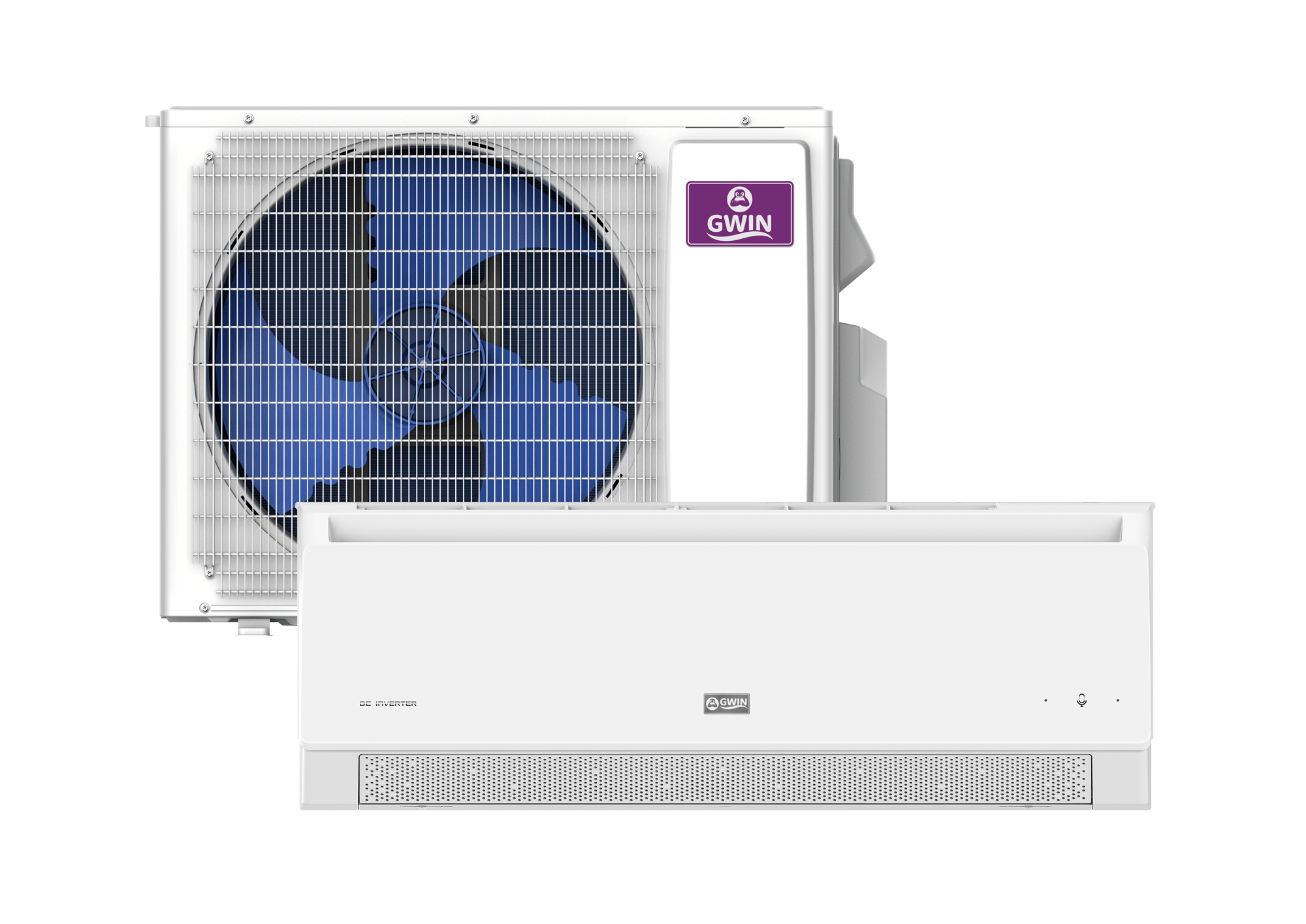

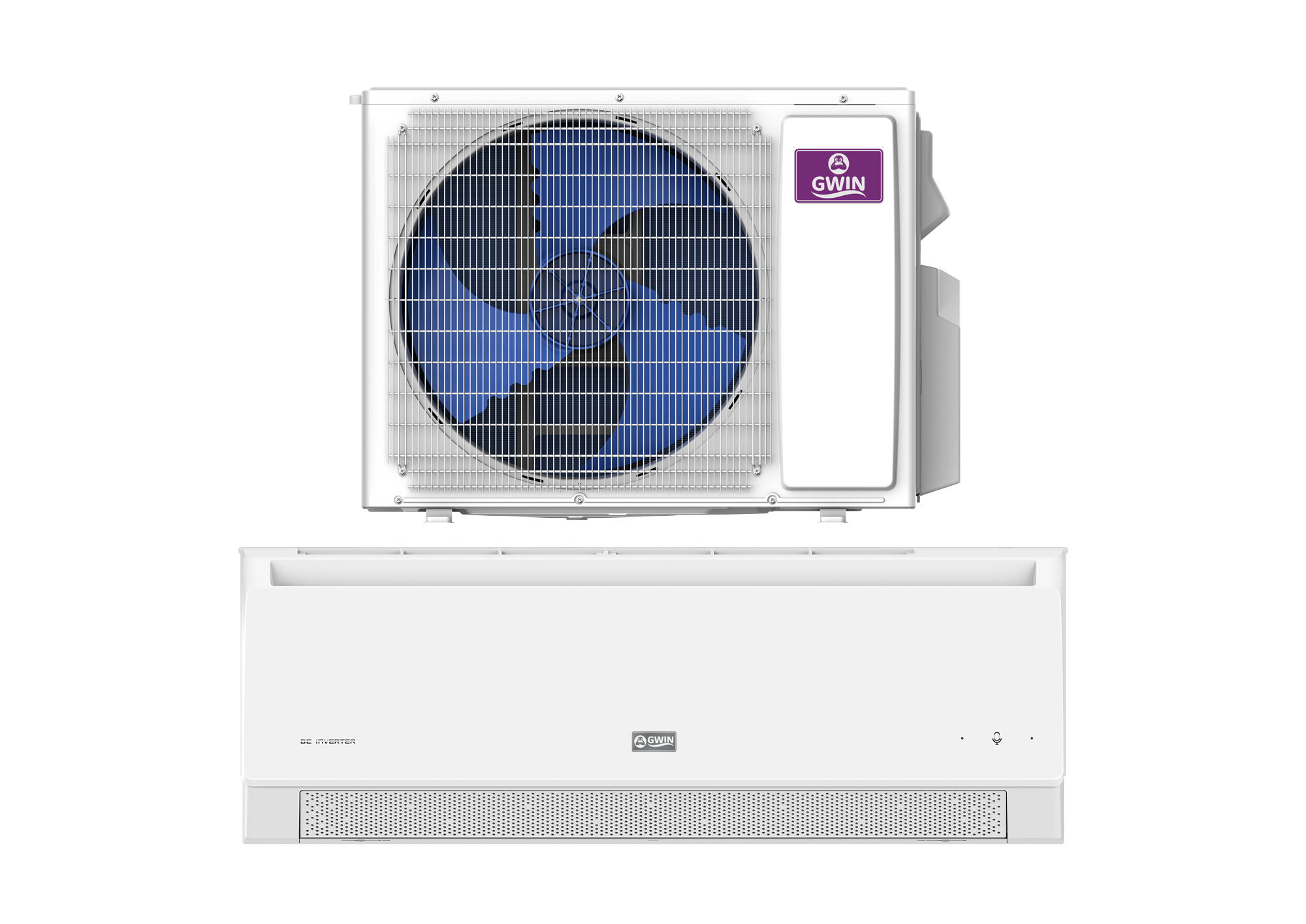

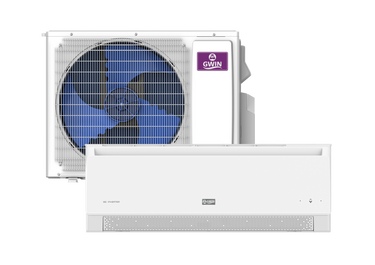

GWIN 24,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System
$2,511.40 USD

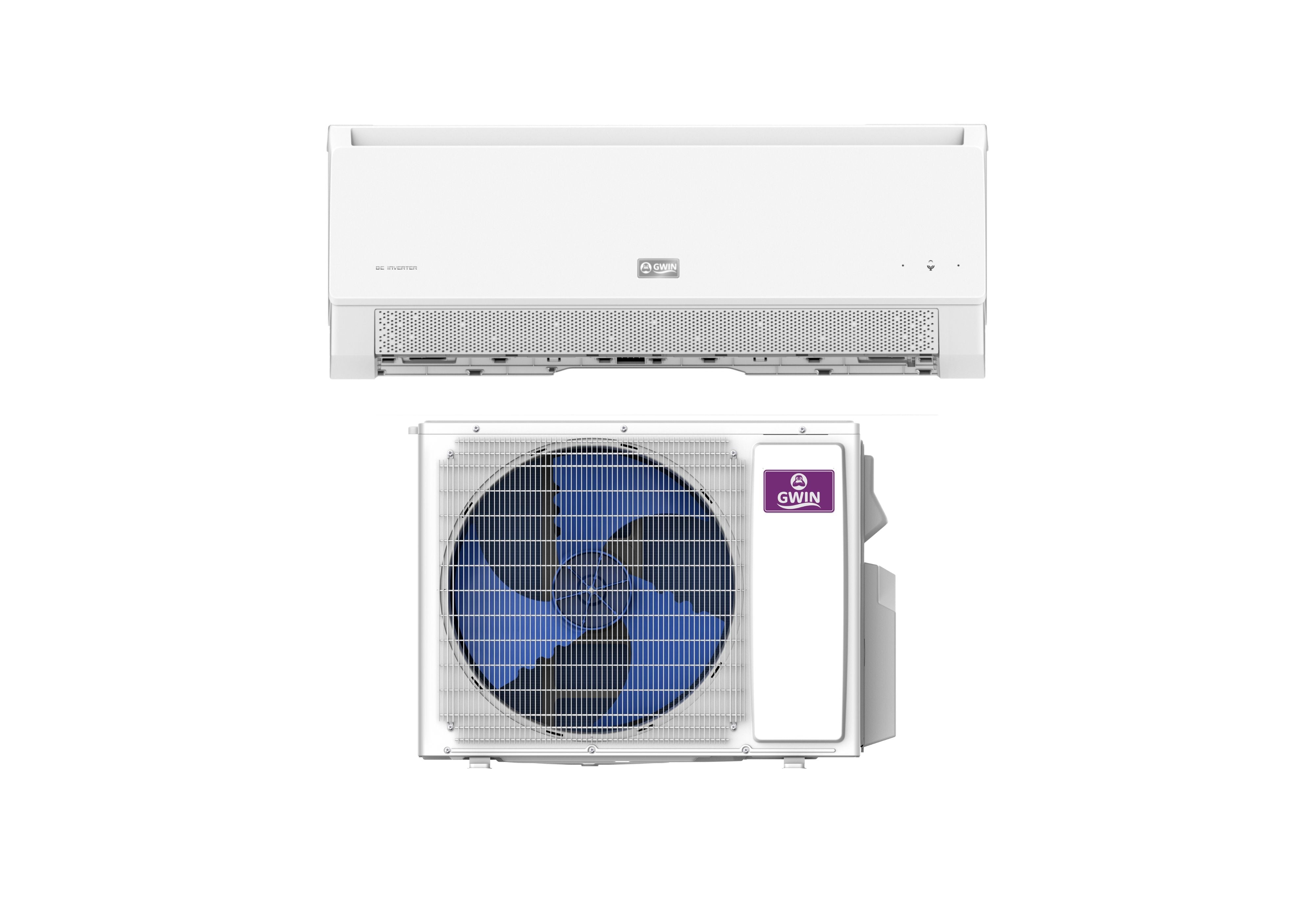

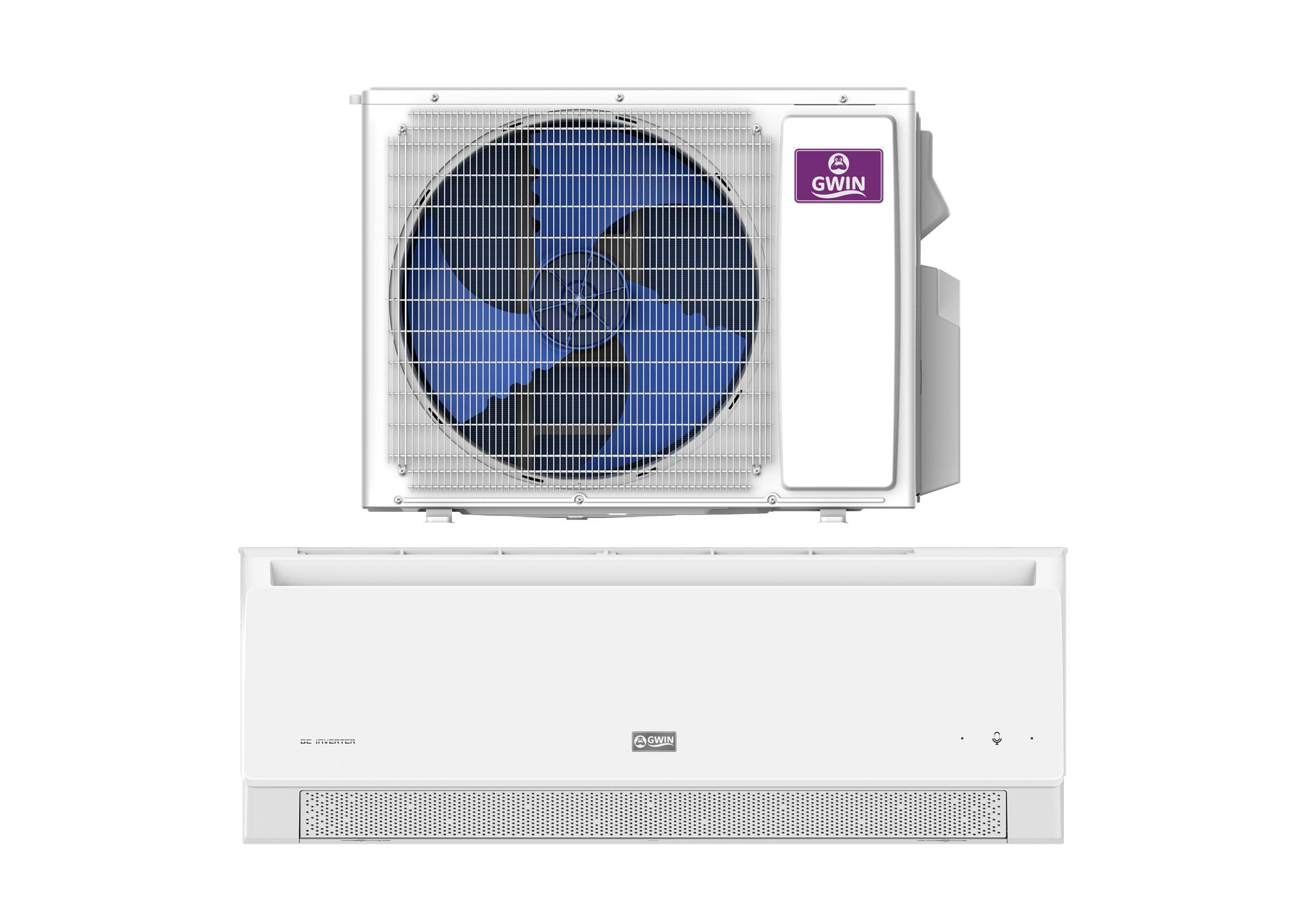

GWIN 24,000 BTU – 230V – 25 SEER2 Single-Zone Ductless Mini-Split (Complete System)

High efficiency, quiet comfort, and reliable low-temperature heating. The GWIN 24,000 BTU (class) single-zone mini-split is engineered for year-round performance with a premium 25 SEER2 rating and clear installation specs that streamline professional installs for larger bedrooms, living rooms, studios, and offices.

Key Comfort & Performance Features

  • Self Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for cleaner air.
  • Outdoor Unit Operation: Reliable performance from -22°F to 125°F for year-round comfort.
  • Wide Voltage Fluctuation: Operates within 165V–265V to tolerate unstable environments.
  • Wi-Fi Control: Built-in Wi-Fi module for convenient operation from anywhere.
  • Fast Heating & Cooling Technology: Inverter compressor quickly achieves your desired room temperature.
  • ECO Energy-Saving Mode: Designed to save power and reduce energy consumption.
  • Easy Installation: Comes with an installation guide, mounting plate, and built-in level for faster setup.
  • Gold Fin: Both indoor and outdoor units feature gold fin coating to reduce corrosion and oxidation compared to blue fin models.
  • Vertical Placement PCB: Prevents displacement and deformation to reduce damage rates. UV adhesive cover lowers corrosion risk, failure rates, and maintenance needs.
  • Base Pan Heating: Automatically activates in low outdoor temperatures to improve efficiency and reduce freezing in the outdoor unit base.

What’s Included

  • Complete System Model: GAMAR24HP230V1E
  • Indoor Unit (Wall-Mounted): GAMAR24HP230V1EH
  • Outdoor Unit (Heat Pump): GAMAR24HP230V1EO
  • AHRI Certified Reference: 214290024

Efficiency & Capacity

  • SEER2: 25
  • HSPF2: 10.5
  • Cooling Capacity (Rated): 22,500 BTU (Range: 4,300–28,500 BTU)
  • Heating Capacity @ 47°F (Rated): 24,000 BTU (Range: 5,300–31,000 BTU)
  • Heating Capacity @ 17°F (Rated): 22,400 BTU
  • Max Heating: 21,500 BTU @ 5°F; 14,300 BTU @ −5°F
  • Cooling Power Input (Rated): 1,610 W
  • Heating Power Input @ 47°F (Rated): 1,750 W

Airflow & Sound

  • Indoor Airflow (CFM): 940 / 833 / 742 / 636 (S / H / M / L)
  • Indoor Sound Pressure dB(A) – Cooling: 51 / 48 / 44 / 39 / 34 (S / H / M / L / Quiet)
  • Indoor Sound Pressure dB(A) – Heating: 50 / 48 / 43 / 39 (S / H / M / L)
  • Outdoor Sound Pressure dB(A): 59 (Cooling / Heating)

Dimensions & Weights

Indoor Unit (GAMAR24HP230V1EH)

  • Net Dimensions (W × D × H): 48-21/32" × 14-1/16" × 10-1/8" (1,236 × 357 × 257 mm)
  • Package Dimensions (W × D × H): 52-3/4" × 17-33/64" × 13-31/32" (1,340 × 445 × 355 mm)
  • Net Weight: 35.3 lb (16 kg)

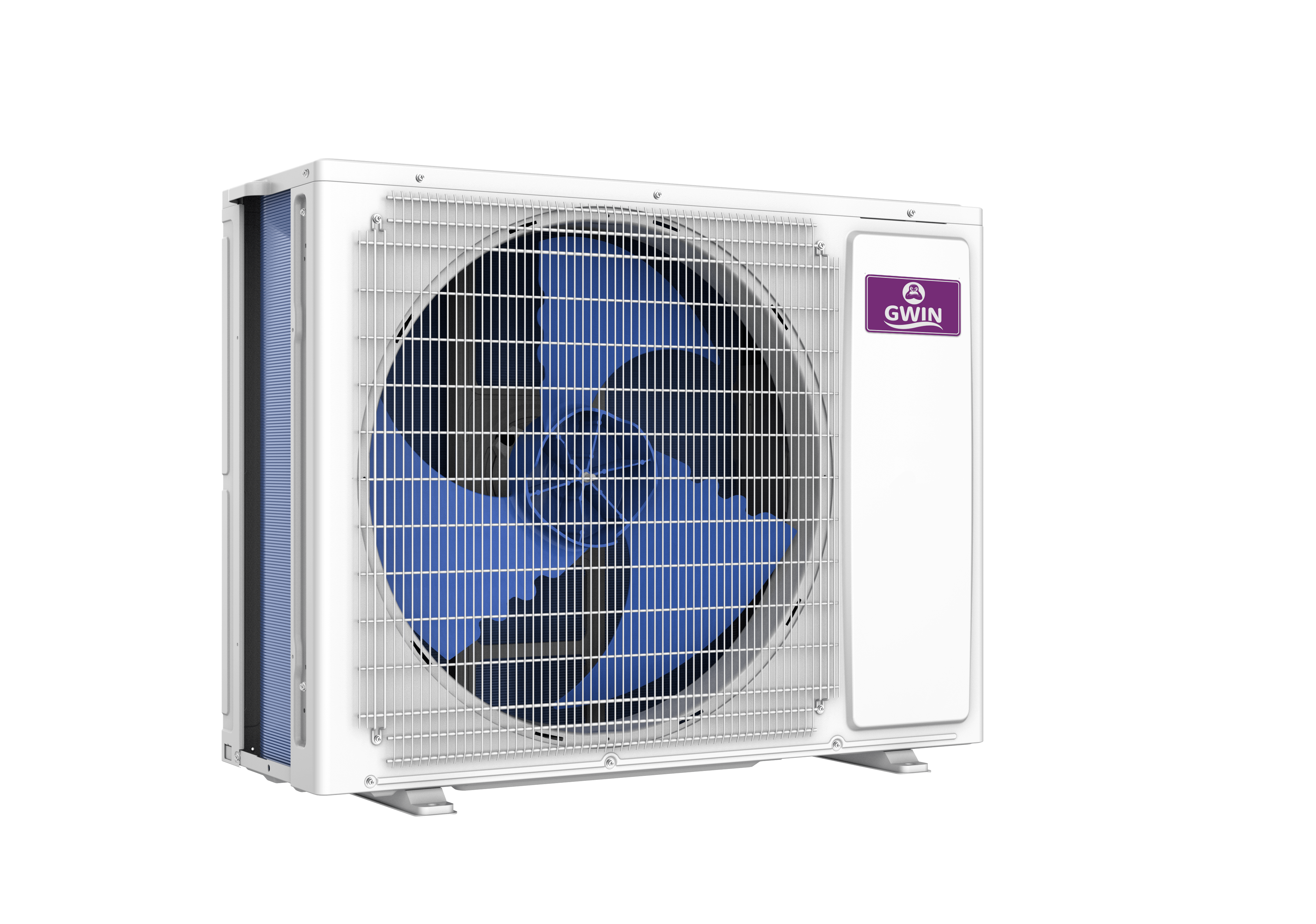

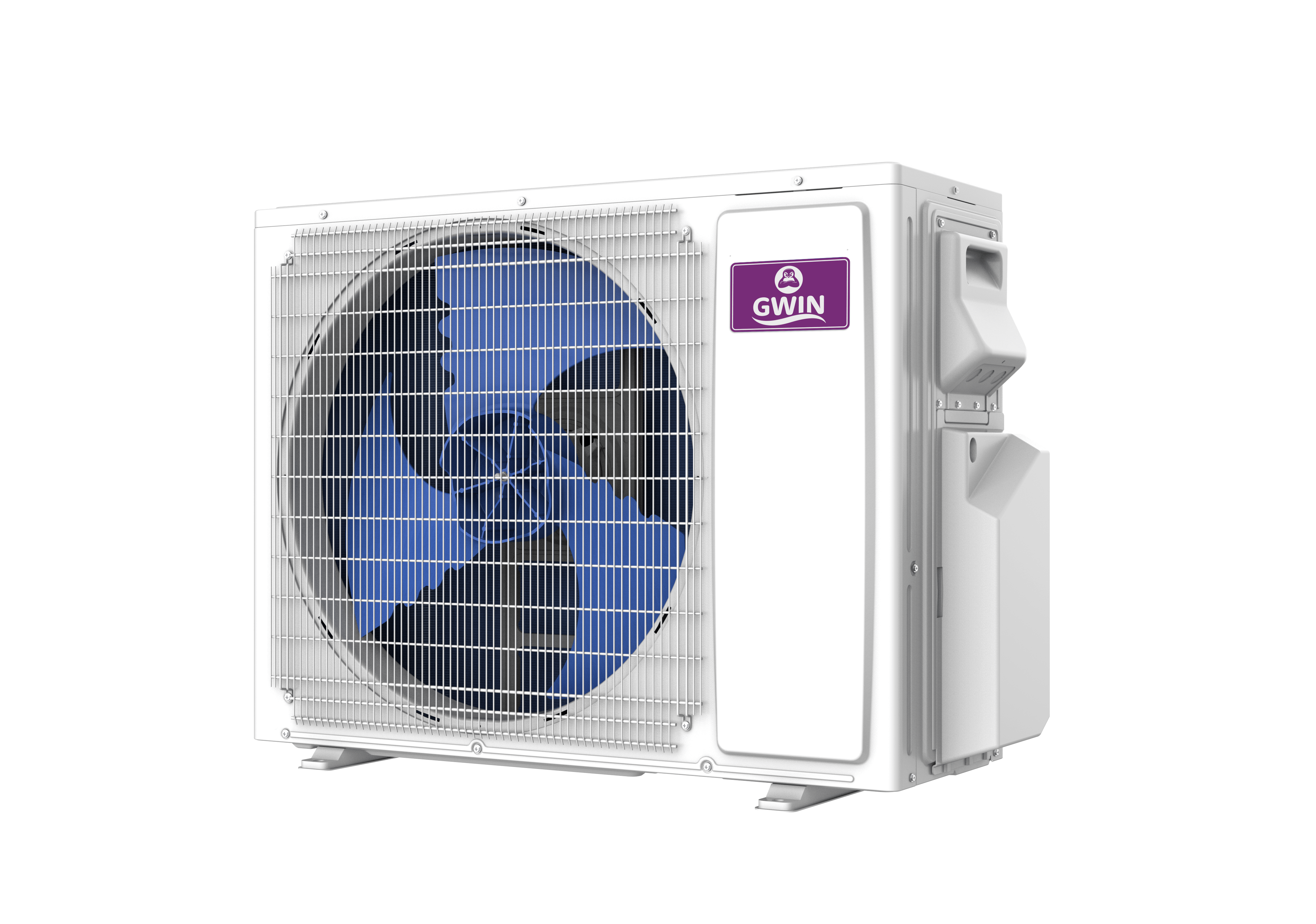

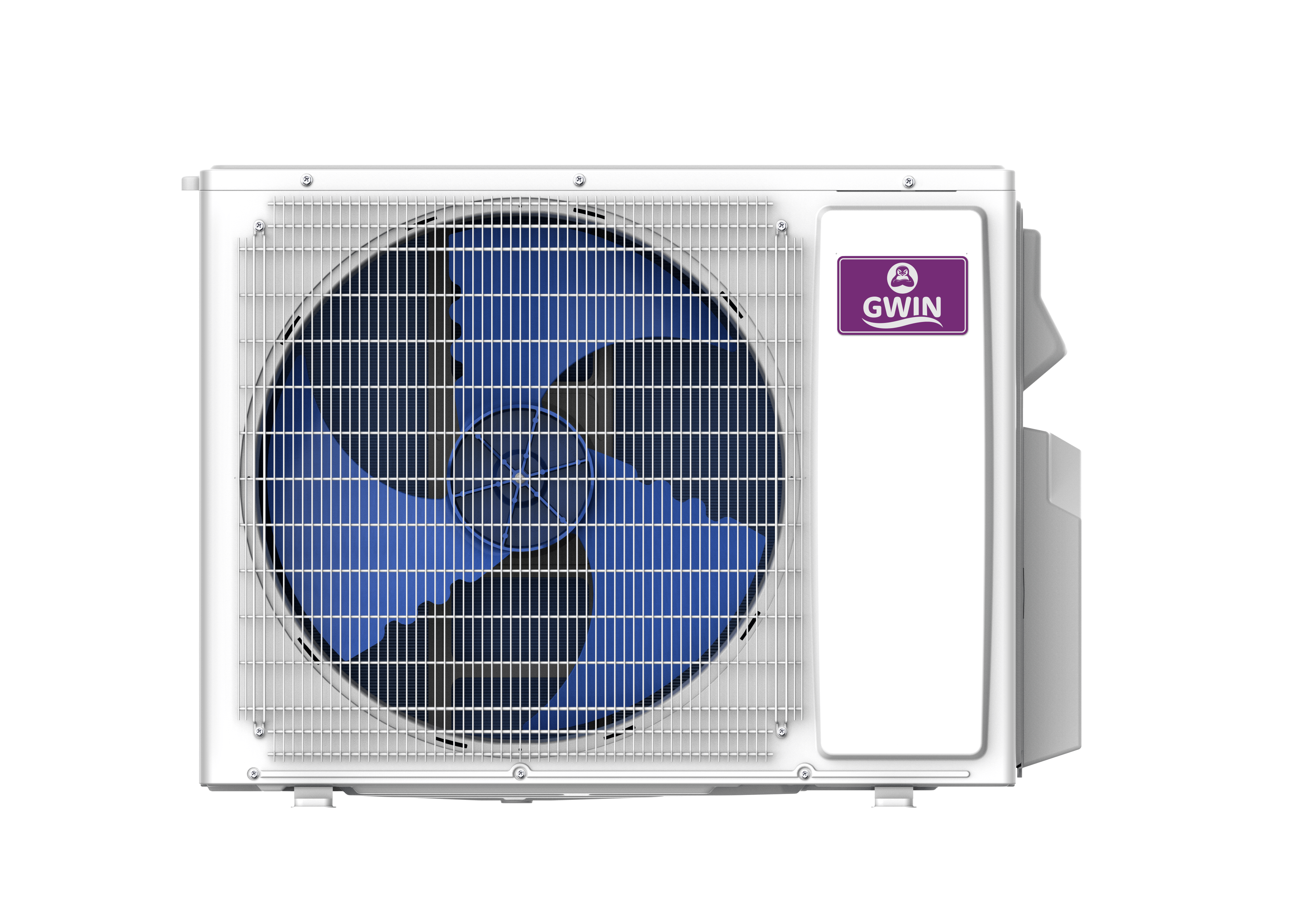

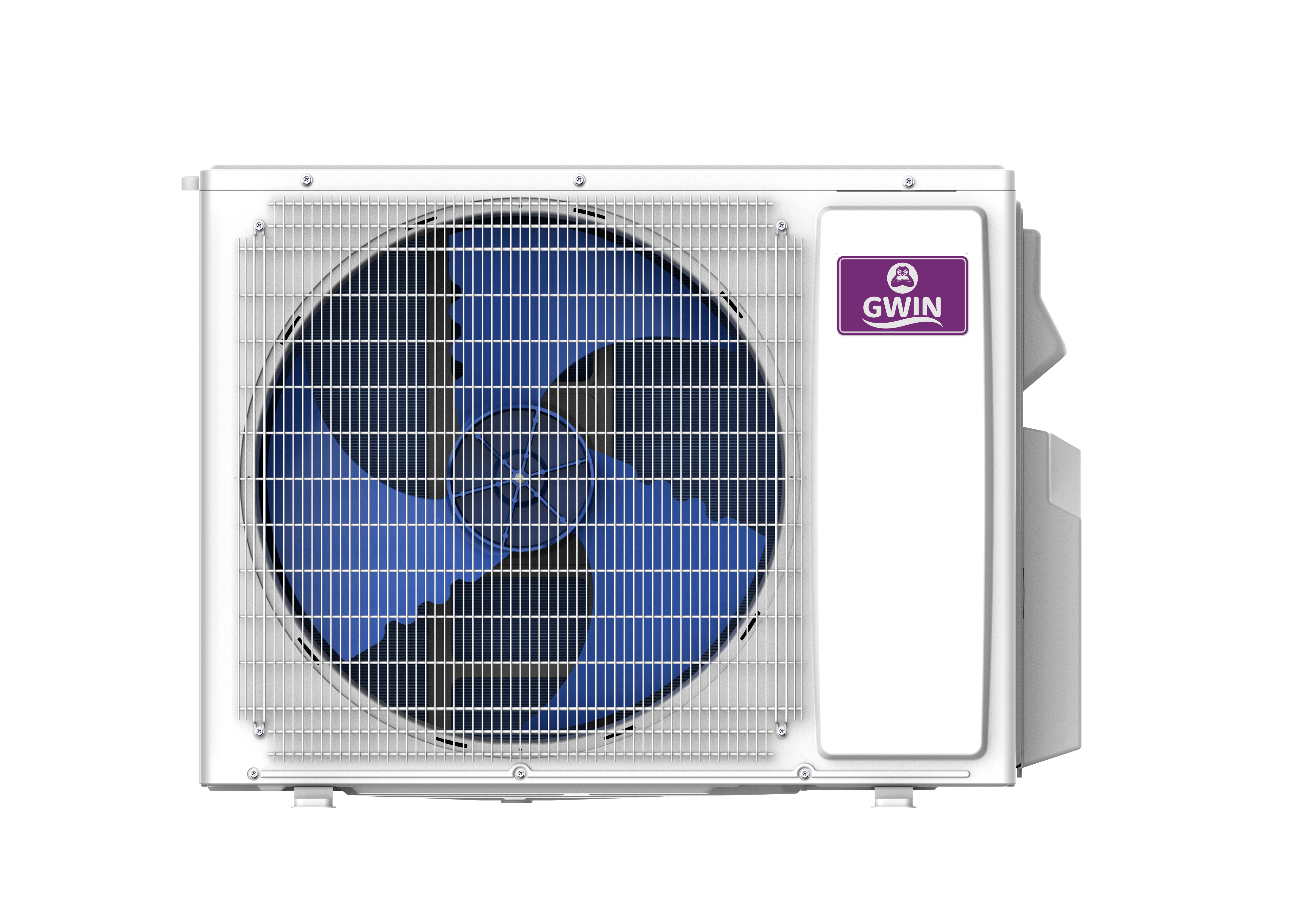

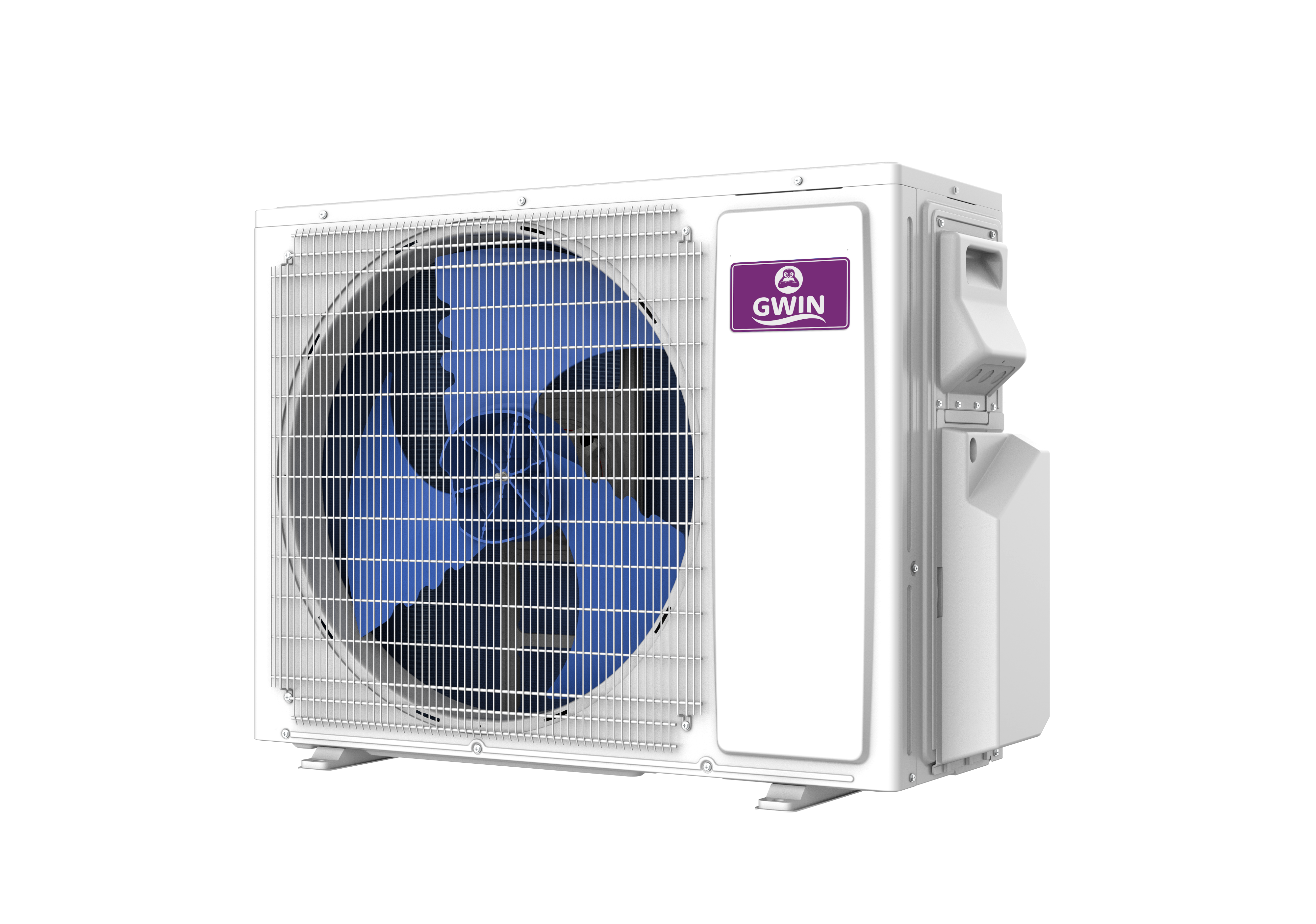

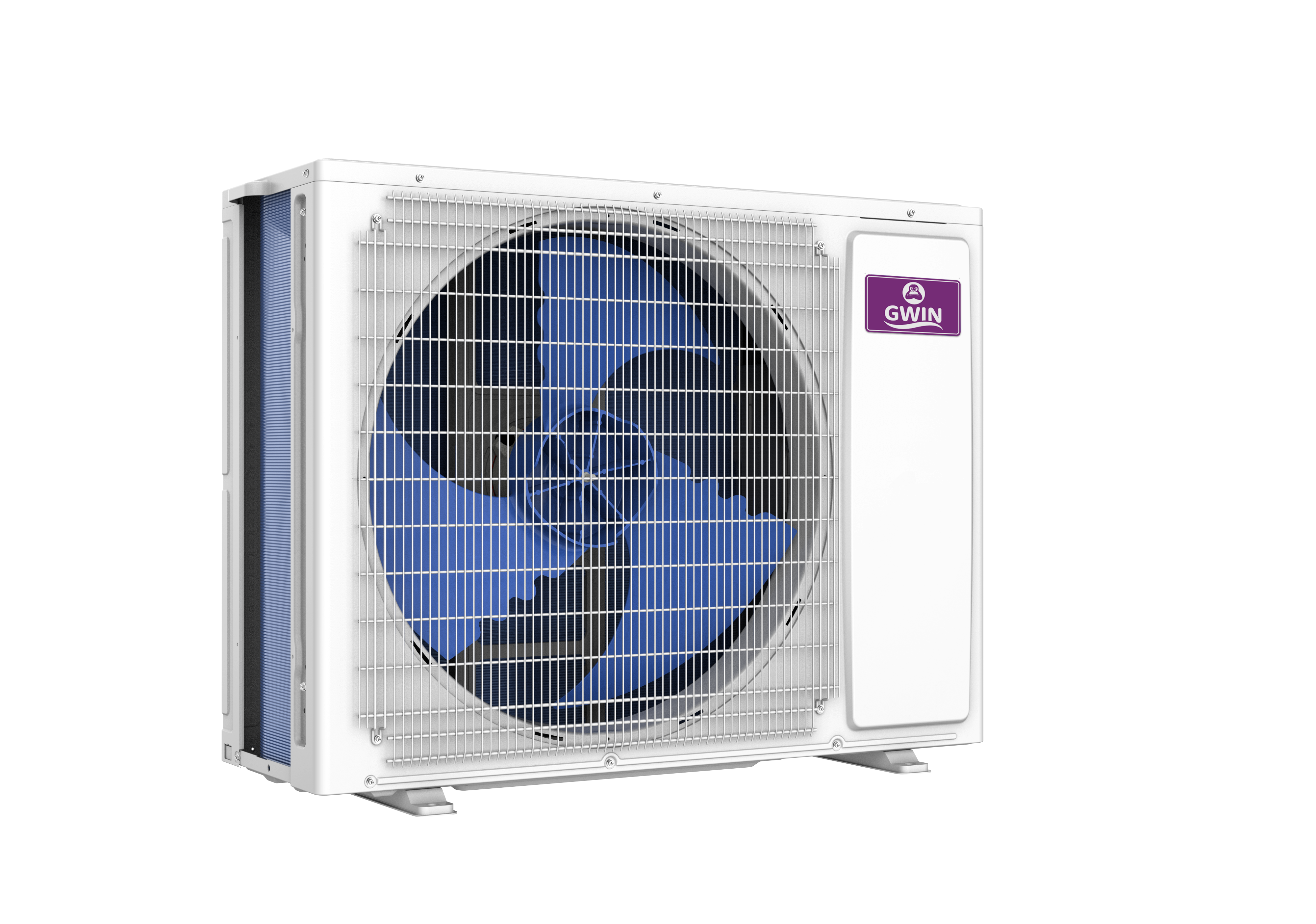

Outdoor Unit (GAMAR24HP230V1EO)

  • Net Dimensions (W × D × H): 38-37/64" × 15-9/32" × 27-9/16" (980 × 388 × 700 mm)
  • Package Dimensions (W × D × H): 39-61/64" × 16-47/64" × 30" (1,015 × 425 × 762 mm)
  • Net Weight: 101.4 lb (46 kg)

Line Set & Installation

  • Liquid Line: 1/4" (6.35 mm)
  • Gas Line: 5/8" (15.88 mm)
  • Indoor Drain: 5/8" (15.88 mm)
  • Minimum Line Length: 9 ft (2.74 m)
  • Maximum Line Length: 100 ft (30 m)
  • Maximum Height Difference: 65 ft (20 m)
  • Refrigerant: R32 (Pre-charge 47.6 oz)
  • Additional Charge: 0.258 oz/ft over 25 ft

Electrical

  • Power Supply: 208/230V, 1-Phase, 60 Hz
  • Recommended Breaker Size: 25 A
  • MCA: 15 A
  • MOCP: 25 A

Why Choose This 24,000 BTU 230V Mini-Split?

  • Top-tier 25 SEER2 efficiency for energy savings.
  • Low-ambient heating performance to −13°F for true four-season comfort.
  • Quiet indoor operation with multiple fan speeds.
  • Generous line-set allowances simplify challenging layouts.
  • AHRI-listed performance under reference 214290024.

Note: Specifications are subject to change without notice. Actual performance may vary based on installation conditions. Always follow local codes and the unit nameplate.
