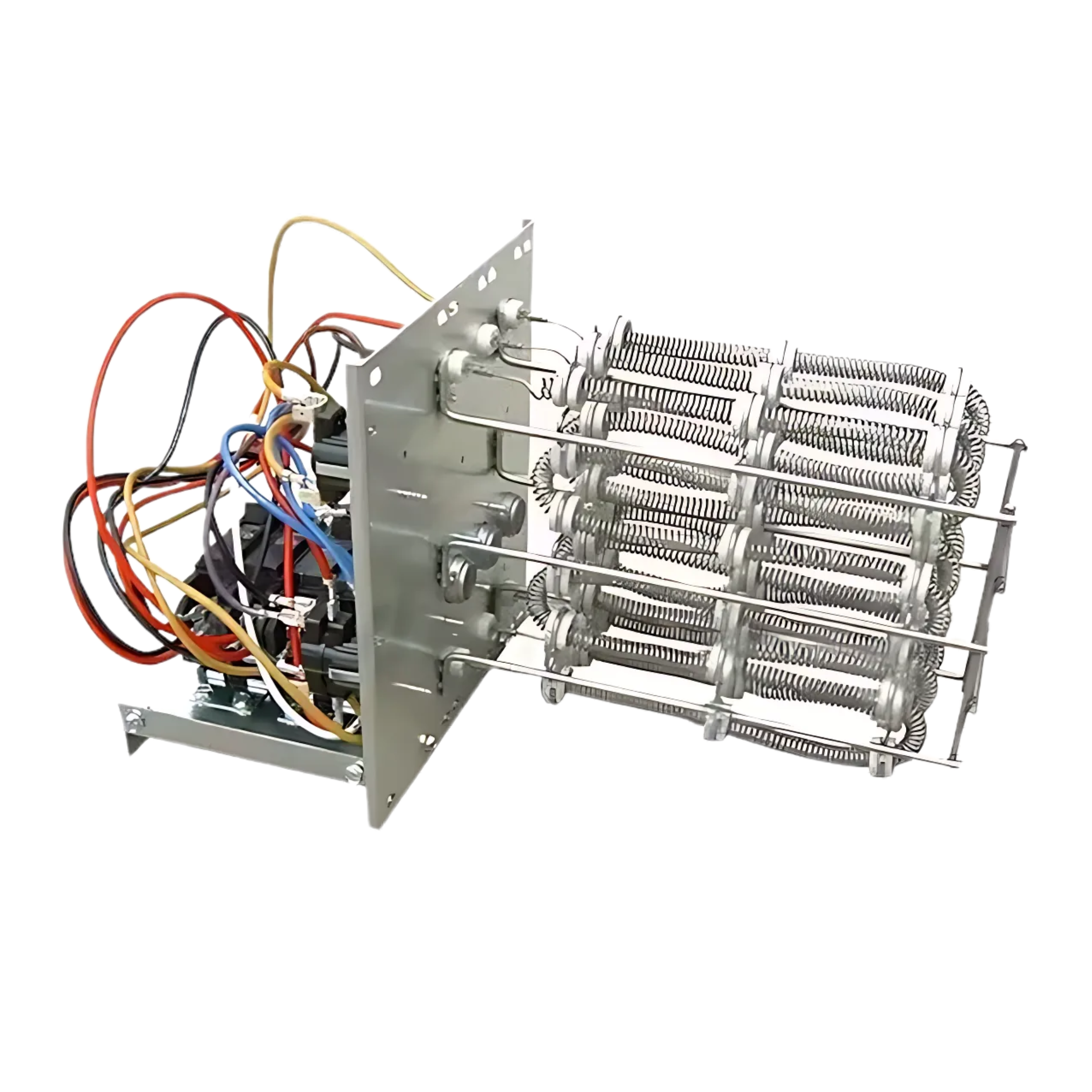

Goodman 20KW Electric Strip Heat Kit with Circuit Breaker For Package Unit
$358.00$0.00
HKTPD201
Type: Goodman Parts
Parcel Delivery (UPS/FedEx)
This product weighs 0.0 lbs and will ship by parcel carrier (UPS or FedEx).
Product Details
Goodman 20KW Electric Strip Heat Kit with Circuit Breaker For Package Unit HKTPD201
Power up your HVAC system with serious cold-weather performance using the 20kW Goodman Heat Kit. This heavy-duty electric heat kit is engineered to deliver high-capacity heating for larger spaces or extreme climates. Built for safety, reliability, and fast installation, it’s the ultimate upgrade for your Goodman package unit.
Key Features:
-
High-Capacity 20kW Heating – Provides robust electric heat, ideal for large areas or demanding winter conditions.
-
Sequencer-Controlled Staging – Promotes energy efficiency and balanced temperature distribution.
-
Pre-Assembled & Factory-Tested – Arrives ready to install, fully wired and tested for performance and safety.
-
Integrated Overcurrent Protection – Built-in safeguards meet specifications outlined in the electrical data chart.
-
Multi-Circuit Ready – Supports multiple branch circuits for flexible electrical configurations.
-
High-Temperature Limit Controls – Designed for safe operation, preventing overheating issues.
-
Plug-In Installation – Features a convenient plug-in wiring harness for quick connection to Goodman air handlers.
-
Durable Heat Elements – Rust-resistant nickel chromium elements ensure longevity and dependable heating.
Specifications
Goodman 20KW Electric Strip Heat Kit with Circuit Breaker For Package Unit HKTPD201
| Brand | Goodman | SKU | HKTPD201 |
| Replaces | HKP-20C | Weight (in lbs) | 9.000000 |
| Brand/Manufacturer | Goodman | Heating BTU | 64,800 |
| Electric Heat | 20 Kilowatts | Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase | Max Breaker Size | 49 Amps |
| Min. Breaker Size | 43 Amps | Warranty | 10 Years with Online Registration |
Warranty
Goodman 20KW Electric Strip Heat Kit with Circuit Breaker For Package Unit HKTPD201
| Warranty | 10 Years with Online Registration |
