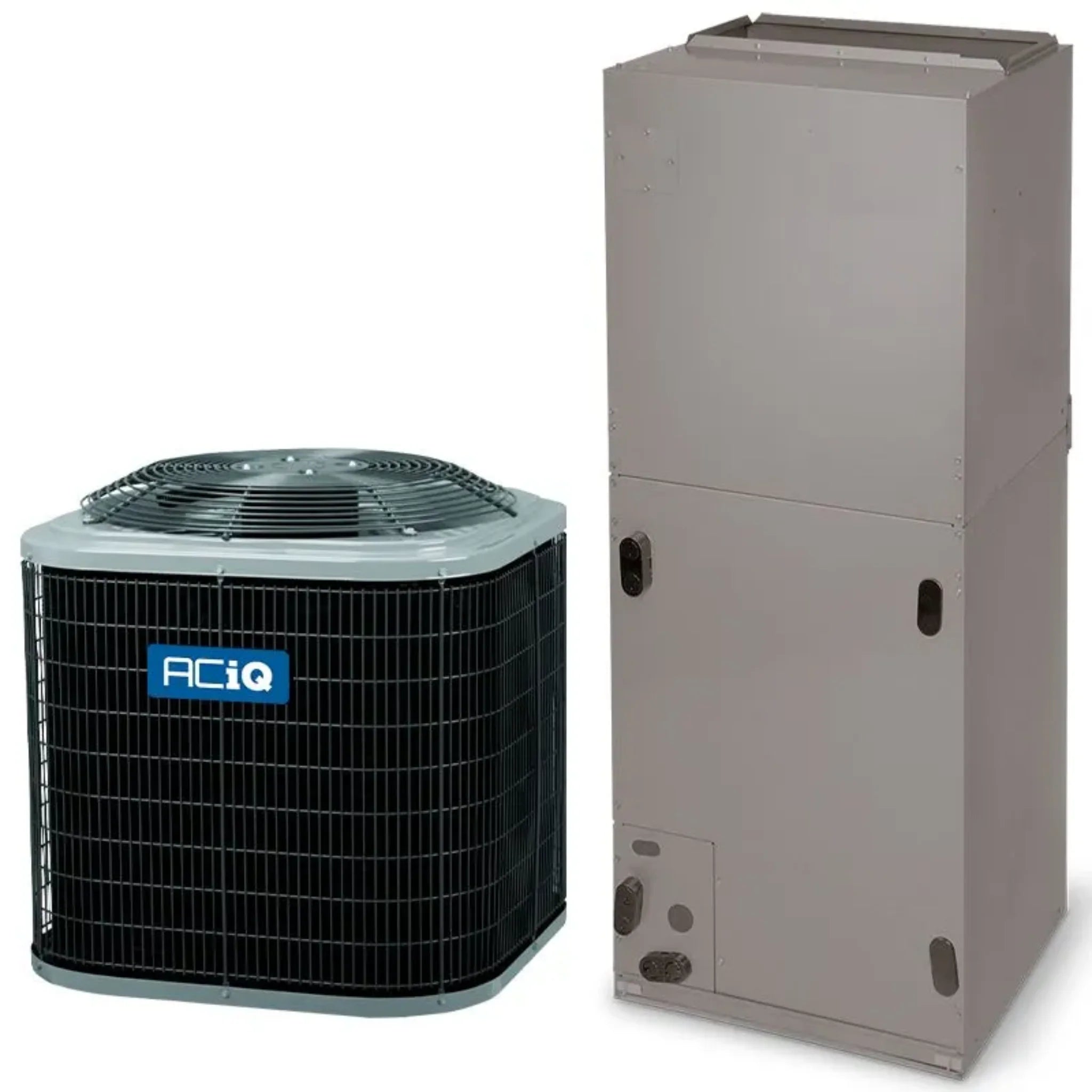

ACiQ - 1.5 Ton/18,000 BTU Heat Pump Split System | Multi-Positional - 14.5 SEER2 - R454B - 230V
ACiQ - 1.5 Ton/18,000 BTU Heat Pump Split System | Multi-Positional - 14.5 SEER2 - R454B - 230V
ACiQ - 1.5 Ton/18,000 BTU Heat Pump Split System | Multi-Positional - 14.5 SEER2 - R454B - 230V
$3,964.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

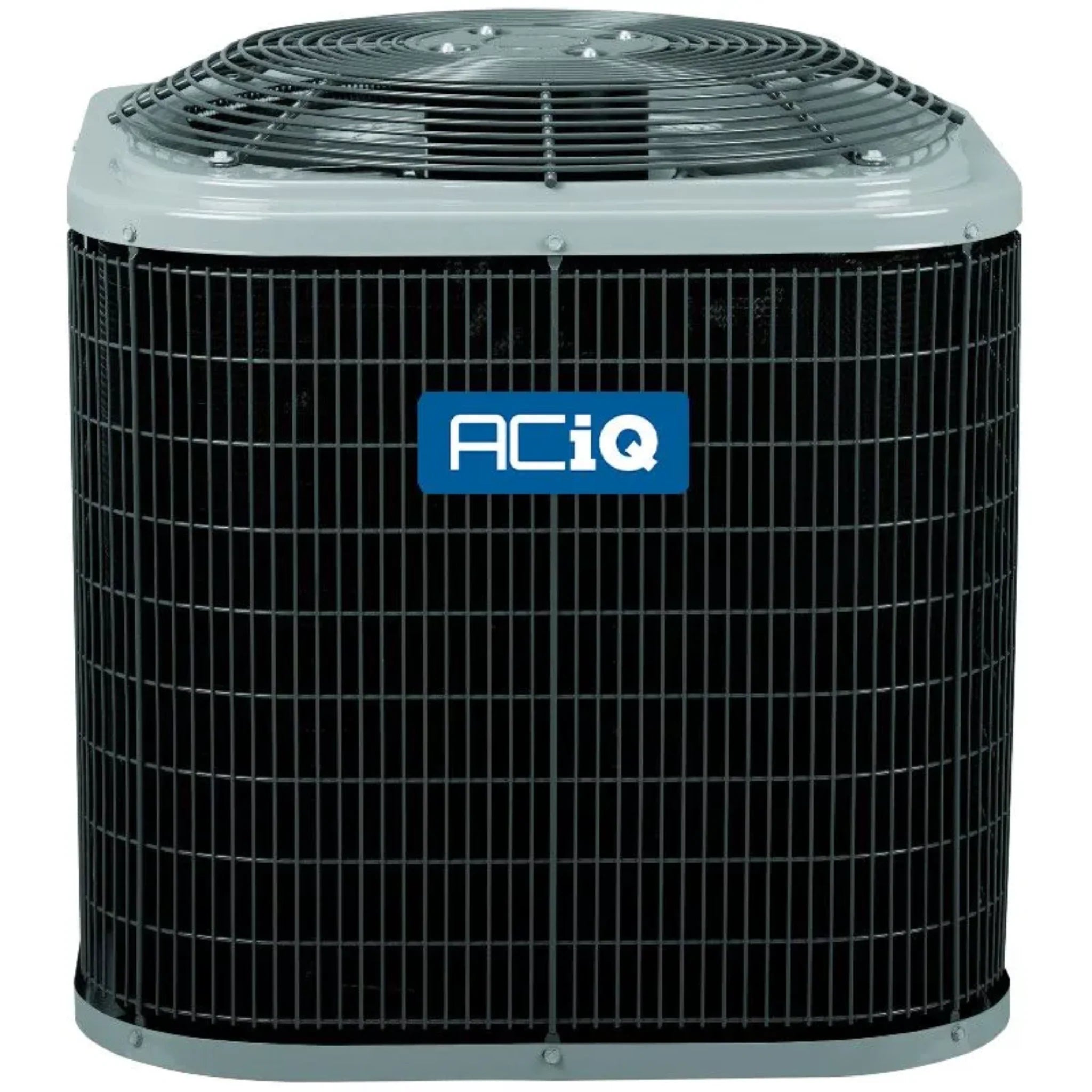

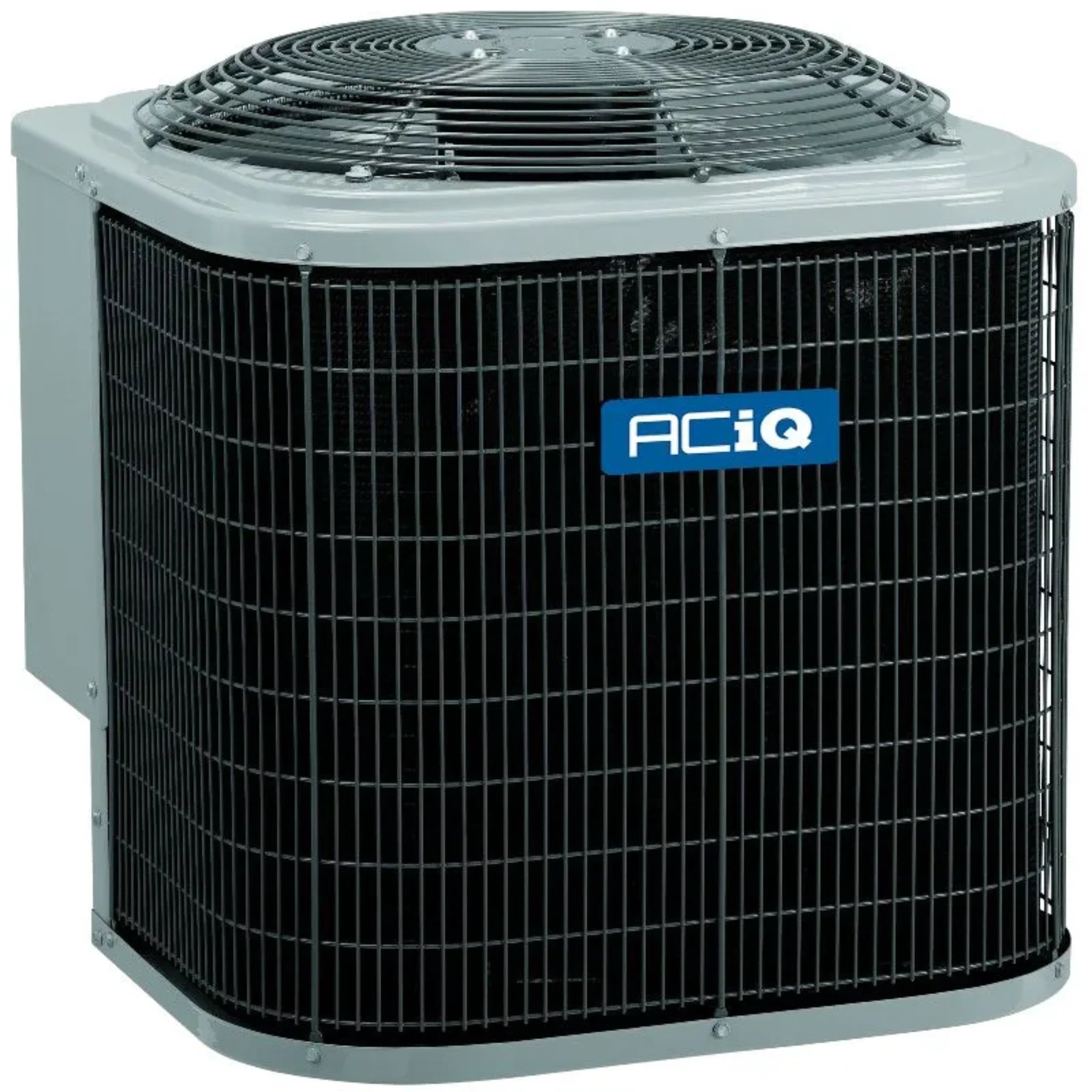

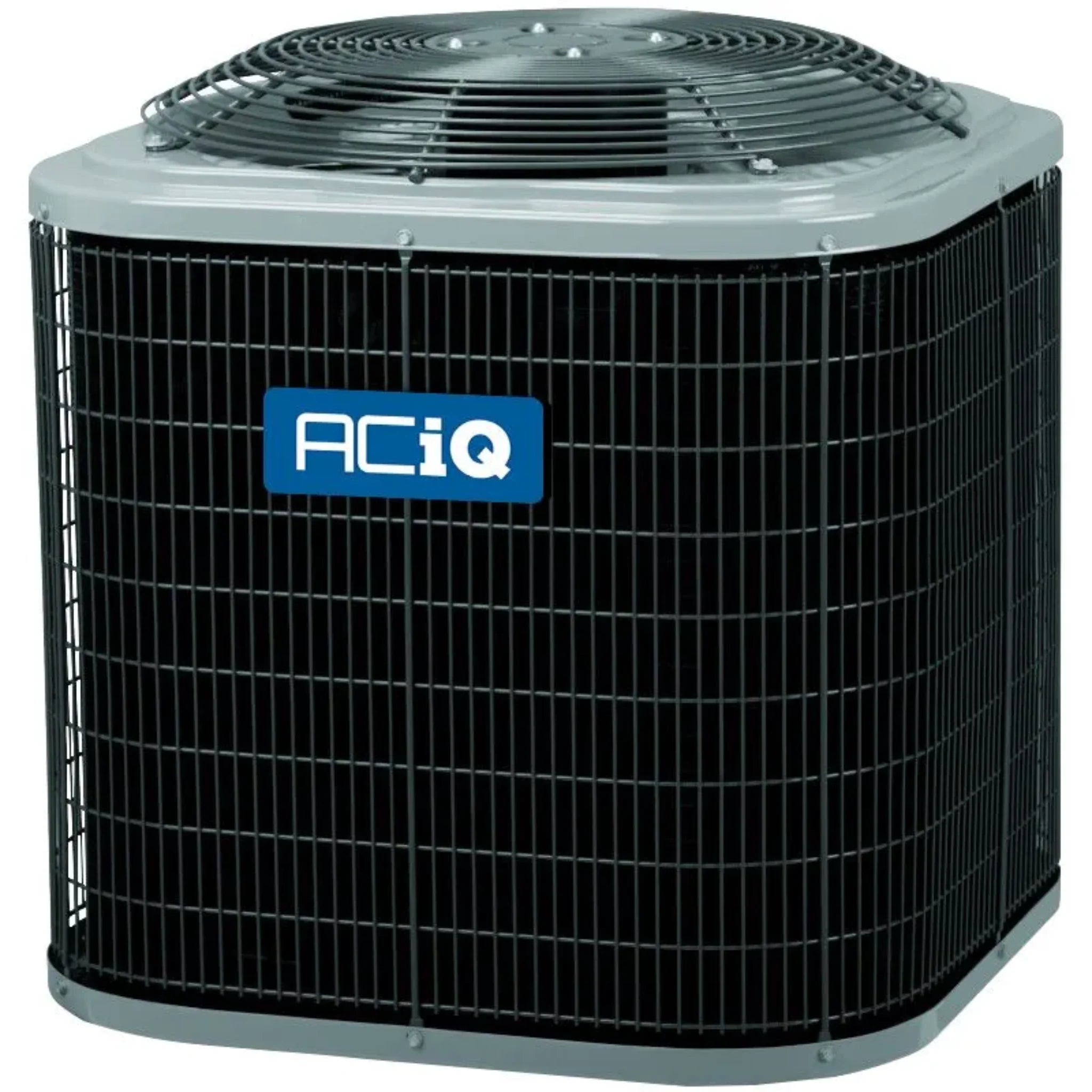

The ACiQ R5H5S18AKAAA is a standard heat pump condenser. Designed with comfort in mind and an inexpensive option for nearly any application, this condenser is considered a good all-around option for almost any application.
Features
- Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.

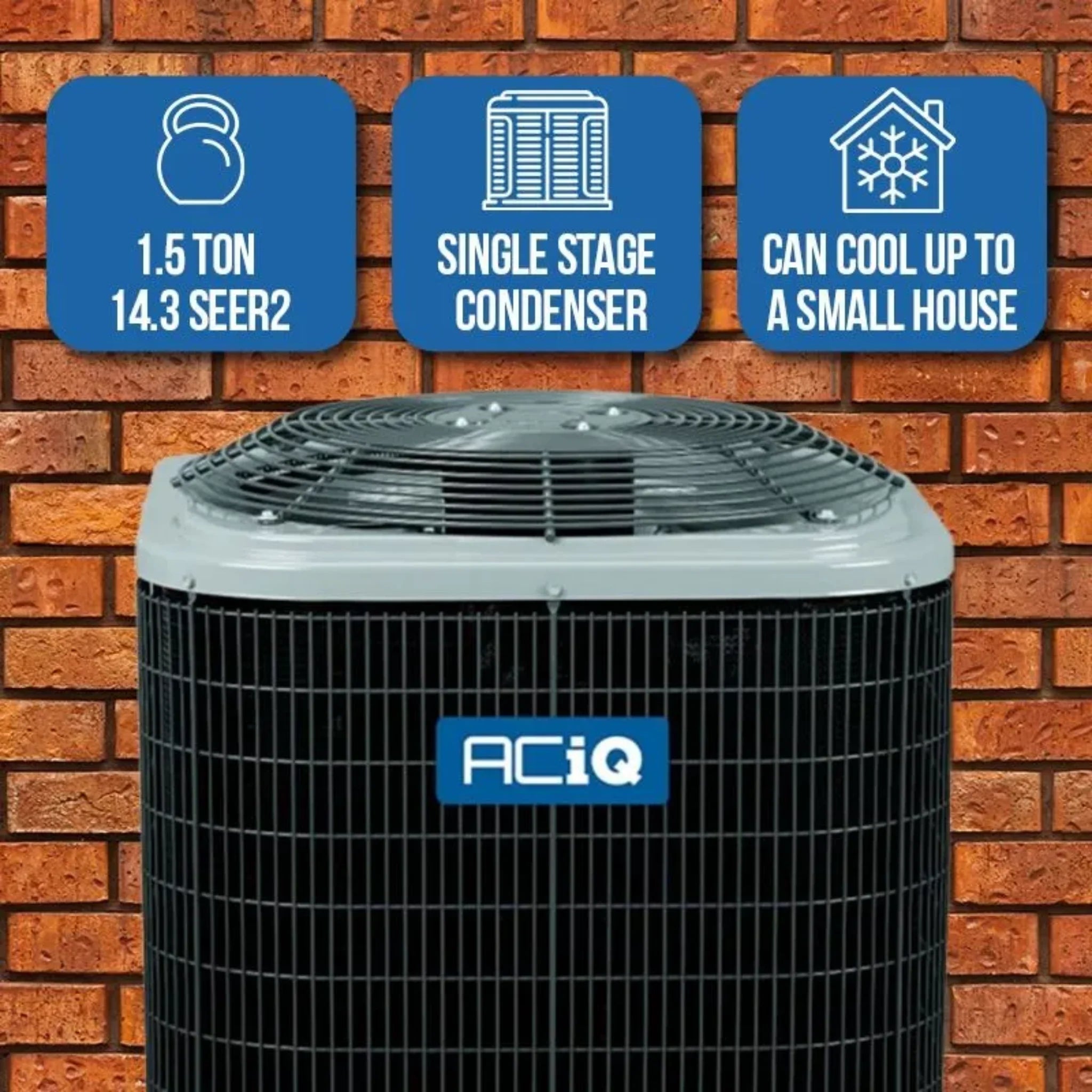

- 1.5 ton, 14.3 SEER2 heat pump condenser
- Can heat and cool up to a small house in average conditions
- Single stage compressor
- Pre-charged with R454B refrigerant
- Filter drier included to be field-installed

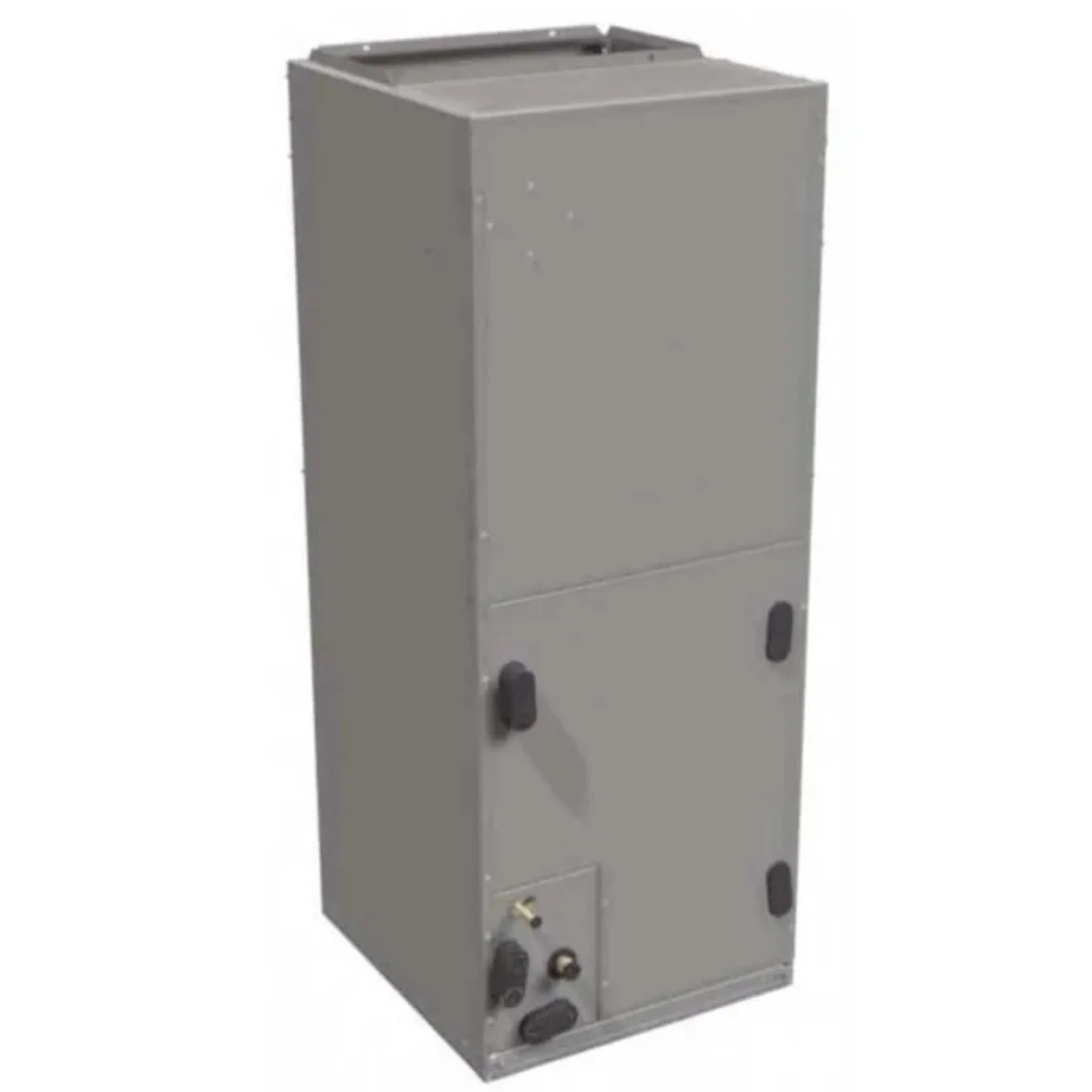

- 1.5 ton air handler
- R454B Refrigerant
- Multi 5-Speed high-efficiency ECM blower motor
- Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
- Factory-installed TXV kit for enhanced energy optimization
- Compatible with both AC-only and heat pump condensers
- Sturdy, fully insulated cabinet
Specifications
| 1.5 Ton 14.3 SEER2 ACiQ Heat Pump - R454B | |
|---|---|
| SKU | R5H5S18AKAAA |
| Refrigerant Charge | 15' |
| Weight | 167.000000 |
| Manufacturer | ACiQ |
| Product Features | New Refrigerant Compliant |
| HSPF2 | 7.5 - 7.8 |
| Cooling BTU | 18,000 |
| Heating BTU | 18,000 |
| Maximum CFM | 1900 |
| Decibel Level (dBA) | 72 |
| Horsepower | .08 HP |
| Energy Star | No |
| Refrigerant | R454B |
| SEER2 | 14.3 |
| Condenser Stages | Single Stage |
| Compressor Type | Scroll |
| Liquid Valve Size | 3/8" |
| Suction Valve Size | 5/8" |
| Electrical | 208/230-200/230v 1 Phase 60 Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 10.9 Amps |
| Tonnage | 1.5 Ton |
| Height | 31.7" |
| Width | 31.2" |
| Depth | 31.2" |
| Warranty | 10 Years Parts with Online Registration |
| 1.5 Ton 14" Width ACiQ Multi-Positional Air Handler - R454B | |
| SKU | FHMA5X18L0AA |
| Weight | 120.000000 |
| Manufacturer | ACiQ |
| Cooling BTU | 18,000 |
| Blower Motor | Multi-tap 5-Speed ECM |
| Maximum CFM | 525 |
| Horsepower | 1/3 HP |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 8 Kilowatts, 10 Kilowatts |
| Configuration | Multi-Positional |
| Refrigerant | R454B |
| Filter Size | 13" x 20" |
| Liquid Line | 3/8" |
| Suction Line | 5/8" |
| Electrical | 208/230v 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 3.6 Amps |
| Tonnage | 1.5 Ton |
| Connection | Sweat |
| Height | 42 11/16" |
| Width | 14 5/16" |
| Depth | 22 1/16" |
| Warranty | 10 Years Parts and 5 Years No Hassle Replacement with Online Registration |
Owner's Manual
