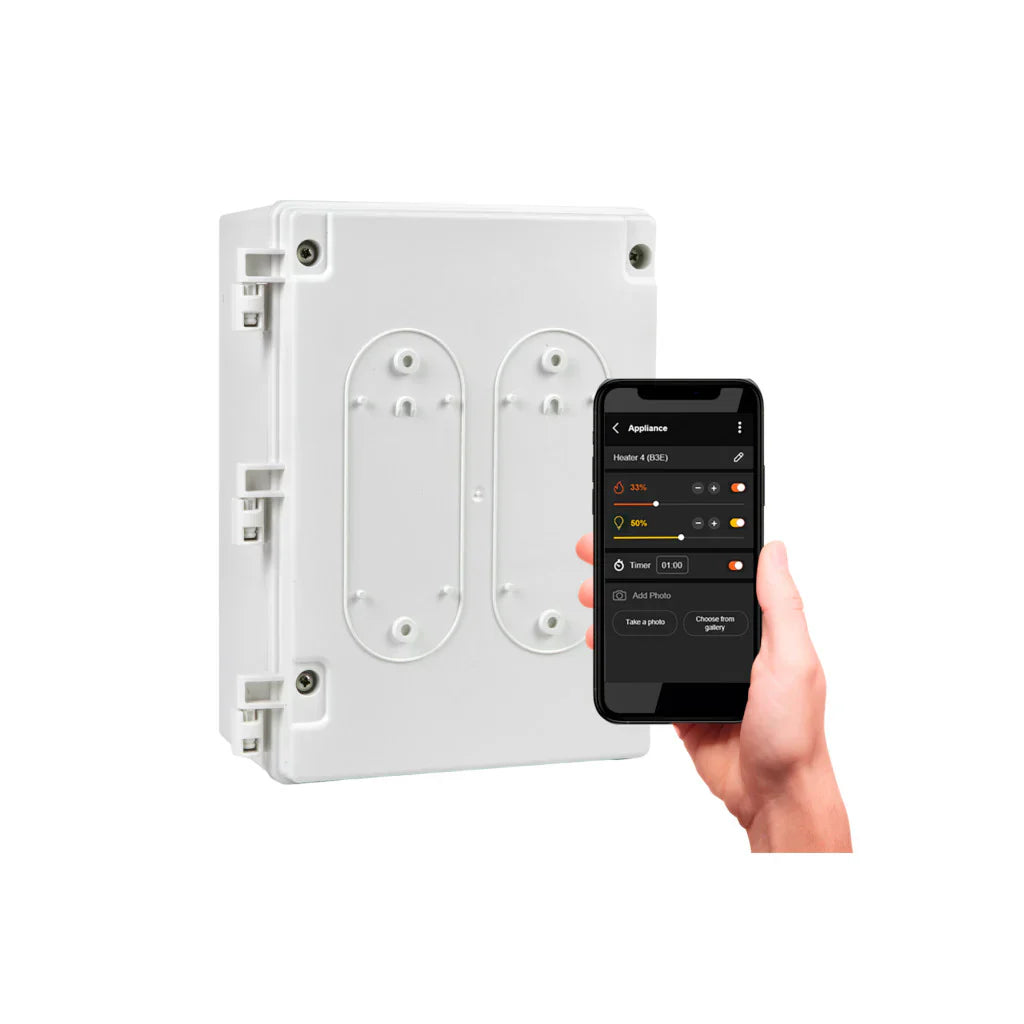

Bromic Heating - Affinity Smart-Heat Control Eclipse Pendant 1CH
Regular Price
$769.00
Press & drag to view
Created for our Eclipse Collection, the Affinity Eclipse Series offers 1 and 5 channel input options for our fixed Eclipse Pendant. Using the Bromic Heating app, have complete incremental control over not just the heat, but the LED light rail output as well, creating the perfect ambience – every time. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.
Features
- Various Models Available: 1 and 5 channel input options for our fixed Eclipse Pendant, with the 1 channel Eclipse Dimmer Series already included in our Eclipse Portable outdoor heater
- Wifi & Bluetooth Connectivity: Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating app
- Flexible Heat Control: Instantly and precisely adjust heat output down to 1% increments
- Advanced Features: Set timers and schedules, create heating zones and manage multiple sites
- Admin-Friendly: Multi-user management with customizable admin controls
Specifications
| Brand | Bromic |
| Model Name/Series | Smart-Heat Control Eclipse Pendant |
| Finish/Color | Gray |
| Model | BH8380051 |
| Protection Rating | IP54 |
| Wifi Connectivity | 2.4GHZ |
| Weight | 3.5 lbs |
| Warranty | 1 Year Parts |
| Heater Compatibility | Eclipse Electric |
| Number Of Channels | 1 CH |
| Front Cover Fastener | 4 x Captive Phillips Screw 12G (Torque 1.8 Nm) |
| Supply Phase | Single Phase |
| Current Terminal Type | Screw terminal |
| ELECTRICAL SPECS | |
|---|---|
| Volts | 220-240V |
| Watts | 4000W |
| Supply | a.c. 50-60Hz |
| Operating Temperature Range | -4°F to +86°F |
| Non-Operating Temperature Range | -22°F to +158°F |
| Rated Impulse Voltage | 2500V |
| Voltage | 220–240V 200-208V (Japan and North America Only |
| Operating Humidity Range | 0-85% |
| Ground Connection Type | Internal busbar with M4 screw, spring washer and nut |
