Disconnect Switch & Electrical Whip Kits
Complete, code-conscious power kits for ductless mini split condensers from 9,000 to 60,000 BTU. Choose #10 AWG (1/2" x 6 ft) or #8 AWG (3/4" x 6 ft) to match your system’s amperage needs and streamline a safe, professional installation.
Available Options
#10 AWG Kit — Standard Power
- Compatible: 9K, 12K, 18K, 24K, 27K BTU condensers
- Whip: 1/2" x 6 ft electrical whip with flexible conduit
- Connector Size: 1/2" weather-tight connectors (for unit/electrical box knockouts)
- Wire Gauge: 10 AWG
Right-sized for lower-capacity systems. Provides reliable power delivery without overloading smaller units.

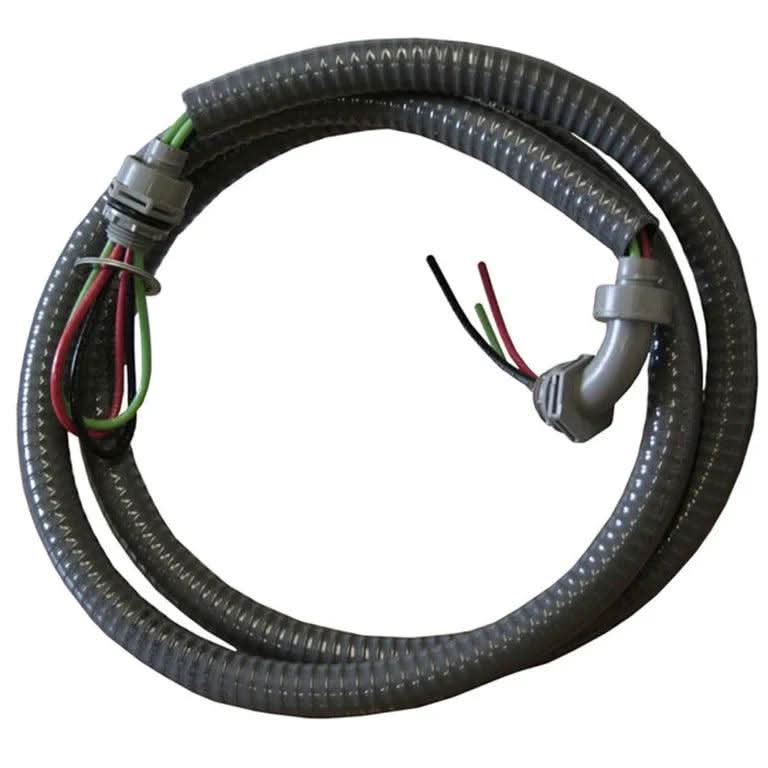

#8 AWG Kit — Heavy-Duty Power
- Compatible: 27K, 36K, 48K BTU condensers
- Whip: 3/4" x 6 ft electrical whip with flexible conduit
- Connector Size: 3/4" weather-tight connectors (for unit/electrical box knockouts)
- Wire Gauge: 8 AWG
Built for higher amperage and minimal voltage drop on larger systems.

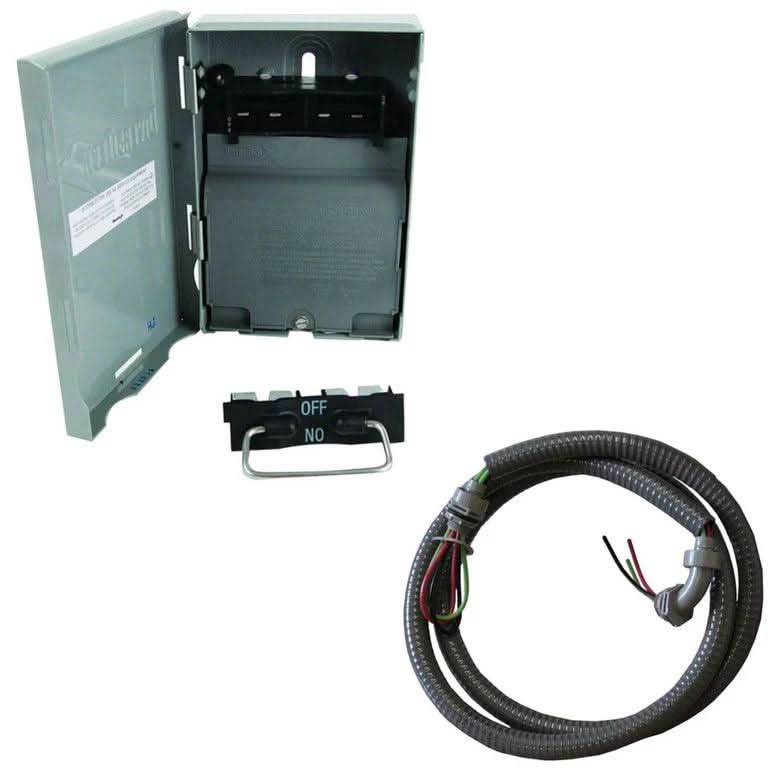

What’s Included

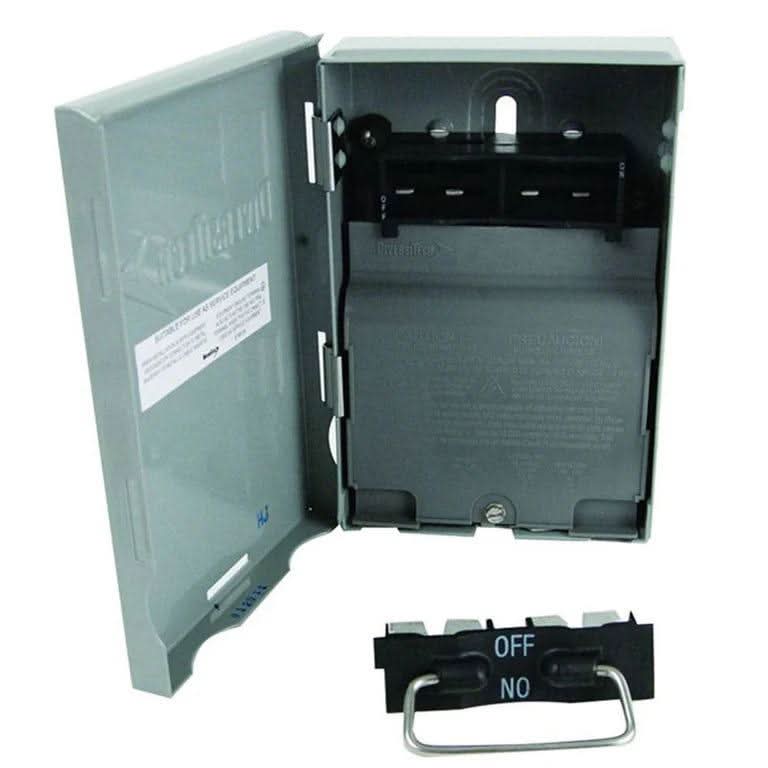

- Non-fusible HVAC disconnect switch

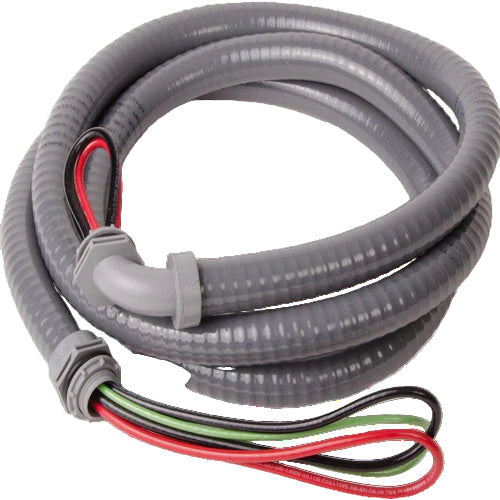

- Pre-wired electrical whip (6 ft flexible conduit)
- Weather-tight connectors (1/2" for #10 AWG kit, 3/4" for #8 AWG kit)
- Locknuts and fittings for secure, weather-resistant connections
- Durable outdoor-rated conduit
Features & Benefits
- Right Gauge, Right Fit: Choose #10 or #8 AWG to match condenser capacity.
- Faster Installs: Pre-wired whip and included connectors save time on site.
- Service Safety: External disconnect supports safe maintenance procedures.
- Broad Compatibility: Works with most mini split brands (MrCool, Daikin, GWIN, Goodman, etc.).
Specifications
| Feature | #10 AWG Kit | #8 AWG Kit |
|---|---|---|
| BTU Range | 9K–27K | 27K–48K |
| Whip & Conduit | 1/2" x 6 ft | 3/4" x 6 ft |
| Connector Size (Weather-Tight) | 1/2" | 3/4" |
| Voltage / Frequency | 208/230V, 60Hz | |
The recommendations below are general guidelines. Always follow the equipment nameplate, breaker sizing, and local electrical code. When in doubt, consult a licensed electrician.
Single Zone Condenser
- 9K, 12K – #12 Minimum, #10 Preferred
- 18K – #10 Preferred
- 24K – #10 Preferred
- 36K – #10 Preferred
Multi-Zone Condenser
- 18K – #12 Minimum, #10 Preferred
- 27K – #10 Preferred
- 36K – #10 Preferred
- 48K – #8 Preferred
- 60K – #8 Preferred
Central Ducted / Package
- 18K – #12 Minimum, #10 Preferred
- 27K – #10 Preferred
- 36K – #10 Preferred
- 48K – #8 Preferred
- 60K – #8 Preferred
Compatibility
Verify knockout size on your specific unit; this kit includes 1/2" (for #10 AWG kit) or 3/4" (for #8 AWG kit) weather-tight connectors.
Important: Always follow the appliance nameplate, NEC/local codes, and breaker sizing requirements. Conductor length, ambient temperature, and installation method may affect final conductor selection.
Why Choose Freedom HVAC Supply Kits?
Our disconnect switch and electrical whip kits make mini split installations faster and safer. With weather-tight connectors in the correct size, outdoor-rated 6 ft flexible conduit, and your choice of #10 or #8 AWG, your ductless condenser gets clean, reliable power that meets modern installation standards.
FAQ
Q: Which kit should I choose?
A: Generally, choose #10 AWG (1/2") for 9K–27K systems, and #8 AWG (3/4") for 27K–48K. Always confirm against the unit’s nameplate and local code.
Q: Does this work with 208/230V systems?
A: Yes. Both kits are suitable for typical 208/230V, 60Hz mini split condensers.
Q: Are the connectors included?
A: Yes. The #10 kit includes 1/2" weather-tight connectors; the #8 kit includes 3/4" weather-tight connectors.
About Freedom HVAC Supply
Welcome to Freedom HVAC Supply – your trusted nationwide source for high-performance, affordable, and reliable HVAC parts, tools, and equipment. We proudly serve homeowners, contractors, and professionals across the United States with industry-leading products from MRCOOL, Daikin, Goodman, and more.
Revolutionizing How HVAC Products Are Bought & Sold
For decades, the HVAC industry followed a strict path: manufacturers sold to distributors, distributors sold to contractors, and the general public was left out. At Freedom HVAC Supply, we’re proud to say — we’re not doing it that way.
We believe everyone deserves access to high-quality HVAC products at fair, transparent prices. Whether you're a licensed HVAC contractor, an experienced installer, or a homeowner tackling your own project, we make it simple to get the equipment you need without the industry gatekeeping.
Who We Are
Freedom HVAC Supply was founded by a team of seasoned HVAC professionals with decades of field experience. We understand the real-world challenges faced by HVAC technicians, DIYers, and contractors — because we’ve lived them. Our mission is simple: to make high-quality HVAC systems, tools, and accessories accessible to everyone, with expert guidance and unbeatable support.
What We Offer
- Nationwide shipping on HVAC parts, tools, and equipment
- Industry-leading brands including MRCOOL, Daikin, Goodman, and Amana
- Authorized dealer pricing and volume discounts
- Live expert support from real HVAC pros
- DIY-friendly guides and contractor-ready solutions
Why Choose Freedom HVAC Supply?
We're not just another HVAC parts supplier — we are partners in your comfort and your craft. Every product we carry has been vetted for performance and reliability. Our team stays on top of HVAC trends, refrigerant regulations, and emerging technologies so you don't have to. Whether you're replacing a mini split, installing a complete ducted system, or just need reliable tools for the job, we're here to help.
- 100% Secure Checkout: All purchases are protected with 256-bit SSL encryption.
- Expert Help: Our techs and sales team offer real guidance — not just upsells.
- Free Shipping: Most systems ship free via FedEx or freight — insured, fast, and secure.
- No Hidden Fees: Transparent pricing and policies you can trust.
Stepping Outside the Box
The old model is fading. Freedom HVAC Supply is leading a new era — where the walls between manufacturer and customer are removed. No middleman, no games. Just fast, honest access to the parts and equipment you need.
We don't just sell boxes — we build solutions. We challenge the status quo by giving power back to the buyer, saving you time and money without sacrificing quality. That’s why contractors love us, and homeowners trust us.
Join the Movement
Whether you're building your business, upgrading your system, or taking on your first DIY HVAC project — we’re here to help you succeed.
Welcome to Freedom HVAC Supply. Let’s make heating and cooling better, together.
Shipping Policy
At Freedom HVAC Supply, we strive to offer fast, reliable, and transparent shipping for every order. We occasionally offer Free Shipping on HVAC systems and select items shipped via FedEx Ground, FedEx Freight, or LTL carriers.
🚚 Shipping Methods & Delivery
- Delivery dates shown on our website are estimates and may vary based on warehouse processing times and courier schedules.
- All shipments include one delivery attempt. Missed or rescheduled deliveries may incur courier-assessed fees.
- Once an order is staged or shipped, the shipping address cannot be changed.
🏗️ Large HVAC Systems (LTL Freight)
- The freight carrier will contact you to schedule a delivery appointment.
- An adult (18+) must be present to inspect and sign for delivery.
- If you are unavailable during the delivery window, the courier may charge storage fees (typically $25–$100/day), or return the shipment to us, which will be treated as a return with restocking fees.
- Requests for delayed delivery or special services (e.g., inside delivery) may incur additional fees charged by the carrier, payable by the customer.
- Refused deliveries without valid reason will be treated as returns, subject to a restocking fee.
📦 Small Items (FedEx, UPS, or Similar)
- Shipped via FedEx Ground or equivalent service.
- Signature is not required; the item will be left at or near your door if deemed safe by the courier.
📬 Tracking Information
- Tracking numbers are provided by email within 1–2 business days after order processing.
- FedEx/UPS shipments may take 2–4 business days to appear in tracking systems.
- LTL Freight shipments may take 3–5 business days after processing to display tracking information.
📦 Shipping Regions
We currently ship to the 48 contiguous United States. We do not ship to:
- PO Boxes
- Alaska or Hawaii
- Puerto Rico, Guam, Northern Mariana Islands, or U.S. Virgin Islands
- Any remote islands outside the continental USA
🔧 Damaged Deliveries
- If your shipment arrives damaged, please refuse delivery and contact us immediately.
- If you accept delivery and later discover damage, email us within 24 hours at sales@freedomhvacsupply.com with your order number and clear photos.
- Damage claims filed after 24 hours may be denied.
- Write "Package Damaged" on the delivery receipt, even if damage is minor.
- Installed items cannot be replaced or repaired under freight damage claims.
- Missing parts? Contact us right away — we’ll ship replacements free of charge.
⏱️ Note: Delivery timelines are estimated and vary by shipping method and destination.
About Freedom HVAC Supply
Welcome to Freedom HVAC Supply – your trusted nationwide source for high-performance, affordable, and reliable HVAC parts, tools, and equipment. We proudly serve homeowners, contractors, and professionals across the United States with industry-leading products from MRCOOL, Daikin, Goodman, and more.
Revolutionizing How HVAC Products Are Bought & Sold
For decades, the HVAC industry followed a strict path: manufacturers sold to distributors, distributors sold to contractors, and the general public was left out. At Freedom HVAC Supply, we’re proud to say — we’re not doing it that way.
We believe everyone deserves access to high-quality HVAC products at fair, transparent prices. Whether you're a licensed HVAC contractor, an experienced installer, or a homeowner tackling your own project, we make it simple to get the equipment you need without the industry gatekeeping.
Who We Are
Freedom HVAC Supply was founded by a team of seasoned HVAC professionals with decades of field experience. We understand the real-world challenges faced by HVAC technicians, DIYers, and contractors — because we’ve lived them. Our mission is simple: to make high-quality HVAC systems, tools, and accessories accessible to everyone, with expert guidance and unbeatable support.
What We Offer
- Nationwide shipping on HVAC parts, tools, and equipment
- Industry-leading brands including MRCOOL, Daikin, Goodman, and Amana
- Authorized dealer pricing and volume discounts
- Live expert support from real HVAC pros
- DIY-friendly guides and contractor-ready solutions
Why Choose Freedom HVAC Supply?
We're not just another HVAC parts supplier — we are partners in your comfort and your craft. Every product we carry has been vetted for performance and reliability. Our team stays on top of HVAC trends, refrigerant regulations, and emerging technologies so you don't have to. Whether you're replacing a mini split, installing a complete ducted system, or just need reliable tools for the job, we're here to help.
- 100% Secure Checkout: All purchases are protected with 256-bit SSL encryption.
- Expert Help: Our techs and sales team offer real guidance — not just upsells.
- Free Shipping: Most systems ship free via FedEx or freight — insured, fast, and secure.
- No Hidden Fees: Transparent pricing and policies you can trust.
Stepping Outside the Box
The old model is fading. Freedom HVAC Supply is leading a new era — where the walls between manufacturer and customer are removed. No middleman, no games. Just fast, honest access to the parts and equipment you need.
We don't just sell boxes — we build solutions. We challenge the status quo by giving power back to the buyer, saving you time and money without sacrificing quality. That’s why contractors love us, and homeowners trust us.
Join the Movement
Whether you're building your business, upgrading your system, or taking on your first DIY HVAC project — we’re here to help you succeed.
Welcome to Freedom HVAC Supply. Let’s make heating and cooling better, together.
Pick Up Where You Left Off
Your short list of parts and systems—ready when you are.
