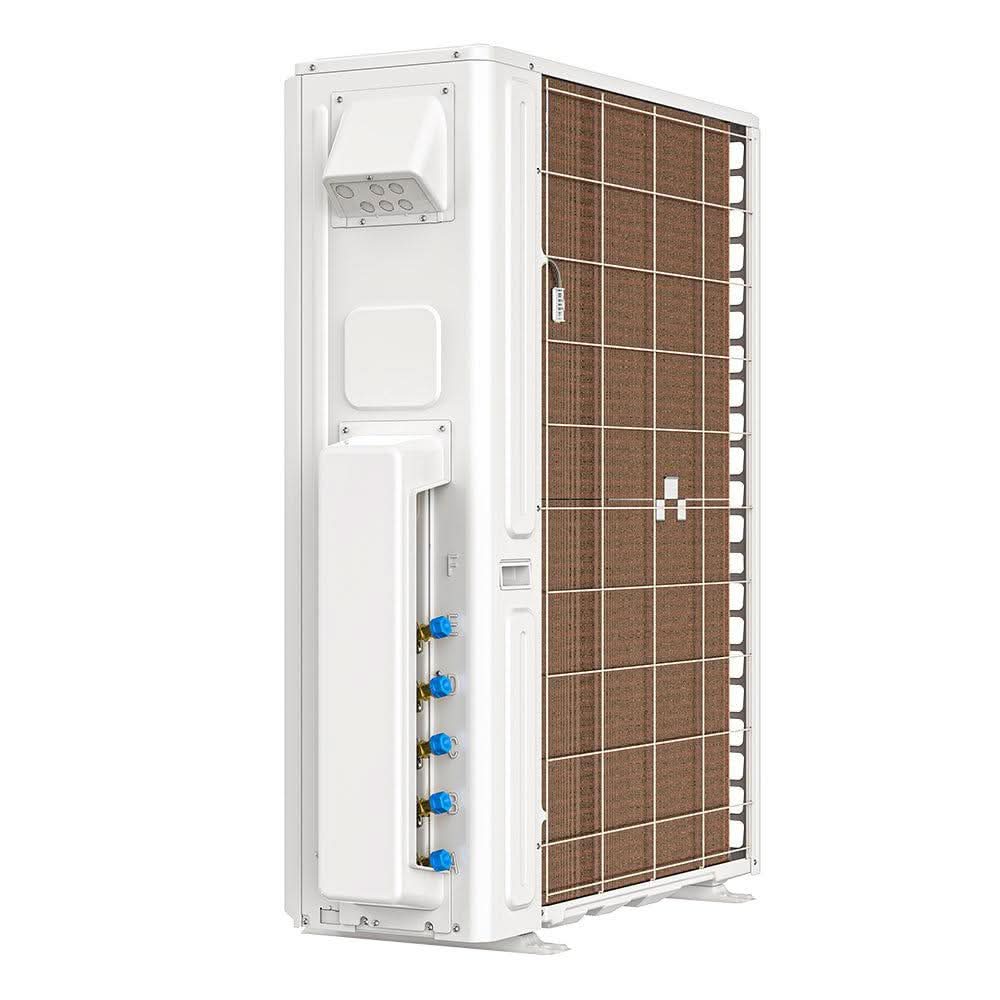

DIY Multi Zone 5-Zone 48K BTU Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
Regular Price
$2,842.00
Press & drag to view
Revolutionize Home Comfort with the 4th Generation MRCOOL DIY 48K BTU 5-Zone Ductless Heat Pump Condenser
Step into the future of home climate control with the MRCOOL DIY-MULTI5-48HP230C, a cutting-edge solution engineered to support up to 5 independent zones. This powerful, versatile condenser pairs effortlessly with select MRCOOL air handlers, achieving a SEER efficiency rating of up to 20.5 for optimal energy utilization and significant savings on utility bills.
Designed to deliver reliable heating and cooling performance, the DIY-MULTI5-48HP230C excels in extreme temperatures, maintaining dependable operation even as low as 5°F. Its durable construction is reinforced with Gold Fin® Condenser coating, ensuring outstanding corrosion resistance and longevity, even in coastal or high-humidity environments.
Hassle-Free Installation for Homeowners
This system sets itself apart with its DIY-friendly installation process, thanks to MRCOOL’s patented Pre-Charged Quick Connect Line Sets. Pre-filled with environmentally friendly R-410A refrigerant, these line sets eliminate the need for vacuuming or special tools. With only basic hand tools required, homeowners can confidently install their own multi-zone HVAC system, saving time and money.
Key Features:
-
Superior Energy Efficiency
Achieves up to 20.5 SEER, delivering exceptional comfort while reducing energy costs. -
Corrosion-Resistant Gold Fin® Condenser
Provides robust protection in harsh weather conditions, extending the system’s lifespan in coastal and high-moisture areas. -
Energy-Saving DC Inverter Technology
Improves system performance and reduces energy consumption for eco-conscious operation. -
Eco-Friendly Refrigerant
Uses R-410A refrigerant, minimizing environmental impact while maximizing efficiency. -
Comprehensive Warranty Coverage
Comes with a 7-year compressor warranty and a 5-year parts warranty, with the option to register for a limited lifetime compressor warranty for added peace of mind.
The 4th Generation MRCOOL DIY 48K BTU Ductless Heat Pump Condenser represents the pinnacle of multi-zone HVAC innovation. Perfect for homeowners seeking efficient, reliable, and easy-to-install heating and cooling solutions, this system combines advanced technology with unmatched convenience.
Upgrade your home comfort today with MRCOOL—where DIY meets professional-grade performance.
Specifications & Dimensions
| Attribute | Details |
|---|---|
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Product Weight | 222.89 lbs |
| SEER2 | 20.50 |
| EER2 | 11 |
| HSPF2 | 9.2 |
| SEER | 20.5 |
| EER | 11 |
| HSPF | hspf4/hspf5 : 11/8.5 |
| CFM | 4500 |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Voltage | 208V-230V/60HZ/40-60A |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 60 A |
| Min Circuit Ampacity | 40 A |
| Color | White |
| Zone Capacity | 5 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 162 oz |
| Decibel Rating | 61.5 dBA |
| Inverter | Yes |
| Min Ambient Cool | 5°F ~ 122°F |
| Min Ambient Heat | 5°F ~ 75.2°F |
| Max Lineset Length | 221.5 ft TOTAL |
| Liquid Line Size | 1/4in |
| Suction Line Size | 3/8in + 1/2in |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor RPM | 900/850/800/750 |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS, Android |
| Warranty | 5-year Parts/7-year Compressor |
| Registered Warranty | Limited Lifetime Compressor |
