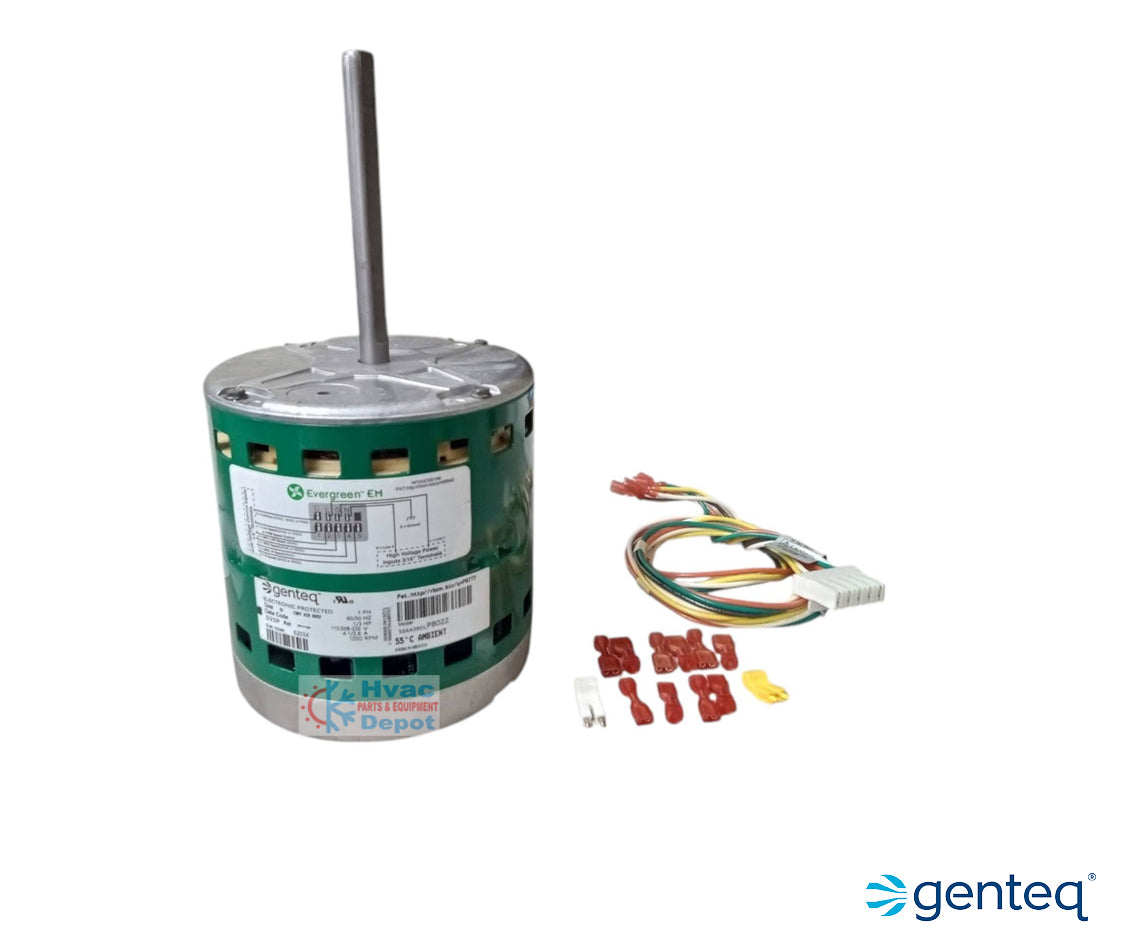

Genteq 6203X Evergreen EM Blower Motor | 1/3 HP | 115/230V Dual Voltage | X13 ECM Replacement

The Genteq 6203X Evergreen EM is the high-tech "brain" and muscle of your indoor air handler or furnace. This high-efficiency ECM (Electronically Commutated Motor) is specifically engineered as a universal "drop-in" replacement for OEM X13 constant torque motors. Unlike standard motors, the 6203X features a microprocessor that manages airflow and torque, making it the primary drive component for Carrier, Goodman, Trane, and York furnace series. It provides a significant efficiency upgrade over older PSC motors while maintaining the exact plug-and-play harness connections of your original equipment.

Key Features

• Universal X13 OEM Fit: Directly replaces part number 6203X and legacy 6203E models, utilizing the exact same 5-pin power and 4-pin signal inputs found on factory-installed X13 motors.
• Auto-Rotation Sensing: Eliminates installation errors by automatically detecting and setting the correct airflow direction (CW or CCW) upon the first startup.
• Dual-Voltage Versatility: Built-in "brain" automatically senses and operates on either 115V or 208-230V, making it compatible with almost any residential furnace or air handler.
• Resolved Relay & Noise Issues: Fixes common ECM "hunting" or clicking noises while offering 4kV surge protection to prevent premature module failure from electrical spikes.
• Integrated Safety Monitoring: Features electronic overload protection and a thermally protected enclosure to prevent winding damage during restricted airflow conditions.

Product Details

• Brand: Genteq (Evergreen EM)
• Manufacturer: Regal Rexnord
• Part Number: 6203X
• UPC/SKU: 815585025405
• Shipping Weight: 12.5 lbs
• Horsepower: 1/3 HP
• Voltage: 115 / 208-230 VAC (Dual Voltage)
• Amperage: 6.4A (115V) / 4.1A (230V)
• RPM: 1050 - 1075 (Operating range 600-1200)
• Speeds: 5 Discrete Speed Taps
• Frame: 48 Frame (5.6-inch diameter)
• Shaft Size: 1/2" Diameter x 4-3/4" Length (Flat)
• Bearings: Ball Bearing (Long Life)

🛠️ HVAC Depot Pro Tip

Take a Picture First: Before unplugging your old X13 module, photograph the wire positions on the 5-pin power and 4-pin control plugs. While the 6203X is "plug-and-play," ensuring your speed taps (1-5) match the original factory settings is critical for maintaining correct CFM for your AC coil. Diagnostic Check: After installation, allow the motor to complete its first full cycle without interruption; this is when the Rotation Sensing technology calibrates itself to your blower wheel's specific direction.

Cross-Reference

• Genteq Manufacturing Numbers:

  5SME39DXL016A, 5SME39DXL034, 5SME39DXL150, 5SME39DXL161, 5SME39DXL294, 5SME39DXL415, 5SAA39DLP8022.

• Carrier/Bryant/Payne:

  HD42AE232, HD42AR224, HK42ER210, HK42ER224, HK42ER225.

• Goodman/Amana:

  D672366G29, D672366G30, D672366G31.

• Trane/American Standard:

  MOT12293, MOT12294, MOT12295, MOT13002, MOT17018.

Model Compatibility

• Carrier/Bryant/ICP Series:

  (Suffixes: 58STA, 58STX, 310AAV, 315AAV, PG9M).

• Goodman/Amana Series:

  (Suffixes: GME8, GME9, AMH8, GDH8, GDM8).

• Trane/American Standard Series:

  (Suffixes: TUE1, TUD1, TUX1, TEE3).

• Lennox/Armstrong Series:

  (Suffixes: G60UHV, G61MPV, EL195E).

• York/Luxaire/Coleman Series:

  (Suffixes: TG9S, TM9X, TM8X).
