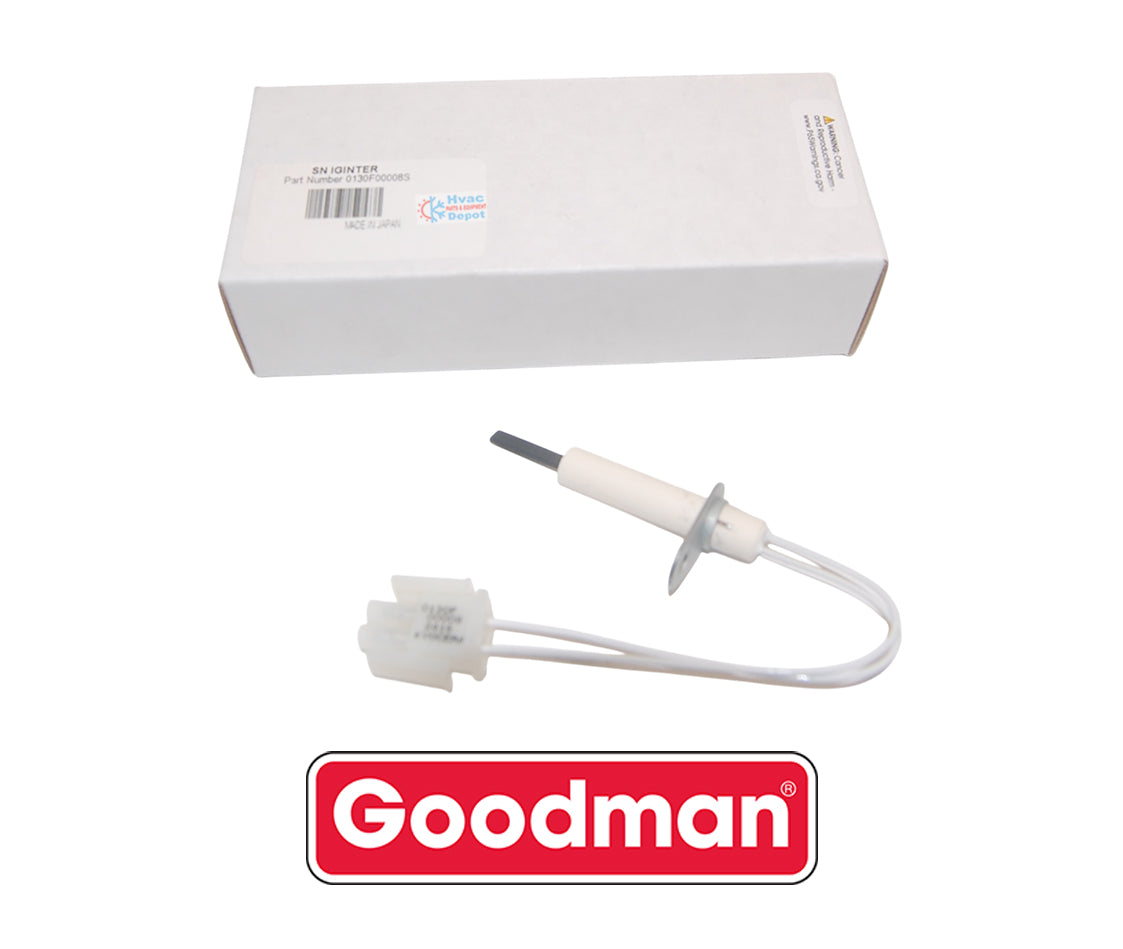

Goodman 0130F00008S Silicon Nitride Hot Surface Igniter – Genuine OEM 115V High-Durability Single Pack

The Goodman 0130F00008S Silicon Nitride Igniter is the high-performance "spark" and ignition "brain" for your modern Goodman, Amana, and Janitrol furnace series. This 115-volt component is responsible for reaching extreme white-hot temperatures in seconds to safely ignite the gas burners upon a call for heat. Engineered as a genuine OEM upgrade, this Silicon Nitride model is significantly more robust than older, fragile silicon carbide versions. It is designed to withstand higher physical impact and moisture levels, ensuring your furnace avoids "Ignition Failure" lockouts and provides reliable heating throughout the harshest winter cycles.

Key Features and Function:

• Precision Combustion Control: Calibrated specifically for Goodman integrated control boards to reach ignition temperature rapidly, ensuring a clean and immediate light-off.
• Genuine OEM Reliability/Fitment: This is the factory-authorized replacement for the 80% and 90%+ AFUE furnace series, guaranteeing perfect alignment with the burner ports.
• Advanced Silicon Nitride Build: Features a non-porous, high-strength heating element that resists the "hot spots" and premature burnout common in cheaper aftermarket igniters.
• Direct-Fit Design/Plug-and-Play: Comes as a complete single-pack assembly with the correct electrical plug and mounting bracket for a seamless, tool-friendly installation.

Product Details and Key Specifications:

• Part Number: 0130F00008S (Replaces 0130F00008)
• Manufacturer: Goodman / Amana (Genuine OEM)
• Part Type: Silicon Nitride Hot Surface Igniter (HSI)
• Voltage: 115V AC
• Material: High-Grade Silicon Nitride
• Phase / Hertz: Single-phase (1PH) / 60 Hz
• Connection: 2-Pin Factory Plug
• Includes: (1) Igniter Element and Integrated Mounting Bracket
• Shipping Weight: 0.3 lbs

🛠️ HVAC Depot Pro Tip: The "No-Touch" Rule

Even though Silicon Nitride is much tougher than older carbide materials, you should never touch the gray heating element with your bare fingers. Skin oils can create localized "hot spots" that cause the igniter to crack under thermal stress over time. During your Diagnostic Check, verify that the igniter glows bright orange within 10-15 seconds of the inducer motor starting. If it doesn't glow, check for 115V at the plug before assuming the igniter is at fault.

Cross-Reference & Compatibility:

The 0130F00008S is a direct OEM replacement for the following part numbers:

• OEM Numbers: 0130F00008, 0130F00008S, 0130M00008
• White-Rodgers: 768A-844, 768A-4
• Aftermarket Cross: IGN-008, L46-445, 20165703S (Upgrade path)

Extensive Model Compatibility List:

Note: Use 'CTRL+F' to search for your specific model:

• Goodman GMS8 Series: GMS80403AN, GMS80603AN, GMS80804BN, GMS81005CN
• Goodman GMH95 Series: GMH950453BX, GMH950703BX, GMH950904CX, GMH951155DX
• Goodman GME8 Series: GME80403AN, GME80603AN, GME80804BN
• Amana AMES8 Series: AMES80403AN, AMES80603AN, AMES80804BN
• Amana AMH95 Series: AMH950453BX, AMH950703BX, AMH950904CX
• Janitrol Units: Fits newer 80% and 90% AFUE Janitrol furnace cabinets.
