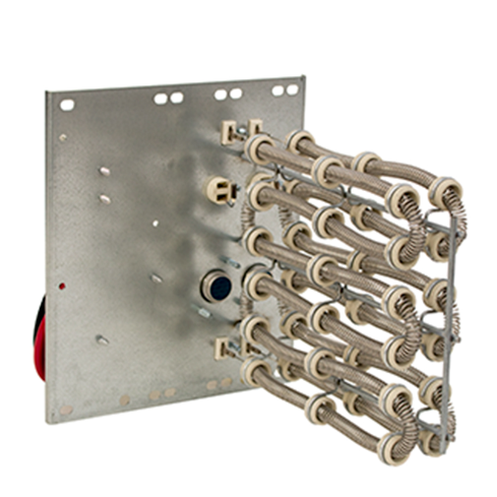

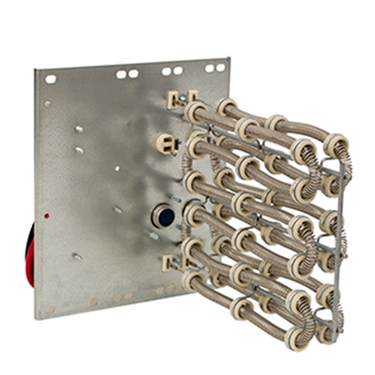

Goodman 19 Kilowatt Heater Coil 64800 BTU Compatible with Air Handlers
$283.00$0.00
HKSC19CB
Type: Goodman Parts
Parcel Delivery (UPS/FedEx)
This product weighs 0.0 lbs and will ship by parcel carrier (UPS or FedEx).
Product Details
Goodman 19 Kilowatt Heater Coil 64800 BTU Compatible with Air Handlers
Enhance your Goodman air handler's functionality with this 240-volt heater coil, perfect for winter heating needs. Generating 64,800 BTUs of warmth, it's equipped with sequencers for precise temperature control. Each unit comes fully assembled and tested, boasting built-in overcurrent protection as per the electrical data chart (refer to the spec sheet). With multiple branch circuit capability and high-temperature limit controls ensuring safety, installation is made easy with the plug-in wiring harness. Plus, its rust-resistant nickel chromium heat elements guarantee durability for long-term use.
When installing a heater coil in an air handler, connect the line voltage directly to the heater coil. This setup will power both the heater coil and the air handler, eliminating the need for a separate circuit dedicated solely to the air handler.
Compatible With:
- Goodman ARPT36C14 Air Handlers
- Goodman ARUF30C14 Air Handlers
- Goodman ARUF36C14 Air Handlers
- Goodman ARUF42C14 Air Handlers
- Goodman ASPT36C14 Air Handlers
- Goodman ASPT42C14 Air Handlers
- Goodman ASPT48C14 Air Handlers
- Goodman ASUF39C14 Air Handlers
- Goodman ASUF49C14 Air Handlers
- Goodman AVPTC36C14 Air Handlers
- Goodman AVPTC48C14 Air Handlers
Specifications
Goodman 19 Kilowatt Heater Coil 64800 BTU Compatible with Air Handlers
| Brand | Goodman | Model # | HKSC19CB |
| Weight | 9 lbs | Heating BTU | 64800 |
| Electric Heat | 19 Kilowatts | Electrical | 208 / 230 / 240 Volts / 1 Phase |
| Phase | Single Phase | Max Breaker Size | Circuit 1: 60 amps / Circuit 2: 50 amps |
| Min. Breaker Size | Circuit 1: 57 amps / Circuit 2: 50 amps | Shipping Weight | 9.75 |
| Shipping Width | 16 | Shipping Length | 17.60 |
| Shipping Height | 8.50 |
