OEM Goodman-Amana Auto Limit Switch (120F - 130F) 0130F00038

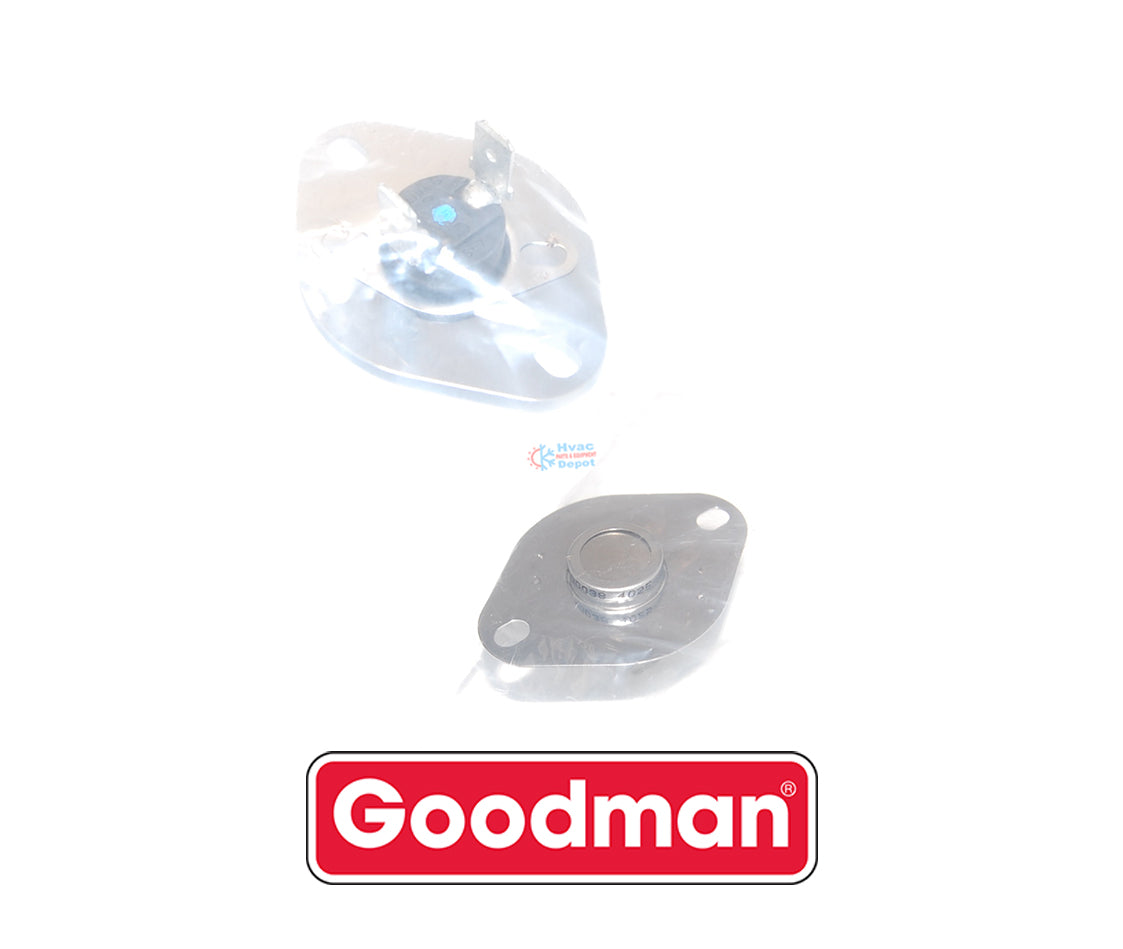

The code 0130F00038S identifies a specific Amana-Goodman automatic limit switch, a crucial safety component in HVAC systems that monitors internal temperatures, typically shutting off the heat if it exceeds the 120°F to 130°F range to prevent overheating and maintain safe operation. It's a genuine OEM replacement part, often light blue, designed for various Goodman, Amana, and compatible furnaces, ensuring efficient and safe heating.

Key Characteristics:

• Function: Acts as a safety device to prevent furnace overheating by cutting power.
• Temperature Rating: Auto-opens between 120°F and 130°F.
• Compatibility: Used in Goodman, Amana, and other HVAC systems.
• Appearance: Often identified as light blue.

What it does in your system:

When your furnace gets too hot, this switch detects the excess temperature and automatically cuts the fuel supply or shuts down the heating element, then resets once the system cools, protecting your equipment and ensuring safe indoor comfort.

0130F00038S is a genuine OEM automatic reset primary limit switch (not a pressure switch as with previous parts). It functions as a safety device in Goodman, Amana, Janitrol, and Daikin HVAC systems to prevent overheating.

Electrical and Temperature Specifications:

• Voltage Rating: This switch operates on 120 VAC (Volts AC).
• Current Rating: The specific amperage is not universally listed but is designed for standard control circuit loads.
• Operation Type: It is an "auto-reset" type switch. When the temperature drops below the operating range, it automatically resets and closes the circuit.
• Temperature Range: The switch is a "Limit Open On Rise" type:
• Opens: (shuts off the furnace) at 130°F (degrees Fahrenheit).
• Closes: (resets) at 120°F.

The 0130F00038S limit switch replaces or is affiliated with the following part numbers:

• 0130F00038
• G0130F00038S
• 42AL51
• L45-224
• 93358
• P349572

This limit switch is used in many series of 80% and 90%+ AFUE furnaces across several brands. Below is a partial list of compatible series and examples:

Amana:

• ACEC
• ACES
• ACSH
• ACSS
• ACVC
• ACVM
• ADSH
• ADSS
• ADVC
• AMEC
• AMEH
• AMES
• AMH
• AMS
• AMSS
• AMVC
• AMVM

Goodman:

• GCEC
• GCES
• GCH
• GCSS
• GCVC
• GCVM
• GDH
• GDS
• GHS
• GME
• GMEC
• GMES
• GMH
• GMS
• GMSS
• GMVC

GMVM Series:

• GCEC800403AXAA
• GCVC800805CXAA
• GMEC800403ANAA
• GMVC800805CNAA

Daikin DC, DD, DM Series:

• DC80SE0403AXAA
• DM80HS0403AXAA
• DM96HS0402BNAA

This switch is generally compatible with any Goodman, Amana, Janitrol, or Daikin model requiring a primary limit switch that opens at 130°F and automatically resets.
