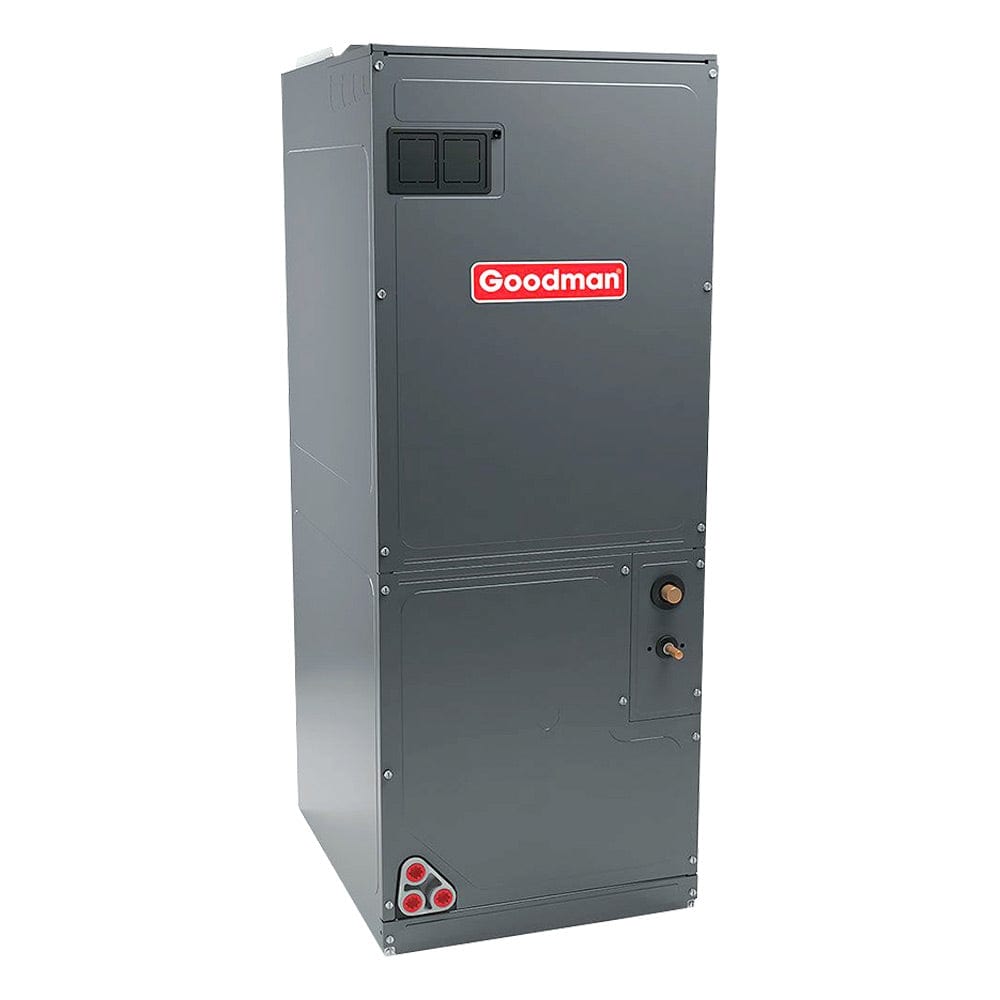

Goodman AMST60DU1300 – 5 Ton Variable Speed Air Handler | Multi-Position ECM Indoor Unit | R-32 Refrigerant | 24.5" Cabinet | AMST_32 Series
Goodman AMST60DU1300 – 5 Ton Variable Speed Air Handler | Multi-Position ECM Indoor Unit | R-32 Refrigerant | 24.5" Cabinet | AMST_32 Series
Goodman AMST60DU1300 – 5 Ton Variable Speed Air Handler | Multi-Position ECM Indoor Unit | R-32 Refrigerant | 24.5" Cabinet | AMST_32 Series
$2,099.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Overview
The Goodman AMST60DU1300 Air Handler from the AMST_32 Series offers superior performance and efficiency in a robust 5 Ton Variable Speed Multi-Position design.
Engineered for R-32 refrigerant systems, this advanced unit combines a 9-speed ECM blower motor, factory-installed TXV, and all-aluminum AlumaFin7™ coil for outstanding durability, quiet operation, and efficient temperature control.
Its SmartFrame™ galvanized cabinet, wide 24.5” width, and multi-position installation options make it ideal for large residential or light commercial HVAC systems demanding consistent comfort and reliability.
Key Features & Benefits
-
Variable-Speed 9-Speed ECM Motor – Provides smooth, quiet airflow and superior humidity control.
-
All-Aluminum AlumaFin7™ Coil – High-efficiency 3/8" coil design enhances heat transfer and system longevity.
-
Factory-Installed TXV – Optimized refrigerant flow for both cooling and heat pump applications.
-
R-32 Refrigerant Ready – Equipped with factory-installed A2L leak detection sensor for safety and compliance.
-
SmartFrame™ Cabinet Design – Durable galvanized steel with screw-less sides minimizes condensation and vibration.
-
Low Air Leakage – Less than 2.0% at 1.0 in H₂O per ASHRAE 193 standards for improved energy performance.
-
Multi-Position Flexibility – Supports upflow, downflow, or horizontal configurations.
-
High-Temperature Drain Pan – DecaBDE-free thermoplastic design with primary and secondary drain connections.
-
Electric Heat Ready – Compatible with 3 kW – 25 kW heater kits (5–10 kW nickel-chromium available).
-
AHRI Certified & ETL Listed – Meets strict efficiency and safety standards.
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Product Family | AMST_32 |
| Family Description | Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV (1½ – 5 Tons) |
| Model Number / SKU | AMST60DU1300 |
| Unit Type | Indoor |
| Product Class | Air Handler |
| Tonnage | 5 Ton |
| Refrigerant Type | R-32 |
| Motor Speed Type | 9-Speed ECM Variable Speed |
| Blower Motor FLA | 6.9 A |
| Voltage Range | 197 – 253 V |
| Power Supply | 208/230 V – 1 Phase – 60 Hz |
| Minimum Circuit Amps | 8.6 A |
| Electric Heat Options | 3 kW – 25 kW Kits (5–10 kW Nickel-Chromium Available) |
| Coil Type | All-Aluminum AlumaFin7™ (3/8" Coil for 4–5 Ton Models) |
| Cabinet Type | SmartFrame™ Galvanized Steel |
| Cabinet Width | 24-5/8 in |
| Cabinet Depth | 21 in |
| Cabinet Height | 58 in |
| Weight | 167 lb |
| Air Leakage | < 2.0% @ 1.0 in H₂O / < 1.4% @ 0.5 in H₂O (ASHRAE 193) |
| Drain Pan | High-Temp DecaBDE-Free Thermoplastic w/ Primary & Secondary Connections |
| Installation Type | Multi-Position (Upflow / Downflow / Horizontal Left / Horizontal Right) |
| Cabinet Insulation | Foil-Faced, Glue-less, Condensation-Resistant |
| Filter Access | Tool-less Front Access |
| Certifications | AHRI Certified, ETL Listed, Proposition 65 Compliant |
| Proposition 65 Label | Checked Specification |
Cabinet & Construction Highlights
-
Rigid SmartFrame™ Cabinet for strength, quiet operation, and easy access
-
Horizontal or Vertical Installation for maximum flexibility
-
Foil-Faced Insulation reduces condensation and noise levels
-
Glue-less insulation retention ensures long-lasting durability
-
Galvanized, leather-grain finish resists corrosion in humid environments
-
Tool-less filter access for quick maintenance
-
21” Depth for versatile placement
Certifications
✅ AHRI Certified
✅ ETL Listed
✅ Proposition 65 Compliant
Why Choose Goodman
The Goodman AMST60DU1300 provides large-capacity comfort and reliability with modern R-32 refrigerant compatibility.
Its variable-speed ECM blower, SmartFrame™ cabinet, and AlumaFin7™ coil technology make it a top-tier choice for high-performance HVAC systems that demand quiet efficiency and lasting durability — all backed by Goodman’s trusted name.
