Goodman GLZS4BA6010 – 5 Ton 15.2 SEER2 Single Stage Split Heat Pump | R-32 Refrigerant | GLZS4B Series | High-Efficiency Outdoor Unit
Goodman GLZS4BA6010 – 5 Ton 15.2 SEER2 Single Stage Split Heat Pump | R-32 Refrigerant | GLZS4B Series | High-Efficiency Outdoor Unit
Goodman GLZS4BA6010 – 5 Ton 15.2 SEER2 Single Stage Split Heat Pump | R-32 Refrigerant | GLZS4B Series | High-Efficiency Outdoor Unit
$4,285.00
/
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Overview

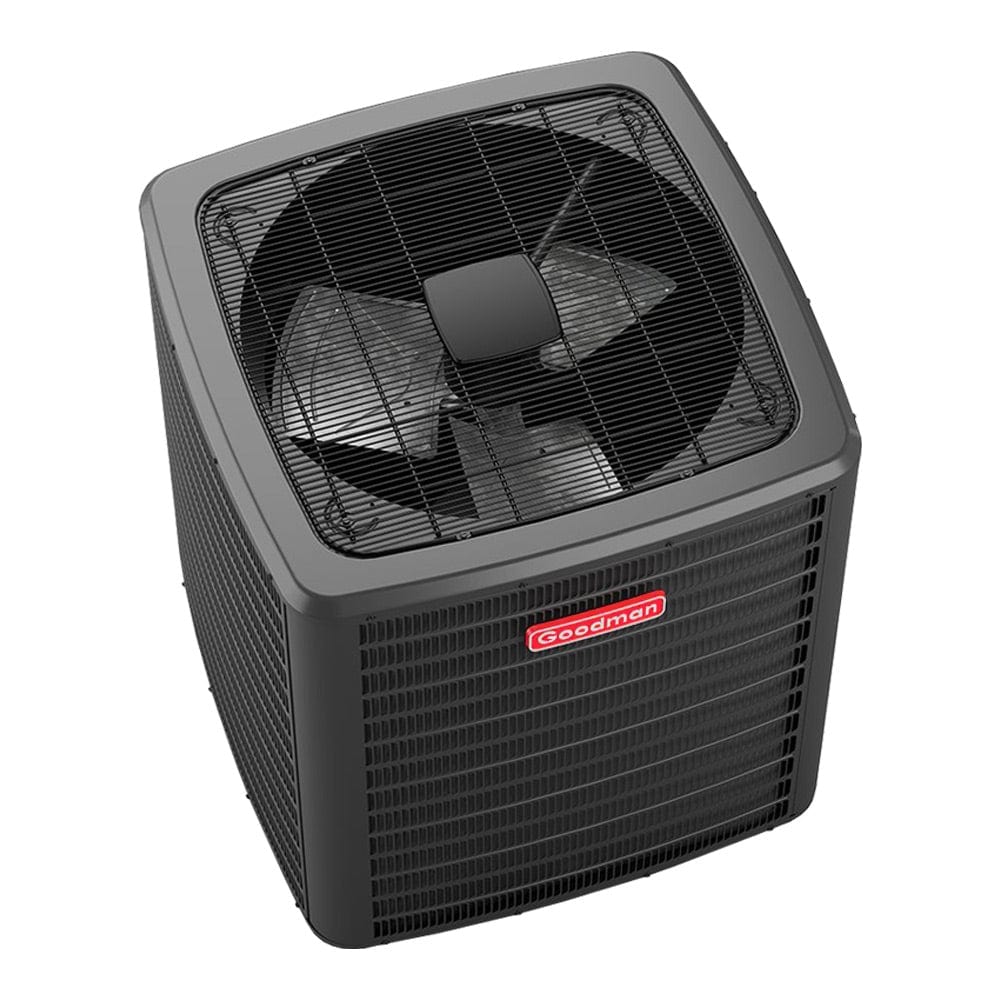

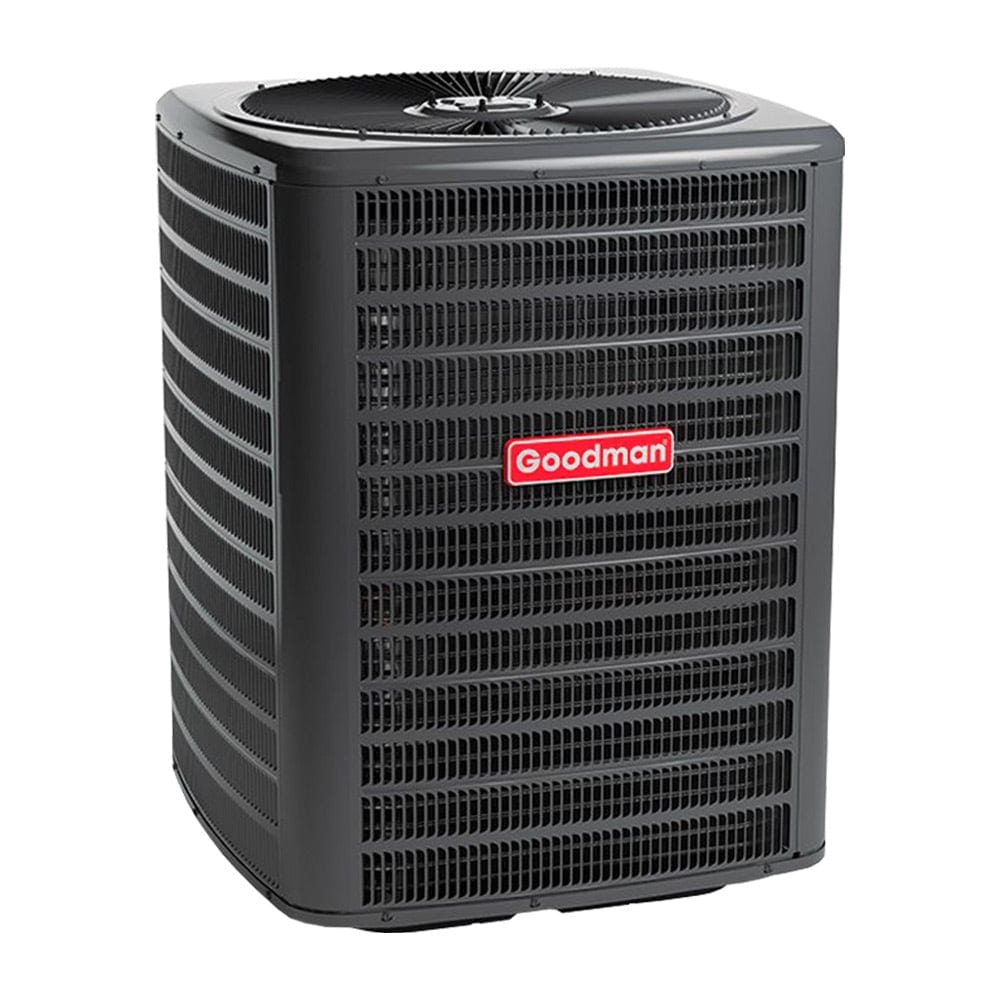

The Goodman GLZS4BA6010 is a 5 Ton 15.2 SEER2 Single Stage Split System Heat Pump, engineered for powerful, efficient performance and long-term reliability.
Part of the GLZS4B R-32 Series, this outdoor heat pump is built to meet the 2023 DOE M1 Efficiency Standards, offering quiet operation, durable construction, and advanced refrigerant technology for today’s energy-conscious homeowners and contractors.
Equipped with a high-efficiency scroll compressor, SmartShift™ defrost control, and multiple factory-installed protection components, this Goodman unit ensures consistent comfort, smooth performance, and easy maintenance year after year.
Key Features & Benefits
-
High-Efficiency Scroll Compressor – Delivers dependable performance, improved efficiency, and quiet operation.
-
SmartShift™ Defrost Technology – Provides quiet, reliable defrost cycles for consistent winter performance.
-
Factory-Installed Protections – Includes bi-flow filter drier, suction-line accumulator, crankcase heater, and high-capacity muffler.
-
Enhanced Coil Design – 7 mm copper tube coil with aluminum fins maximizes heat transfer and durability.
-
High & Low Pressure Switches – Protects compressor and components from pressure extremes.
-
Durable Galvanized Cabinet – Heavy-gauge steel cabinet with Architectural Gray powder-coated finish, salt-spray tested for corrosion resistance.
-
Quiet PSC Fan Motor – Single-speed condenser fan motor with extended-life capacitor ensures smooth airflow.
-
Florida Code Compliant – Meets 2023 Florida Building Code requirements when properly anchored with optional bracket kit.
-
Easy Service Access – Top and side access panels simplify installation and maintenance.
-
AHRI Certified & ETL Listed – Verified for quality, performance, and safety.
⚙️ Technical Specifications
| Category | Specification |
|---|---|
| Brand | Goodman |
| Product Family | GLZS4B |
| Family Description | Energy-Efficient R-32 Split System Heat Pump (1.5 – 5 Ton), up to 15.2 SEER2 / 7.8 HSPF2 |
| Model Number / SKU | GLZS4BA6010 |
| Unit Type | Outdoor |
| Product Class | Split Heat Pump |
| Model Efficiency | 15.2 SEER2 / 7.8 HSPF2 |
| Tonnage | 5 Ton |
| Compressor Type | Scroll |
| Compressor Stages | Single Stage |
| Refrigerant Type | R-32 |
| Cooling Capacity (Rated) | 57,000 – 60,000 BTU/H |
| Heating Capacity (Rated) | 57,000 BTU/H |
| Power Supply | 208/240 V – 1 Phase – 60 Hz |
| Minimum Circuit Amps | 26.8 A |
| Condenser Fan Motor | Single-Speed PSC |
| Cabinet Construction | Heavy-Gauge Galvanized Steel |
| Cabinet Finish | Architectural Gray Powder Coat (500-Hour Salt Spray Tested) |
| Dimensions (W × D × H) | 35.5" × 35.5" × 38.25" (typical for 5-ton GLZS4B models) |
| Unit Weight | ~270 lb (approximate factory spec) |
| Coil Construction | Enhanced Aluminum Fin with 7 mm Copper Tubes |
| Cabinet Features | Removable Grille-Top, Steel Louver Coil Guard, Top & Side Maintenance Access |
| Standards Compliance | Meets 2023 DOE M1 Test Standards & Florida Building Code (with anchor kit) |
| Certifications | AHRI Certified, ETL Listed, Proposition 65 Compliant |
| Proposition 65 Label | Checked Specification |
Cabinet & Construction Highlights
-
Removable grille-top design for fast fan and coil access
-
Steel louver coil guard for protection against debris and impact
-
Architectural Gray powder-coated finish for corrosion resistance
-
Top and side service panels for simplified maintenance
-
Rigid galvanized cabinet ensures durability in all weather conditions
-
Hurricane-ready — compliant with Florida wind integrity code when anchored
Certifications
✅ AHRI Certified
✅ ETL Listed
✅ Proposition 65 Compliant
✅ Meets 2023 DOE M1 Efficiency Standards
Why Choose Goodman
The Goodman GLZS4BA6010 offers dependable comfort, powerful performance, and modern efficiency in a rugged, easy-to-service design.
With R-32 refrigerant compatibility, SmartShift™ technology, and Goodman’s proven reliability, this 5 Ton heat pump delivers long-lasting comfort, efficiency, and peace of mind.
