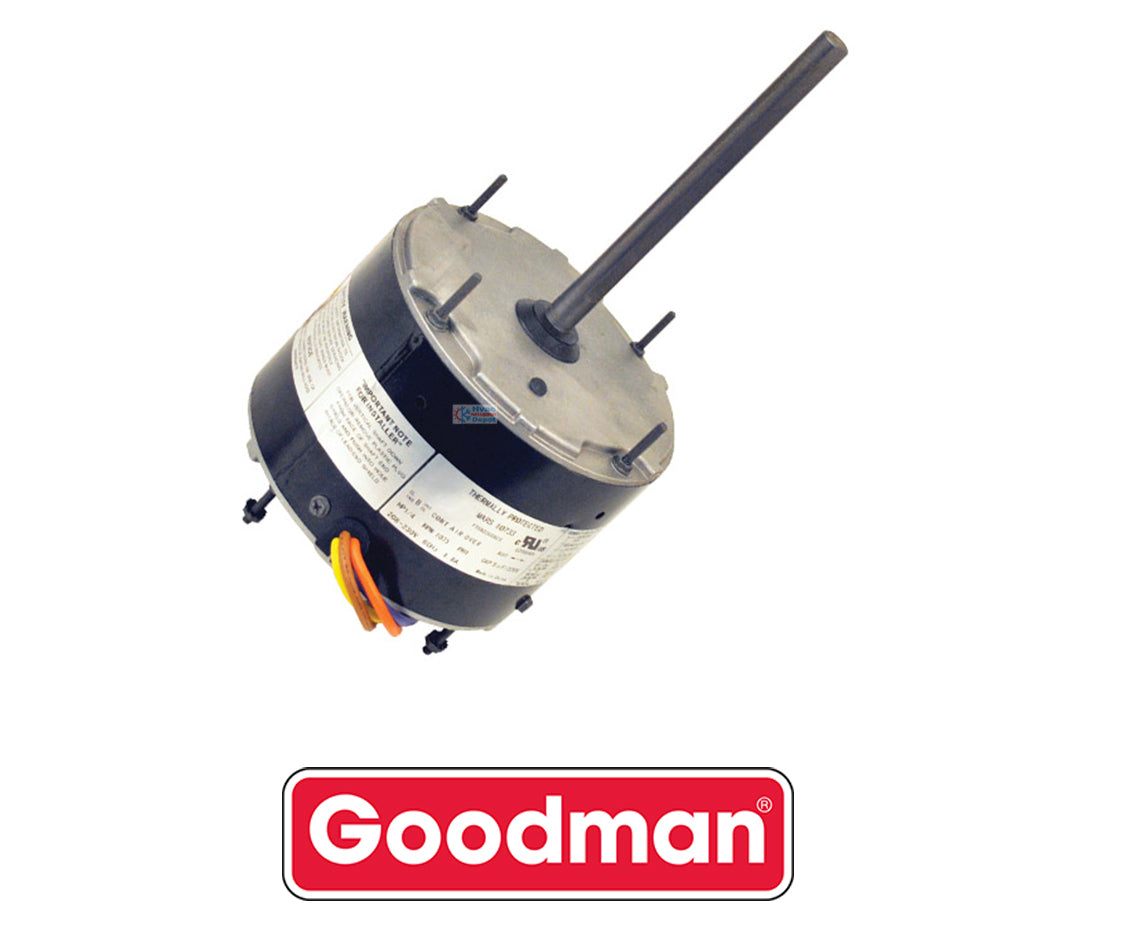

Goodman PP3729 Condenser Fan Motor – 1/3 HP 1075 RPM 208-230V Single Phase

Restore the critical cooling capacity of your outdoor unit with the Goodman PP3729. Engineered as the mechanical "brain" of your system's heat dissipation process, this motor is a high-performance OEM focus replacement designed to maintain the precise head pressure required for efficient refrigeration. Supporting a wide range of Goodman GSX, GSC, and GSH series condensing units and heat pumps, this 1/3 HP module ensures consistent airflow across the condenser coils. By replacing a failing or seized motor with this Class B insulated unit, you prevent compressor overheating and protect your HVAC system from catastrophic failure during peak summer temperatures.

 Key Features

• Precision OEM Fitment: Specifically matched to part number PP3729, ensuring the shaft length and mounting diameter align perfectly with Goodman factory fan blades.
• Thermal Resilience: Built with Class B insulation, designed to withstand the high internal cabinet temperatures typical of outdoor environments without degrading.
• High-Torque Performance: Fixed at 1/3 HP to provide the necessary rotational force to move high-volume air across dense coil fins for maximum heat transfer.
• Whisper-Quiet Operation: Features precision-balanced internal components to eliminate vibration and humming, restoring the quiet operation of your residential unit.
• Safety Monitoring: Equipped with internal Automatic Thermal Overload Protection that monitors winding heat and cuts power to prevent motor burnout.

Product Details

• Brand: Goodman / Amana
• Manufacturer Part #: PP3729
• UPC #: 810178524280
• Horsepower: 1/3 HP
• Voltage: 208-230V
• Phase: 1 Phase
• Frequency: 60 Hz
• Speed: 1075 RPM
• Starting Method: DOL (Direct On Line)
• Insulation Class: Class B
• Enclosure: Totally Enclosed Air Over (TEAO)
• Bearing Type: Permanently Lubricated Ball Bearings
• Rotation: Reversible (via lead change)

 🛠️ HVAC Depot Pro Tip

"Take a Picture First"—before unhooking the old motor, photograph the wiring colors on the contactor and the dual run capacitor. This motor typically pairs with a 5 MFD or 7.5 MFD capacitor; always check the motor label and replace the capacitor simultaneously to ensure the new motor reaches full torque. Diagnostic Check: While installing, ensure the "Slinger" washer is properly positioned on the shaft to deflect water away from the bearings, extending the life of your new motor.

Cross-Reference

• Superseded/Legacy: 0131M00007P, 0131M00016P, 0131M00060P
• White-Rodgers/Emerson: 5462, Emerson 1859, K55HXWGE-9801
• Generic Equivalents: Mars 10729, Jard 22729, Century FSE1036S

Model Compatibility

• Goodman GSX13 Series (Suffixes: 0181, 0241, 0301, 0361)
• Goodman GSX14 Series (Suffixes: 0181, 0241, 0301)
• Goodman GSC13 Series (Suffixes: 018, 024, 030, 036)
• Goodman GSH13 Heat Pump Series (Suffixes: 018, 024, 030)
