GWIN 1.5 Ton - 18,000 BTU - 19.20 SEER2 Inverter Ducted Complete HVAC System

Experience reliable year-round comfort with the GWIN 1.5 Ton (18,000 BTU) Inverter Ducted HVAC System, delivering industry-leading energy efficiency at 19.20 SEER2. Designed for flexible installation, this complete system is built for performance, durability, and user convenience.

Key Comfort & Performance Features

High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
Dual Communication: Compatible with 24V and 485 control systems for easy integration.
Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

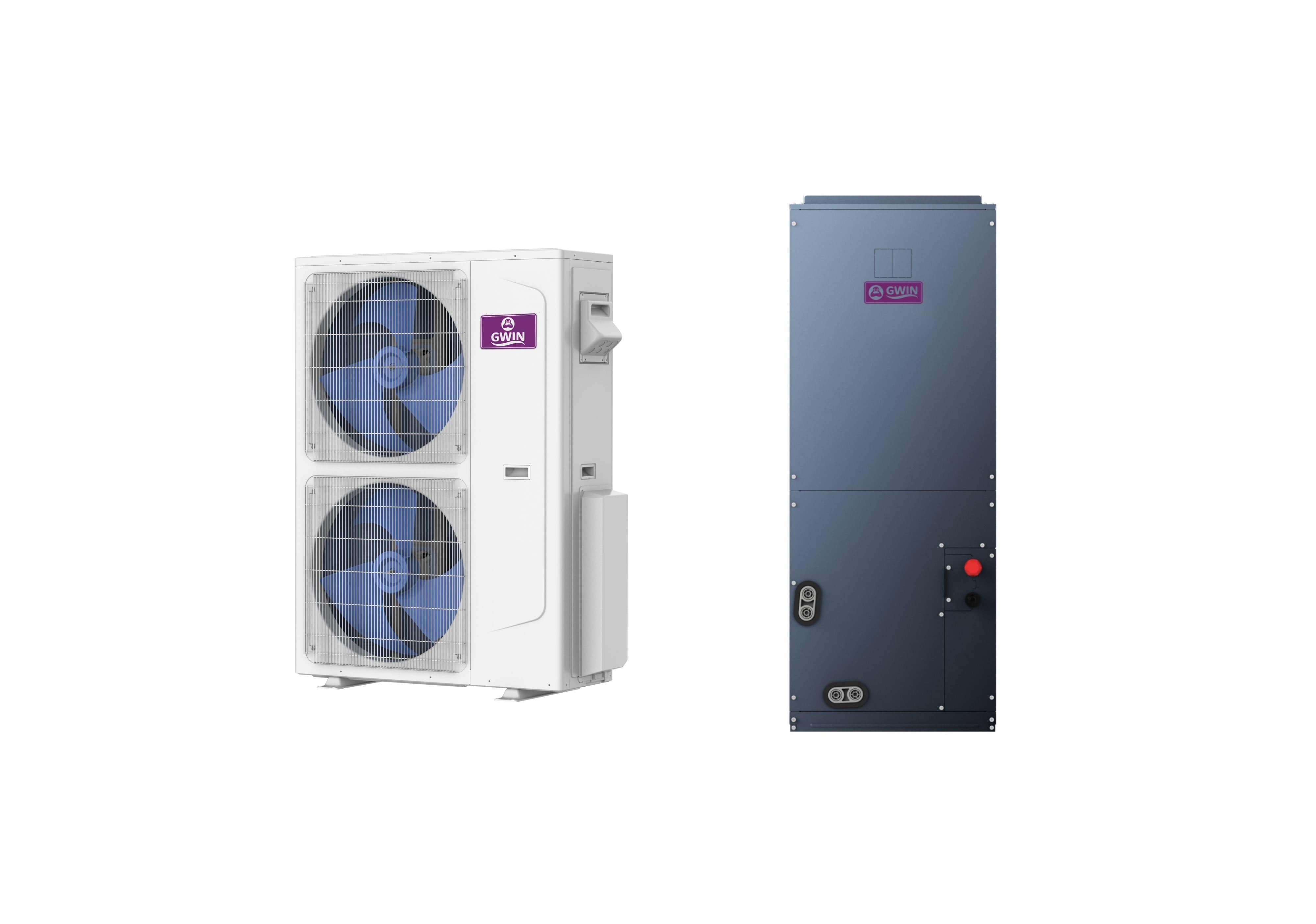

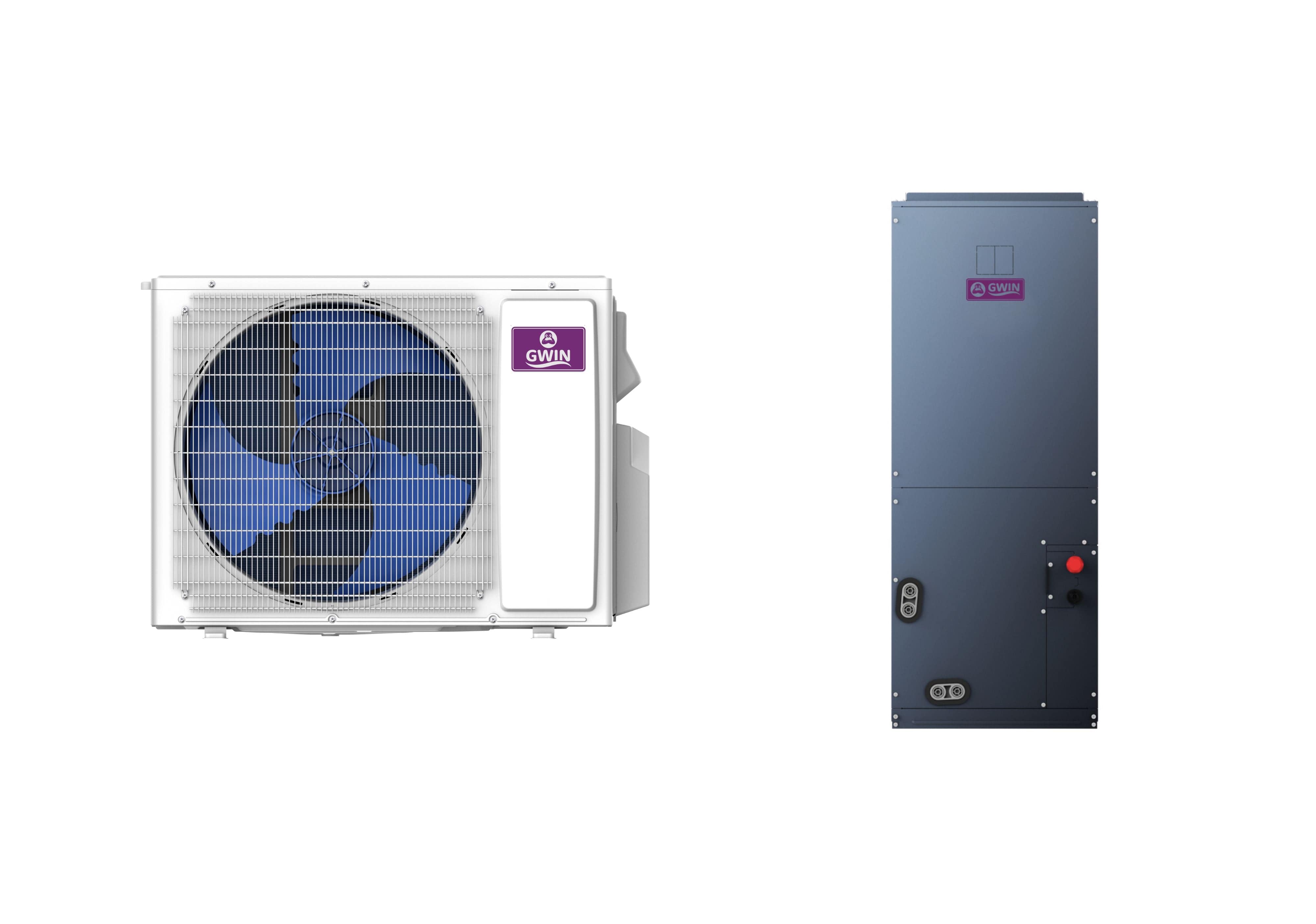

Complete System Includes

Indoor Air Handler: Model GAHU18HPV1BI
Outdoor Condenser: Model GAHU18HPV1BO
AHRI Certified #: 216032392

Air Handler Specifications

Cooling Capacity: 18,000 BTU (6,000–23,000 BTU Range)
Heating Capacity: 22,000 BTU at 47°F (4,600–24,000 BTU Range)
Power Supply: 208/230V, 60Hz, Single Phase
SEER2: 19.20 | EER2: 11.60 | HSPF2: 9.00
Indoor Airflow (CFM): 600 / 530 / 440
Noise Level (dB): 47 / 45 / 43
ESP Range: 0–1.0 in.w.g (Rated at 0.5)
Dimensions (W x D x H): 17.5" x 21" x 51.56"
Line Set: Liquid 3/8" | Gas 5/8"
Max Piping: 98 ft Length | 49 ft Height

Condenser Specifications

Cooling Temp Range: 5°F ~ 125°F
Heating Temp Range: -22°F ~ 75°F
Air Flow Volume: 2,059 CFM
Noise Level: 56 dB(A)
Power Supply: 208/230V, 60Hz, Single Phase
Max Power Consumption: 2,900W | Max Current: 14A
MCA / Max Fuse: 18A / 30A
Recommended Breaker: 25A
Dimensions (W x D x H): 38.56" x 15.25" x 30.31"
Refrigerant Charge: 52.91 oz
Line Set: Liquid 3/8" | Gas 5/8"
Max Piping: 98 ft Length | 49 ft Height

Why Choose the GWIN 1.5 Ton Inverter Ducted System?

Perfect for both small and large homes needing flexible ducted installations.
Energy-saving inverter technology reduces utility bills.
Durable design with advanced features like auto-restart and refrigerant PCB cooling.
AHRI-certified for quality and efficiency.
Ideal for climates with extreme temperatures thanks to its wide heating and cooling ranges.
