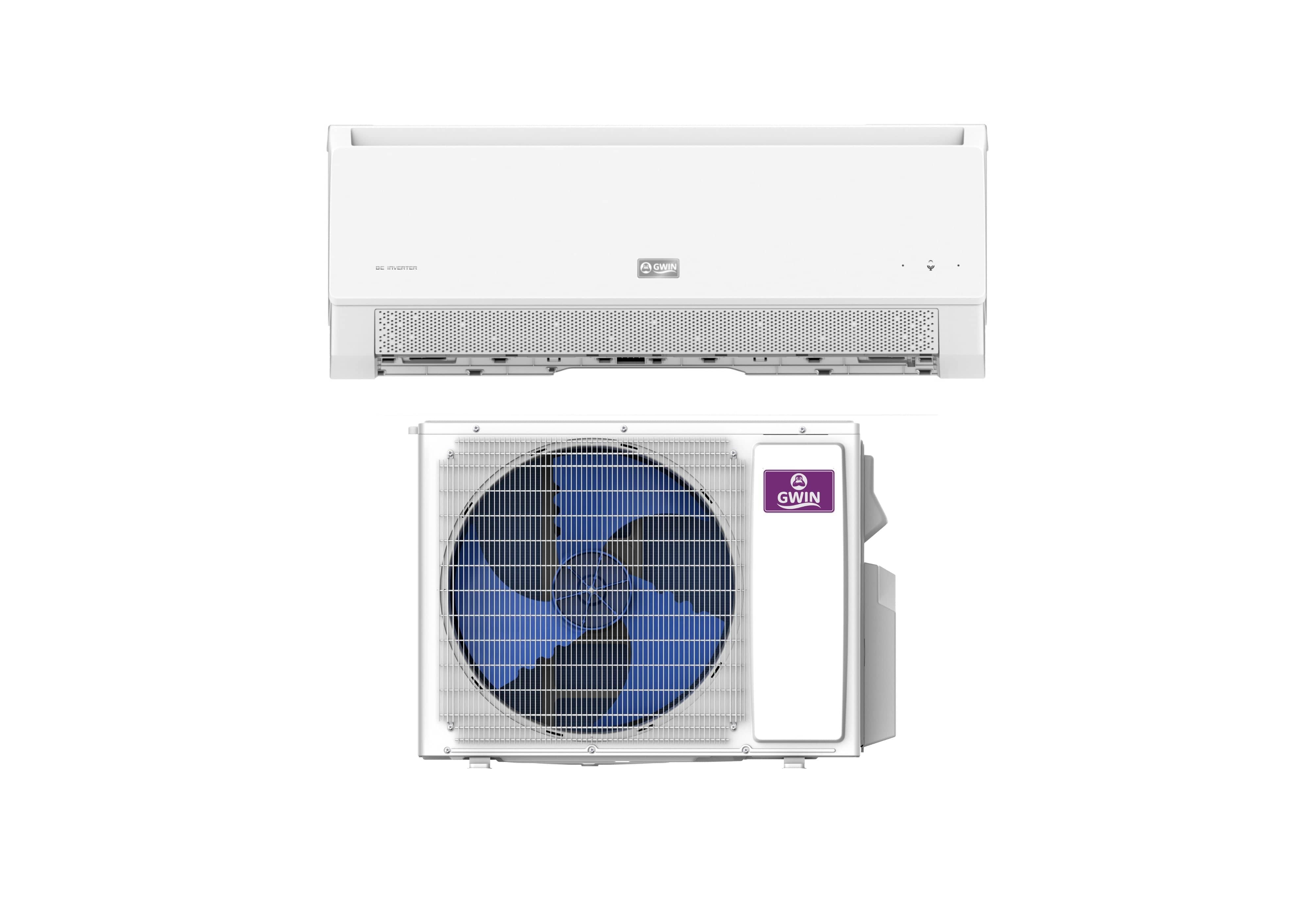

GWIN 9,000 BTU – 115V – 16.5 SEER2 Single-Zone Ductless Mini-Split (Complete System)

Efficient, quiet, and easy to install—the GWIN 9,000 BTU single-zone mini-split delivers dependable year-round comfort on standard 115V power. With advanced airflow, smart control options, and corrosion-resistant construction, it’s an ideal solution for bedrooms, home offices, and small living spaces.

Key Comfort & Performance Features

Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 165V–265V.
Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
Fast Heating & Cooling Technology: Inverter compressor rapidly achieves your desired room temperature.
Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.

Built for Reliability

Golden Fin Coils (Indoor & Outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
Outdoor PCB “Three-Proof” Design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.

What’s Included

Indoor Unit (Wall-Mounted): GAMAR09HP115V1EH
Outdoor Unit (Heat Pump): GAMAR09HP115V1EO
System Model (Complete): GAMAR09HP115V1EOCS
AHRI Certified Reference: 214290016

Efficiency & Capacity

SEER2: 16.5
HSPF2: 10.5
Cooling Capacity (Rated): 9,200 BTU
Cooling Capacity Range: 1,700–13,000 BTU
Heating Capacity @ 17°F (Rated): 11,900 BTU
Heating Capacity (Max): 9,400 BTU @ 5°F; 7,000 BTU @ –5°F
Operating Range (Cooling): 5–125°F
Operating Range (Heating): –13–75°F

Airflow & Sound

Indoor Airflow (CFM): 355 / 315 / 282 / 255 / 180 (S/H/M/L/Quiet)
Indoor Sound Pressure dB(A): Cooling 41 / 36 / 34 / 31 / 26; Heating 41 / 36 / 33 / 29
Outdoor Sound Pressure dB(A): 53 (Cooling / Heating)

Line Set & Installation

Line Set Sizes: Liquid 1/4" (6.35mm) | Gas 3/8" (9.52mm)
Indoor Drain Size: 5/8" (15.88mm)
Minimum Line Length: 9 ft (2.74 m)
Maximum Line Length: 65 ft (20 m)
Maximum Height Difference: 50 ft (15 m)
Refrigerant: R32 (Pre-charge 29.63 oz)
Additional Charge: 0.172 oz/ft over 25 ft

Electrical

Power: 115V, 1-Phase, 60 Hz
Recommended Breaker: 25A
MCA / MOCP: Refer to nameplate (typical MOCP 25A)
Rated Power Input: 750 W (heating @ 47°F)

Why Choose This 9,000 BTU 115V Mini-Split?

Runs on standard household power—no 230V circuit required for many installs.
Ultra-gentle “Soft Air” delivery enhances comfort without drafts.
Wi-Fi and offline voice control options for effortless operation.
Golden Fin and rugged PCB design for long-term durability.
Cold-climate readiness with base pan heat and low-temperature heating performance.

Notes: Features and specifications are subject to change without notice and may vary by model and setup. Always verify line-set sizing, electrical, and charge requirements against the unit nameplate and local codes.
