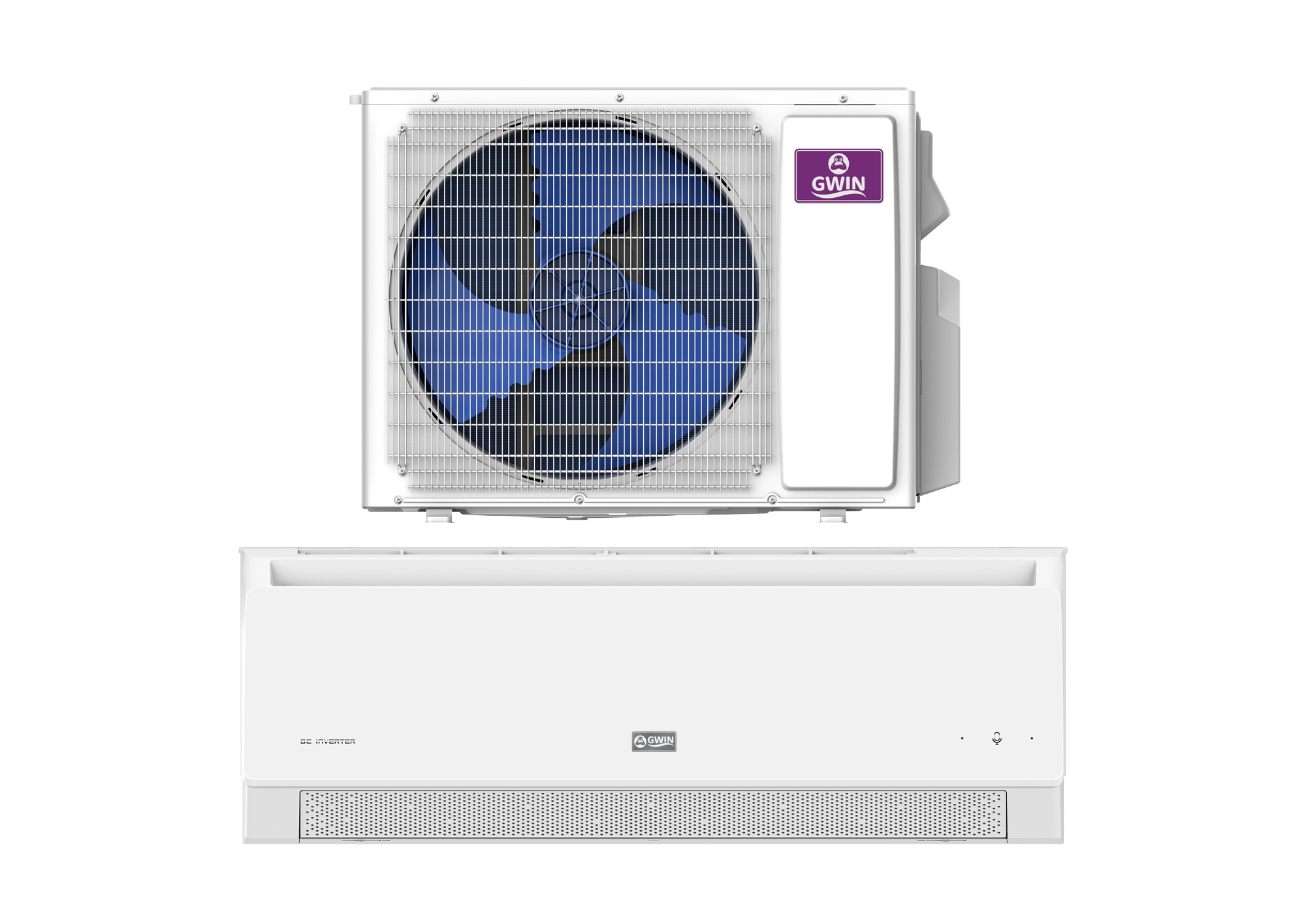

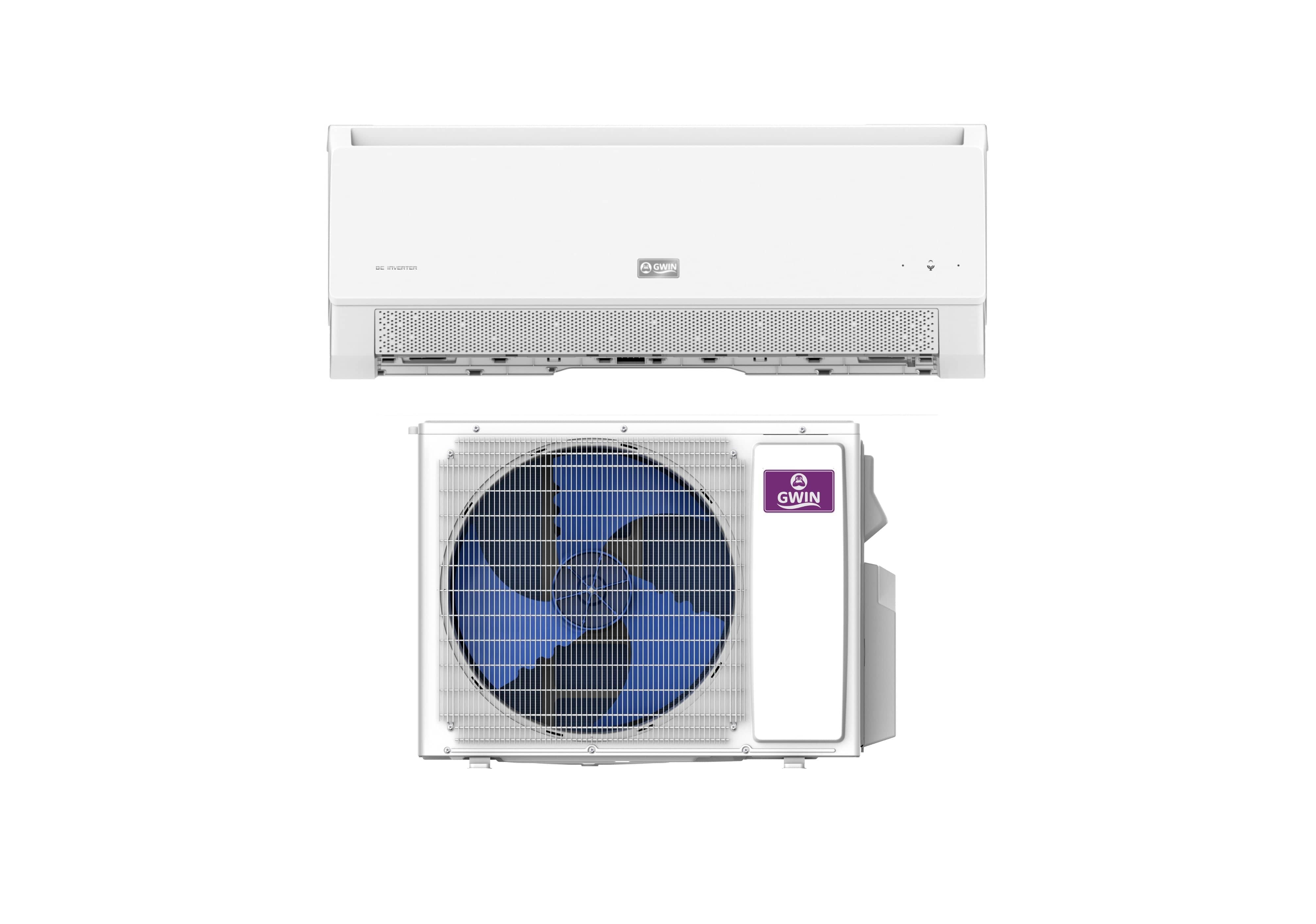

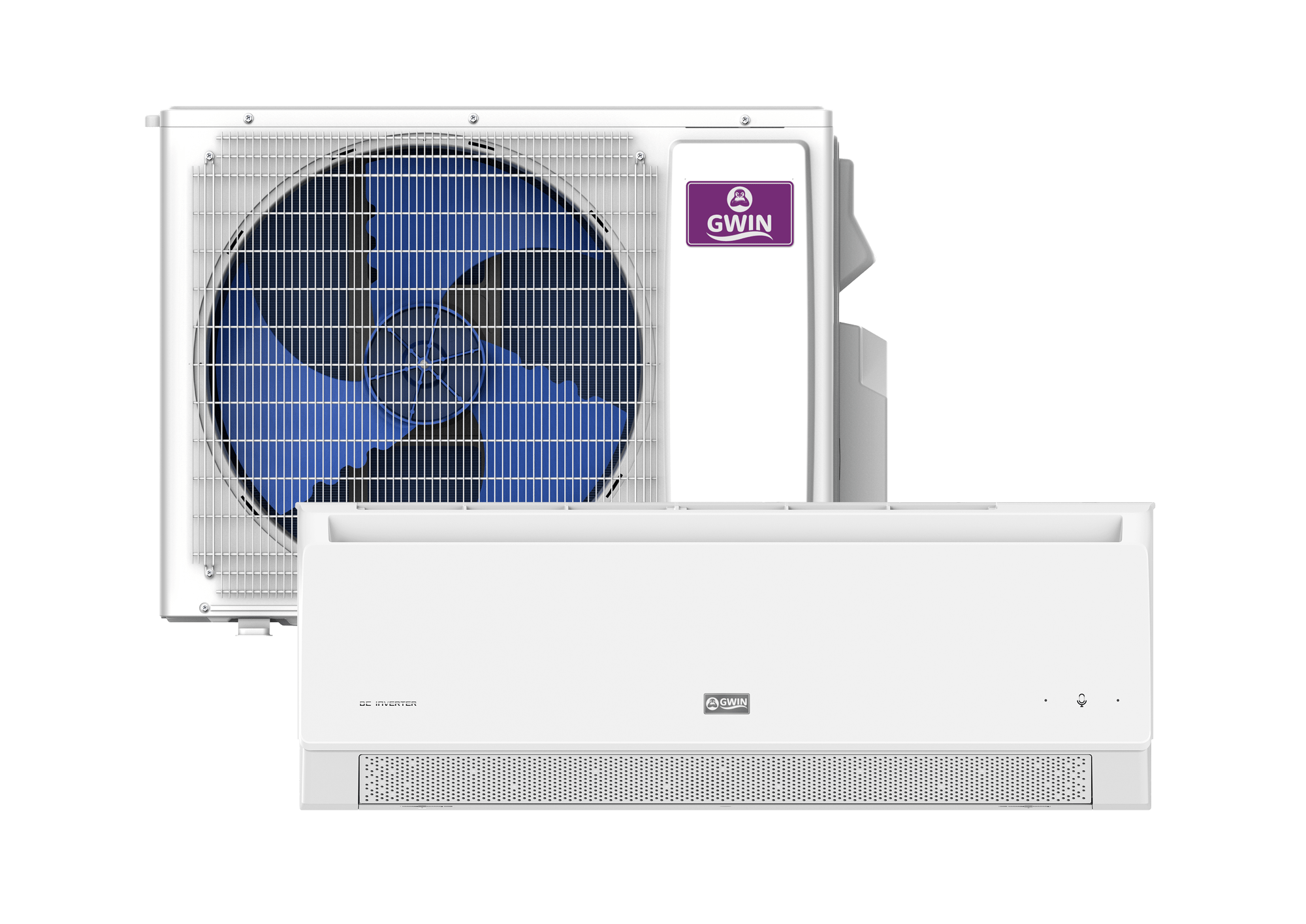

GWIN 9,000 BTU 25 SEER2 230V Single Zone Ductless Mini-Split Complete System
$1,446.50 USD $2,050.00 USD

GWIN 9,000 BTU – 230V – 25 SEER2 Single-Zone Ductless Mini-Split System

The GWIN 9,000 BTU 230V Single-Zone Mini-Split offers ultra-high efficiency, quiet operation, and advanced comfort features in a compact, stylish design. Ideal for bedrooms, offices, and small living spaces, this system is engineered for year-round performance in both warm and cold climates.

Key Comfort & Performance Features

  • Self-Cleaning: Eliminates bacteria, viruses, dust mites, microorganisms, and dust particles. Advanced sterilization system reaches 134°F to remove viruses, bacteria, dust, and pollen for clean air.
  • Micro-Vent Soft Airflow: Thousands of precision micro-vents create a gentle, draft-free breeze for optimum comfort.
  • Outdoor Unit Operation: Reliable performance from -22°F to 125°F for all-season comfort.
  • Wide Voltage Fluctuation: Tolerates unstable grid conditions with a range of 165V–265V.
  • Wi-Fi Control: Built-in Wi-Fi module allows convenient temperature and mode adjustments from anywhere.
  • Fast Heating & Cooling Technology: Inverter compressor rapidly achieves your desired room temperature.
  • Offline Voice Control: Operate the unit with simple same-room voice commands—no app required.
  • ECO Energy-Saving Mode: Designed to reduce power use and help save energy.
  • Easy Installation: Includes installation guide, mounting plate, and built-in level for faster installs.

Built for Reliability

  • Golden Fin Coils (Indoor & Outdoor): Enhanced resistance to corrosion and oxidation versus conventional blue-fin coatings.
  • Outdoor PCB “Three-Proof” Design: UV-adhesive cover and vertical placement help reduce corrosion and deformation for lower failure rates.
  • Base Pan Heater: Automatically activates in low temperatures to reduce ice build-up and improve heating efficiency.

Performance & Efficiency

  • Cooling Capacity (Rated): 9,200 BTU
  • Cooling Capacity Range: 1,700–13,000 BTU
  • Heating Capacity @ 47°F (Rated): 10,000 BTU
  • Heating Capacity @ 17°F (Rated): 11,900 BTU
  • Max Heating: 9,500 BTU @ 5°F | 7,000 BTU @ -5°F
  • SEER2: 25
  • HSPF2: 10.5
  • Operating Range (Cooling): 5–125°F
  • Operating Range (Heating): -13–75°F

Airflow & Sound

  • Indoor Airflow (CFM): 355 / 315 / 282 / 255 / 180 (S/H/M/L/Quiet)
  • Indoor Noise Levels dB(A): Cooling: 41 / 36 / 34 / 31 / 26 | Heating: 41 / 36 / 33 / 29
  • Outdoor Noise Level: 53 dB(A)

Line Set & Installation

  • Liquid Line: 1/4" (6.35 mm)
  • Gas Line: 3/8" (9.52 mm)
  • Indoor Drain: 5/8" (15.88 mm)
  • Min Line Length: 9 ft (2.74 m)
  • Max Line Length: 65 ft (20 m)
  • Max Height Difference: 50 ft (15 m)
  • Refrigerant: R32 | Pre-Charge: 28.21 oz | Add 0.172 oz/ft over 25 ft

Electrical

  • Power Supply: 208/230V, 1 Phase, 60 Hz
  • Breaker Size: 15A
  • MCA: 15A
  • MOCP: 15A
  • Cooling Power Input (Rated): 675 W
  • Heating Power Input @ 47°F: 750 W

Model Information

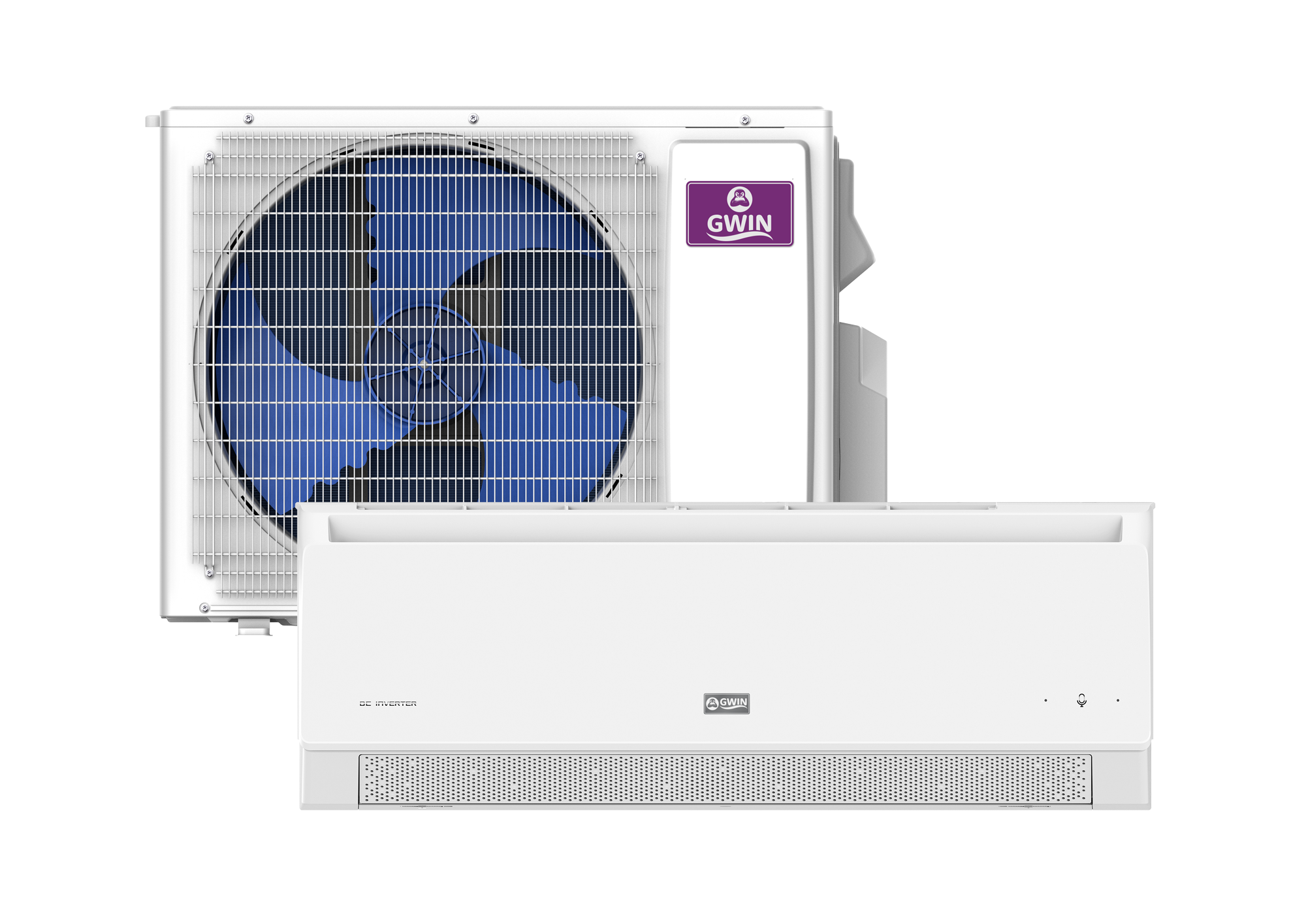

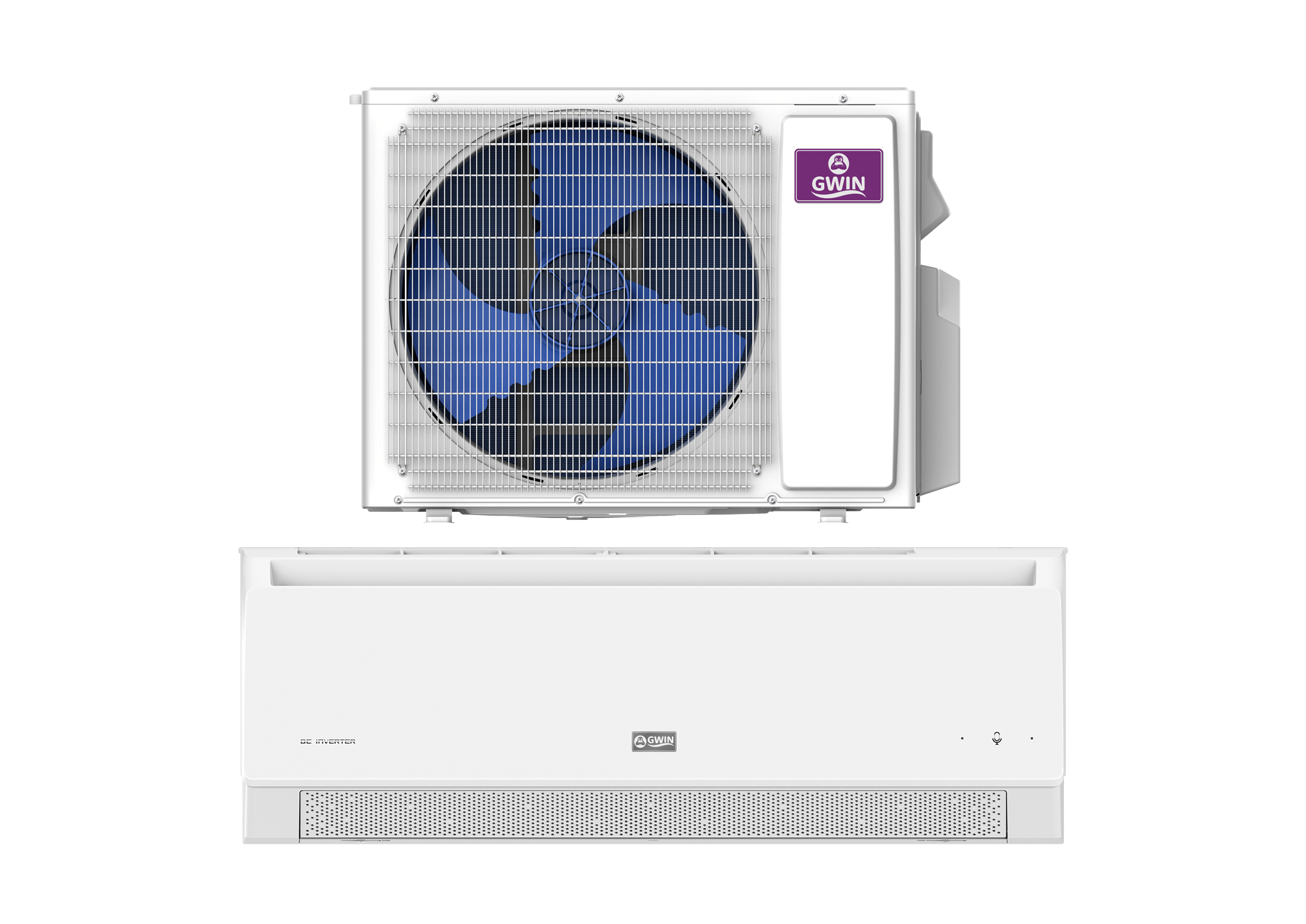

  • Complete System Model: GAMAR09HP230V1E

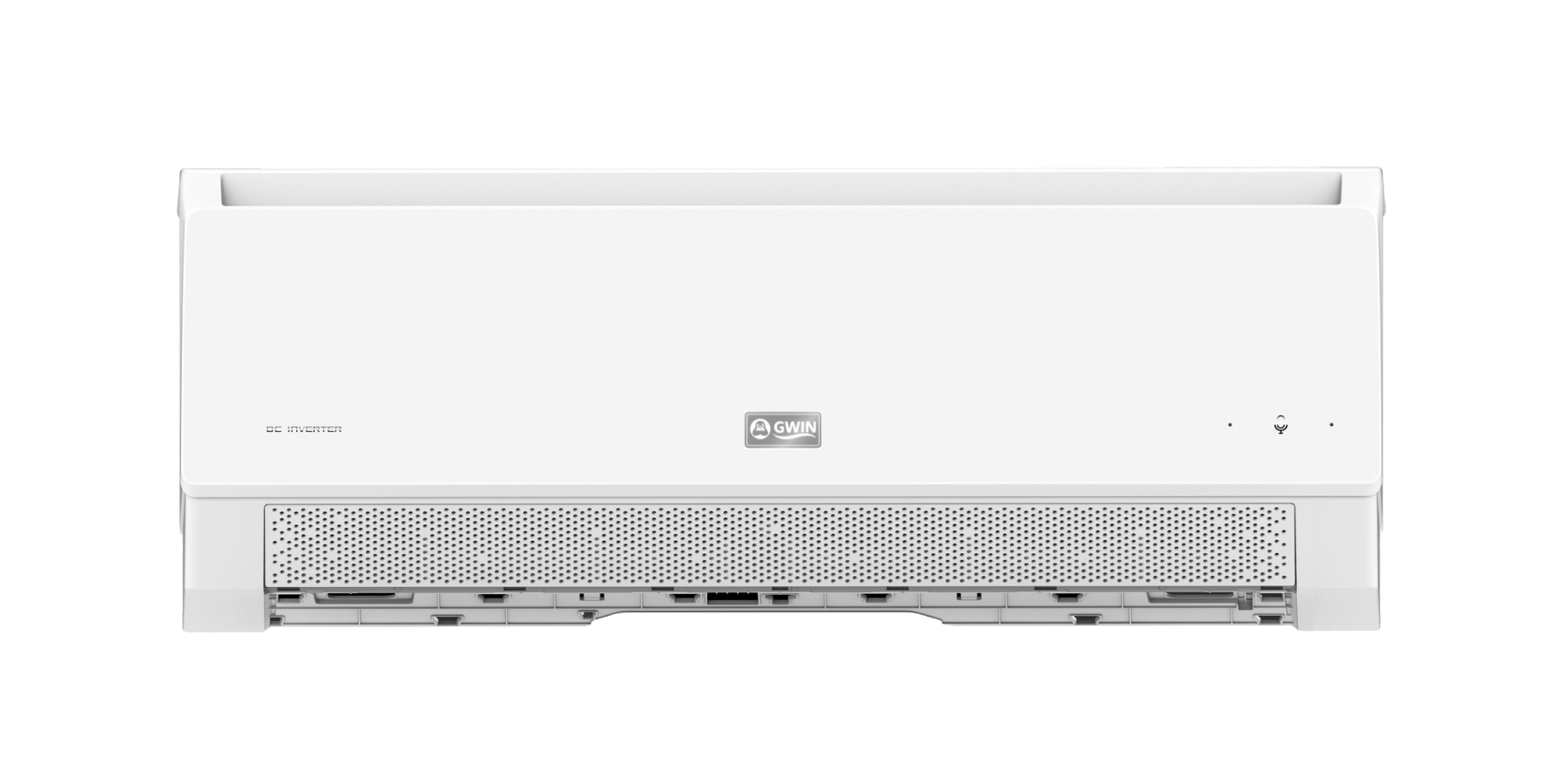

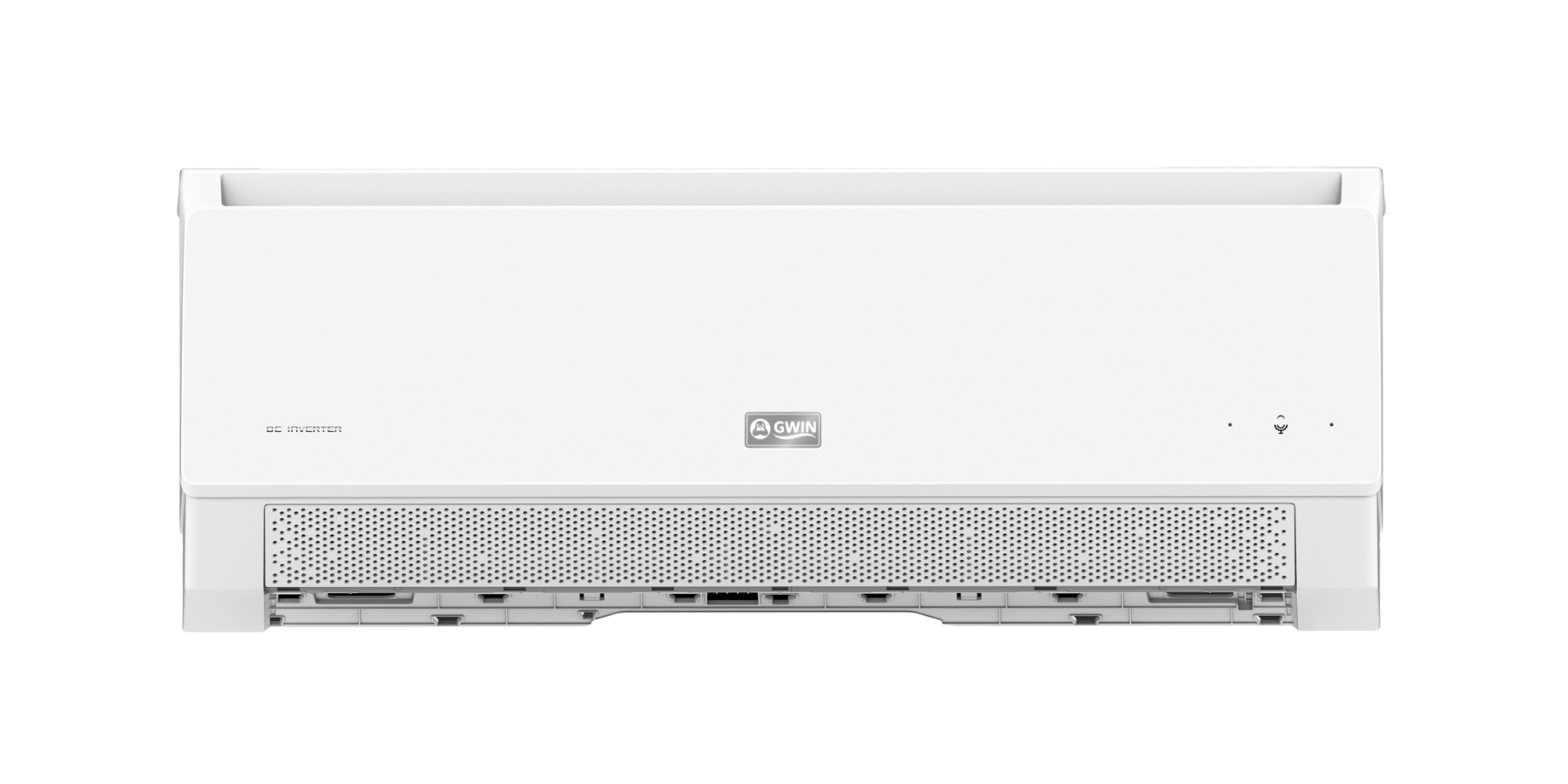

  • Indoor Unit: GAMAR09HP230V1EH

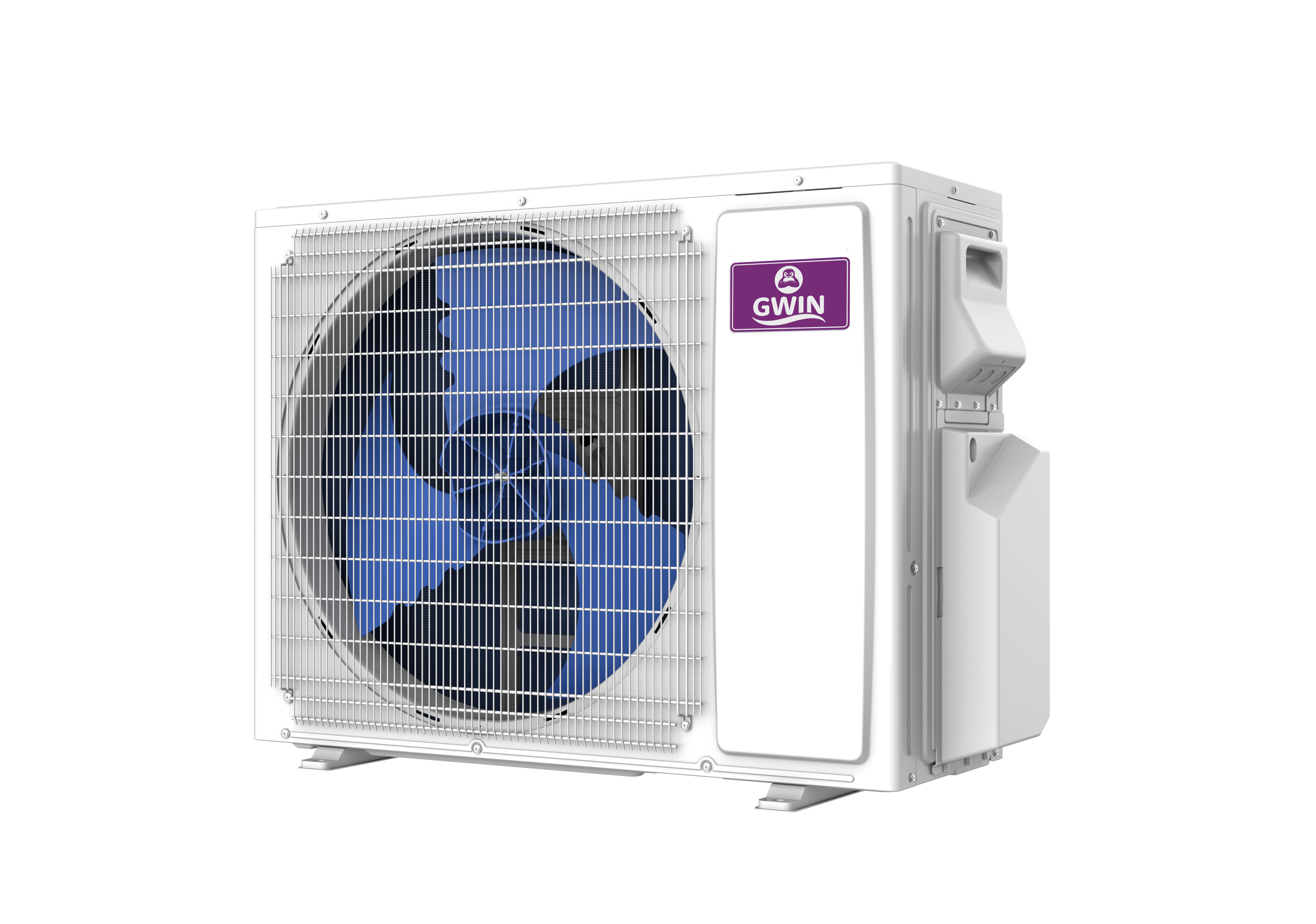

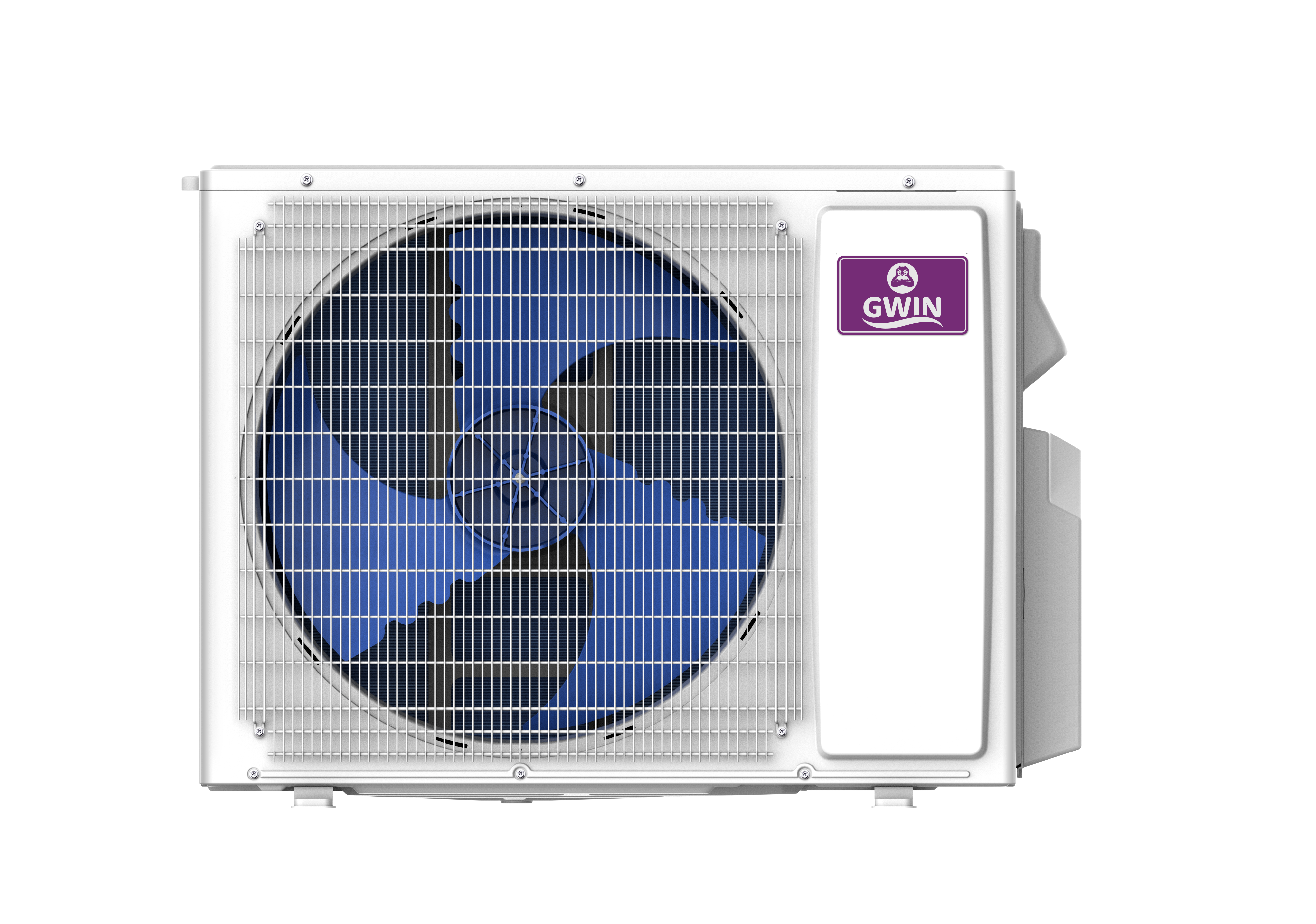

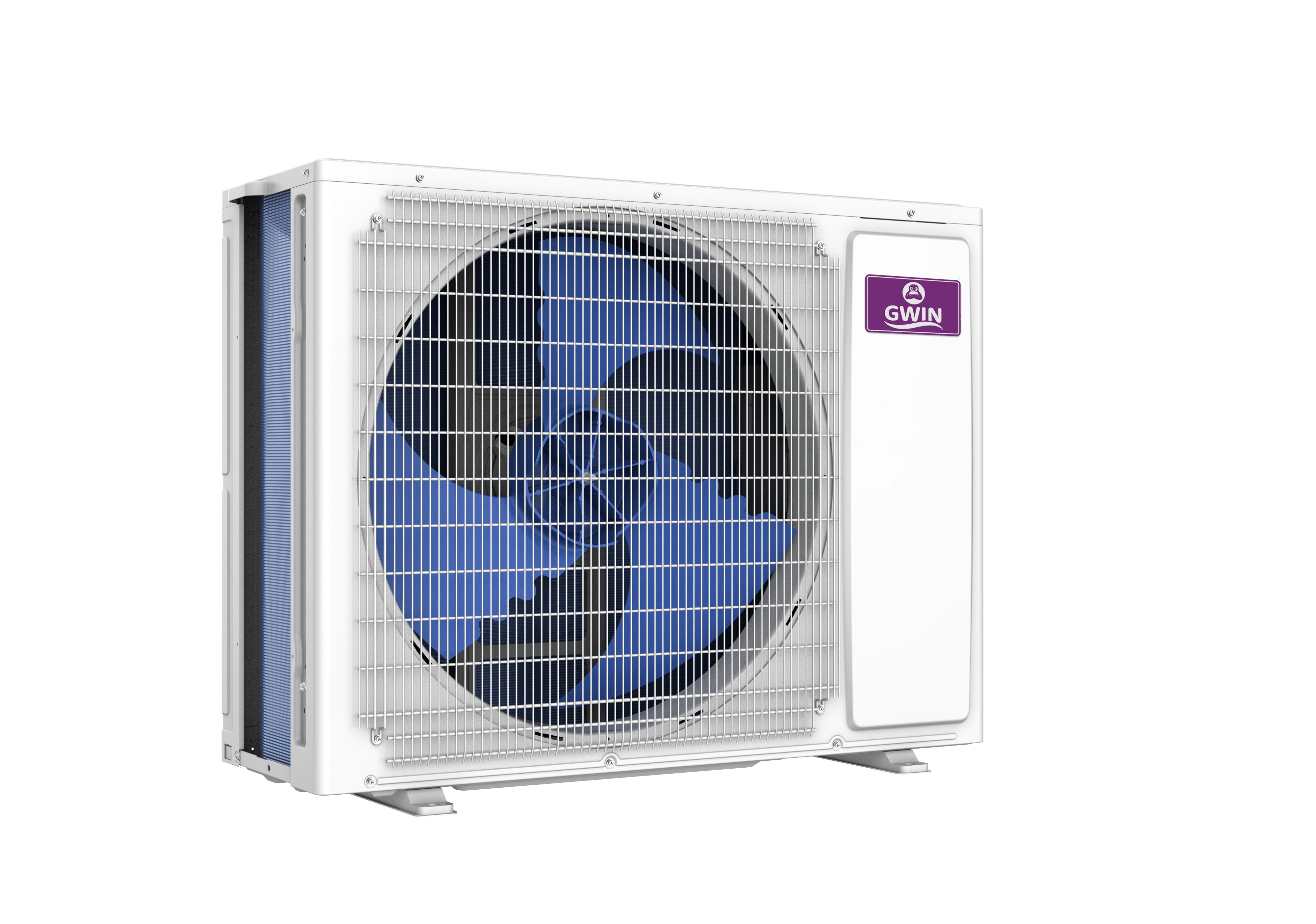

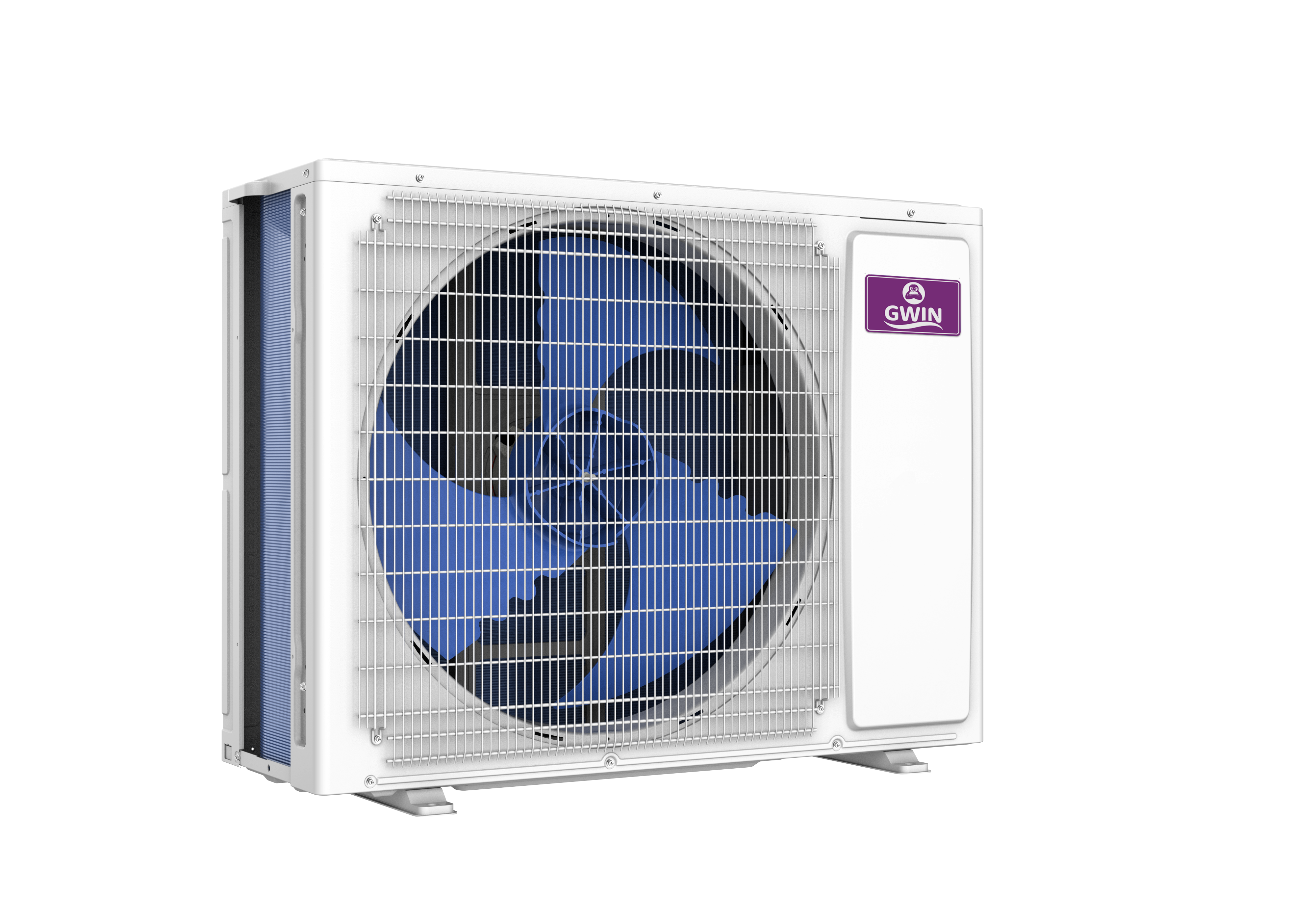

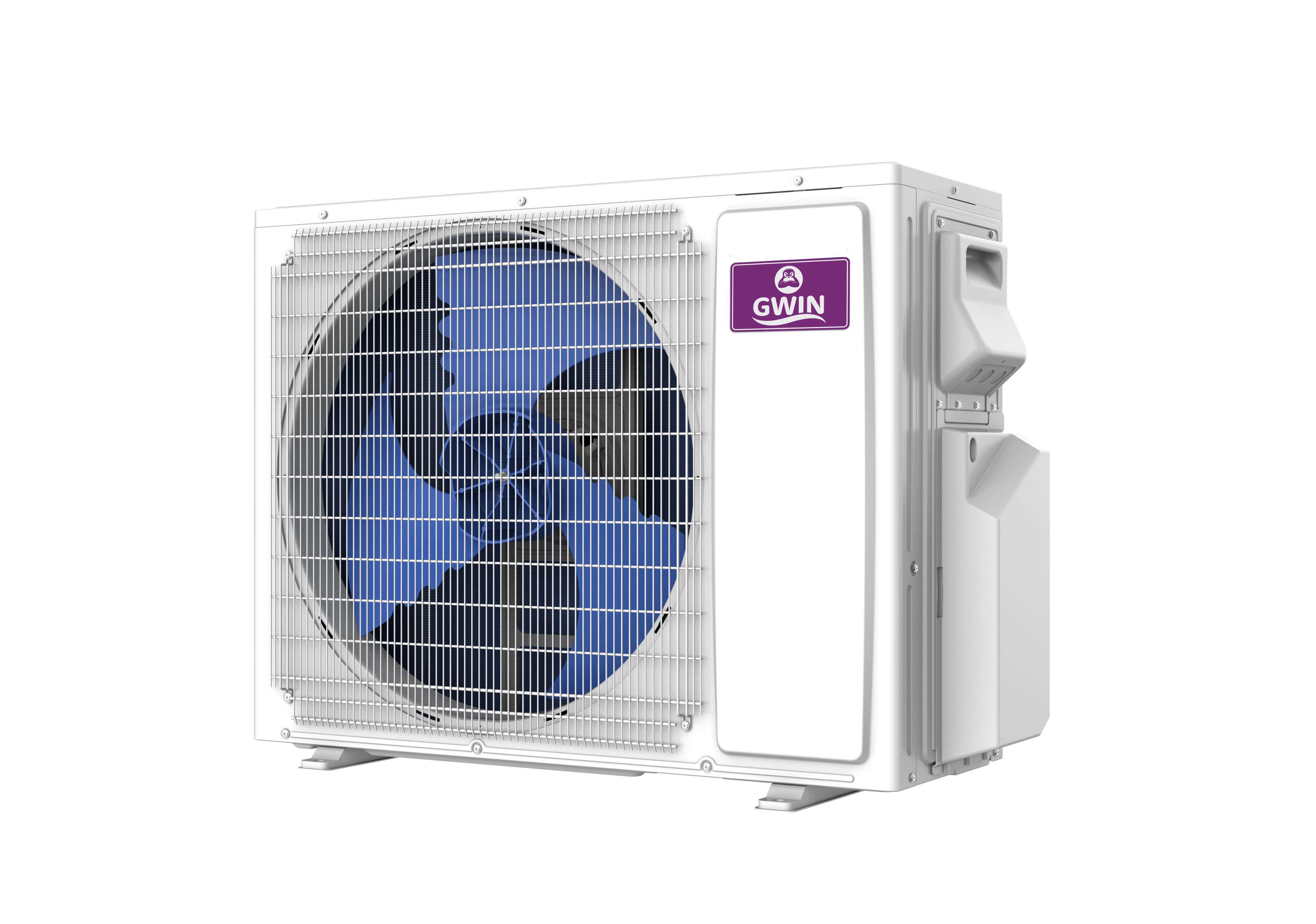

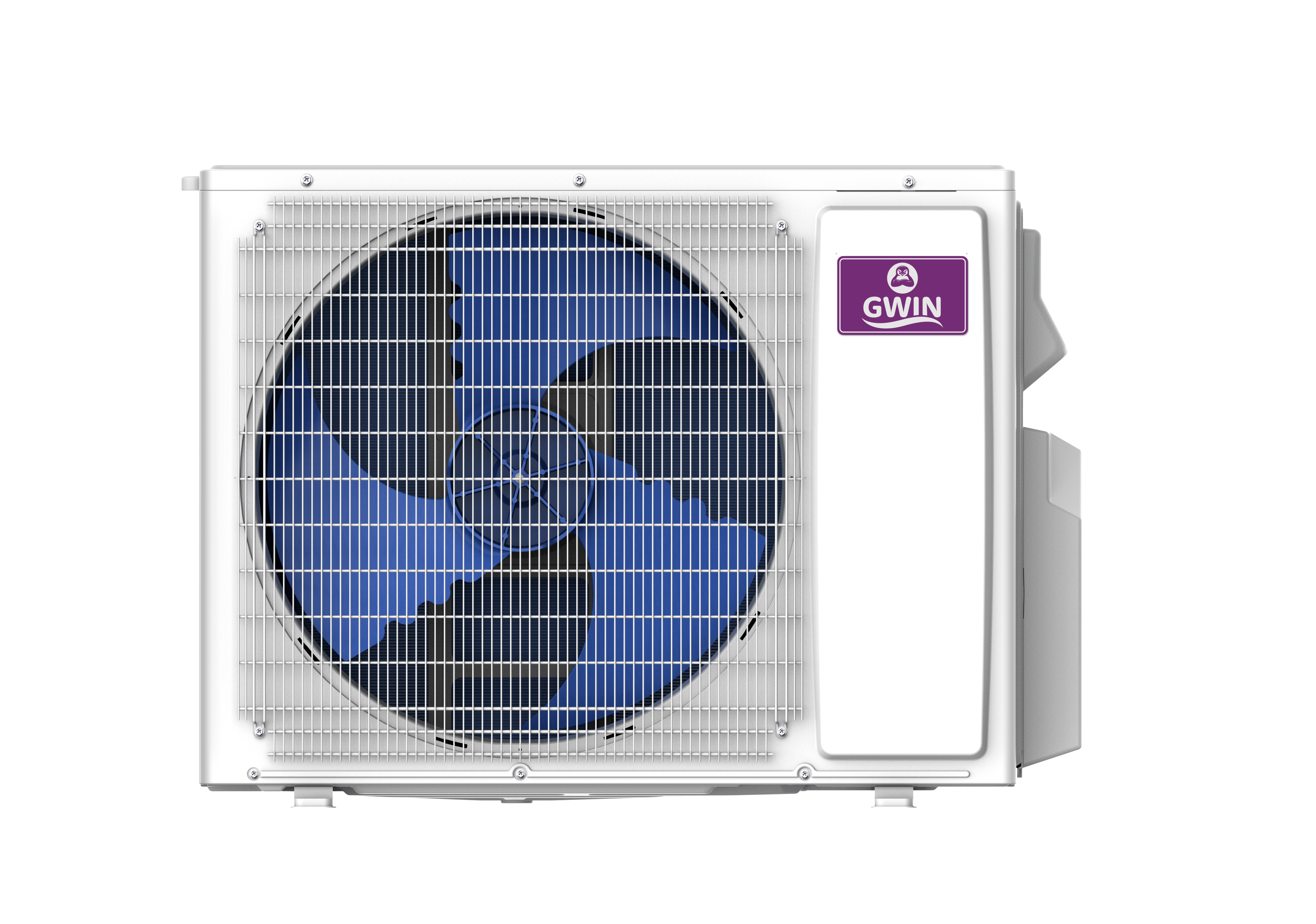

  • Outdoor Unit: GAMAR09HP230V1EO
  • AHRI Reference No.: 214290015

Specifications may vary depending on installation and usage. Always consult a licensed HVAC professional for proper sizing and installation.
