Klein 3007CR Ratcheting Heat Shrink Terminal Crimper, 10 to 22 AWG Wire
$31.00$35.99
784163
Parcel Delivery (UPS/FedEx)
This product weighs 1.3 lbs and will ship by parcel carrier (UPS or FedEx).
Klein 3007CR Description
The full-cycle Ratcheting Crimper crimps 10-22 AWG heat shrink wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of heat shrink terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time.
Klein 3007CR Includes
- (1) Crimper
Klein 3007CR Features
- Crimping tool crimps heat shrink terminals onto 10-22 AWG stranded copper wire
- Adjustable compound action design puts more crimping power into each squeeze

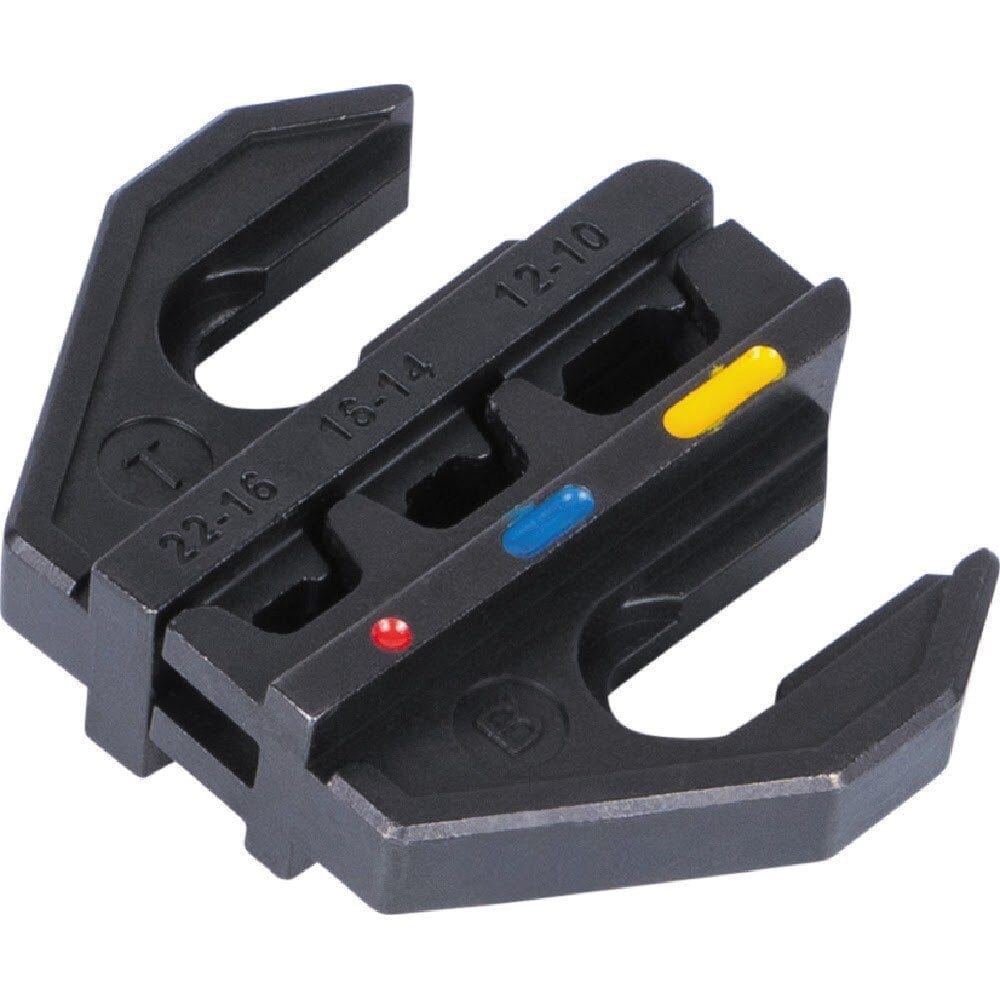

- Three crimping cavities in one tool: 22–16 AWG (Red), 16–14 AWG (Blue) and 12–10 AWG (Yellow) terminals
- Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
- Unique cavity design provides consistent crimp from either side of the tool
- Dial adjusts the amount of force applied to the crimp
- Dual-material molded grips provide added comfort
Klein 3007CR Specifications
| Type: | Ratcheting Crimper |
| Cable Size: | 10-22 AWG |
| Connector Type: | Heat Shrink |
| Handle Finish: | Dual-Material |
| Handle Color: | Red/Black |
| Material: | Steel |
| Special Features: | 3 Crimping Cavities |
| Application: | Heat-Shrink Terminal Crimping on Stranded Wire |
| Overall Length: | 9" (22.9 cm) |
| Overall Width: | 3" (7.6 cm) |
| Overall Height: | 0.09" (0.2 cm) |
| Weight: | 1.3 lbs (0.6 kg) |
