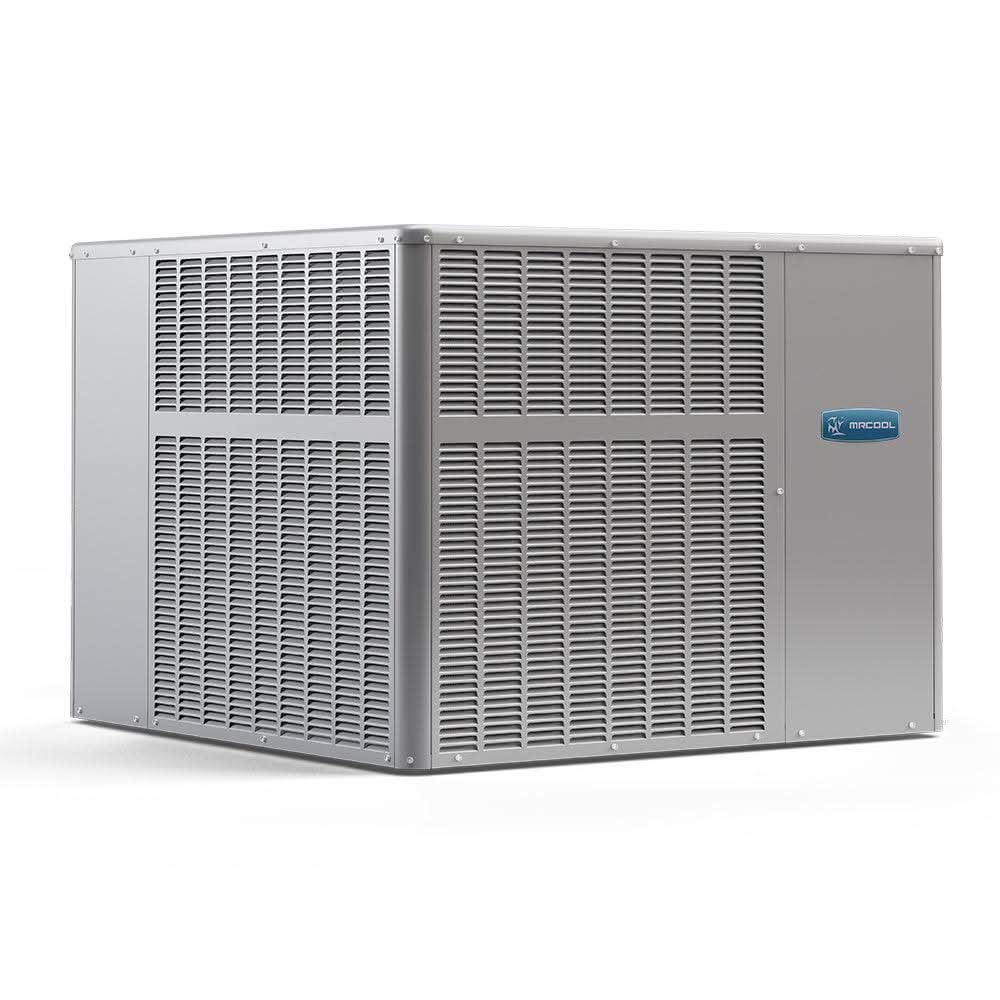

MRCOOL 3.5 Ton 40,000 BTU 14 SEER R-410A Multi-Position Packaged Heat Pump, MPH421M414A
Regular Price
$4,303.00
Press & drag to view
A MRCOOL packaged heat pump combines high performance cooling and powerful heating in one convenient, easy-to-install system. These units are competitively priced and operate at 14 SEER efficiency. A MRCOOL packaged heat pump will be a great solution for tough air comfort problems in a suburban home, commercial office space, condominium, seaside villa, or wherever you desire.
MRCOOL packaged heat pumps combine superior product quality, energy efficiency, quiet operation, and financial value. The units come standard with a high performance compressor and eco-safe, chlorine-free R-410A refrigerant. This is truly an all-in-one packaged unit that will deliver energy efficient air comfort with minimal environmental impact.
Key Features
- Warranty is 10 years on all parts if registered, 5 years if not (no licensed tech required)
- 14 SEER efficiency
- Designed for easy and convenient installation
- Optional electric heat available
- R-410A environmentally friendly refrigerant
- Built in short cycle protection to protect the compressor
- One piece 'no leak' top design
- Sloped drain for improved indoor air quality
- Louvered panel coil protection
- Insulation to minimize heat loss plus reduce sound
- Built in 'quiet shift' operation during defrost on select models
- Efficient constant torque motor for wide airflow range
PRODUCT SPECIFICATIONS:
| Product Dimensions | 46.8'W x 55.27'D x 40.88'H |
| Product Weight | 433 lbs |
| Unit Type | Packaged Heat Pump |
| SEER | 14 |
| EER | 11 |
| COP 47 | 3.5 |
| HSPF | 8 |
| CFM | 1400 |
| Tonnage | 3 1/2 |
| Cooling Capacity | 40000 |
| Heating Capacity | 39000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 40 |
| Min Circuit Ampacity | 27.8 |
| Color | Gray |
| Rated Load | 16 |
| Max Coverage Area | 1750 |
| Refrigerant Type | R-410A |
| Refrigerant Volume | 173 |
| Decibel Rating | 78 |
| Min Ambient Heat | 0 |
| Compressor Motor Type | Scroll |
| Condenser Fan Motor Type | ECM |
| Condenser Fan Motor HP | 1/4 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/3 |
| Blower Motor Speeds | Multi-Speed |
| Blower Motor RPM | 475-1540 |
| Filter Type | Replaceable |
| Filter Size | 20 x 20 x 1 |
| Metering Device | TXV |
| Auxiliary Heater | Yes |
| Auxiliary Heater Sizes | 5kw, 7.5kw, 10kw, 15kw |
| Certifications | ETL AHRI |
| Warranty | Warranty is 10 years on all parts if registered |
| Base Warranty | 5 years if not (no licensed tech required) |
