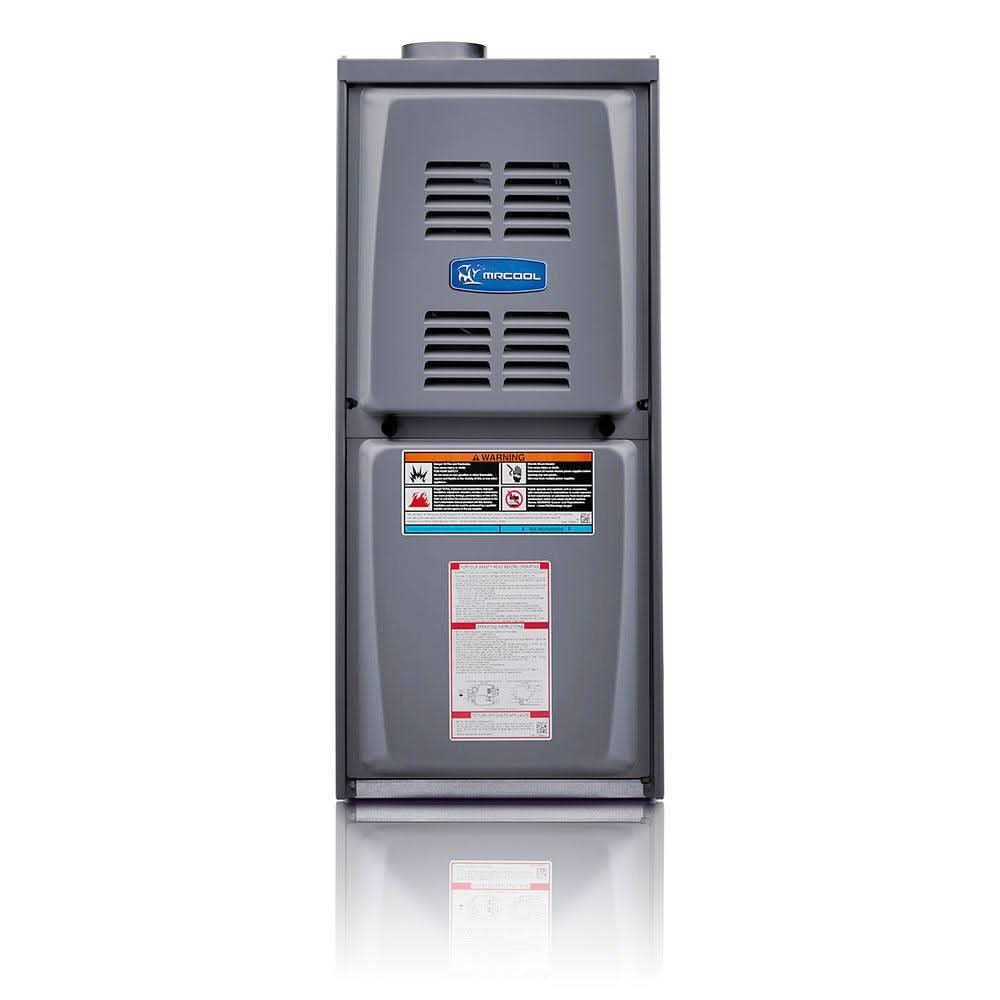

MRCOOL 80% AFUE 3 Ton 70,000 BTU Downflow Multi-Speed Gas Furnace, MGD80SE070B3A
Regular Price
$1,380.00
Press & drag to view
Dependable Warmth with the MRCOOL 80% AFUE Downflow Gas Furnace
When winter's chill hits, nothing beats the warmth and security of a reliable gas furnace. Among the top choices available is the MRCOOL single stage, 80% AFUE gas furnace. Specifically designed for downflow installation, this furnace is built to last for decades, delivering powerful heating performance while keeping your energy costs in check. With an 80% AFUE rating, this system ensures that 80% of every dollar spent on heating fuel is converted into effective heat for your home.
Key Features:
- High Efficiency: Achieves 80% AFUE, maximizing your heating budget.
- Downflow Design: Optimized for downflow installation, providing flexibility in various setups.
- Ease of Maintenance: Features an easily removable slide-out blower design for quick and simple upkeep.
- Venting Flexibility: Rotatable draft inducer allows for flexible venting options, accommodating different installation requirements.
- Durable Construction: Aluminized steel tapered crimped non-welded clam shell heat exchanger ensures long-lasting performance.
- Compact Size: Stands at a compact 33" height, fitting easily into tight spaces.
- Flexible Connections: Left or right utility connections offer versatility in installation.
- Efficient Blower Motor: Multi-speed, high-efficiency (constant torque) blower motor delivers consistent, quiet airflow.
- Simple Installation: Zero step horizontal conversion enhances installation simplicity.
- Certified Quality: AHRI Certified, meeting stringent industry standards for efficiency and reliability.
- Warranty: Backed by a registered 10-year parts warranty for added peace of mind.
- LP Kit Available: LP kit not included but available separately for those needing liquid propane conversion.
The MRCOOL 80% AFUE Downflow Gas Furnace is the perfect choice for those seeking reliable, efficient heating that keeps your home warm and your heating bills affordable.
PRODUCT SPECIFICATIONS:
| Product Dimensions | 17 1/2'W x 28 3/8'D x 33'H |
| Product Weight | 128 lbs |
| Unit Type | Gas Furnace |
| AFUE | 80% |
| CFM | 1280 |
| Tonnage | 3 |
| Heating Capacity | 66,000 BTU |
| Fuel Type | Natural Gas |
| BTU Input | 66000 |
| BTU Output |
52800 |
| Voltage |
Requires a minimum of 120V/60HZ/15A |
| Phase | 1 |
| Cycle | 60 |
| Stage | Single |
| Max Fuse Breaker | 15 |
| Min Circuit Ampacity | 6.8 |
| Color | Gray |
| Full Load | 6.8 |
| Number of Burners | 6 |
| Gas Connection Size | 1/2 |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 Speed |
| Blower Motor RPM | 705-1280 |
| Heat Exchanger Type | Aluminized steel |
| Ignition Type | Silicon Nitride Ignitor |
| Vent Connector | 4 inch |
| LP Kit Available | Yes |
| Certifications | CSA AHRI |
| Warranty |
Registered 10 Year Parts Warranty |
