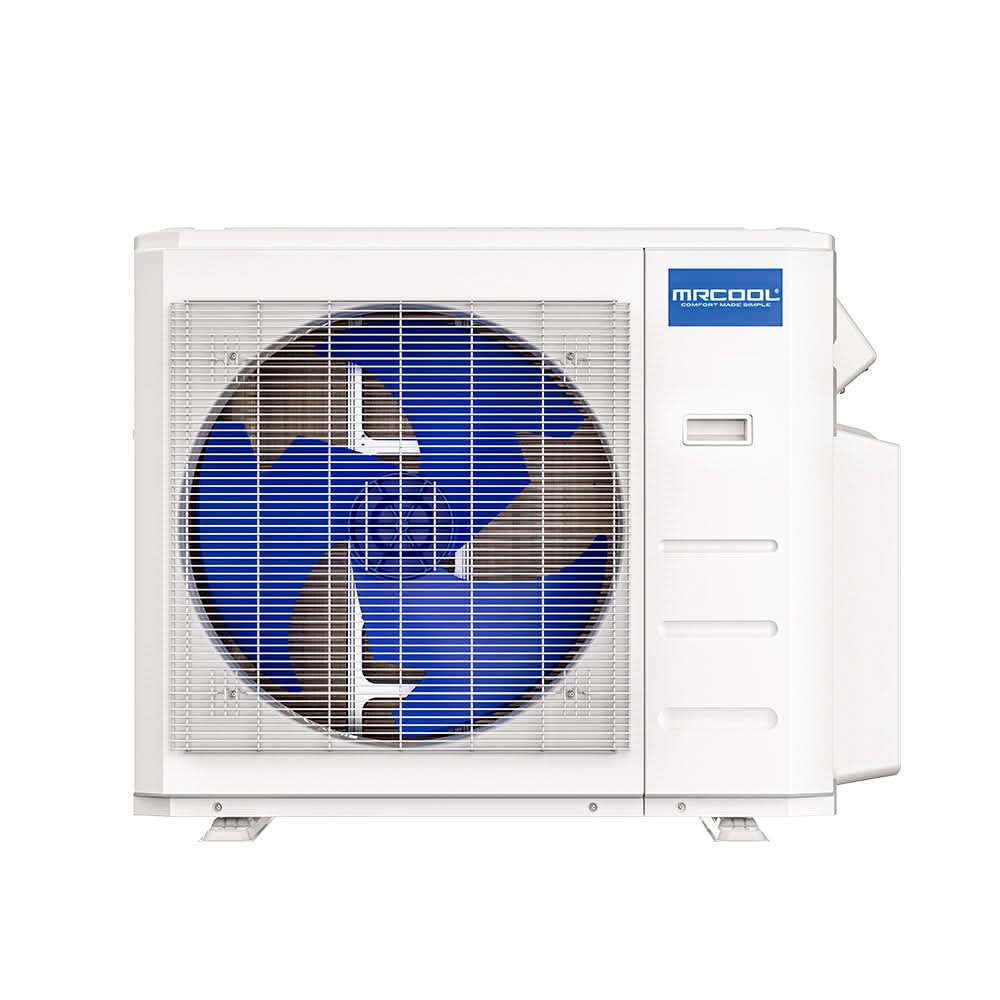

    MRCOOL DIY® 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser 230V, DIY-MULTI4-27HP230D-O

    20% Off
    Sale Price $2,100.00 Regular Price $2,625.00
    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa
    Pairs well with

    MRCOOL® DIY 5th Gen 27,000 BTU 4-Zone Multi-Zone Mini Split Condenser – 230V

    Model: DIY-MULTI4-27HP230D-O

    Experience flexible zone control and energy-efficient performance with the MRCOOL® DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser. Designed for fast DIY installation, this 230V outdoor unit supports up to four zones and connects with multiple air handler combinations for personalized comfort throughout your home or workspace. Requires at least 2 air handlers to operate and supports up to 33,000 BTU total indoor capacity.

    Key Features

    • DIY Installation: Tool-free setup with pre-charged Quick Connect® line sets – no vacuum or special tools required
    • Smart Control: Compatible with Smart HVAC App, Amazon Alexa & Google Assistant for voice-activated comfort
    • Eco-Friendly Refrigerant: Pre-charged with R-454B, a low-GWP refrigerant that reduces environmental impact
    • Gold Fin® Condenser: Anti-corrosive finish protects against coastal conditions and extends lifespan
    • DIYPRO® Cable: Armored communication wire eliminates the need for electrical conduit outdoors
    • Trusted Warranty: 7-Year compressor warranty, 5-Year parts warranty, and optional Lifetime Replacement with MRCOOL® Care registration

    System Specs

    • Cooling Capacity: 27,000 BTU/h
    • Heating Capacity: 28,400 BTU/h
    • SEER2: Approx. 21.2 (varies by air handler configuration)
    • HSPF2-4: ~10.3 | HSPF2-5: ~8.2
    • Power Supply: 208–230V, 60Hz, 1 Phase
    • Minimum Circuit Ampacity: 24 A
    • Maximum Fuse: 25 A
    • Refrigerant Type: R-454B (Charge: ~67.37 oz)
    • Line Set Sizes: 3/8" Liquid x 5/8" Gas
    • Recommended Coverage: 1,100 – 1,400 sq. ft. (based on configuration and insulation)

    Compatible Air Handler Combinations (Max 33,000 BTU)

    This condenser supports 6K, 9K, 12K, and 18K MRCOOL 5th Gen air handlers. A minimum of 2 air handlers must be connected, and total combined capacity should be between 70% and 122% of the rated output (18,900 – 33,000 BTU).

    Examples of valid combinations include:

    • 12K + 12K + 6K = 30K
    • 9K + 9K + 9K = 27K
    • 18K + 12K = 30K
    • 6K + 6K + 12K = 24K
    • 9K + 12K + 6K = 27K

    Recommended Wire Size

    • Recommended: 10 AWG copper wire – supports 24A MCA and 25A max fuse
    • One Size Smaller (12 AWG): Not recommended – may overheat under load and violate NEC code
    • One Size Larger (8 AWG): Ideal for long wire runs or added safety margin to reduce voltage drop

    Note: Always verify total indoor air handler capacity before ordering. MRCOOL DIY condensers are pre-charged with R-454B and are not interchangeable with R-410A systems. Specifications may vary by production batch.

    Buy confidently from MRCOOL DIY Direct – America’s most trusted source for DIY HVAC systems.

    Specifications & Dimensions

    Specification Details
    Model Number DIY-MULTI4-27HP230D-O
    Cooling Capacity 27,000 BTU/h
    Heating Capacity 28,400 BTU/h
    Recommended Coverage Area 1,100 – 1,400 sq. ft.
    SEER2 Approx. 21.2
    HSPF2-4 10.3
    HSPF2-5 8.2
    Power Supply 208–230V, 60Hz, 1 Phase
    Minimum Circuit Ampacity 24 A
    Maximum Fuse 25 A
    Refrigerant Type R-454B
    Refrigerant Charge ~67.37 oz
    Line Set Sizes 3/8" Liquid x 5/8" Gas
    Net Dimensions (WxDxH) 37.24" x 16.14" x 31.89"
    Net Weight 122.80 lbs
    Recommended Wire Size 10 AWG (recommended for 24A load)
    One Size Smaller (Risk) 12 AWG – May overheat or fail to meet code under full load
    One Size Larger (Benefit) 8 AWG – Increased safety margin and reduced voltage drop
