MRCOOL DIY 4th Gen 3-Zone 27,000 BTU 22 SEER (9K + 9K + 9K) Ductless Mini Split AC and Heat Pump with Ceiling Cassettes - 230V
Regular Price
$5,841.00
Press & drag to view

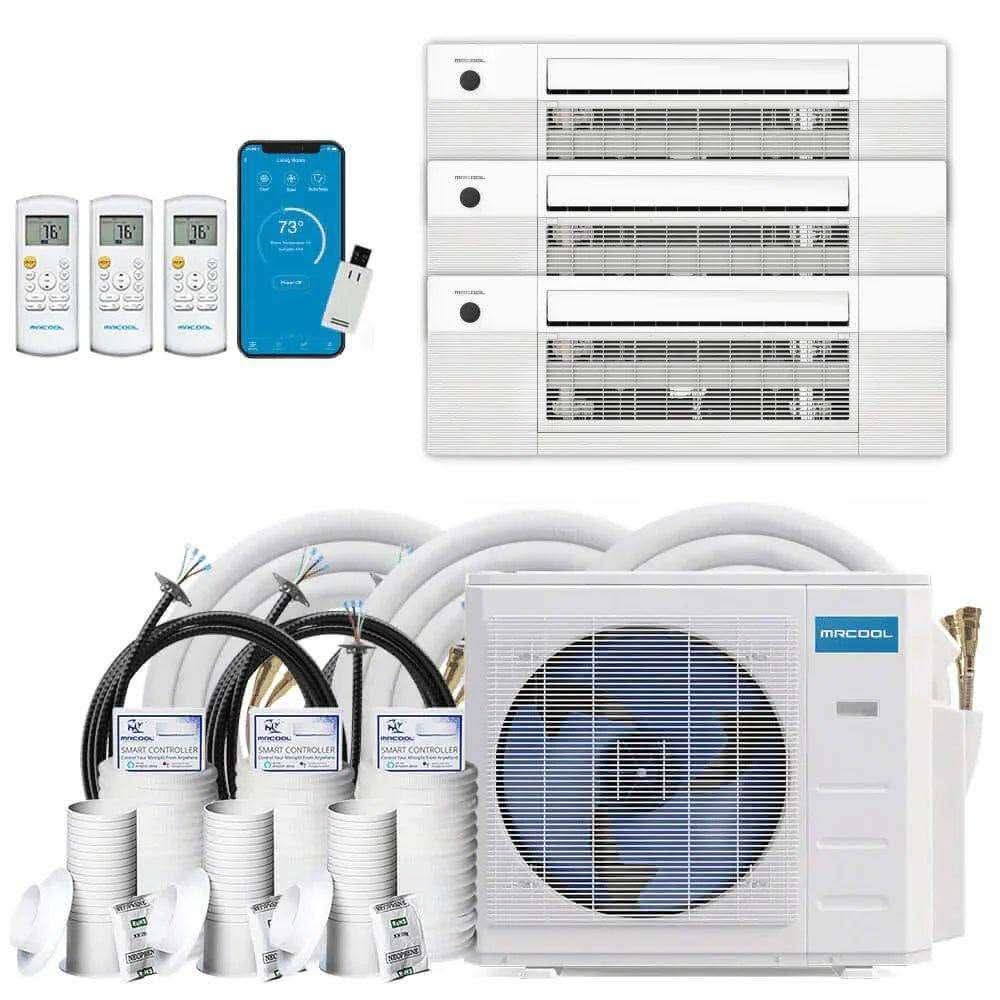

MRCOOL DIY Multi-Zone 4th Gen 27K BTU Three-Zone Ductless Mini Split System with Ceiling Cassettes (9K + 9K + 9K)
The MRCOOL DIY Multi-Zone 4th Gen 27K BTU Three-Zone Ductless Mini Split System is the ultimate solution for flexible, energy-efficient heating and cooling in multiple rooms. This innovative system includes three 9,000 BTU ceiling cassettes, designed to seamlessly integrate into your home, providing powerful climate control without taking up wall or floor space.
Effortless Installation - No HVAC Technician Needed
The MRCOOL DIY Series Ceiling Cassettes are specifically engineered for easy, do-it-yourself installation. With the MRCOOL DIY Quick Connect® line sets, pre-charged with eco-friendly R-410A refrigerant, you can install the system yourself, saving thousands on installation costs. The cassettes can be recessed between all types of joists with 16-inch center spacing, making them ideal for both new construction and retrofits.
Superior Air Distribution & Comfort
Each of the three 9,000 BTU air handlers included in this set is designed to provide efficient heating and cooling for spaces up to 375 square feet. These ceiling cassettes offer advanced directional airflow control, ensuring even air distribution for total comfort in every room. The auto mode intelligently adjusts the temperature to your preferred setting, while the drying function keeps your space dehumidified during wet seasons.
Smart Features & Controls
Control your comfort easily with the MRCOOL Smart Controller mobile app, compatible with both iOS and Android devices. You can also operate the system through Amazon Alexa or Google Home, giving you voice control and remote access from anywhere. Additionally, each air handler features a digital display that shows the current temperature and troubleshooting codes to keep you informed of any issues.
Energy Efficiency
With a 22 SEER rating, this multi-zone system provides exceptional energy efficiency, helping you save on utility bills while enjoying consistent climate control. The DC inverter technology allows for precise temperature regulation, while the system's eco-friendly refrigerant keeps your environmental impact low.
Durable and Quiet Operation
The MRCOOL Gold Fin® Condenser is designed to resist corrosion and withstand harsh outdoor conditions, ensuring the longevity of the system. The indoor units are designed for whisper-quiet operation, ensuring minimal noise intrusion while you relax, work, or sleep.
Enhanced Maintenance Features
The ceiling cassettes feature an Elevation function, which lowers the filter panel, allowing for easy filter access and maintenance. Air filter cleaning alerts are automatic, ensuring that your system runs efficiently. The self-diagnostics feature displays troubleshooting codes on the air handler’s display, making it easy to identify and resolve issues.
Warranty & Support
Enjoy peace of mind with MRCOOL's comprehensive warranties. This system comes with a 7-year compressor warranty (with an optional lifetime warranty), a 5-year parts warranty, and lifetime technical support. Should any issue arise, MRCOOL’s customer service team is ready to assist.
Why Buy From MRCOOL DIY Direct?
As the USA's most trusted authorized MRCOOL dealer, MRCOOL DIY Direct guarantees that you’ll receive authentic products with the best prices and outstanding customer service. Ensure that you're getting a genuine MRCOOL product with our expert support and guidance.
Condenser Specifications:
| BRAND NAME | MRCOOL |
| SERIES |
DIY Multi-Zone 4th Gen
|
| MODEL |
DIY-MULTI2-27HP230C
|
| GTIN | |
| UPC | |
| UNIT TYPE | Mini Split |
| SHORT DESCRIPTION |
MrCool DIY 4th Gen Multi-Zone 2-Zone Condenser
|
| LONG DESCRIPTION |
The 4th Generation MrCool DIY 27K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MrCool air handlers, is capable of producing an impressive 22 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin Condenser coating so it is sure to withstand exposure to the elements. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. As a MrCool DIY product, this heat pump is designed specifically to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with the precise amount of R-410A refrigerant. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. Let the 4th Generation MrCool DIY 27K BTU 2-Zone Ductless Heat Pump Condenser be the solution to your home’s heating and cooling needs.
|
| BULLET 1 |
Up to 22 SEER
|
| BULLET 2 |
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
|
| BULLET 3 |
Energy Efficient DC Inverter
|
| BULLET 4 |
R-410A environmentally friendly refrigerant
|
| BULLET 5 |
Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
|
| SEER | 22 |
| EER | 12.5 |
| HSPF |
hspf4/hspf5 : 10.6/8.6
|
| CFM | 1764.71 |
| COOLING CAPACITY | 27000 BTU |
| HEATING CAPACITY | 27000 BTU |
| VOLTAGE | 208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER | 25 A |
| MIN CIRCUIT AMPACITY | 18 A |
| COLOR | White |
| COLOR FAMILY | White |
| ZONE CAPACITY | 2 |
| REFRIGERANT TYPE | R-410A |
| REFRIGERANT VOLUME | 65.26 oz |
| DECIBEL RATING | 59 dBA |
| INVERTER | Yes |
| MIN AMBIENT COOL | 5F ~ 122F |
| MIN AMBIENT HEAT | -13F ~ 75.2F |
| MAX LINESET LENGTH |
98.42 ft TOTAL
|
| LIQUID LINE SIZE | 1/4in |
| SUCTION LINE SIZE | 3/8in |
| COMPRESSOR MOTOR TYPE | Twin - Rotary |
| CONDENSER FAN MOTOR RPM | 750/600/500 |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REGISTERED WARRANTY |
Limited Lifetime Compressor
|
| BASE WARRANTY |
5-year Parts/7-year Compressor
|
| BASE PARTS WARRANTY | 5-year Parts |
| REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor
|
| BASE COMPRESSOR WARRANTY |
7-year Compressor
|
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH | 13.46 in |
| NET HEIGHT | 26.50 in |
| NET WIDTH | 35.04 in |
| NET WEIGHT | 100.53 lbs |
| GROSS DEPTH | 17.64 in |
| GROSS HEIGHT | 29.33 in |
| GROSS WIDTH | 40.94 in |
| GROSS WEIGHT | 111.11 lbs |
