MRCOOL DIY Mini Split - 18,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIY-B-218HP0909

MRCOOL DIY Mini Split - 18,000 BTU 2-Zone Wall-Mounted Ductless Air Conditioner and Heat Pump (DIY-B-218HP0909)

The MRCOOL DIY 4th Gen 18,000 BTU 2-Zone Mini Split System is a user-friendly, energy-efficient heating and cooling solution designed for residential or light commercial spaces. This system features a powerful 18K BTU multi-zone condenser, two 9K BTU wall-mounted air handlers, and the convenience of DIY installation. With advanced features, quiet operation, and smart connectivity, this mini split system is perfect for creating personalized comfort zones in your home or office.

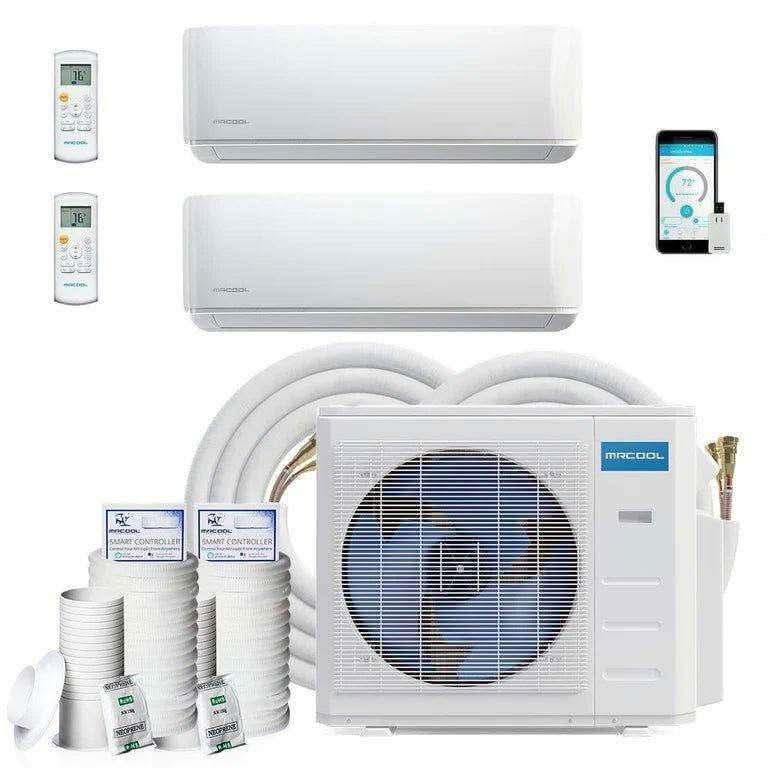

What’s Included

1. MRCOOL DIY 18K BTU Multi-Zone Condenser:

   • Delivers an impressive 21 SEER energy efficiency rating, ensuring energy savings and reduced utility bills.
   • Operates reliably in extreme conditions, providing heating in temperatures as low as -13°F.
   • Comes with a limited lifetime compressor warranty through the MRCOOL Care Program for ultimate peace of mind.

2. Two 9K BTU Wall-Mounted Air Handlers:

   • Covers up to 375 sq. ft. per air handler, ideal for bedrooms, offices, or small living spaces.
   • Features a light and compact design for easy wall installation with the included mounting plate.
   • Includes multiple operating modes for maximum comfort and versatility.

3. Two Remote Controllers:

   • Allows for independent temperature, mode, and fan speed adjustments for each air handler.

4. Optional Line Sets:

   • Pre-charged line sets available in standard or longer lengths to suit your installation needs (additional cost applies).

Key Features

1. Energy Efficiency

• 21 SEER Efficiency Rating: Save energy without sacrificing performance.
• Environmentally Friendly: Utilizes R-410A refrigerant, which is safe for the environment and highly efficient.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: Allows homeowners to install the system without the need for professional HVAC tools or technicians.
• Comprehensive Support: Detailed manuals and video guides ensure an easy and seamless setup process.

3. Advanced Air Handler Features

• Multiple Modes: Includes Cool, Heat, Auto, Dry, Fan-Only, Quiet, and Sleep modes for personalized comfort.
• Smart Control: Compatible with the Smart HVAC app for control via Apple or Android smartphones.
• Quiet Operation: Operates with minimal noise, making it ideal for bedrooms or quiet spaces.

4. Reliable Year-Round Comfort

• Extreme Temperature Operation: Provides effective heating even in sub-zero conditions as low as -13°F, and efficient cooling in temperatures up to 122°F.
• Wide Coverage: Heat and cool two separate spaces independently with tailored comfort for each zone.

Specifications

Condenser

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 19,000 BTU
• Efficiency Ratings: SEER: 21, EER: 12.5
• Operating Temperatures: Heating: -13°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/18-25A
• Dimensions: 35.04"W x 13.46"D x 26.50"H
• Warranty: 7-year condenser replacement, 5-year parts

Wall-Mounted Air Handlers

• Coverage Area: Up to 375 sq. ft. per air handler
• Cooling/Heating Capacity: 9,000 BTU each
• Modes: Auto, Cool, Heat, Fan-Only, Dry, Quiet, Sleep
• Smart Connectivity: Compatible with the Smart HVAC app
• Dimensions: 31.57"W x 7.44"D x 11.69"H
• Warranty: 5-year parts

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two separate zones with personalized temperature and mode settings.
   • Perfect for small to medium-sized spaces like bedrooms, home offices, or compact living areas.

2. Smart Technology:

   • Operate the system remotely via the Smart HVAC app on iOS or Android.
   • Manage settings such as temperature, fan speed, and operating modes from anywhere.

3. Energy Savings:

   • Achieve significant energy efficiency with a 21 SEER rating, reducing monthly utility costs.
   • Timer and Sleep modes optimize energy usage during off-peak hours.

4. Quiet and Reliable:

   • Designed for whisper-quiet operation, ensuring a peaceful environment in any room.
   • Built to last, with robust warranties and corrosion-resistant components.

5. DIY Convenience:

   • Save thousands on installation costs with a simple, hassle-free DIY process.
   • Pre-charged line sets make professional tools or refrigerant handling unnecessary.

Perfect Applications

• Homes: Ideal for heating and cooling two rooms independently, such as bedrooms, living rooms, or offices.
• Offices: Maintain comfortable temperatures in multi-zone professional spaces.
• Renovations: A flexible and efficient option for retrofitting older buildings or adding HVAC to new spaces.

Order Now

The MRCOOL DIY 4th Gen 18,000 BTU 2-Zone Mini Split System is the ultimate solution for energy-efficient, customizable heating and cooling. Whether you're upgrading your home or enhancing your workspace, this system provides unparalleled comfort with the ease of DIY installation.

Order today from MRCOOL DIY Direct and start enjoying reliable, year-round climate control!
