MRCOOL DIY Mini Split - 21,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIY-B-218HP0912

MRCOOL DIY Mini Split - 21,000 BTU 2-Zone Ductless Air Conditioner and Heat Pump (DIY-B-218HP0912)

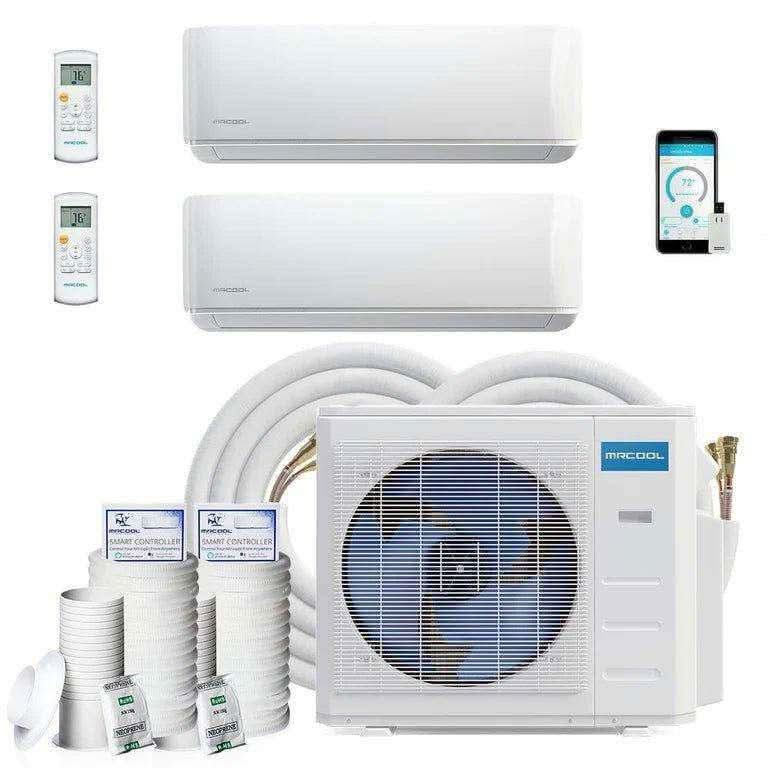

The MRCOOL DIY 4th Gen 21,000 BTU 2-Zone Mini Split System provides an energy-efficient and user-friendly solution for heating and cooling two independent spaces. Featuring a powerful 18K BTU condenser, a 9K BTU wall-mounted air handler, and a 12K BTU wall-mounted air handler, this system is designed for easy installation and smart operation. With its advanced features and quiet performance, this ductless HVAC system ensures year-round comfort for your home or office.

What’s Included

1. MRCOOL DIY 18K BTU Multi-Zone Condenser:

   • Delivers an impressive 21 SEER efficiency rating, ensuring energy savings.
   • Operates in extreme temperatures, heating as low as -13°F and cooling up to 122°F.
   • Comes with a limited lifetime compressor warranty through the MRCOOL Care Program for unmatched reliability.

2. Wall-Mounted Air Handlers:

   • 9K BTU Air Handler:
     • Covers up to 375 sq. ft., ideal for smaller rooms like bedrooms or offices.
   • 12K BTU Air Handler:
     • Covers up to 500 sq. ft., perfect for larger living rooms or open areas.
   • Both units feature compact, wall-mounted designs for seamless integration into any space.

3. Two Remote Controllers:

   • Allows independent control of temperature, mode, and fan speed for each zone.

4. Optional Line Sets:

   • Pre-charged line sets are available in standard or longer lengths for flexible installation (additional cost applies).

Key Features

1. Energy Efficiency

• 21 SEER Efficiency Rating: Maximizes energy savings without compromising on performance.
• Eco-Friendly Refrigerant: Utilizes R-410A, an environmentally friendly and efficient refrigerant.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: Enables quick and straightforward installation without the need for professional tools or technicians.
• Step-by-Step Support: Includes detailed guides and video tutorials to make setup easy for DIY enthusiasts.

3. Advanced Air Handler Features

• Multiple Operating Modes: Includes Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep modes for personalized comfort.
• Smart Connectivity: Compatible with the Smart HVAC app, allowing remote control via Apple or Android devices.
• Quiet Operation: Operates with minimal noise, making it ideal for bedrooms and offices.

4. Reliable Year-Round Comfort

• Extreme Temperature Operation: Provides efficient heating even in sub-zero temperatures as low as -13°F, and cooling in high temperatures up to 122°F.
• Intelligent Load Management: Ensures the combined BTU output of both air handlers does not exceed the condenser's 18K BTU capacity when running simultaneously.

Specifications

Condenser

• Cooling Capacity: 18,000 BTU
• Heating Capacity: 19,000 BTU
• Efficiency Ratings: SEER: 21, EER: 12.5
• Operating Temperatures: Heating: -13°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/18-25A
• Dimensions: 35.04"W x 13.46"D x 26.50"H
• Warranty: 7-year condenser replacement, 5-year parts

Wall-Mounted Air Handlers

• 9K BTU Air Handler:
  • Coverage Area: Up to 375 sq. ft.
  • Cooling/Heating Capacity: 9,000 BTU
  • Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts
• 12K BTU Air Handler:
  • Coverage Area: Up to 500 sq. ft.
  • Cooling/Heating Capacity: 12,000 BTU
  • Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two separate zones with individual air handlers and remote controls.
   • Ideal for small to medium-sized rooms such as bedrooms, home offices, and living spaces.

2. Smart Control:

   • Operate the system remotely using the Smart HVAC app on your smartphone.
   • Adjust temperature, mode, and fan speed from anywhere for convenience and control.

3. Energy Savings:

   • Reduce energy consumption with a 21 SEER rating.
   • Sleep and Timer functions further optimize energy usage during non-peak hours.

4. Quiet and Reliable:

   • Designed for whisper-quiet operation, ensuring minimal disruption in any environment.
   • Built to last, with a robust warranty program and durable components.

5. DIY Convenience:

   • Save thousands on installation costs with a simple and efficient DIY process.
   • Pre-charged line sets eliminate the need for professional refrigerant handling.

Perfect Applications

• Homes: Heat and cool two separate rooms, such as bedrooms, offices, or compact living spaces.
• Offices: Maintain comfortable temperatures in multi-room professional environments.
• Renovations: A flexible and efficient option for retrofitting older buildings or integrating HVAC into new construction.

Order Now

The MRCOOL DIY 4th Gen 21,000 BTU 2-Zone Mini Split System offers the perfect balance of energy efficiency, customizable comfort, and easy installation. Whether you’re upgrading your home or outfitting an office, this system provides dependable year-round climate control.

Order today from MRCOOL DIY Direct and enjoy reliable heating and cooling at your fingertips!
