MRCOOL DIY Mini Split - 45,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit, DIYM248HPW02C00

MRCOOL DIY Mini Split - 45,000 BTU 2-Zone Ductless Air Conditioner and Heat Pump with 16 ft. Install Kit (DIYM248HPW02C00)

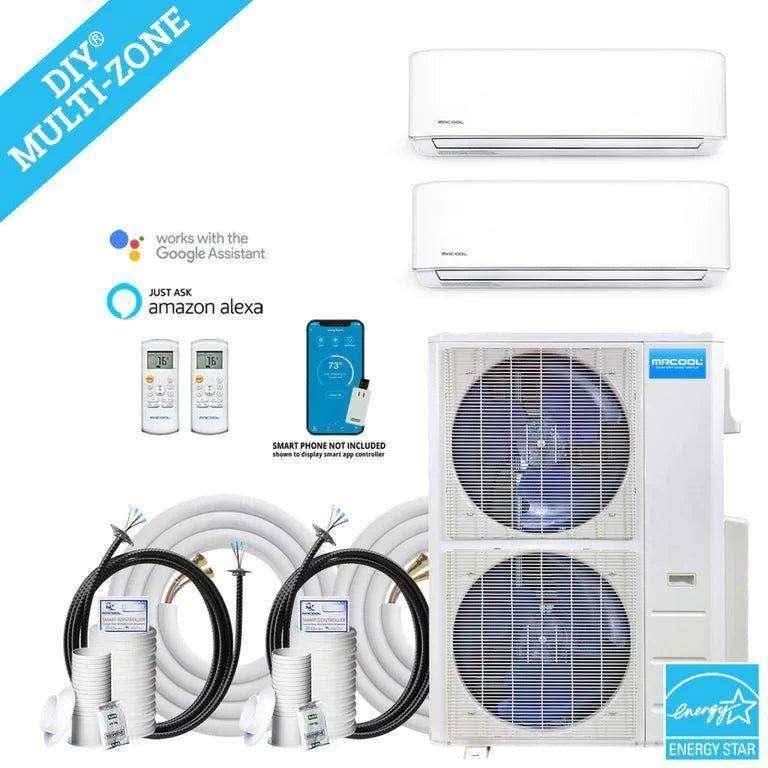

The MRCOOL DIY 4th Gen 45,000 BTU 2-Zone Mini Split System is designed to deliver powerful, energy-efficient heating and cooling for two separate spaces. This system includes a 48,000 BTU multi-zone condenser, a 9K BTU wall-mounted air handler, a 36K BTU wall-mounted air handler, and two pre-charged 16 ft. line sets. Best of all, this system is DIY-friendly, saving you time and money while providing reliable climate control.

What’s Included

1. MRCOOL DIY 48K BTU Multi-Zone Condenser:

   • Achieves a 20.5 SEER efficiency rating, reducing energy costs without sacrificing performance.
   • Operates effectively in extreme conditions, heating as low as 5°F and cooling up to 122°F.
   • Comes with a limited lifetime compressor warranty through the MRCOOL Care Program.

2. Wall-Mounted Air Handlers:

   • 9K BTU Air Handler:
     • Covers up to 375 sq. ft., ideal for bedrooms, offices, or compact spaces.
   • 36K BTU Air Handler:
     • Covers up to 1,500 sq. ft., perfect for open living areas or large rooms.
   • Both units feature versatile operating modes, sleek designs, and simple installations.

3. 16 ft. Pre-Charged Line Sets:

   • Includes R-410A refrigerant for an easy, tool-free installation.
   • Quick Connect® fittings ensure a secure and reliable setup.

4. Comprehensive Installation Kit:

   • Comes with mounting plates, screws, insulation materials, and sound-deadening pads for a seamless DIY installation process.

Key Features

1. Energy Efficiency

• 20.5 SEER Efficiency Rating: Ensures optimal performance while lowering energy costs.
• Eco-Friendly Refrigerant: Operates using R-410A, a responsible and efficient refrigerant choice.

2. DIY-Friendly Installation

• Pre-Charged Line Sets: Simplifies the installation process, eliminating the need for specialized tools or professional technicians.
• Complete Installation Kit: Includes everything needed for a hassle-free setup, from mounting templates to drain pipes.

3. Advanced Air Handler Features

• Multiple Operating Modes: Includes Cool, Heat, Auto, Dry (dehumidify), Fan-Only, Quiet, and Sleep for tailored comfort.
• Smart Connectivity: Compatible with the Smart HVAC app for remote control via Apple or Android devices.
• Compact and Stylish Design: Fits seamlessly into any interior space.

4. Reliable Year-Round Performance

• Wide Temperature Range: Operates efficiently in extreme climates, heating down to 5°F and cooling up to 122°F.
• Independent Zone Control: Adjust each air handler independently to meet the specific needs of different rooms.

5. Quiet and Durable

• Whisper-Quiet Operation: Minimizes noise, ensuring a peaceful environment in any space.
• Gold Fin Technology: Provides corrosion resistance for long-lasting durability.

Specifications

Condenser

• Cooling Capacity: 48,000 BTU
• Heating Capacity: 48,000 BTU
• Efficiency Ratings: SEER: 20.5, EER: 11
• Operating Temperatures: Heating: 5°F to 75.2°F | Cooling: 5°F to 122°F
• Voltage Requirements: 208V-230V/60HZ/40-60A
• Dimensions: 37.48"W x 16.34"D x 52.48"H
• Warranty: 7-year condenser replacement, 5-year parts

Wall-Mounted Air Handlers

• 9K BTU Air Handler:
  • Coverage Area: Up to 375 sq. ft.
  • Cooling/Heating Capacity: 9,000 BTU
  • Dimensions: 31.57"W x 7.44"D x 11.69"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts
• 36K BTU Air Handler:
  • Coverage Area: Up to 1,500 sq. ft.
  • Cooling/Heating Capacity: 36,000 BTU
  • Dimensions: 49.57"W x 11.10"D x 14.25"H
  • Modes: Auto, Cool, Heat, Dry, Fan-Only, Quiet, Sleep
  • Warranty: 5-year parts

Line Sets

• Length: 16 feet (per zone)
• Liquid Line Size: 1/4" (9K Air Handler), 3/8" (36K Air Handler)
• Suction Line Size: 1/2" (9K Air Handler), 5/8" (36K Air Handler)
• Pre-Charged: Includes R-410A refrigerant

Benefits of the MRCOOL DIY 2-Zone Mini Split System

1. Customizable Comfort:

   • Independently control two spaces with individual air handlers and remotes.
   • Ideal for small and large areas, such as bedrooms, offices, or open-plan living spaces.

2. Smart Technology:

   • Monitor and adjust settings remotely using the Smart HVAC app.
   • Compatible with Amazon Alexa and Google Home for voice-activated control.

3. Energy Efficiency:

   • High SEER rating ensures reduced energy bills without sacrificing performance.
   • Sleep and Timer modes enhance energy efficiency during non-peak hours.

4. DIY Convenience:

   • Avoid professional installation costs with a system designed for simple setup.
   • Includes all tools and accessories needed for a seamless experience.

5. Durable and Quiet:

   • Built with high-quality materials, including Gold Fin Technology for corrosion resistance.
   • Operates quietly, making it suitable for bedrooms, offices, and other quiet spaces.

Perfect Applications

• Homes: Heat and cool two separate spaces, such as a bedroom and living room, or office and workspace.
• Offices: Maintain comfortable temperatures in distinct zones of your work environment.
• Renovations: Flexible for retrofitting older buildings or adding HVAC to new constructions.

Order Now

The MRCOOL DIY 4th Gen 45,000 BTU 2-Zone Mini Split System offers unparalleled performance, energy efficiency, and DIY convenience. Upgrade your space today and enjoy reliable year-round comfort without the hassle of professional installation.

Order now from MRCOOL DIY Direct for the ultimate heating and cooling solution!
