MRCOOL DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen, -22°F Heating, R-454B, 230V QuickConnect
Regular Price
$1,861.00
Press & drag to view

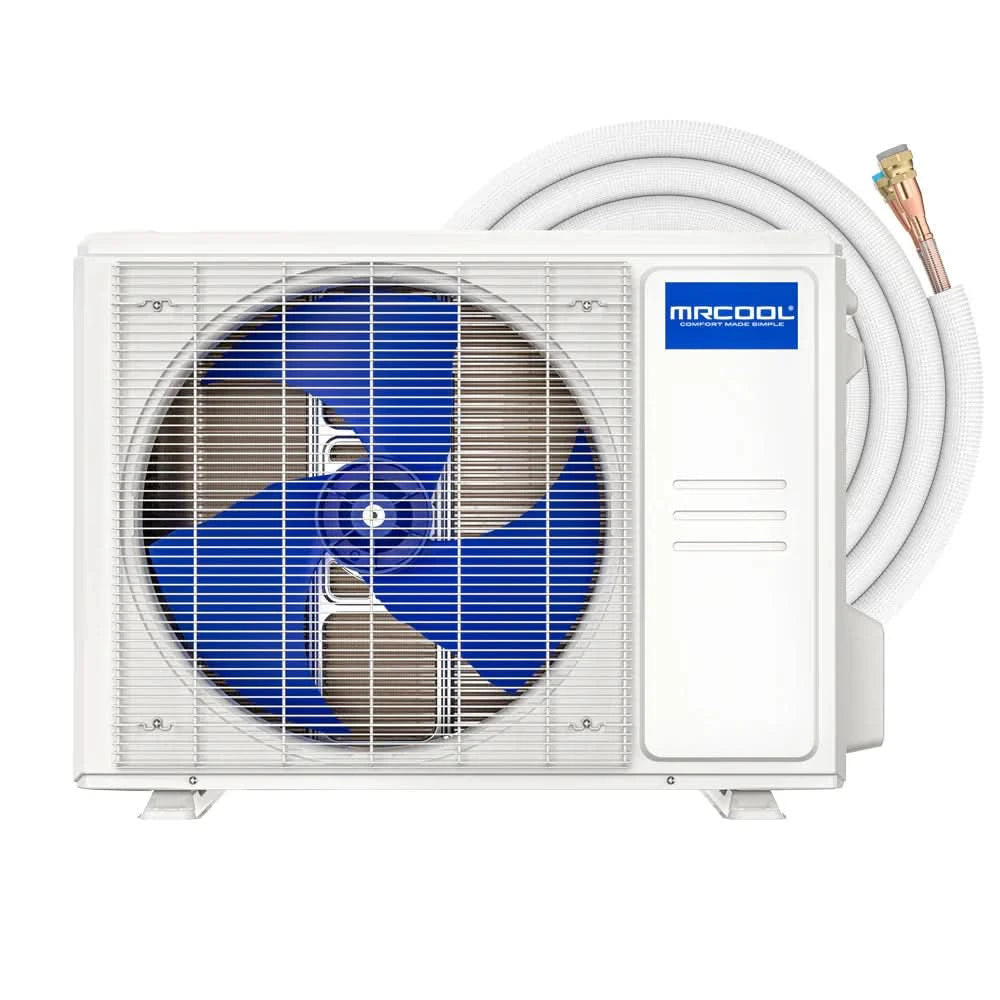

MRCOOL® DIYHH-12 Hyper Heat 12K BTU Condenser – 5th Gen DIY QuickConnect® (230V)
New for 2025 – 12K Hyper Heat DIY Condenser with Pre-Charged 25 ft Line Set
The MRCOOL® DIYHH-12-HP-C-230D25-O is a next-generation 5th Gen 12,000 BTU Hyper Heat DIY condenser designed to deliver high-efficiency heating and cooling in spaces up to 500 sq. ft.. Built for true cold-weather performance, this Hyper Heat mini split maintains reliable output down to -22°F and uses inverter technology for quiet, steady comfort instead of loud single-stage cycling.
Powered by environmentally friendly R-454B refrigerant, the DIYHH-12 condenser improves thermal efficiency and lowers greenhouse impact compared to older R-410A systems. Installation is simple thanks to the included 25 ft pre-charged QuickConnect® line set, which arrives sealed, factory-vacuumed, and filled — no gauges, pumps, nitrogen, or HVAC licensing required.
Whether you pair it with a MRCOOL DIY wall-mounted air handler or an OuttaSight® ceiling cassette (230V models), this condenser becomes a full smart mini split system with the MRCOOL SmartHVAC™ app, Amazon Alexa, and Google Assistant voice control.
IMPORTANT: This is a 208/230V condenser. It cannot be used with 115V DIY air handlers.
Key Benefits
- 12,000 BTU Hyper Heat condenser for spaces up to 500 sq. ft.
- Reliable heating performance down to -22°F
- 5th Gen inverter technology for smooth, quiet operation
- Uses R-454B low-GWP refrigerant for improved efficiency and reduced environmental impact
- 25 ft pre-charged QuickConnect® line set — factory-vacuumed and sealed
- No vacuum pump, gauges, nitrogen, or EPA license required
- Compatible with DIY wall mount and OuttaSight® ceiling cassette indoor units (230V)
- Smart control via MRCOOL SmartHVAC™ app, Alexa, and Google Assistant (with compatible indoor unit)
- Gold Fin® corrosion-resistant coating for inland and coastal installs
What's Included
- DIYHH-12-HP-C-230D25-O — 12K Hyper Heat Outdoor Condenser
- 25 ft pre-charged R-454B QuickConnect® line set
- Installation hardware & documentation
No vacuuming or refrigerant tools required.
Compatible Indoor Units (Sold Separately)
- MRCOOL DIY-12-HP-WMAH-230D25-O Wall Mount Air Handler
- MRCOOL DIYCASSETTE12HP-230D25-O OuttaSight® Ceiling Cassette
NOTE: This 12K Hyper Heat condenser is 208/230V only and will not work with 115V DIY air handlers.
Feature Highlights
- Hyper Heat operation down to -22°F
- Inverter-driven rotary compressor for high efficiency and low noise
- R-454B next-generation refrigerant
- Factory-sealed QuickConnect® line set — no field charging
- DIY-friendly installation with basic tools
- Gold Fin® condenser coil for long-term corrosion resistance
- Energy-efficient performance for year-round heating and cooling
Specifications
| Performance | |
|---|---|
| BTU Capacity | 12,000 BTU |
| Coverage Area | Up to approximately 500 sq. ft. |
| Operating Range | Heats down to -22°F (Hyper Heat) |
| Compressor Type | Inverter Rotary |
| Electrical | |
|---|---|
| Voltage | 208/230V |
| Phase / Frequency | 1 Phase, 60 Hz |
| Minimum Circuit Ampacity (MCA) | 15 A |
| Max Fuse / Breaker | 15 A (double pole) |
| Refrigeration & Piping | |
|---|---|
| Refrigerant | R-454B |
| Line Set Included | 25 ft QuickConnect® pre-charged line set |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Dimensions & Weight | |
|---|---|
| Unit Width | 31.69 in |
| Unit Height | 21.81 in |
| Unit Depth | 12.99 in |
| Unit Weight | Approx. 72.31 lbs |
Smart Controls (with Compatible Indoor Unit)
- MRCOOL SmartHVAC™ App (iOS & Android)
- Amazon Alexa & Google Assistant integration
- Scheduling, remote access, and smart comfort modes
