MRCOOL DIYHH-18 Hyper Heat 18K BTU Condenser – 5th Gen, -22°F Heating, R-454B, 230V DIY QuickConnect
Regular Price
$2,264.00
Press & drag to view
MRCOOL® DIYHH-18 Hyper Heat 18K BTU Condenser – 5th Gen DIY QuickConnect® (230V)
New for 2025 – 18K Hyper Heat DIY Condenser with Pre-Charged 25 ft Line Set
The MRCOOL® DIYHH-18-HP-C-230D25-O is the strongest 18,000 BTU Hyper Heat DIY condenser on the market, engineered for powerful year-round comfort and reliable heating down to –22°F. This 5th Gen outdoor unit ships with a factory-charged R-454B QuickConnect® line set so you can install it without vacuum pumps, gauges, EPA licenses, or refrigerant handling.
This listing is for the condenser and 25 ft pre-charged line set only. Pair it with a compatible MRCOOL DIY wall mount air handler or DIY OuttaSight® ceiling cassette (sold separately).
IMPORTANT: This is a 208/230V condenser. It cannot be used with 115V air handlers.
The 5th Gen DIY Mini Split Condenser That Leaves Others Behind
If you want the best 18K BTU DIY mini split condenser for cold climates, you are looking at it. The DIYHH-18 Hyper Heat condenser is built on MRCOOL’s 5th Generation platform, delivering:
- Stronger heat output at low temperatures
- Higher efficiency with 21.2 SEER2 and 11 HSPF2
- Next-generation R-454B low-GWP refrigerant
- More durable outdoor performance with Gold Fin® anti-corrosion
- Cleaner, quieter inverter rotary compressor operation
No refrigerant handling. No vacuum pump. No licensed HVAC installer. Just connect, tighten, and turn it on. This condenser is a big part of why MRCOOL dominates the DIY mini split market.
Hyper Heat Performance for Real Winters
Most “DIY mini splits” start losing capacity or shutting down as temperatures approach freezing. The MRCOOL DIYHH-18 Hyper Heat delivers usable heat down to –22°F, making it unstoppable in:
- Midwest and Northeast winters
- Tennessee & Kentucky cold snaps
- Mountain and northern states
- Coastal climates with wind, rain, and salt exposure
You will not find this capability on cheap brands or older 4th Gen units.
Smarter, Quieter, More Efficient
The 5th Gen inverter technology modulates compressor output to maintain steady comfort without harsh on/off cycling or loud startup noise. The result:
- Lower energy bills
- Longer component life
- Faster temperature recovery
- Premium comfort you can feel in every season
This condenser is ideal for master bedrooms, home offices, garages, workshops, barndominiums, tiny homes, ADUs, apartments, bonus rooms, and any space where ductwork is a headache.
What’s Included

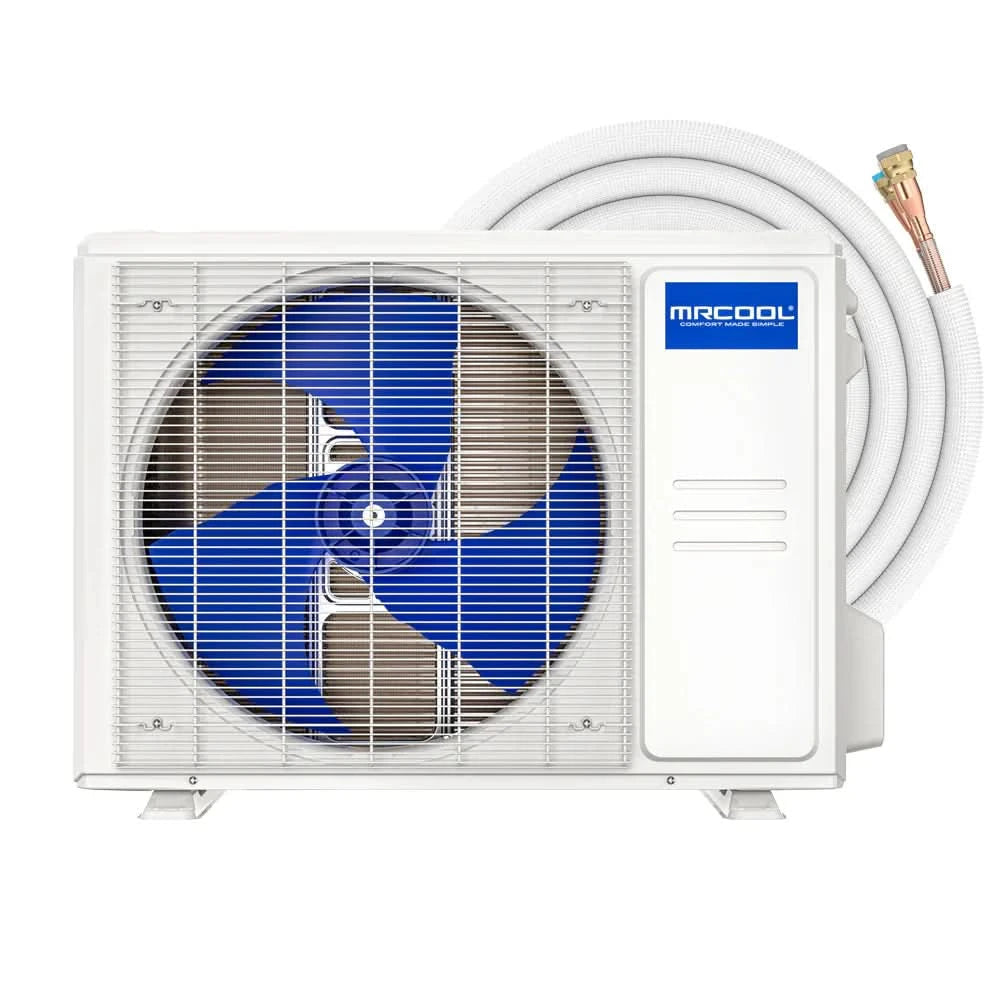

- MRCOOL DIYHH-18-HP-C-230D25-O Hyper Heat 18K Outdoor Condenser
- DIY25-1412 25 ft pre-charged R-454B QuickConnect® line set
- Installation hardware & documentation
No vacuuming or refrigerant tools required.
Compatible Indoor Units (Sold Separately)
- DIY-18-HP-WMAH-230D25-O Wall Mount Air Handler
- DIYCASSETTE18HP-230D25-O OuttaSight® Ceiling Cassette
Both indoor units connect using MRCOOL’s factory-sealed QuickConnect® fittings for fast DIY installation.
NOTE: This 18K Hyper Heat condenser is 208/230V only and will not work with 115V DIY air handlers.
Key Features
- Hyper Heat performance down to –22°F
- 21.2 SEER2 high-efficiency cooling
- 11 / 8.5 HSPF2 heating efficiency
- R-454B next-generation low-GWP refrigerant
- 25 ft factory-charged QuickConnect® line set included
- Compatible with DIYPRO® cable (included with indoor unit)
- SmartHVAC™ app, Amazon Alexa & Google Assistant integration (via indoor unit)
- Gold Fin® anti-corrosion outdoor coating
- Quiet inverter rotary compressor & low outdoor sound rating
- Auto restart, timer, and system protection features
Specifications
| Performance | |
|---|---|
| BTU Capacity | 18,000 BTU |
| Coverage Area | Approx. 500–800 sq. ft. |
| SEER2 | 21.2 |
| HSPF2 | 11 / 8.5 |
| Heating Operating Range | Down to –22°F |
| Cooling Operating Range | Low ambient capability (Hyper Heat series) |
| Compressor Type | Rotary Inverter |
| Sound Level | 58 dBA |
| Electrical | |
|---|---|
| Voltage | 208/230V (double pole breaker required) |
| Phase | 1 |
| Frequency | 60 Hz |
| Minimum Circuit Ampacity (MCA) | 19 A |
| Max Fuse / Breaker | 25 A (double pole) |
| Refrigeration & Piping | |
|---|---|
| Refrigerant Type | R-454B |
| Factory Charge Volume | 52.21 oz |
| Line Set Included | 25 ft QuickConnect® pre-charged line set |
| Maximum Line Set Length | 75 ft |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
| Metering Device | Electronic Expansion Valve (EEV) |
| Dimensions & Weight | |
|---|---|
| Unit Width | 35.04 in |
| Unit Height | 26.50 in |
| Unit Depth | 13.46 in |
| Unit Weight | 99.87 lbs |
Warranty
- 7-Year registered compressor warranty
- 5-Year registered parts warranty
- Eligible for Limited Lifetime compressor replacement with MRCOOL® Care enrollment
Frequently Asked Questions
Does it really work in cold weather?
Yes. Hyper Heat models are engineered to maintain strong, usable heating down to –22°F.
Can I install it myself?
Yes. The QuickConnect® line set arrives pre-charged, sealed, and vacuumed from the factory. You do not handle refrigerant or connect gauges. A licensed electrician is recommended for the 208/230V electrical hookup.
What size space does 18K BTU cover?
Typically 500–800 sq. ft., depending on insulation, ceiling height, sunlight, and window/door count.
Can I use this with a 115V air handler?
No. This condenser is 230V only and must be used with compatible MRCOOL DIY 230V air handlers or ceiling cassettes.
