The MRCOOL® Universal Series Central Heat Pump & Air Conditioner System: Quiet, Efficient, and DIY-Friendly Comfort

The MRCOOL® Universal Series Central Heat Pump and Air Conditioner System is a groundbreaking solution in whole-home climate control, delivering exceptional energy efficiency, whisper-quiet performance, and simplified installation compared to traditional central HVAC systems.

Unlike conventional split systems, the Universal Series features a DC inverter compressor that intelligently adjusts output based on real-time demand. It ramps up when needed and scales down during mild weather conditions—maximizing comfort while minimizing energy use and utility bills. This variable-speed operation not only enhances efficiency but also reduces system wear and tear, extending the life of your HVAC investment.

Designed with flexibility in mind, the Universal condenser can pair with many existing air handlers from other brands. However, for optimal performance, it is best matched with a MRCOOL air handler.

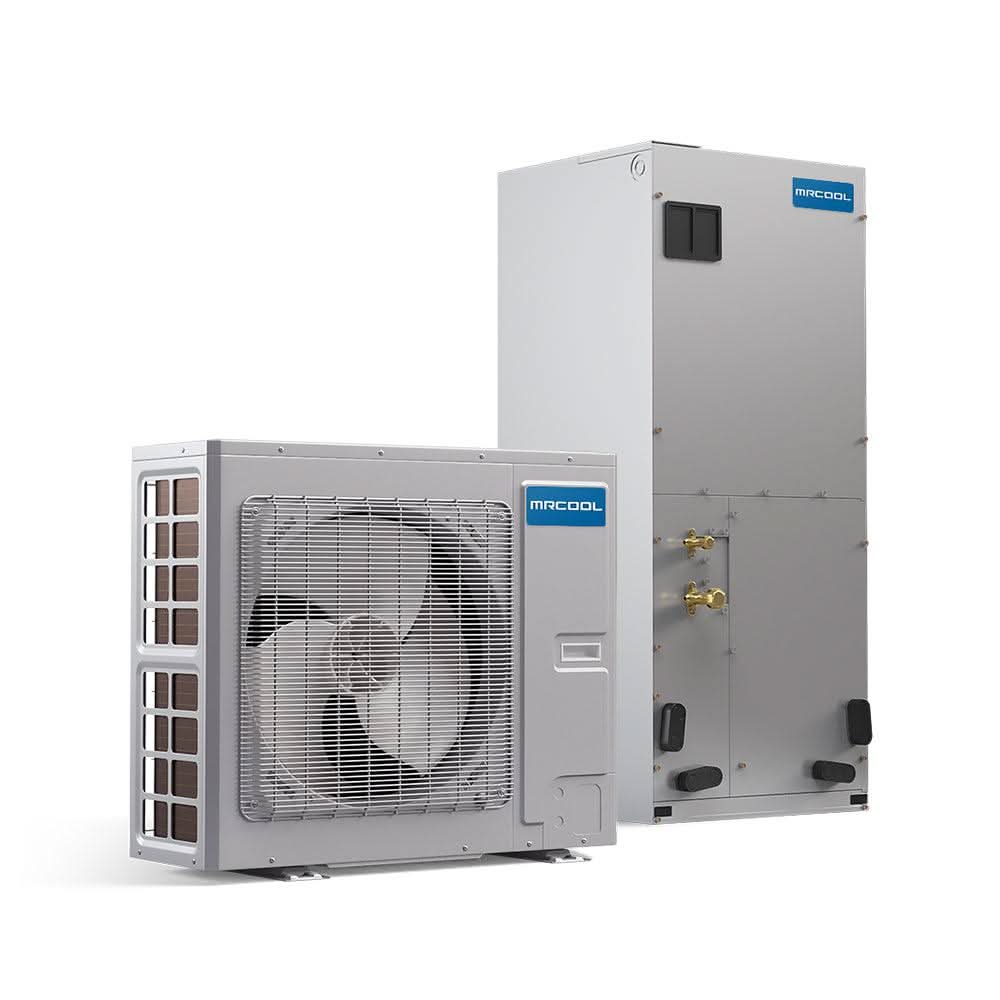

The 2–3 Ton MRCOOL Universal System includes a full-sized air handler and a compact, side-discharge condenser that supports 24,000–36,000 BTU capacity—ideal for spaces between 1,100 to 1,550 square feet. This system offers unmatched versatility: the 3-ton condenser can be field-configured to operate as a 2-ton unit using simple dip switch settings.

Installation is quick and hassle-free thanks to MRCOOL's pre-charged Quick Connect line sets (sold separately in lengths up to 50 feet). No vacuuming or refrigerant charging is required, making it a true DIY-friendly solution.

Using the same advanced inverter technology found in MRCOOL mini-splits, this system automatically adjusts its output to maintain consistent indoor temperatures with maximum efficiency and minimal energy waste.

We also sell the MRCOOL Universal 4-5 Ton Central Air Conditioner which can cover 2,200-2,750 square feet.

THE MRCOOL Universal Series Heat Pump can continue heating in temperatures as low As -22. The Universal can deliver 100% cooling capacity at temperatures up to 110 degrees Fahrenheit, 80% heat output down to -4 degrees. The air handler comes with an electrical box assembly, a fan motor, a secondary drain pan, a primary drain pan, and an optional auxiliary heat kit.

No-Vac Quick Connect Line Set

The MRCOOL No-Vac Quick Connect Line Set is one of the biggest advantages of the MRCOOL Universal Series Central Heat and Air Split System. This line set is kink resistant, pre-charged with R410a refrigerant, and uses Quick Connect fittings.

The quick connect functionality means that the installation of the Universal System saves you hours, and doesn't require any special tools and equipment.

Features

Quiet - For every 10 Decibels (dBa) a sound is twice as loud-making the Universal 55 dB(a) less than half as loud as the conventional 73 dB(a) condenser.

Slim Design - Side discharge design takes less than half the size of conventional condensers. Perfect for urban lots and between building applications where access is limited.

Easy installation - The Universal® has Flare, Flare-to-Weld, or No-Vac® Quick Connect® line set options and Multi-Position Air Handler installation options (Upflow, Horizontal).

Use any thermostat - Compatible with any thermostat, including Nest, or optimize your system with our versatile smart-app Universal® Thermostat.

Energy efficient - Up to 20 Seer. The Universal® DC Inverter moderates operating load, increasing efficiency at lower operating costs.

Gold Fin® Condenser - Corrosion resistant. Perfect for homes and buildings near the beach.

Long Warranty Coverage – Every system comes with a 5-year limited parts warranty with DIY installation, or a 10-year limited parts warranty when professionally installed.

🔧 Key Features & Benefits of the MRCOOL® Universal 2–3 Ton Central Heat Pump System

• ✅ Quick Connect Installation – Equipped with Quick Connect fittings for fast, tool-free hookup (when paired with MRCOOL Pre-Charged Line Sets, sold separately).

• 🔄 Adjustable Capacity – Easily set to either 2 Ton or 3 Ton operation via dip switch configuration, offering flexible performance to suit your home's needs.

• ❄️ Cold Climate Ready – Delivers up to 80% BTU output at -4°F, making it ideal for year-round comfort—even in extreme winters.

• 🔥 Fireproof Electrical Housing – Built-in fire-resistant electrical box for enhanced safety and peace of mind.

• 🔄 Multi-Positional Air Handler – Versatile design allows for upflow or horizontal installation, making it suitable for a variety of setups.

• ⚙️ Variable-Speed ECM Motor – Air handler includes a high-efficiency ECM (Electronically Commutated Motor) for precise airflow and quieter operation.

• 💡 All-Electric System – No gas required. A fully electric heating and cooling solution—eco-friendly and future-ready.

• 📱 Smart Thermostat Compatible – Works with most 3rd-party thermostats, including popular Wi-Fi smart thermostats like Nest, Ecobee, and Honeywell.

• 🧰 No Special Tools Required – Line set installation is tool-free, thanks to MRCOOL’s Quick Connect technology.

• 🌡️ Temperature Compensation Technology – Automatically adjusts performance to maintain your desired indoor comfort regardless of outdoor conditions.

• 🧵 Standard Thermostat Wiring – Uses industry-standard 18/6 thermostat wire, making upgrades or replacements easy.

Includes:

• MDUO18024036
• MDUI18024036E

Specifications & Dimensions
