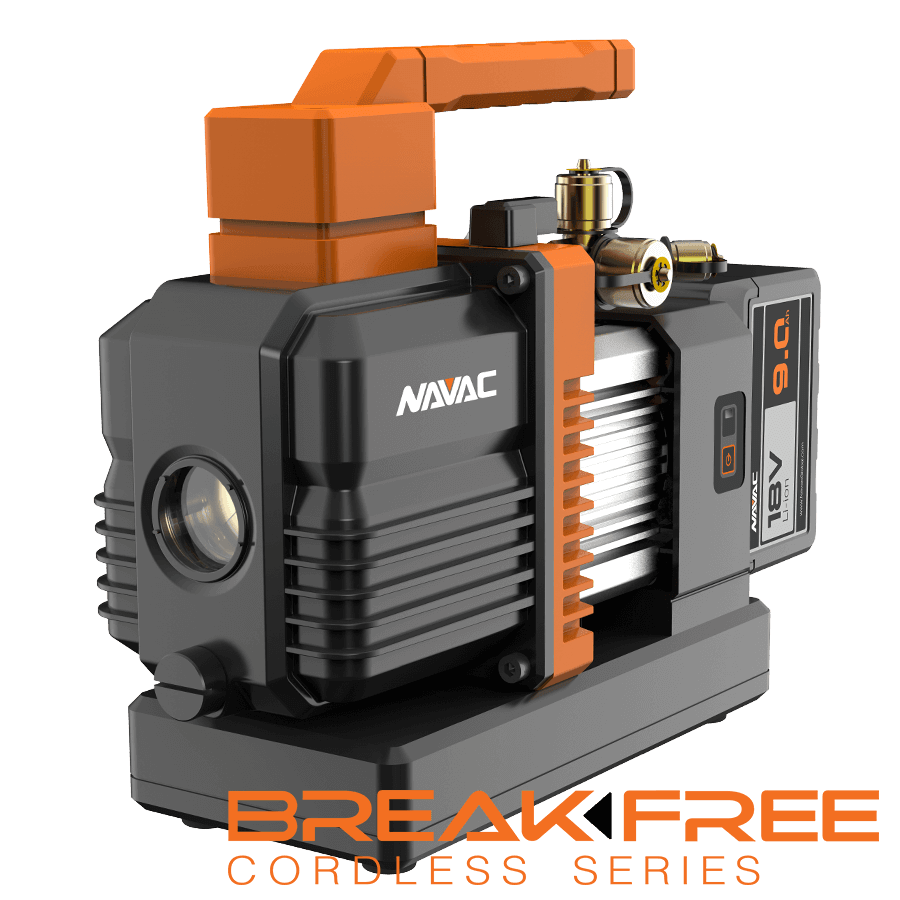

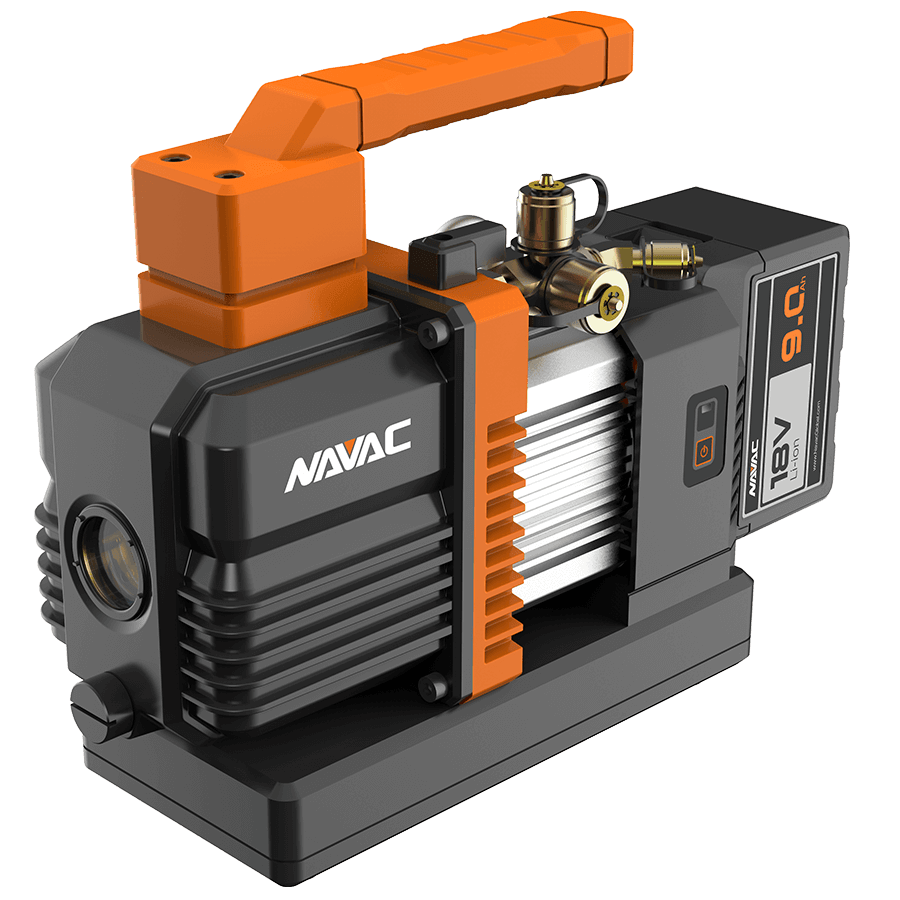

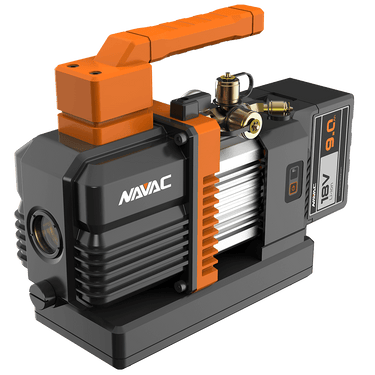

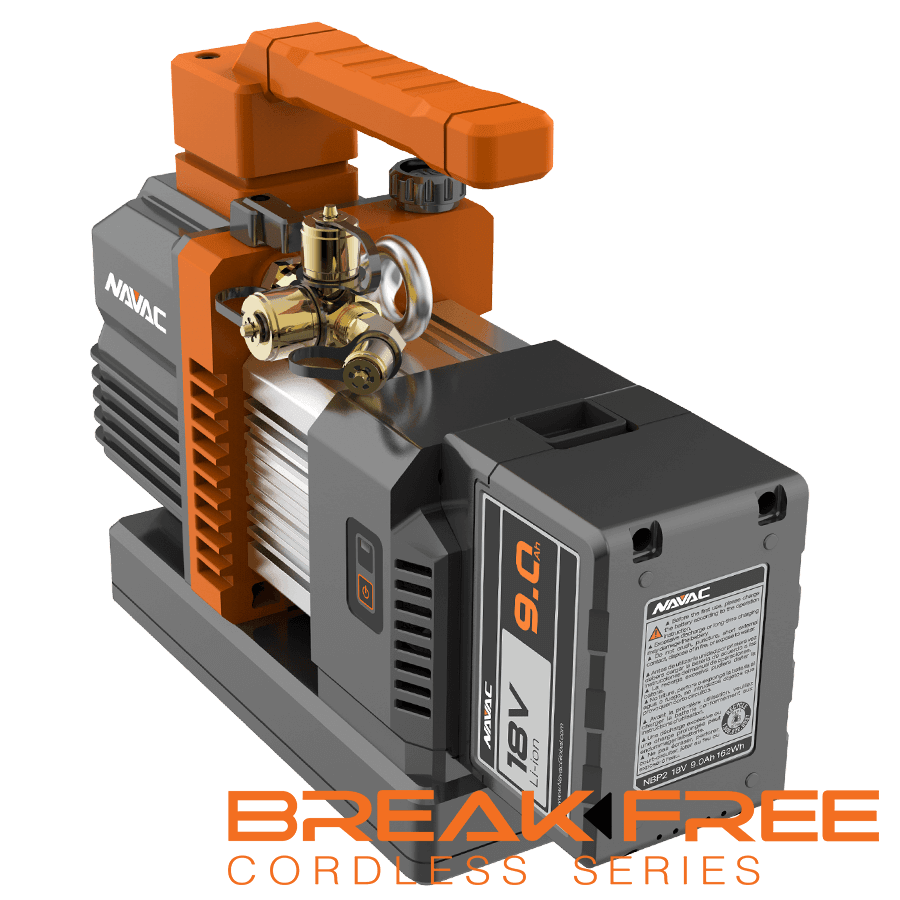

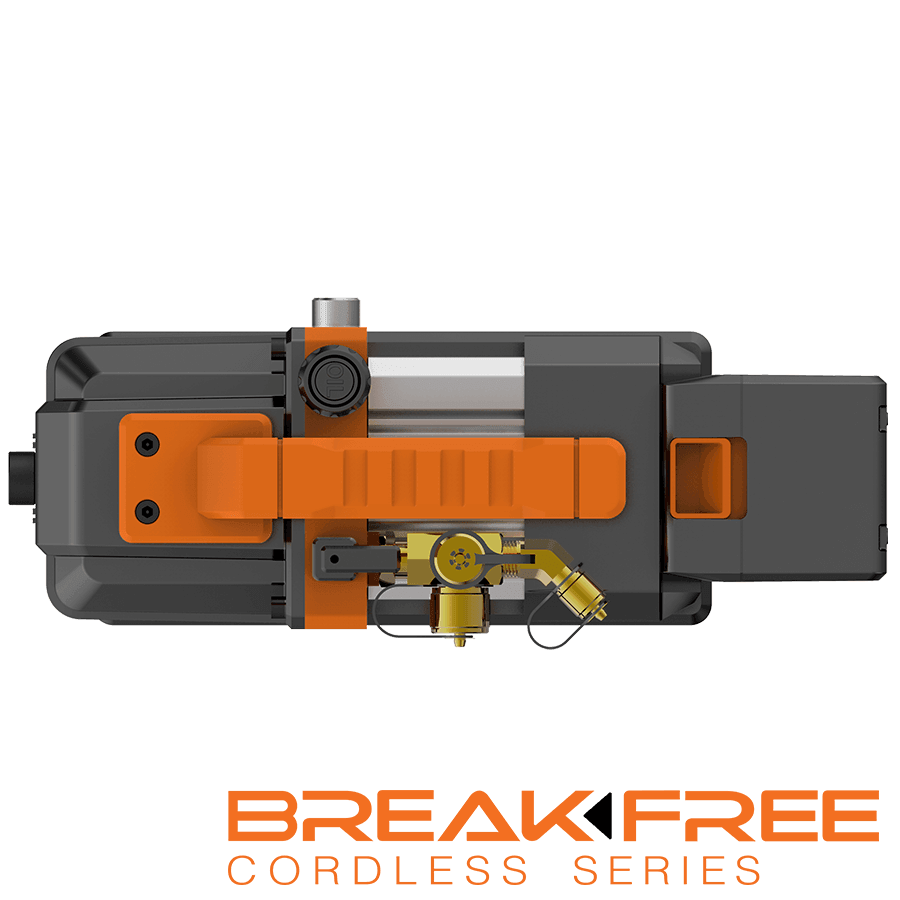

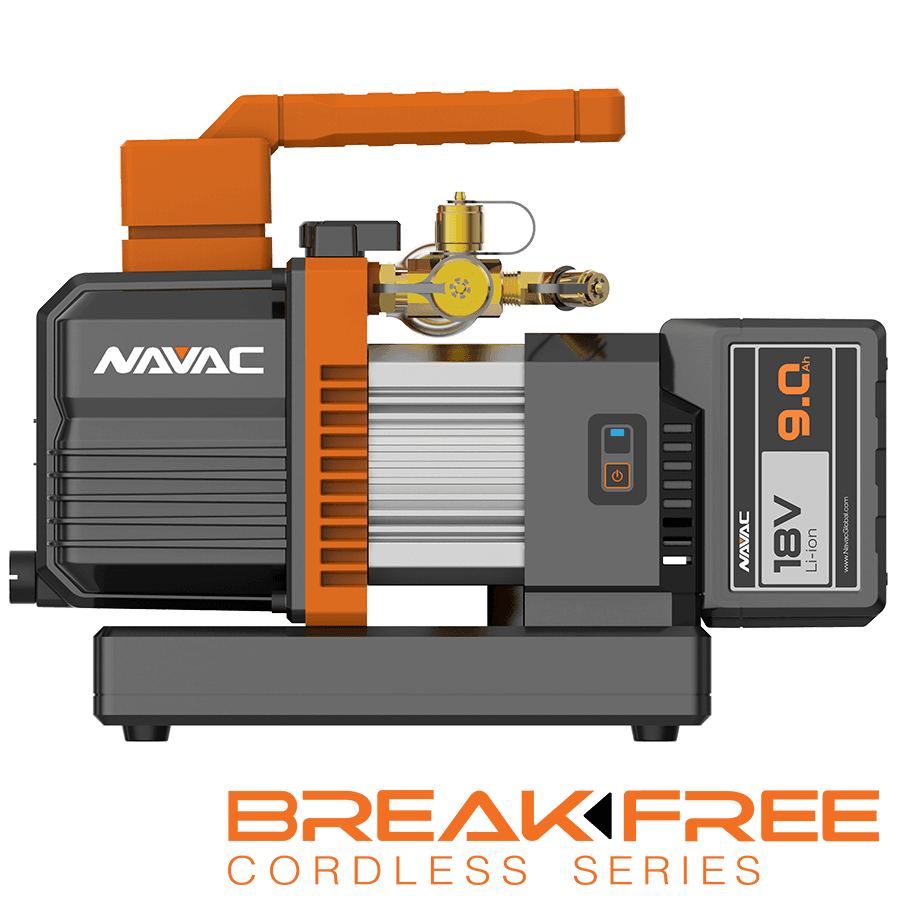

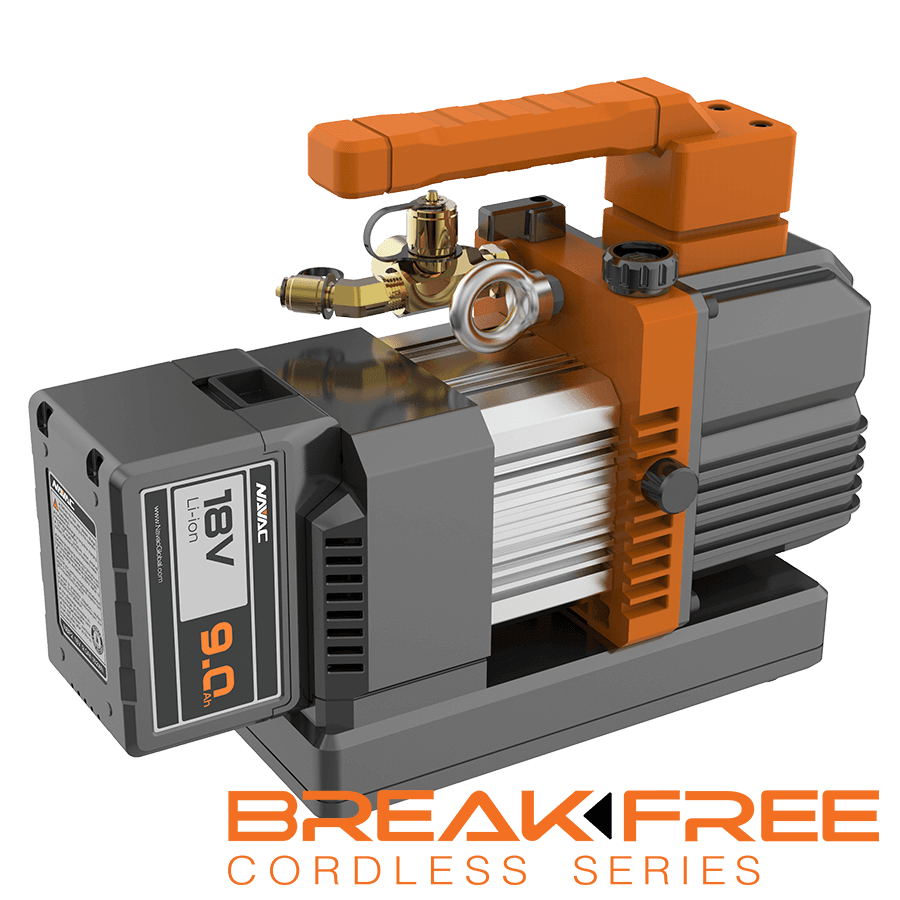

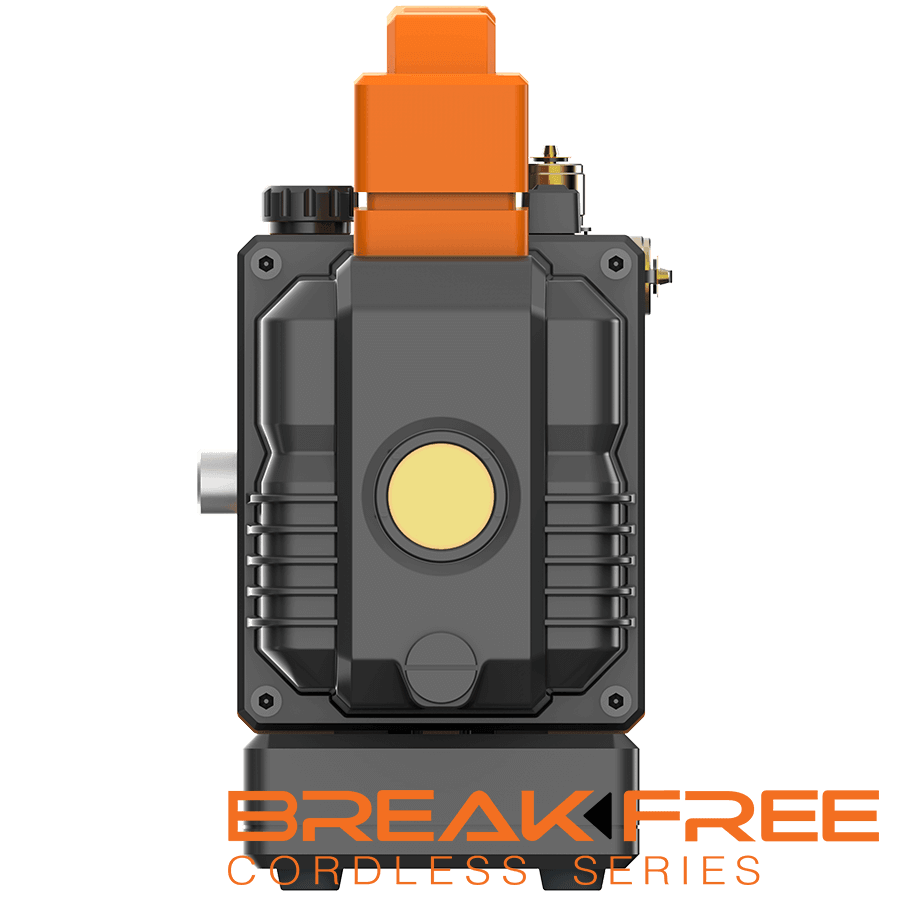

NAVAC NP4DLM - BreakFree Cordless Vacuum Pump, CFM 4, 1/2 HP, 15 Micron
Regular Price
$861.00
Press & drag to view
Cordless Vacuum Pump for Residential and Light Commercial
Suitable for residential and light commercial applications, the new NP4DLM can achieve a flow rate of 4 cfm among other attributes. The model is the third unit in the BreakFree Series® of cordless HVAC tools.

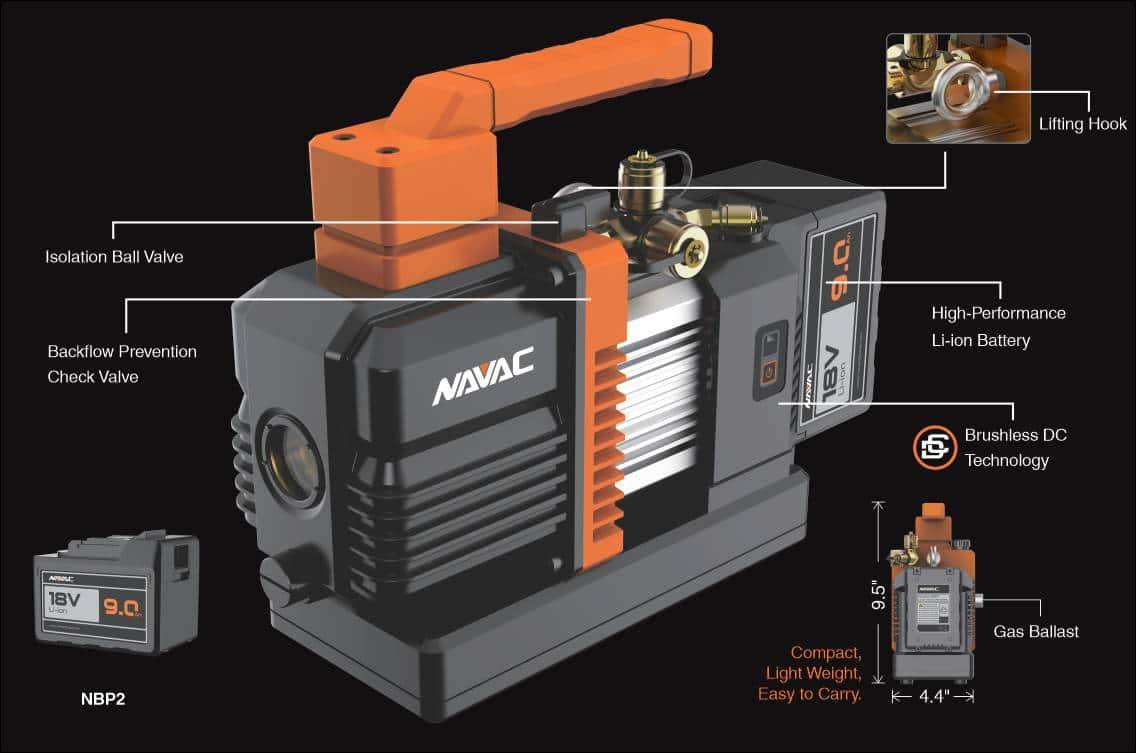

The NP4DLM BreakFree® Cordless Vacuum Pump features a high-performance lithium battery capable of up to one hour of continuous running time. At a scant 15.4 pounds, the unit is exceedingly efficient and, for technicians, easy to carry and store. The NP4DLM’s dual-stage operation provides high vacuum down to 15 microns. A check valve prevents backflow. Other highlights include an isolation valve as well as a lifting hook and gas ballast for better moisture handling. Its inlet port fits flares of ¼-, 3/8-, and ½-inch.
Leading Technology, Superior Quality, Best Experience.
Empowering you to work smarter!
This kit includes the following:
- 1 – 4CFM Vacuum Pump

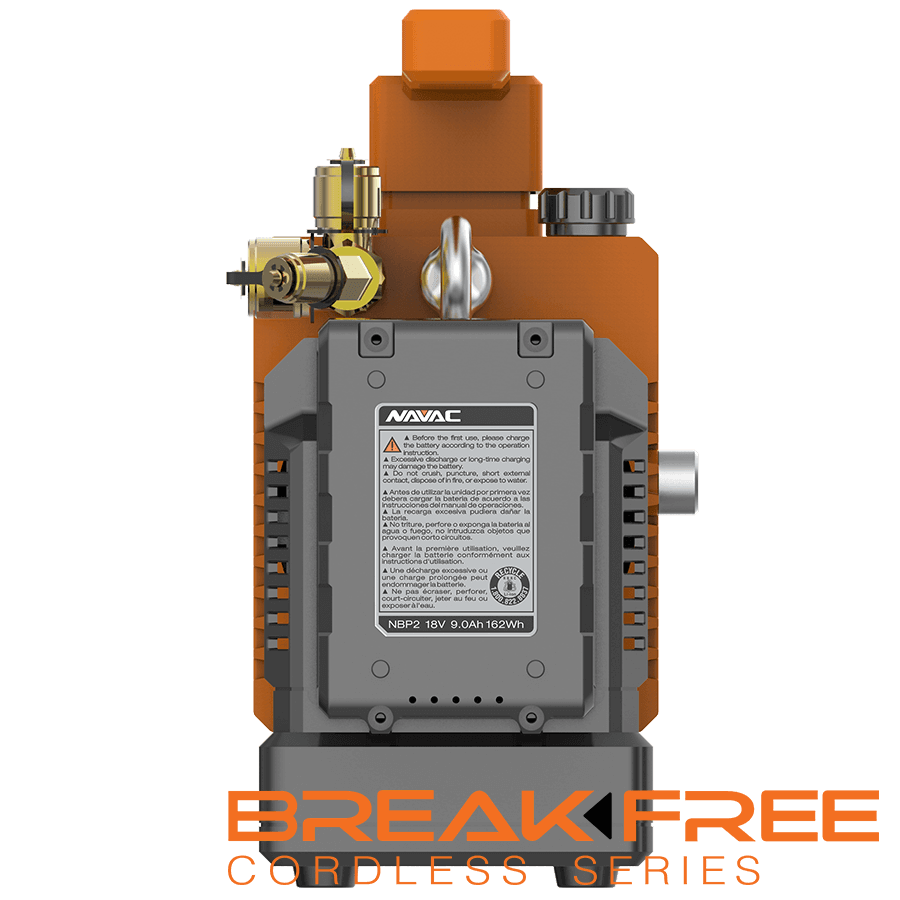

- 1 – NBP2 9 Ah Lithium-Ion Battery
- 1 – NC2 Lithium-Ion Battery Charger
- 1 – Oil Dispenser (oil not supplied)
- 1 – Heavy Duty Protective Travel Tool Bag
NP4DLM Model Specifications
| Specification | Details |
|---|---|
| Model | NP4DLM |
| Li-ion Battery | 18V, 9Ah |
| Flow Rate (CFM) | 4 |
| Run Load Amps (RLA) | 10 A |
| Ultimate Vacuum | 15 micron |
| Pump Design | Dual Stage |
| Motor Power | 1/2 HP |
| Inlet Port | 1/4″, 3/8″, 1/2″ Flare |
| Oil Capacity | 8.8 oz |
| Dimensions (in) | 12.4 × 4.4 × 9.4 |
| Weight (lbs) | 15.4 (with battery) |
| Accessories Included | NBP2 Battery, NC2 Charger, Carry Bag |
| Additional Accessories (Sold Separately) | NAPS1 Power Supply Adapter |
| Warranty | 2 Years |
