NAVAC NX1 - NEXUS Digital Manifold Gauge, w/ Bluetooth, Class 0.4 accuracy and clear digital display

Name: NAVAC NX1 - NEXUS Digital Manifold Gauge, w/ Bluetooth, Class 0.4 accuracy and clear digital display
Brand: NAVAC
Price: 496.00 USD
Availability: OutOfStock

Vendor: NAVAC Type: Flaring Tool

4.5' (1201 Reviews)

12% Off

$496.00 ~~$565.99~~

Out of Stock

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

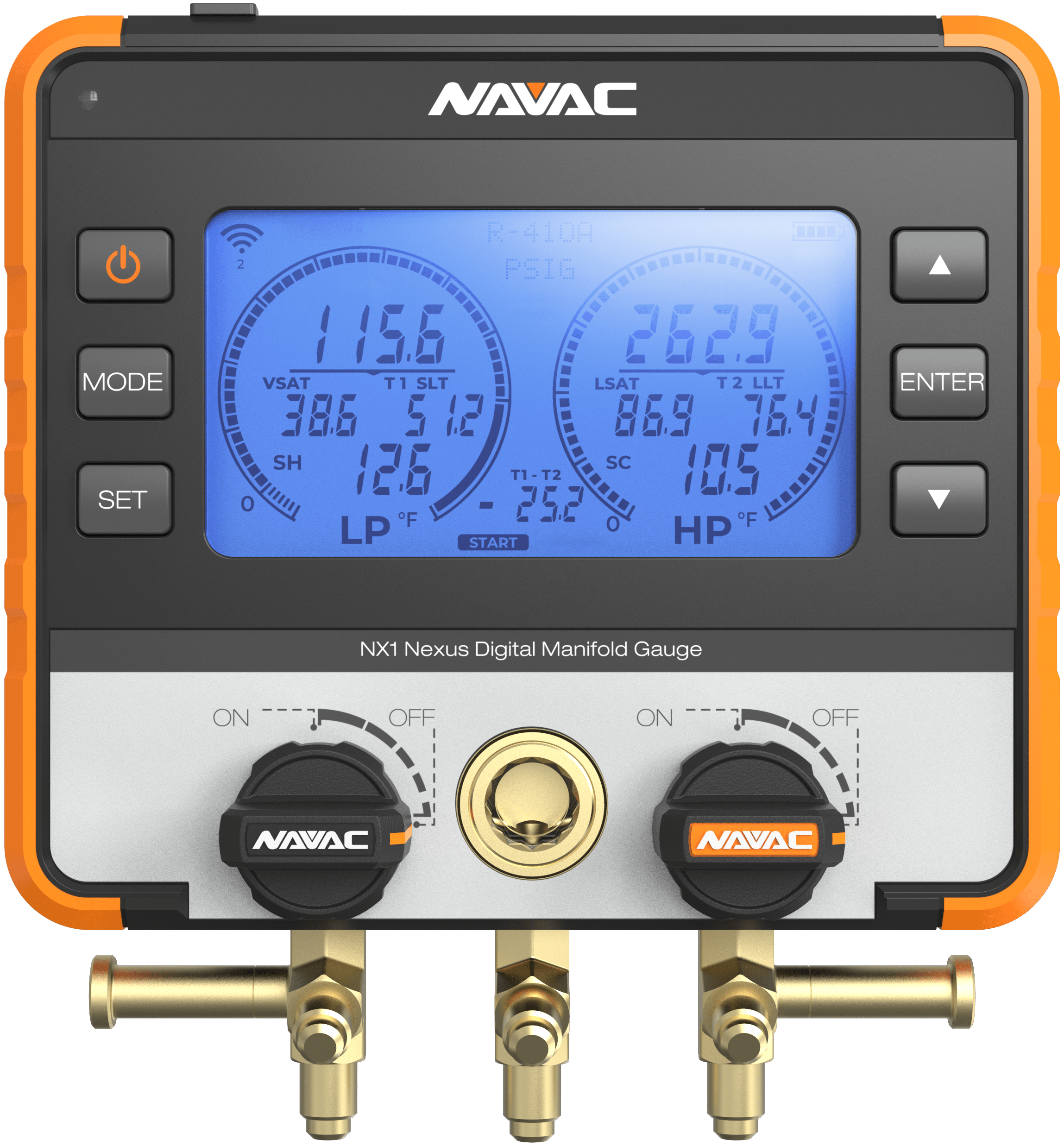

Smart & Precise NEXUS Digital Manifold Gauge

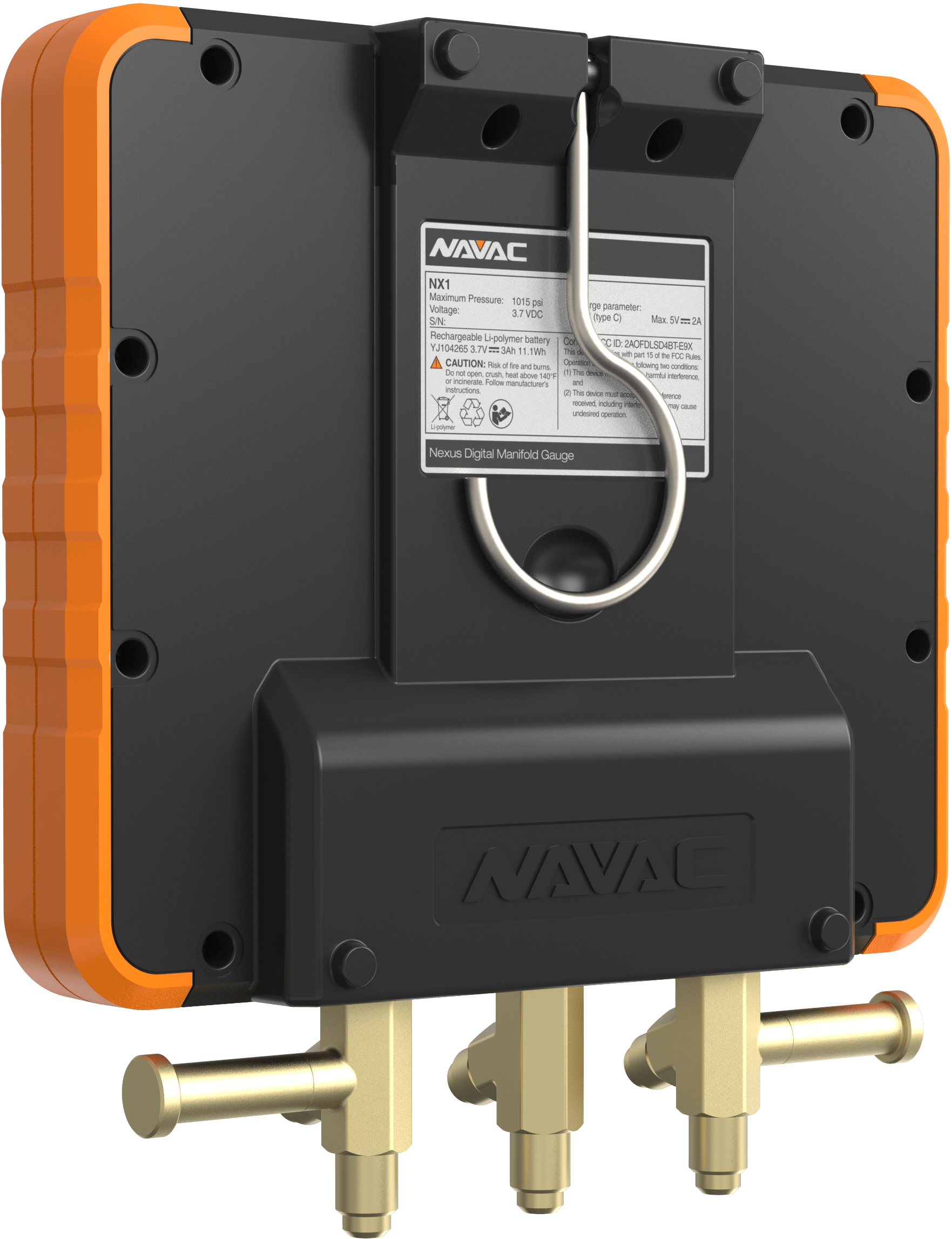

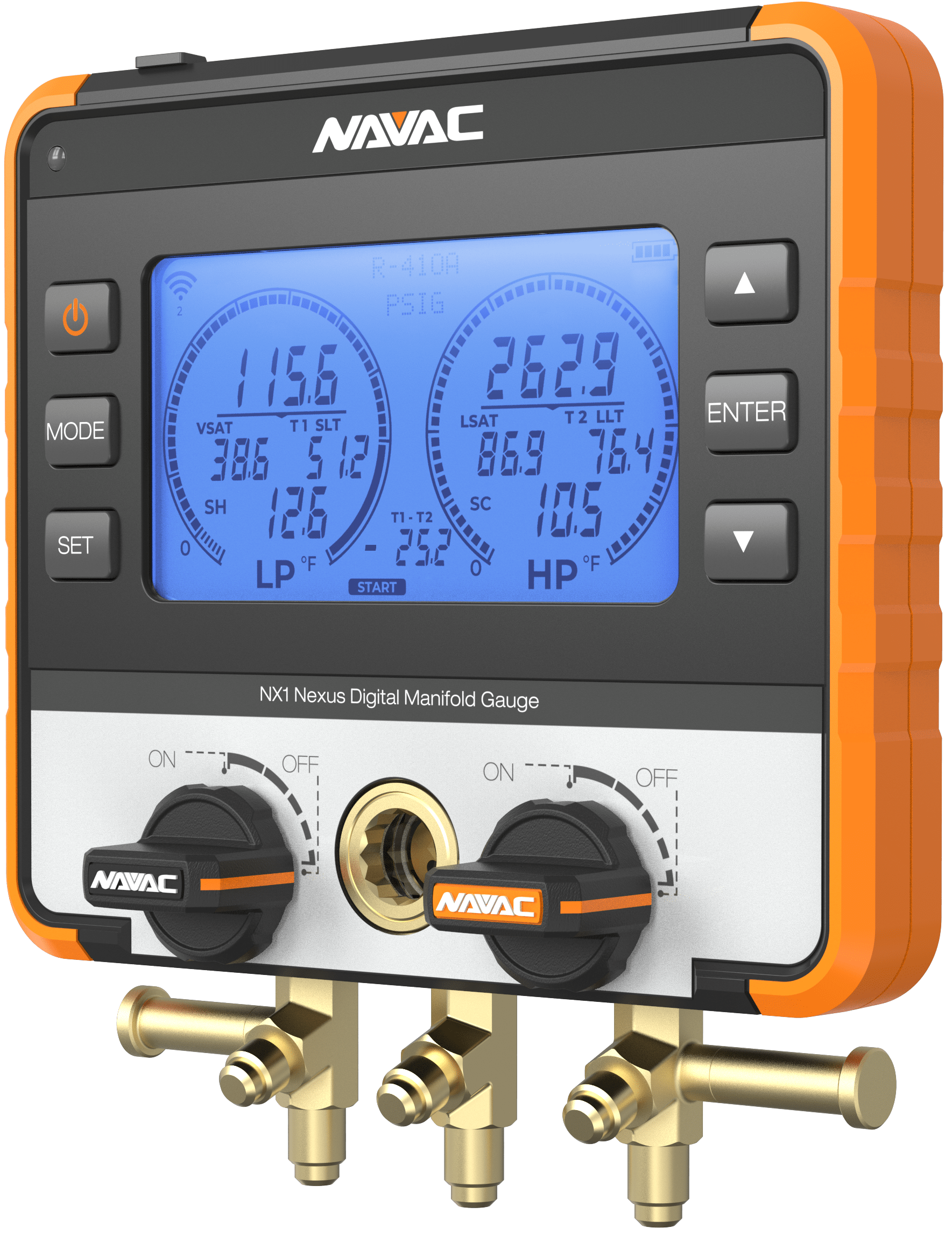

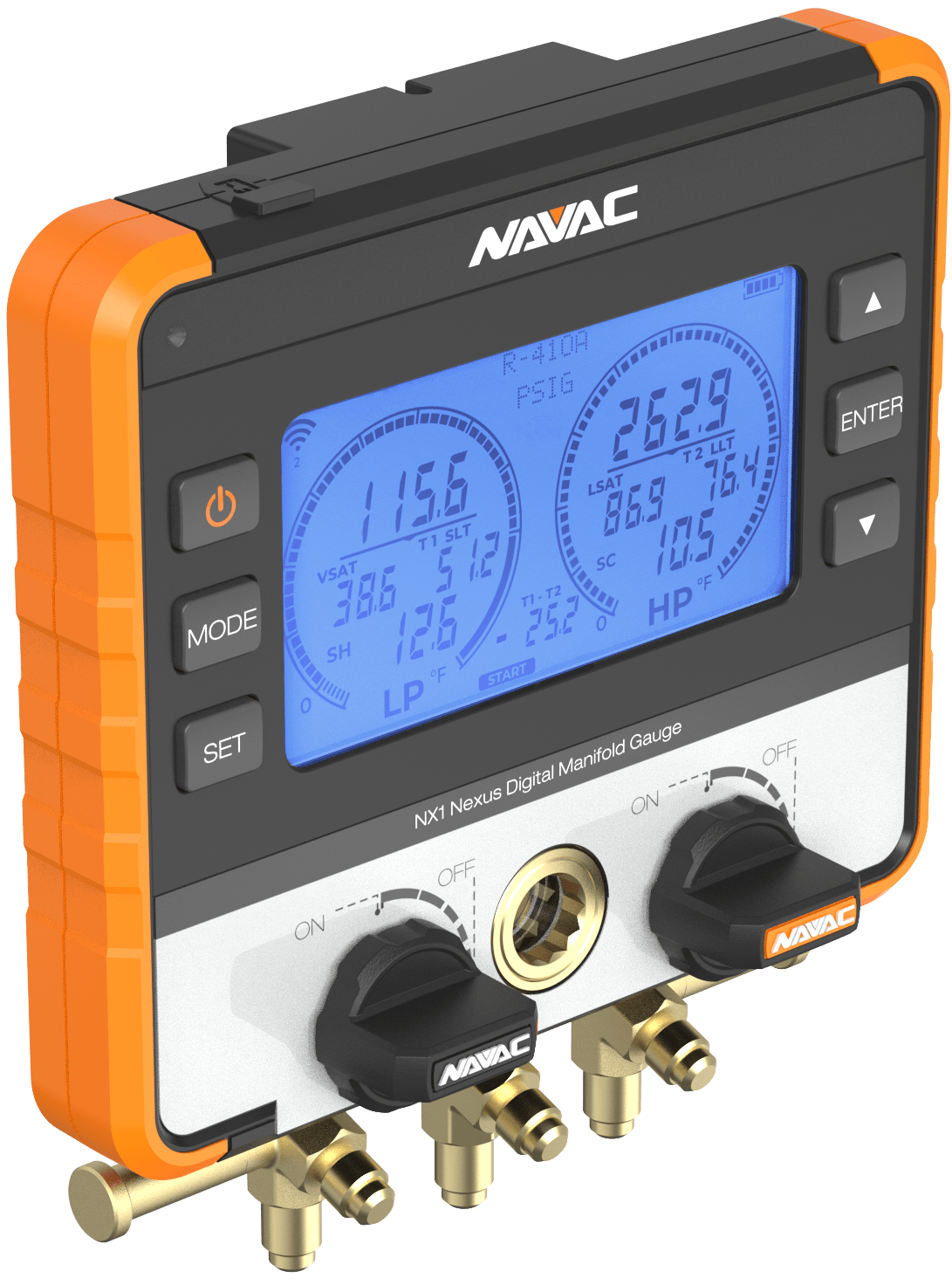

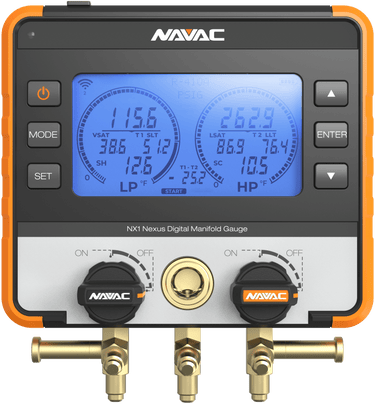

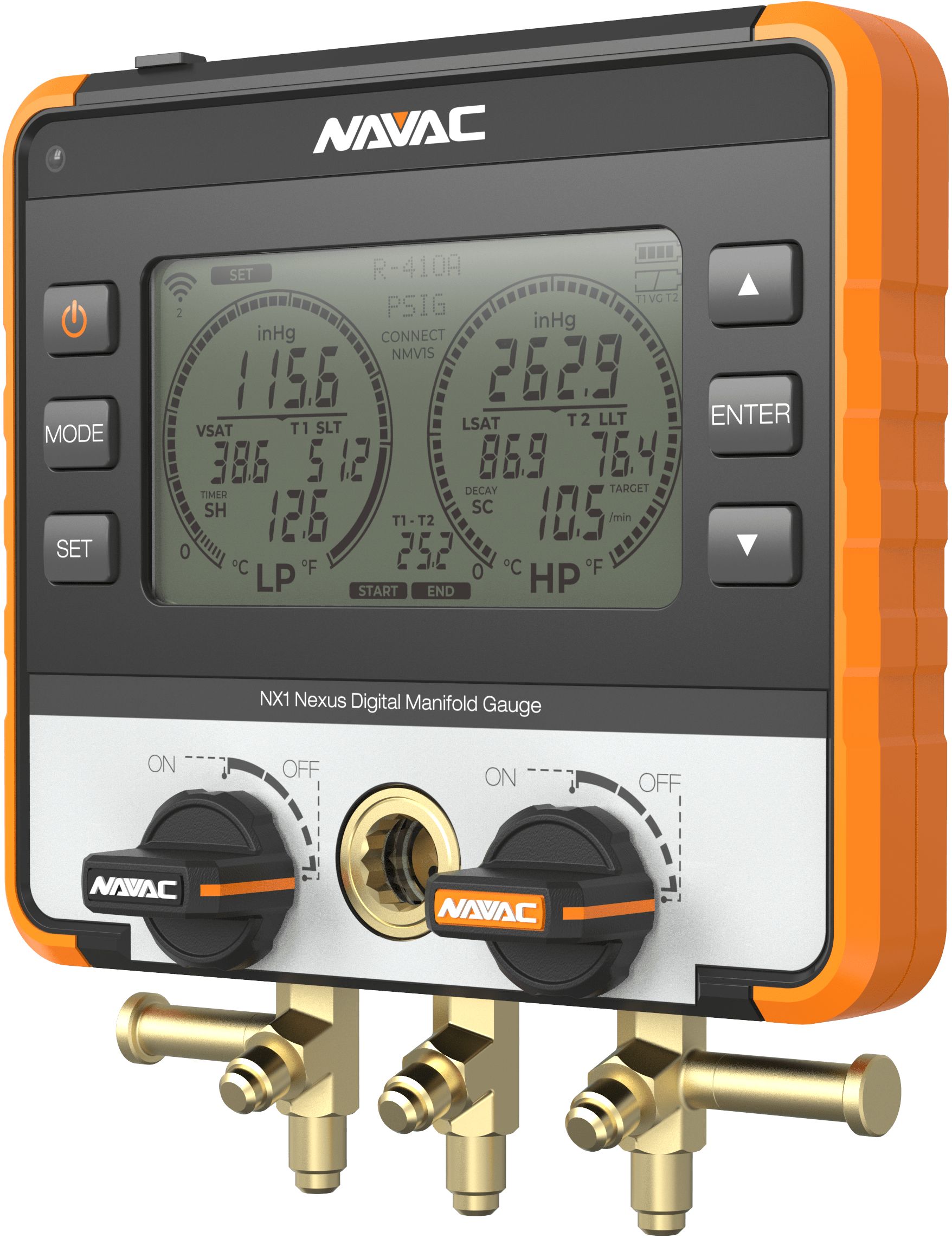

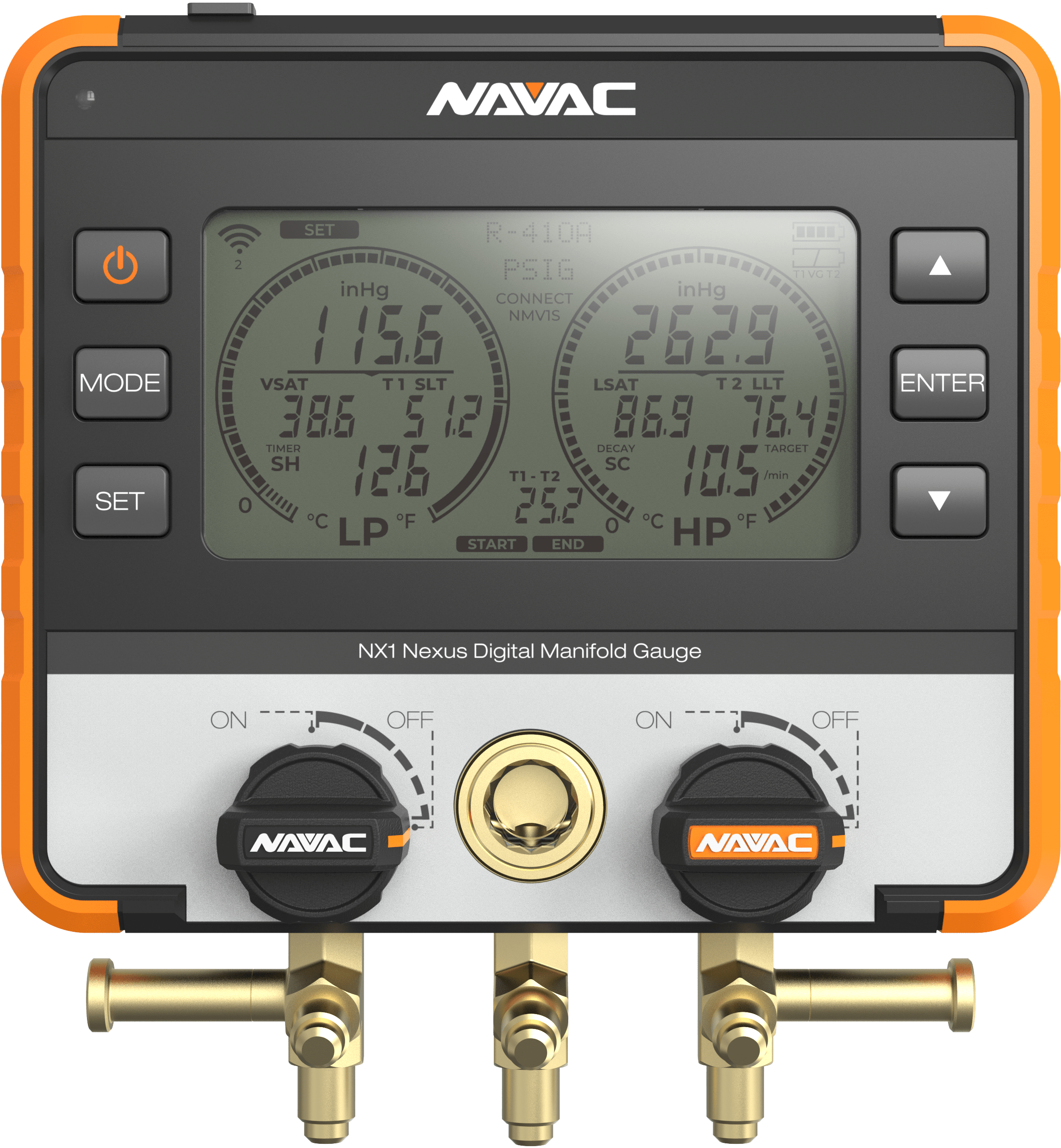

The NAVAC NX1 Nexus Digital Manifold Gauge enhances the HVAC diagnostics experience with its wireless features. Bluetooth connectivity for temperature probes and micron gauges provides comprehensive remote insights all on the screen of Nexus. It caters to various needs with 4 operation modes (Manifold, Leak Test, Evacuation, and Decay Test). Built with an aluminum body and a 1/4 turn ball valve, it ensures durability. The foldable hidden hook enhances portability, while its Class 0.4 accuracy and clear digital display offer precise readings. Impact-resistant and covered in durable rubber, the NX1 withstands field challenges, ensuring a prolonged, resilient work experience.

Leading Technology, Superior Quality, Best Experience.
Empowering you to work smarter!

NAVAC NX1 and NX1V Specifications

Category	Property	NX1	NX1V
General	Model	NX1	NX1V
General	Refrigerant Type	R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116, R-123, R-124, R-125, R-134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A, R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-507A, R-508B, R-513A, R-600, R-600a, R-601, R-601a, R-744, R-1233zd, R-1234yf, R-1234ze Maximum pressure: 600 Psi (4200 kPa)
Pressure	Pressure Range	-30 inHg to 720 psi
Power	Power Supply	Rechargeable 3000 mAh Lithium Battery For the best charging experience, please use the provided cable, or USB-A to USB-C cables
Power	Firmware Update	Firmware can be updated on NAVAC website or with MyNAVAC™ App
Connectivity	Bluetooth Range	Up to 260 feet

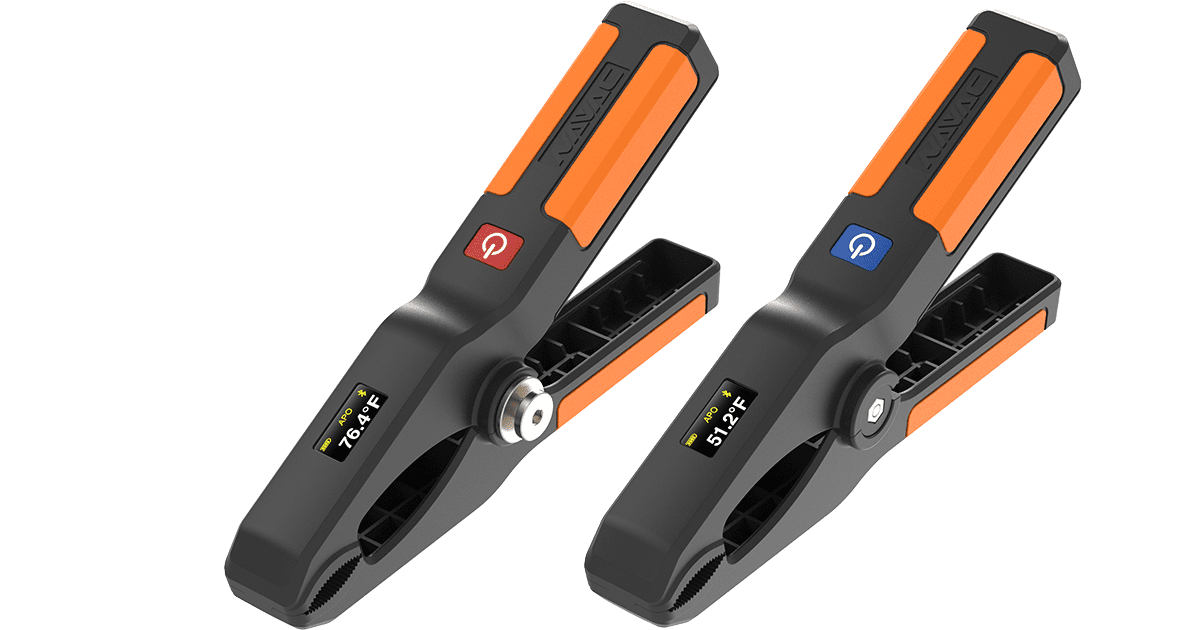

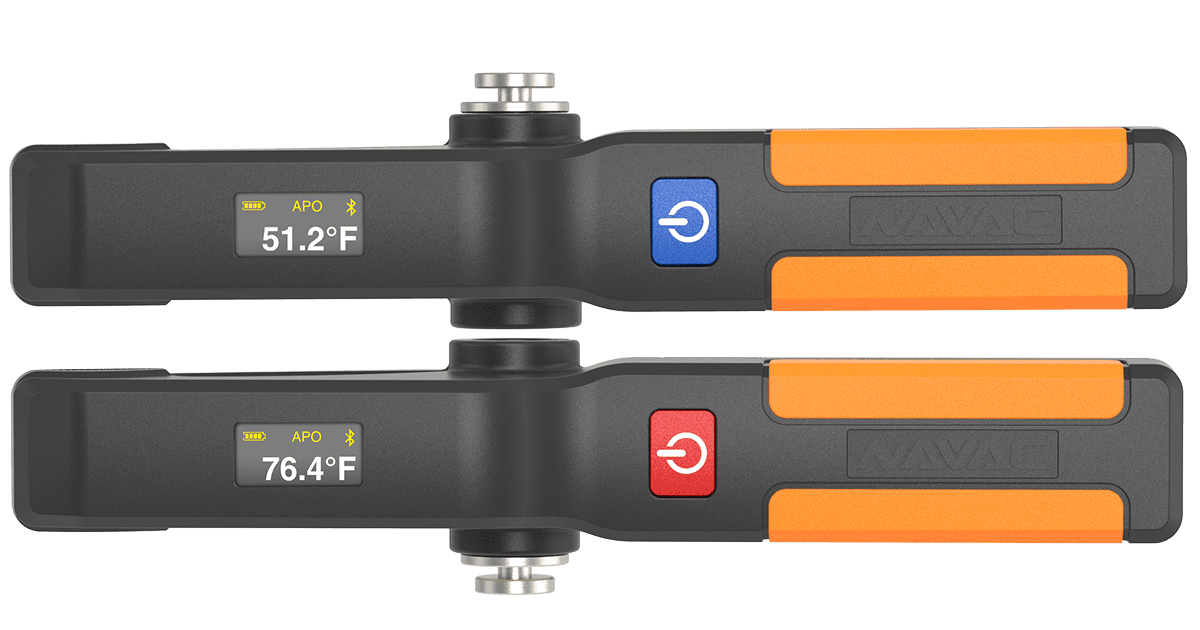

Accessories	Accessory	Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case	Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case, NMV1S Micron Gauge
Warranty	Warranty	2 years	2 years
