NAVAC NX4V - NEXUS™ Digital Manifold Gauge w/ Vacuum Gauge, 4 Valve

Name: NAVAC NX4V - NEXUS™ Digital Manifold Gauge w/ Vacuum Gauge, 4 Valve
Brand: NAVAC
Price: 771.00 USD
Availability: OutOfStock

Vendor: NAVAC Type: Flaring Tool

4.5' (1201 Reviews)

12% Off

$771.00 ~~$880.99~~

Out of Stock

Payment & Security

Your payment is secure. We don’t store or see your card details.

View Full Details

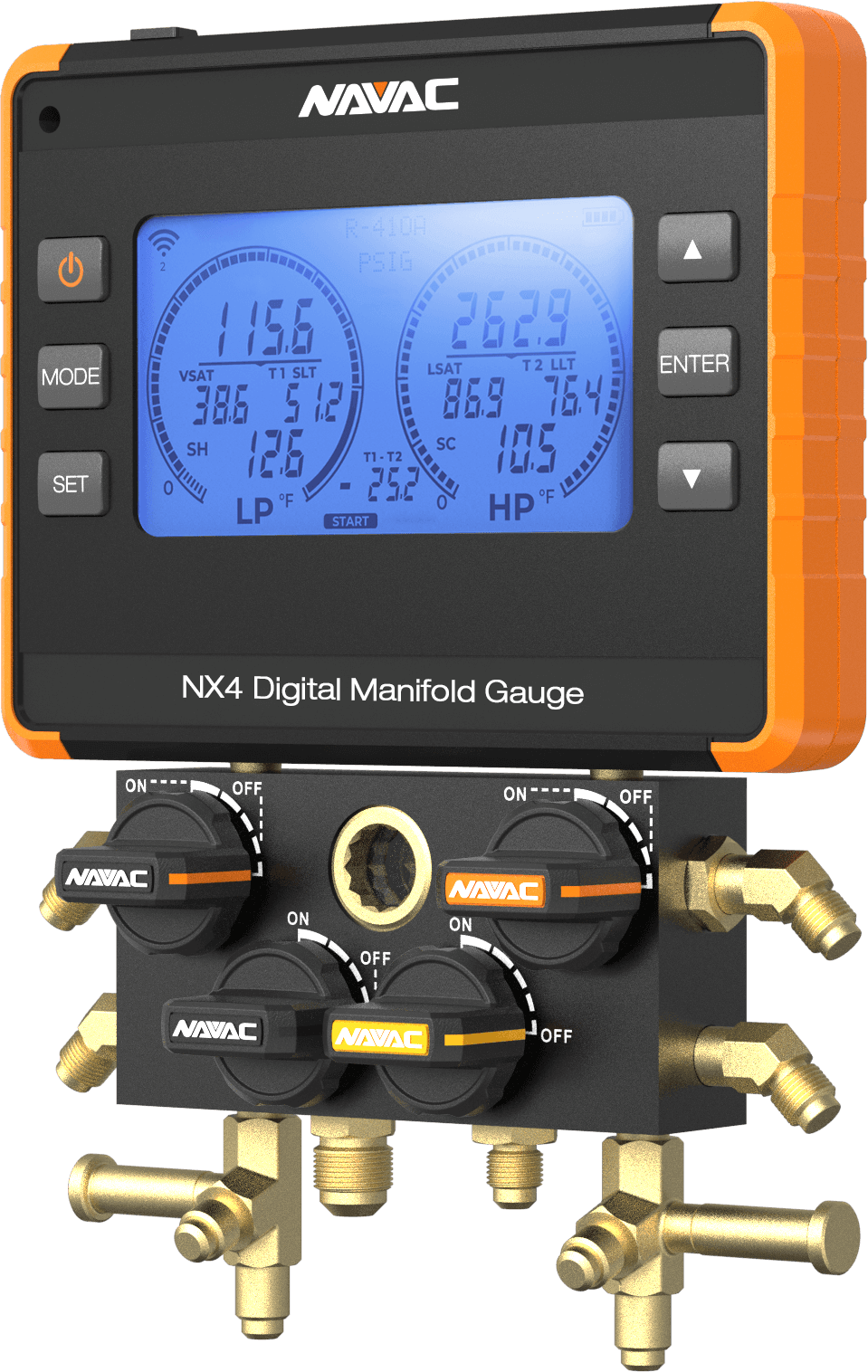

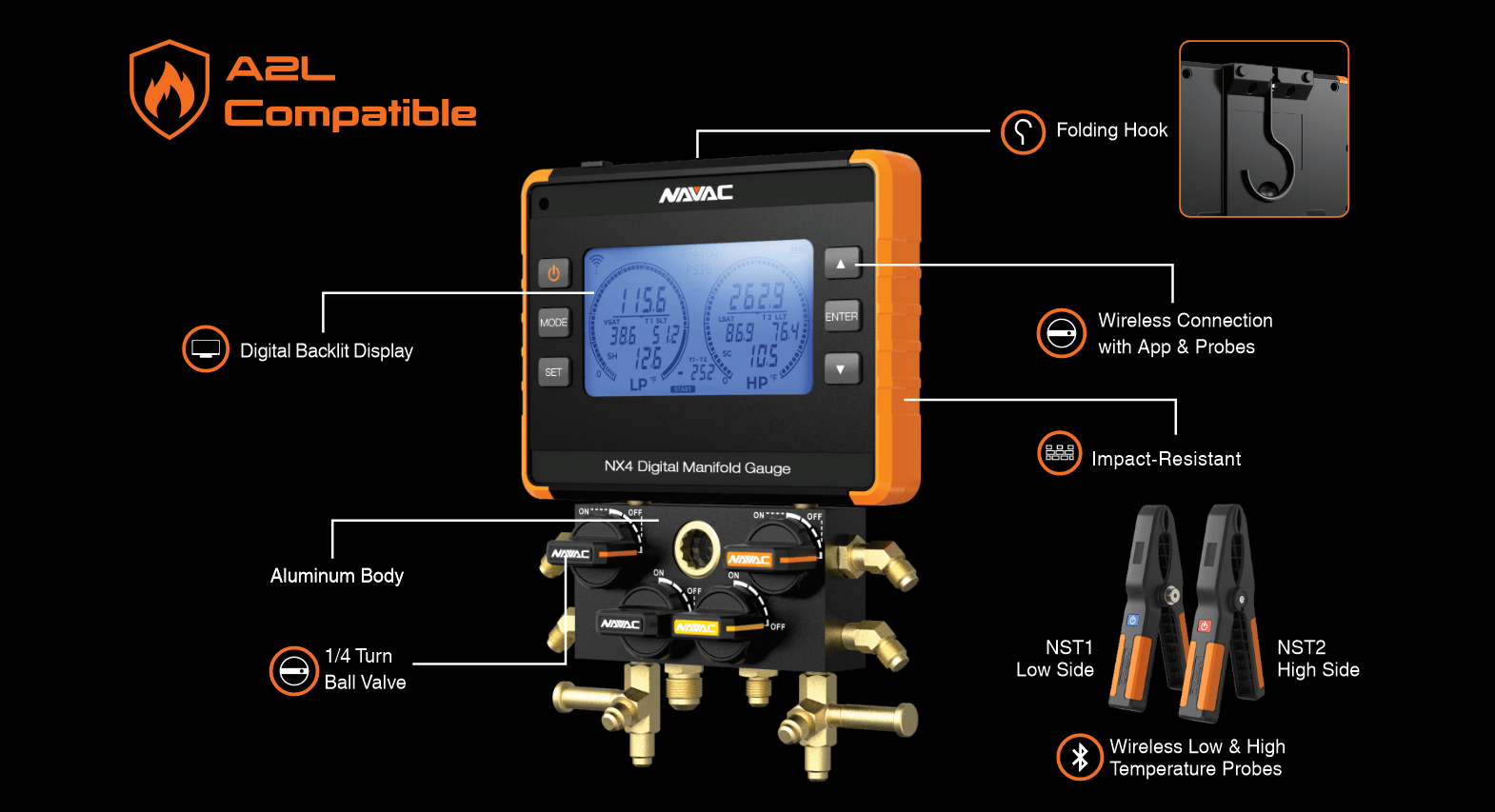

The NAVAC NX4/NX4V Nexus Digital Manifold Gauge revolutionizes HVAC diagnostics with advanced wireless features. Equipped with 4 valves, including a 3/8″ vacuum port for fast evacuations, it enables a single setup for multi-task operations. Seamlessly connect to Bluetooth-enabled temperature probes and micron gauges to access comprehensive remote insights directly on the Nexus screen. Designed to meet diverse needs, it offers four operational modes: Manifold, Leak Test, Evacuation, and Decay Test. The robust aluminum body and 1/4-turn ball valve ensure lasting durability, while the foldable hidden hook enhances portability. With Class 0.4 accuracy and a clear digital display, it delivers precise readings. Built to endure field challenges, its impact-resistant, rubber-covered construction guarantees reliable, long-term performance.

NX4 & NX4V Model Specifications

Specification	Details
Model	NX4 / NX4V
Maximum Manifold Pressure	1087 psi (7500 kPa)
Ports	(1) 3/8″ SAE vacuum, (3) 1/4″ SAE for suction line, liquid line, and refrigerant recovery/charging
Power Supply	Rechargeable 3000mAh lithium battery
Firmware	Can be updated on NAVAC website or with MyNAVAC™ App
Accessory (NX4)	Bluetooth Temperature Clamps NST1 (Low Side) & NST2 (High Side), Charging Cable, Carry Case

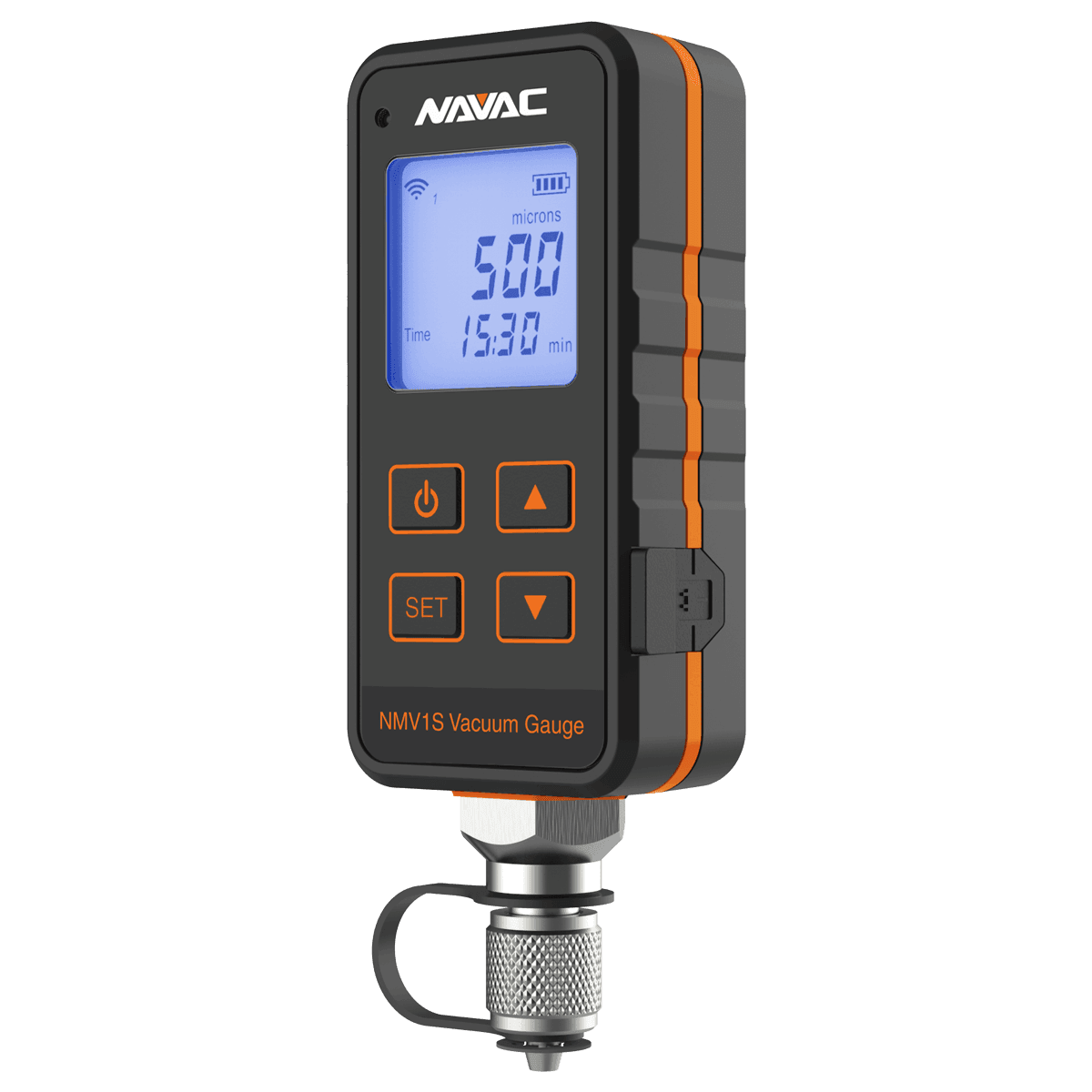

Accessory (NX4V)	Includes NMV1S Micron Gauge in addition to the NX4 Kit
Warranty	2 Years

Refrigerant Compatibility

R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116, R-123, R-124, R-125, R-134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A, R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-507A, R-508B, R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd, R-1234yf, R-1234ze

*Maximum pressure: 1087 psi (7500 kPa)

WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling, including wearing Personal Protective Equipment such as safety glasses and gloves.
