Rectorseal 83909 Aspen Mini Orange Condensate Pump Kit 230 Volts Universal Voltage

RectorSeal Aspen Mini Orange 16W Condensate Pump Kit – 100V-250V | Quiet Operation | For Mini-Split HVAC Systems

Efficiently manage condensate drainage from your ductless mini-split system with the RectorSeal Aspen Mini Orange Pump Kit. Designed for whisper-quiet performance and reliable operation, this 16-watt pump system is ideal for installations where space, noise level, and aesthetics matter. The self-priming, fully potted pump can be installed remotely—either above the ceiling or inside a lineset cover—making it a flexible solution for residential and commercial HVAC applications.

Perfect for ductless mini-split air conditioners up to 49,500 BTU/H, the Mini Orange pump features a separate inline and submersible reservoir, allowing multiple installation options for various mini-split configurations. It’s rated for 100V–250V operation, offering worldwide voltage compatibility.

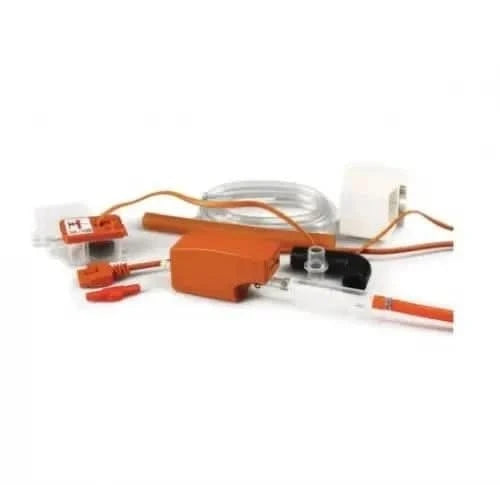

🔧 Kit Includes:

• (1) Mini Orange Pump Assembly

• (1) Inline Reservoir

• (1) Submersible Reservoir

• (1) 5-ft x ¼-in I.D. Vinyl Discharge Tube

• (1) Modular 6-ft Power Cable

• (1) 6-in x ¼-in I.D. Vinyl Breather Tube

• (1) Drain Hose Adaptor

• (1) Inline Fuse

• (6) Cable Ties

• (2) Self-Adhesive Velcro Strips

• (1) 8-in x ⅝-in I.D. Inlet Tube

• (1) Anti-Siphon Device

• (1) 90° Elbow

• (1) Installation Manual

💡 Product Highlights:

• Voltage Range: 100V–250V

• Power Consumption: 16W

• Current Draw: 0.17A

• BTU Compatibility: Up to 49,500 BTU/H

• Suction Lift: Up to 5 feet

• Quiet Operation: Fully potted and designed for minimal noise

• Modular Terminals: Quick and easy connections

• Flexible Installation: Gravity-fed inlet with both pan-mount and inline reservoir options

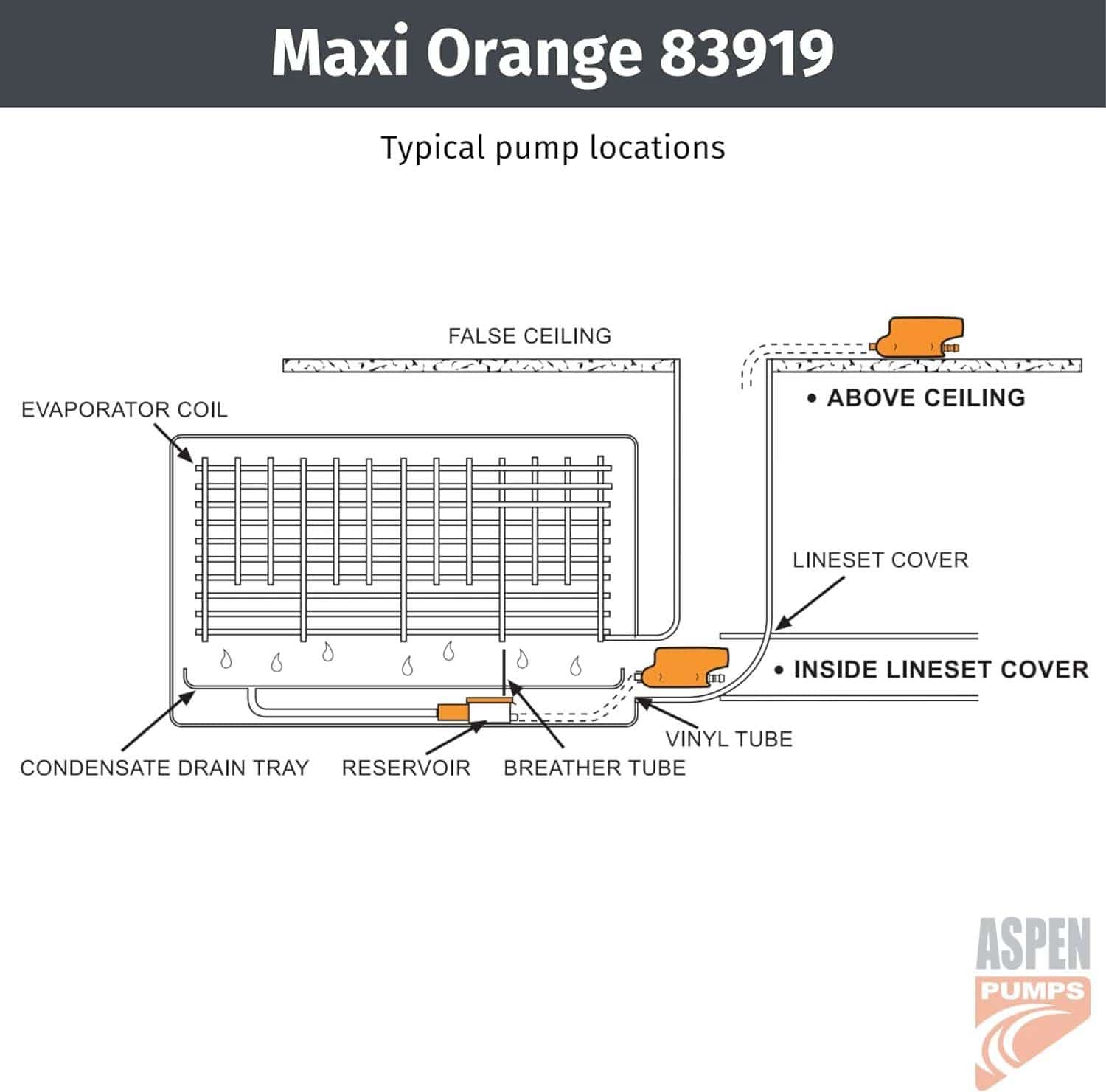

• Self-Priming: Pump can be installed remotely above ceiling or within a lineset cover

• CSA Certified (USA & Canada)

Whether you’re installing a new system or retrofitting an existing one, the Aspen Mini Orange Pump Kit from RectorSeal provides a compact, efficient, and virtually silent condensate removal solution.
